ZBD4500DSS - GE Monogram Built-In Dishwasher

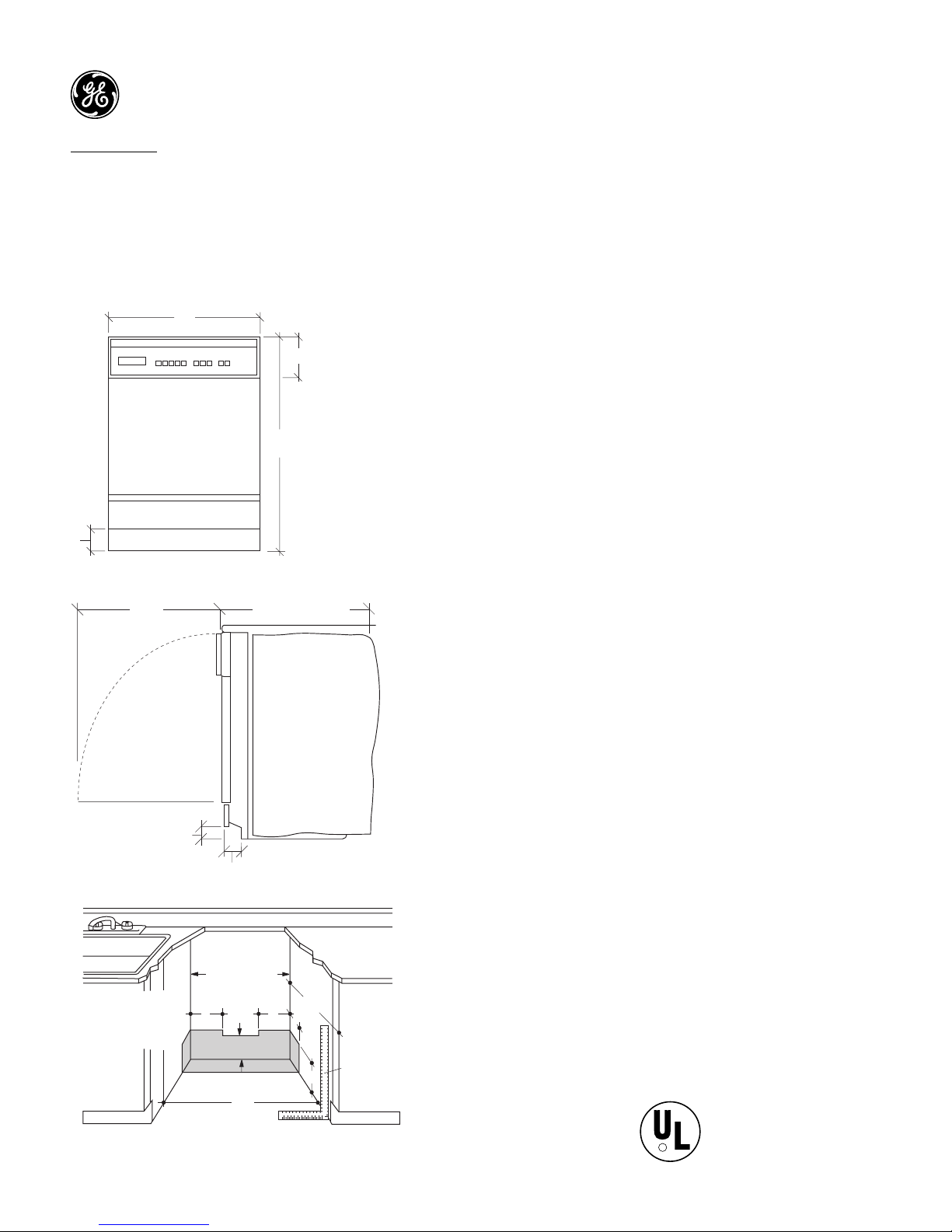

Dimensions and Specifications (in inches)
Design Information: Designed for versatility, these dishwashers adapt
to virtually any installation. This dishwasher is supplied as a stainless
steel model.
To achieve a custom flush appearance, standard 24" base cabinets
should be moved forward by use of spacer blocks.
Optional Kits:
• GPF53 Mounting Kit-Special brackets for installing dishwasher
beneath countertops of stone or other materials which will not
accept screws.
Additional Specifications: A 120 Volt, 60 Hz power supply is required
when using a power cord, an individual properly grounded branch
circuit protected by a 15 or 20 amp circuit breaker or time delay fuse is
recommended. Install a 3-prong electrical receptacle at least 6" above
the floor and within 18" of the right or left adjacent cabinet wall.
Otherwise wiring must enter the cutout in shaded area shown. A double,
side-by-side installation requires two separate circuits.
The hot water line must enter the cutout in the shaded area from the
right, left, rear or through the floor. The water line should be 3/8" O.D.
copper or 1/2" O.D. plastic. Installation of an easily accessible hand
shut-off valve is strongly recommended.
The dishwasher should be placed no more than 10 feet from the sink for
proper drainage.
For a corner installation, allow 2” clearance between dishwasher and
adjacent cabinet or wall.
24"
4"
4 1/2"
34" Min.
35" Max.
Toekick
24 3/4"
25"
(Including 1/4"
Rear Insulation)
3 1/4"
Plumbing and Electric Services
Must Enter Inside This Area
6"
24"
Min.
ThisWallArea
mustbeFreeof
Pipesorwires
34-1/2"±1/4"
Underside of
Countertop
to Floor 4"
24"
Min.
5" 5"
4"
Cabinets
Square
and Plumb
R
Listed by
Underwriters
Laboratories
Monogram.
™
Specification Revised 10/99
ZBD4500DSS - GE Monogram Built-In Dishwasher
Features and Benefits
• Three Wash Arms with Five Level Wash
• 100% Triple Water Filtration
• Anti-Jamming Hard Food Disposer
• Variable Cycle Selections: SaniWash,
Pots&Pans, Normal Wash, China/Crystal ,
SpeedWash™and Rinse and Hold
• Variable Options: Power Pre-Soak, Heated Dry,
2/4/8-Hr Delay Start, Lock and Start/Cancel/
Clear Pads
• Nylon Upper Rack with 2 Rows of Fold
Down Tines
• Super Nylon Lower Rack with 4 Rows of Fold
Down Tines
• Utility Shelf with Stemware Holders
• 3-Piece Silverware Basket with 2 Cell Covers
• Rinse Aid Dispenser with Indicator
• Electronic Controls with 11 Touchpads and
Cycle Progress Indicators
• Model ZBD4500DSS - Stainless Steel
• Model ZBD4200DWW - White on white
• Model ZBD4200DBB - Black on black
