Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

PDWT100/180R

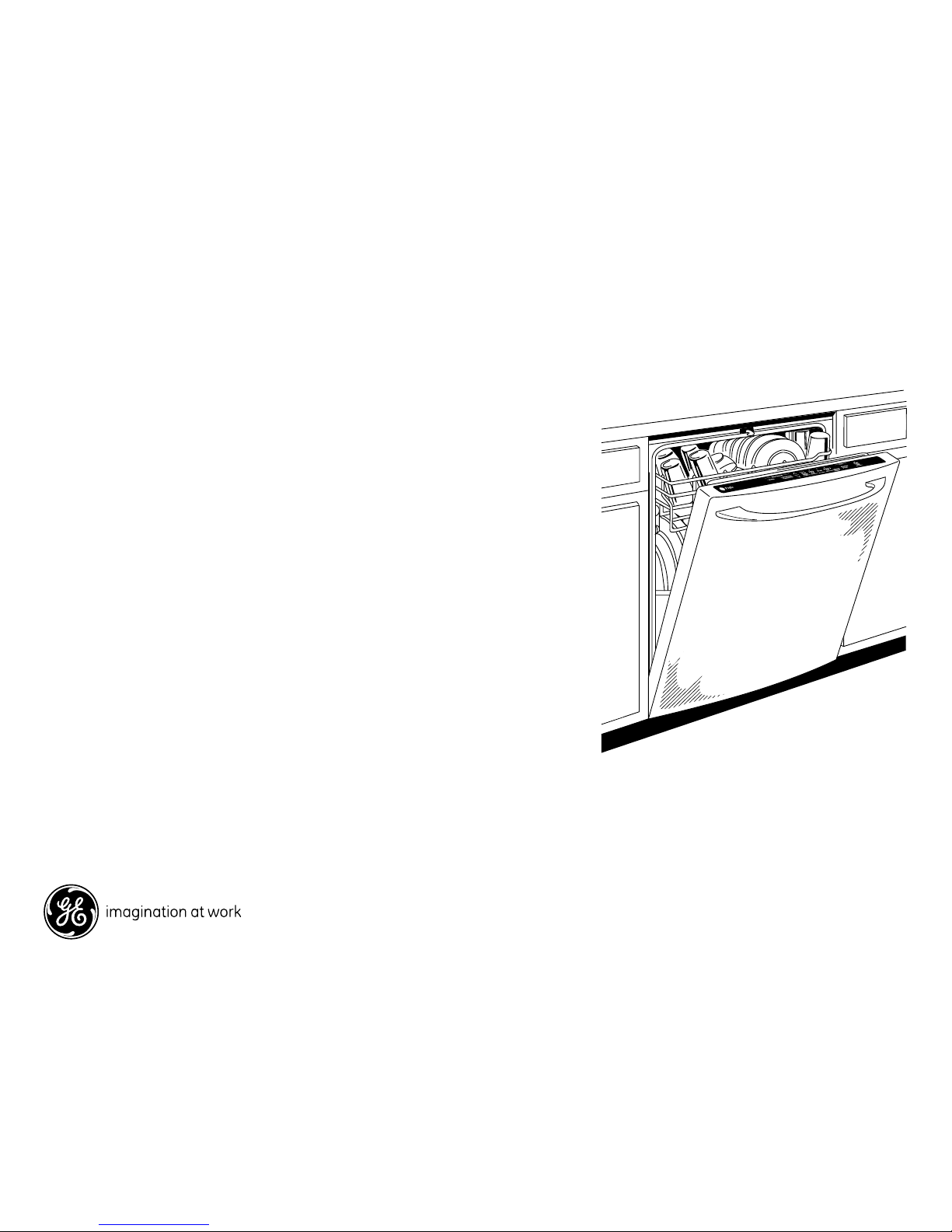

GE Profile™Stainless Interior Built-In Dishwasher with Hidden Controls

Specification Created 6/09 250228

Listed by

Underwriters

Laboratories

This wall area

must be free of

pipes or wires

Countertop

4

6

Hot

water

line on

left

44

2Plumbing and electrical

service must enter

inside shaded area

24" From wall

24" MIN.

90°

19" MIN. from wall

24"

MIN.

6

34" to 34-3/4"

Underside

of countertop

to floor

55

90°

Electrical

wiring on

right

Electrical

wiring is

3" from

cabinet

24

24-3/4*

21-1/4

3-1/2

4" (Adjustable)

33-13/16" MIN.

adj. to 35"

27-1/2

22-1/2

* Allow and additional 2.525" for the handle on

CDWT980 Series models.

Electrical Rating

Voltage AC.......................................................... 120

Hertz..................................................................... 60

Total connected load amperage............. 9.1

Calrod®heater watts max........................ 875

For use on adequately wired 120-volt,

15-amp circuit having 2-wire service

with a separate ground wire. This appliance

must be grounded for safe operation.

Installation Information: Before installing,

consult installation instructions packed with

product for current dimensional data.

†† Add 1/2" for deepest part of contour door.

Allow an additional 2” for the handle on

PDWT500/PDWT400/PDWT200 Series

models.

PDWT100/180R

GE Profile™Stainless Interior Built-In Dishwasher with Hidden Controls

Specification Created 6/09 250228

PDWT180RSS

Features and Benefits

• PureCleanwashsystemwith5-stagefiltration-Multiplefiltrationlevelsensure

clean dishes

• ENERGYSTAR®Qualified - Meets or exceeds federal guidelines for energy efficiency for

year-round energy and money savings

• CleanSensor™- A tiny laser measures soil levels and water temperature to adjust to the

ideal cycle time

• SteamPre-Washoption-Steamhelpstoloosentoughsoilsbeforeanycycle

• Eclipseblacknylondeep-tieredrack-Durableracksaredesignedtoresistrustand

secure dishes

• Electroniccontrolswith3cycles/5options-Moderncontrolsmakeiteasytoprogram

the dishwasher

• QuietPower™52 sound package - 52 dBA - An enhanced sound-deadening system

muffles noises and keeps the kitchen quiet

• Anti-bacterialselection-Cycleraisestemperatureupto151°Ftosanitizedishes,baby

bottles and sippy cups

• ModelPDWT180RSS-Stainlesssteel(shown)

• ModelPDWT100RWW-Whiteonwhite

• ModelPDWT100RBB-Blackonblack
