Dimensions and Installation Information (in inches)
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
Specification Created 8/08 250226
Listed by
Underwriters
Laboratories
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
44
2Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34" to 34-3/4"
Underside
of countertop
to floor
5 5
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
24
24-3/4††
21-1/4
3-1/2
4" (Adjustable)
33-13/16" MIN.
adj. to 35"
27-1/2
22-1/2
††Add 1/2" for deepest part of contour door.
Allow and additional 2" for the handle on
PDW9900/9200 Series models.
Electrical Rating
VoltageAC.......................................................... 120
Hertz..................................................................... 60
Total connected load amperage............. 9.1
Calrod®heater watts max........................ 875
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
†† Add 1/2" for deepest part of contour door.
Allow an additional 2” for the handle on
PDWT500/PDWT400/PDWT200 Series
models.
PDWT500/580P

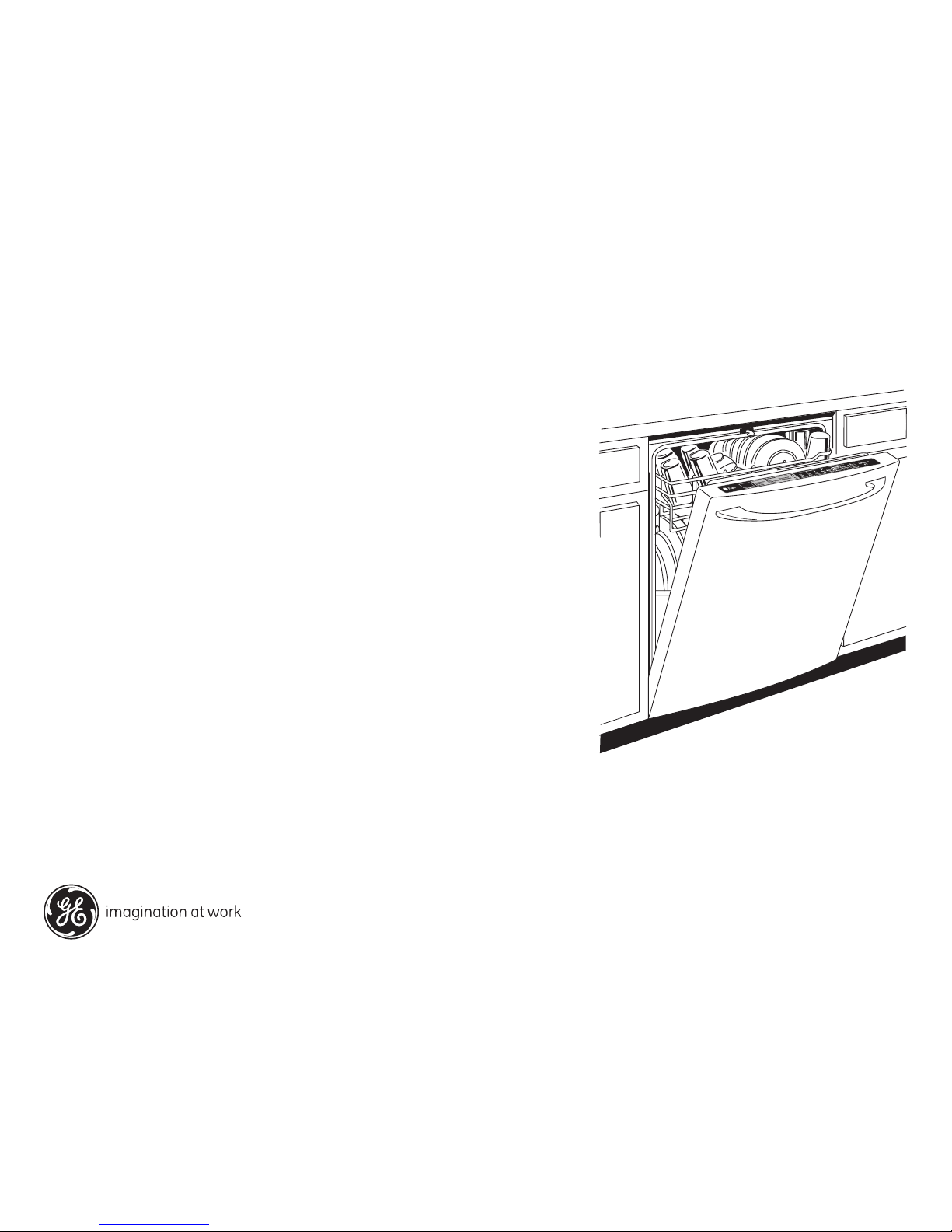

GE Profile™Dishwasher with SmartDispense™Technology
Specification Created 8/08 250226
PDWT500NWW/BB
Features and Benefits
• SmartDispense™Technology - Holds up to 47 fl. oz. of detergent and dispenses
it based on water hardness and soil levels
• DeepClean™Cycle with SmartDispense II Technology - Uses SmartDispense
II to inject a precise amount of detergent multiple times in the main wash to
maximize cleaning power and scrub away hard-to-remove foods
• Steam Pre-Wash Option - Helps to loosen tough soils before any cycle
• Angled Rack Dry™System - Rack allows dishes to rest at an angle, so water
runs off and drying time is reduced
• Four-Position Adjustable Upper Rack - Easy-to-use mechanism allows the
upper rack to be moved up, down or diagonally for additional loading flexibility
• Single Rack Wash™Selection - Perfect for smaller loads or for cleaning glasses
only, washing just the upper rack of dishes using less water and energy
• 100% Fold-Down Tines and Adaptable Bowl Tines in Lower Rack - Racks can
secure multiple bowls or fold down for additional flexibility
• Model PDWT580PSS - Stainless steel
• Model PDWT500PWW - White on white
• Model PDWT500PBB - Black on black
PDWT500/580P
GE Profile™Dishwasher with SmartDispense™Technology
