Specification Revised 7/02
ZGG36L21CSS – GE Monogram 36" Outdoor Cooking Center
Dimensions and Specifications (in inches)
36” Liquid Propane Gas Model:
2 Grill Burners, 1 Infrared Burner and 2 Side Burners
• Monogram Outdoor Cooking Centers are designed to be installed on a
grill cart or into an enclosure.
• These cooking centers are designed for outdoor use only. Do not
locate the grill in a building, garage or other enclosed area.
•Ensure that fresh air ventilation is adequate.
•Consider exposure to wind and proximity to traffic paths.
•The minimum clearances to combustibles must be maintained at
all times.
•Do not install a grill below overhead unprotected combustible
construction.
•The installation must conform to local codes or in the absence of local
codes, with the national fuel gas code, ANSI Z223 latest edition.
3" Min.
Lid Clearance
22-5/8"
25-3/8"
2"
9-1/2"
12-1/2"
35-7/8"
Note: Reference pub. no. 499-80009-2, Monogram Outdoor
Cooking Center Installation Instructions, for complete details.
Reference pub.no. 49-80008, Monogram Outdoor Cooking Center
Cart Installation Instructions, for complete details.
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series™
,
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Specification Revised 7/02
ZGG36L21CSS –GE Monogram 36" Outdoor Cooking Center
Dimensions and Specifications (in inches)

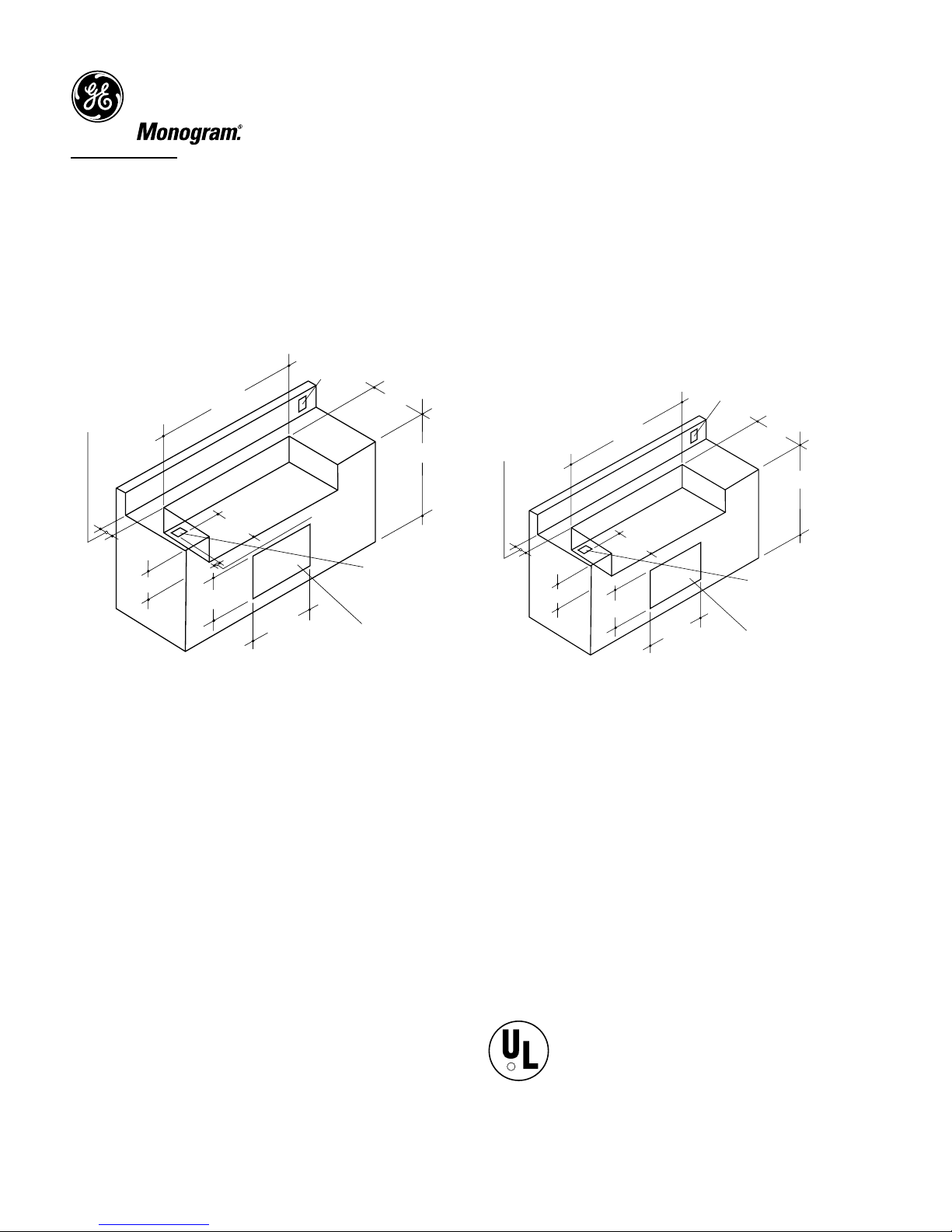

Installation in a non-combustible enclosure
•In a non-combustible (masonry) enclosure, the grill drops into the
opening. A deck or ledge on each side is required for support
from the bottom.
Installation in a combustible enclosure
ZX36JYSS insulated jacket is required.
•The insulated jacket must be supported from the bottom by a solid
deck or ledge on each side beneath the jacket.
•Construct the enclosure as shown and place the insulated jacket
into the enclosure. Place the cooking center into the jacket. No
installation hardware is required.
Clearances –All Models
•Allow 3”at the rear for lid clearance.
•Allow at least 12”clearance at the back of the grill when exhaust
is directed to a window or a surface that is difficult to clean.
•Allow at least 6”clearance on each side to any non-combustible
material located above the cooking surface for counterspace.
Rotisserie models also require 6”clearance for placing and
handling the motor and skewer.
•Allow at least 12”clearance on each side to combustible
vertical materials.
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series™
,
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
3" Min. for Lid
Clearance
34-1/2"
18-1/2"
22-3/4"
9-1/8"
24-1/8"
18-1/4"
4x4 Opening
for Gas Supply
Line
Opening
for Access
Doors
If Installing
an Electrical
Outlet for
the Rotisserie
Motor, Mount
on Right Side
(6.5 AMP Min.)
35-1/2"
3" Min. for Lid
Clearance
40-1/2"
18-1/2" 3-1/8"
23-3/4"
10-1/8"
24-1/8"
18-1/4"
4x4 Opening
for Gas Supply
Line
Opening
for Access
Doors
(6.5 AMP Min.)
35-1/2"
Specification Revised 7/02
ZGG36L21CSS –GE Monogram 36" Outdoor Cooking Center

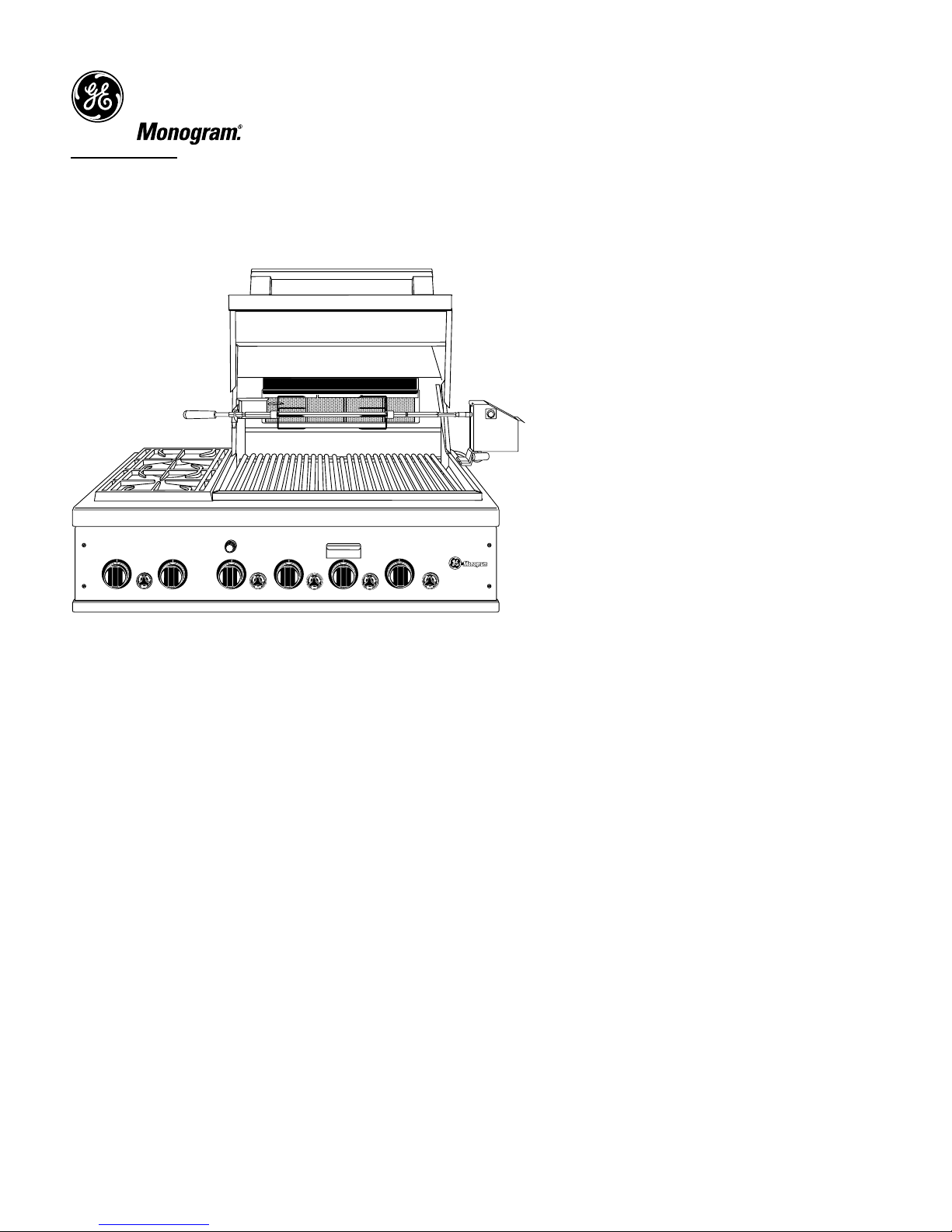

Features and Benefits
•Liquid Propane Model (LP Tank Included)
•2 (20,000 BTU) Cast-Iron Gas Grill Burners
•14,000 BTU Infrared Rotisserie System
•5,000 BTU Stainless Steel Gas Smoker Burner
•2 (15,000 BTU) Cast Iron Gas Cooktop Burners
•Warming Rack
•Rotary Multi-Spark Piezo Ignition
•Brass Control Valves
•Steel, Porcelain-Enameled Grill Grates
•Porcelainized, Cast-Iron Burner Grates
•Stainless Steel, Slide-Out Drip Tray
•Heavy Duty 304 Stainless Steel Construction
•Flexible Installation
•Model ZGG36N21CSS –Natural Gas
•Model ZGG36L21CSS –Liquid Propane Gas
GRILL
IGNITOR
SMOKER
IGNITOR
GRILL
IGNITOR
ROTESSERIE
IGNITOR
SMOKER GRILLGRILLROTISSERIE
HOLD10 SEC. WHILE LIGHTING
IGNITOR
REAR FRONT
