GENERAL SAFETY INFORMATION
(Continued)
fuel burning equipment to prevent back drafting. Follow
the heating equipment manufacturer’s guideline and
safety standards such as those published by the National
Fire Protection Association (NFPA) and the American
Society for Heating, Refrigeration, and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
CAUTION: FOR GENERAL VENTILATING USE
ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR
EXPLOSIVE MATERIALS AND VAPORS.
6. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
7. Ducted fans must always be vented to the outdoors.
8. This unit must be grounded.
9. To avoid motor bearing damage and noisy and/or
unbalanced impellers, keep drywall spray, construction
dust, etc. off power unit.
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY
SOLID-STATE SPEED CONTROL DEVICE.
WARNING: DO NOT INSTALL OVER A TUB OR
MOUNT IN A SHOWER STALL ENCLOSURE.
10. Do not install into a ceiling thermally insulated to a
value greater than R-40.
11. NEVER place a switch where it can be reached from
a tub or shower.
WARNING: DO NOT USE IN KITCHENS
WARNING: THIS UNIT IS DESIGNED AND TESTED
TO BE A SUPPLEMENTAL HEATER FOR USE WITH A
TIMER OR A SWITCH. IT IS NOT INTENDED TO BE USED
AS THE PRIMARY SOURCE OF HEAT AND CONTROLLED
BY A THERMOSTAT.
INSTALLATION INSTRUCTIONS
CAUTION: MAKE SURE POWER IS SWITCHED OFF
AT SERVICE PANEL BEFORE STARTING INSTALLATION.
SECTION 1
Preparing the Unit
1. Unpack fan from the carton and confirm that all pieces
are present. In addition to the unit you should have:
1 - Grill with Light Lens
4 - Mounting Rails
1 - Instruction/Safety Sheet
2. Remove the two machine screws holding the light
reflector in place. Keep the reflector and screws in
the carton until needed so they do not get damaged
or lost. (Figure 1).
3. Remove the wire compartment cover by loosening
the two screws holding the cover in place (Figure 2)
WARNING: DO NOT INSTALL OVER A TUB OR
MOUNT IN A SHOWER STALL ENCLOSURE.
4. Choose the location for your unit. To ensure the best
air and sound performance, it is recommended that
the length of ducting and the number of elbows be
kept to a minimum, and that insulated hard ducting
be used. Larger duct sizes will reduce noise and
airflow restrictions. This fan will require at least 7"
of clearance in the ceiling, and will mount through
drywall up to 3/4" thick. The fan can be mounted
directly to the joist using the mounting tabs on the
side of the housing or between
16" on center joists using the
4 provided mounting rails.
5. Remove the electrical
knockouts using a straight-
blade screw driver (Figure 3).
SECTION 2
New Construction
1. Mounting Rail Installation: Install the rails on the
housing and position the housing next to the joist.
Line up housing so it will be flush with the finished
2 of 8

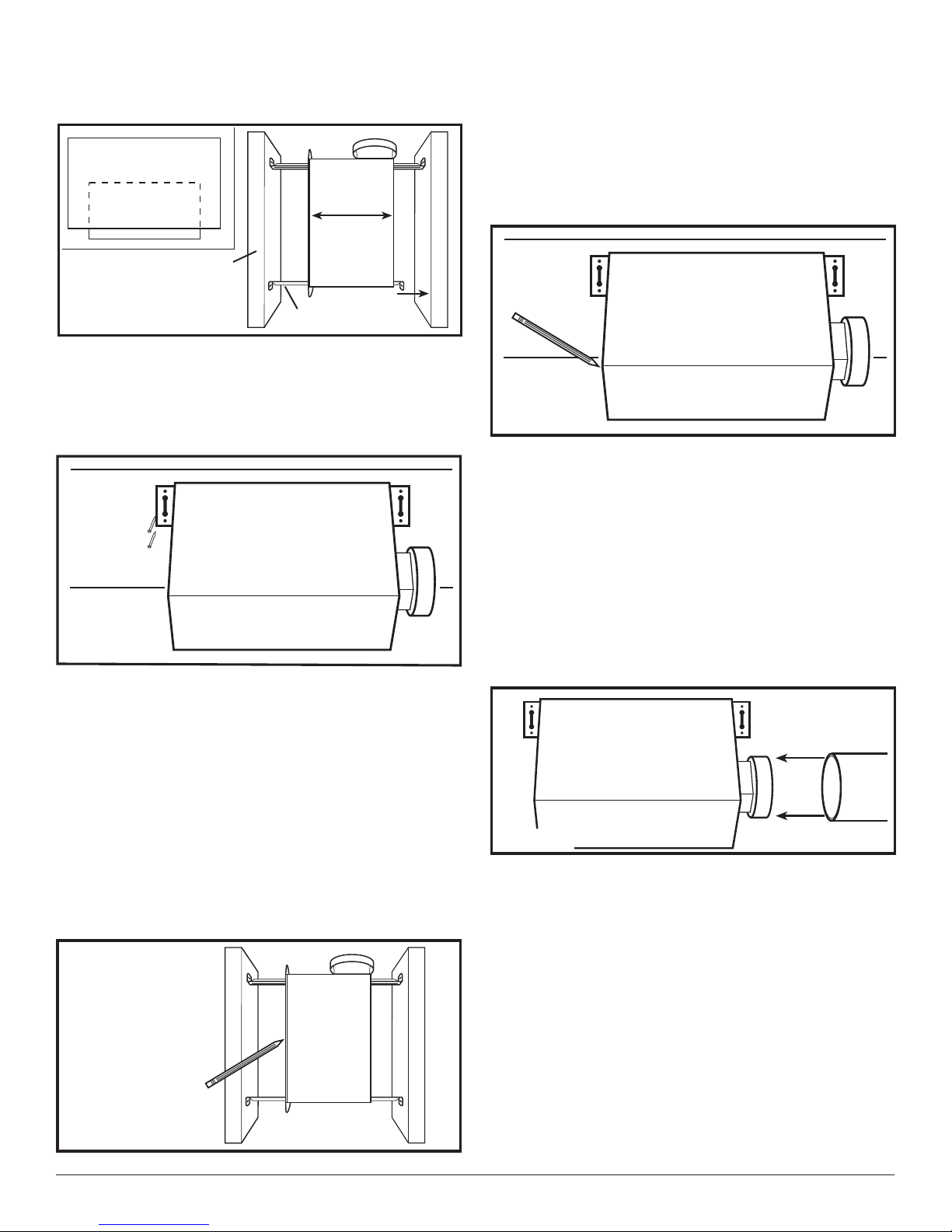

Figure 1
Screws

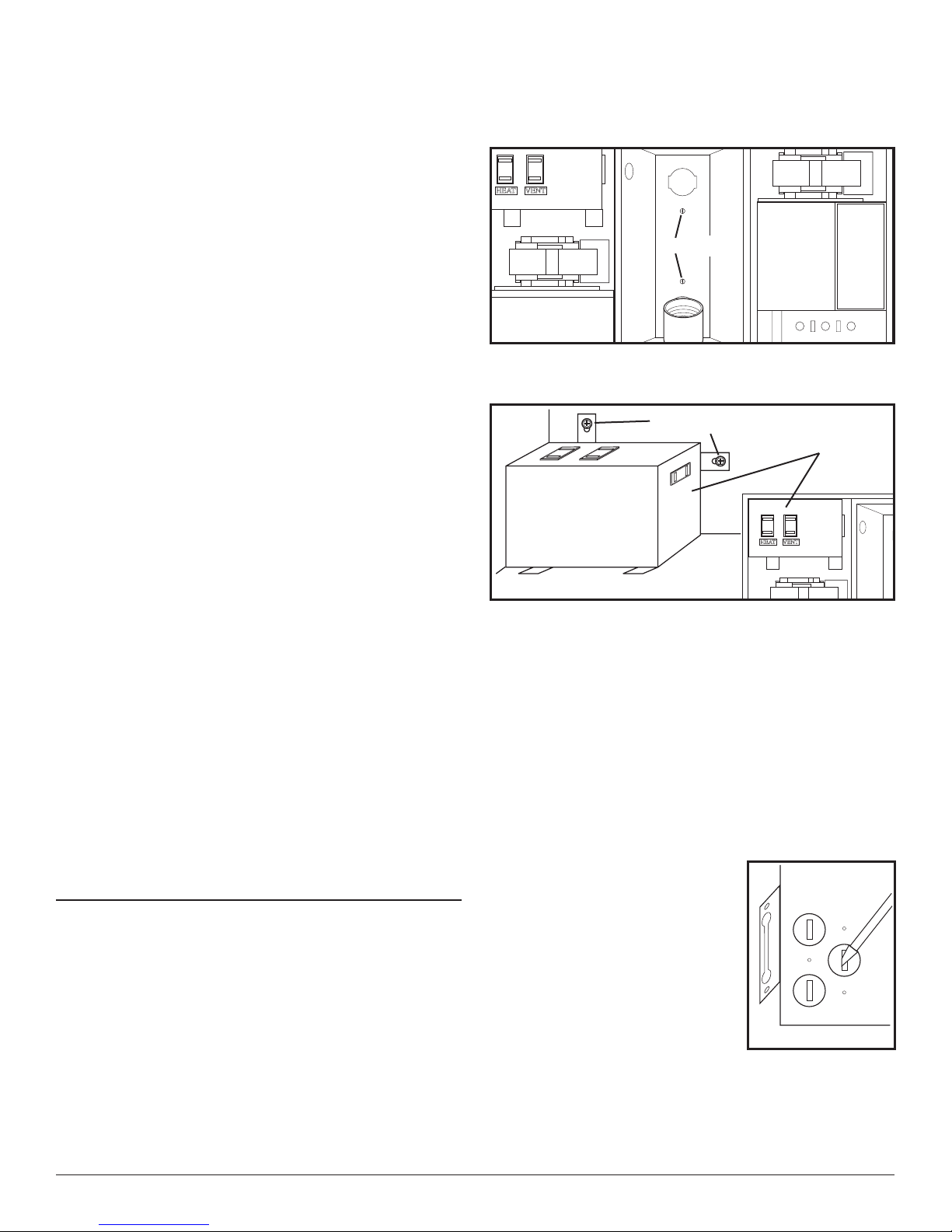

Figure 2
Screws Wire
Compartment
Cover
Figure 3
