GE 040315-0 ILLUSTRATED Guida all'installazione
Illustrated Parts List
IPL No. 209234 Rev.C (03/19/2010)
7000 Watt
Home Generator
System
MODEL
040315-0
Not for
Reproduction

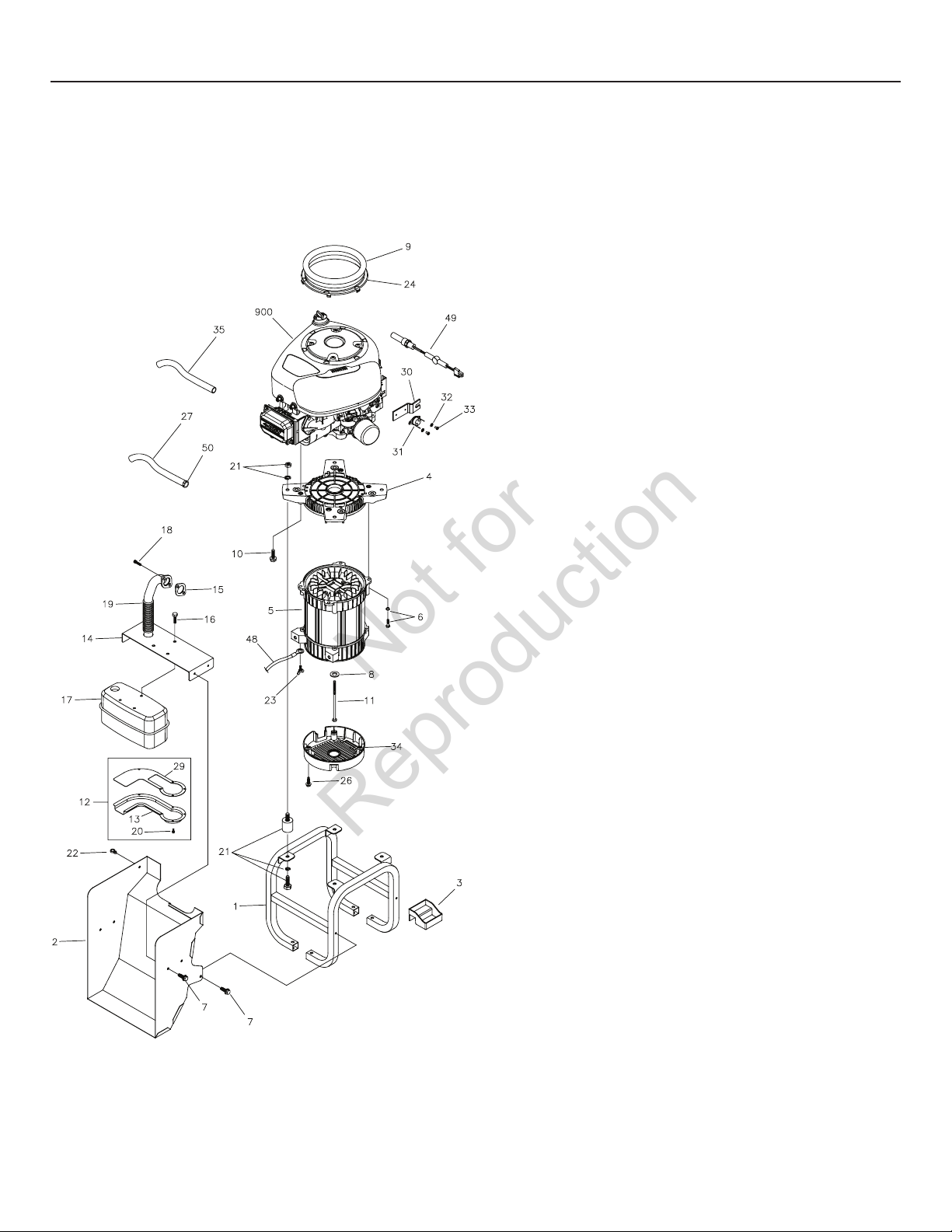

Exploded View & Illustrated Parts List - Main Unit
Item Part # Description
1 B191860GS CRADLE
2 194568GS DUCT
3 193536GS TRAY-OIL DRAIN
4 191793GS ADAPTER-ENGINE
5 NSP ALTERNATOR
6 194728GS KIT-HARDWARE ADAPTER
7 B4300GS BOLT
8 96796GS WASHER
9 208103GS SEAL
10 2830598SM TAPTITE
11 187365HGS HHCS-5/16-24 x 9.84
12 207270GS DEFLECTOR-MUFFLER
13 193475GS DEFLECTOR
14 206856GS BRACKET-MUFFLER
15 692236 GASKET
16 83512GS TAPTITE
17 207059GS MUFFLER
18 698941 SCREW
19 194159GS PIPE-EXHAUST
20 195008GS KIT-HARDWARE DEFLECTOR
21 194209GS KIT-VIBRATION MOUNT
22 192940GS CLIP
23 86494GS SCREW
24 192853GS COLLAR-AIR INLET
26 74908GS TAPTITE
27 206817GS HOSE-FUEL
29 194221GS ARRESTOR-SPARK
30 206047GS PLATE-TEMP SWITCH
31 206045GS SWITCH
32 27772GS WASHER
33 * PPHMS-4-40 x .019
34 192906GS COVER-REAR BEARING
35 1723165SM HOSE-OIL DRAIN
48 15253621GS WIRE
49 01916 WARMER-OIL
50 57822GS CLAMP
900 § ENGINE
Items Not Illustrated
207985GS MANUAL-OPERATOR
209431GS MANUAL-INSTALL
277766TRI MANUAL-ENGINE
208193GS KIT-MANUAL ACC
202295GS FLEX HOSE
198811GS PAINT-TOUCHUP SILVER
207337GS KIT-LED REMOTE
790263 FILTER-CARTRIDGE
492392B FILTER-OIL
195069GS KIT-LP CONVERSION
196731BGS BIT-SCREW
Optional Accessories
01915 WARMER-BATTERY
6034 KIT-MAINTENANCE
199475GS PAINT-SPRAY SILVER
* - Items without part numbers are common fasteners and are
available at local hardware stores.
§ - Contact Engine Manufacturer
2
Not for
Reproduction

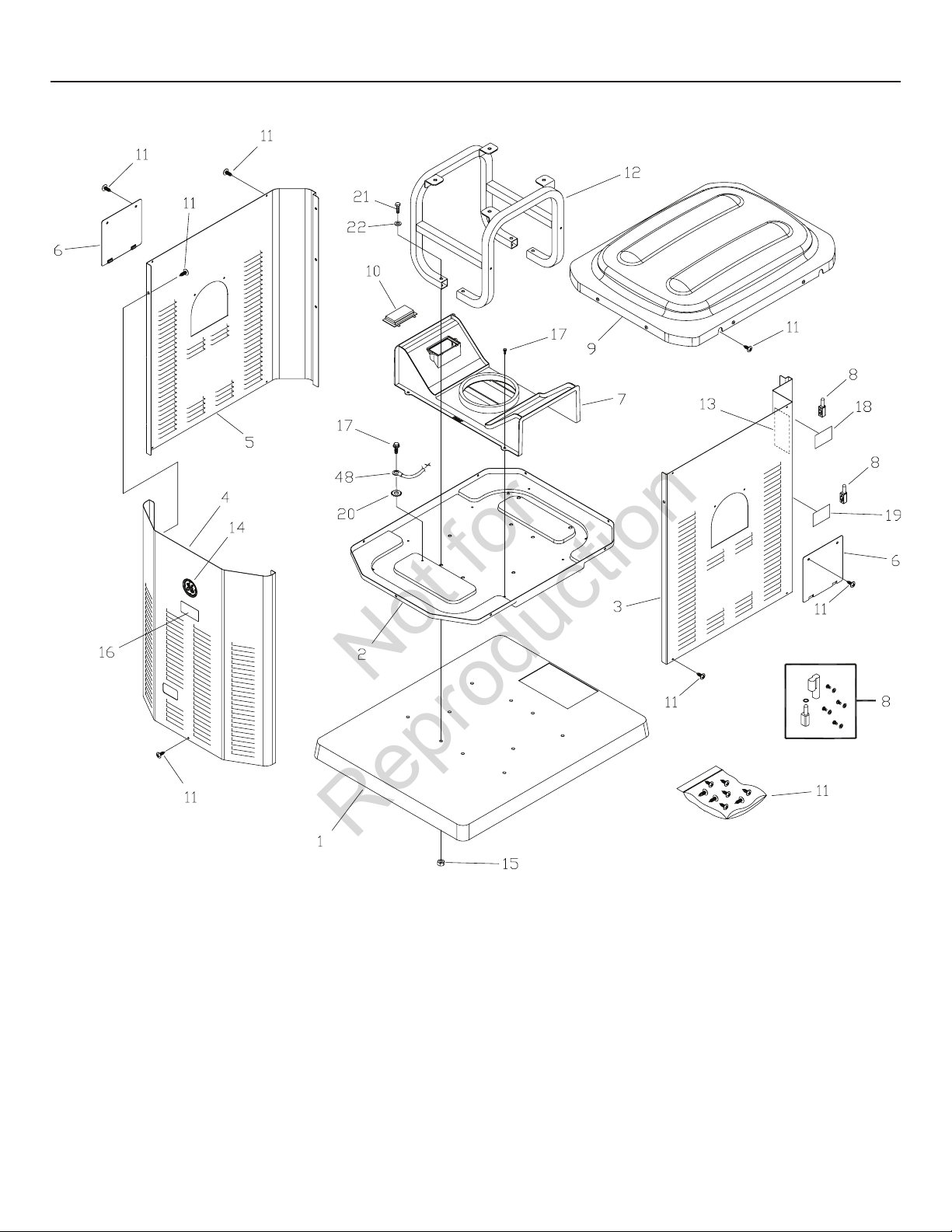

Exploded View & Illustrated Parts List - Enclosure
3
Item Part # Description
1 192441AGS PAD-MOUNTING
2 T191852GS BASE
3 208198GS PANEL-SIDE
4 208197GS PANEL
5 208199GS PANEL-SIDE
6 T208787GS COVER-OIL FILTER
7 195228GS DUCT
8 198890GS HINGE
9 207586GS ROOF
10 196070GS REGULATOR-VOLTAGE
11 206387GS KIT-HARDWARE ENCLOSURE
12 B191860GS CRADLE
13 206824GS DECAL
14 207095GS DECAL
Item Part # Description
15 * NUT-5/16-18, FLANGE SERRATED
16 200409GS DECAL
17 B4300GS BOLT
18 195642GS DECAL
19 186643GS DECAL
20 * WASHER-SHAKEPROOF, EXT M6-1/4
21 * HHCS-5/16-18 x 2
22 * WASHER-FLAT 5/16-M8
48 15253621GS WIRE
* - Items without part numbers are common fasteners and are
available at local hardware stores.
Not for
Reproduction
4
Exploded View - Control Panel
Not for
Reproduction
Item Part # Description
1 207903GS BOX-CONTROL PANEL
2 207176GS BOARD-CIRCUIT
3 T207012GS PANEL-ACCESS
4 T201825GS PANEL-CONTROL
5 192445GS SCREW
6 208789GS BREAKER-CIRCUIT 30A
7 205947GS SCREW
8 205394GS DECAL
9 * WASHER-SHAKEPROOF #6
10 * PPHMS-#6-32 x 3/8”
11 * SCREW-#10 x 5/8
12 205397GS DECAL
13 194683GS SOLENOID-GAS FUEL
14 186173GS BUSHING-SNAP
15 203015GS BUSHING-SNAP
16 192449GS FITTING
17 * HHCS-M6-1.0 x 30
18 192940GS CLIP
19 199011GS LUG
20 * WASHER-SHAKEPROOF EXT M6-1/4
21 B4300GS BOLT
22 193171GS CABLE-BTTRY, RED
206609GS DECAL
23 691656 CONTACTOR-STARTER
24 194659GS WIRE
25 194251GS KIT-HARDWARE
26 188573AGS CABLE-BTTRY, BLK
206609GS DECAL
27 * WASHER-SHAKEPROOF EXT #10
28 205992GS CONNECTOR-10 PIN
29 205991GS CONNECTOR-2 PIN
Item Part # Description
30 193291GS REGULATOR-NG/LPG
31 186151GS FITTING
32 186148GS HOSE-FLEX NG/LPG
33 205955GS FITTING
34 T207901GS SUPPORT RAIL
35 * NUT-M6 - 1.0
36 * NUT-1/4-20
37 * HHCS-1/4 - 20 x 3/4
38 197493GS BUSHING-SNAP
39 * LOCKWASHER-1/4
40 186582GS BUSHING-SNAP
41 B4986GS DECAL
42 193297GS DECAL
43 196699GS DECAL
44 207040GS INSULATION
45 198890GS HINGE
46 207652GS KEY-LATCH
47 209538GS LATCH
48 193664GS INSULATION
51 206318GS HARNESS-WIRING
52 198894GS HARNESS-WIRING
Items Not Illustrated
198573GS FUSE
* - Items without part numbers are common fasteners and are
available at local hardware stores.
Illustrated Parts List - Control Panel
Not for
Reproduction
6
Exploded View & Illustrated Parts List - Alternator
Item Part # Description
1 209599GS ADAPTER-ALTERNATOR
2 195430GS ROTOR
3 206542GS STATOR
4 193336GS RBC (with O-Ring p/n 189197GS)
5 86308KGS BOLT
6 66386GS ASSY-BRUSH
7 66849GS TAPTITE
9 81917GS PIN
10 193472GS HARNESS-WIRING
11 192906GS COVER-REAR BEARING
12 74908GS TAPTITE
13 65791GS BEARING
is a trademark of General Electric Company
and is under license by Briggs & Stratton
Power Products Group, LLC.
Copyright © 2010. All rights reserved. No part of this material may
be reproduced or transmitted in any form without the express
written permission of Briggs & Stratton Power Products Group, LLC.
Not for
Reproduction
