GE LED Security Ligh Manuale utente
www.jascoproducts.com
1-800-654-8483
MOTION-ACTIVATED
LED Security Light
User Manual
2
Thank you for purchasing the GE LED Security Light with Motion
Activation control. This economical, energy efficient LED light has been de-
signed to allow easy installation, flexible mounting options and
provide exceptional light output with minimum power consumption.
Please read all the Instructions carefully. Keep them for future reference.

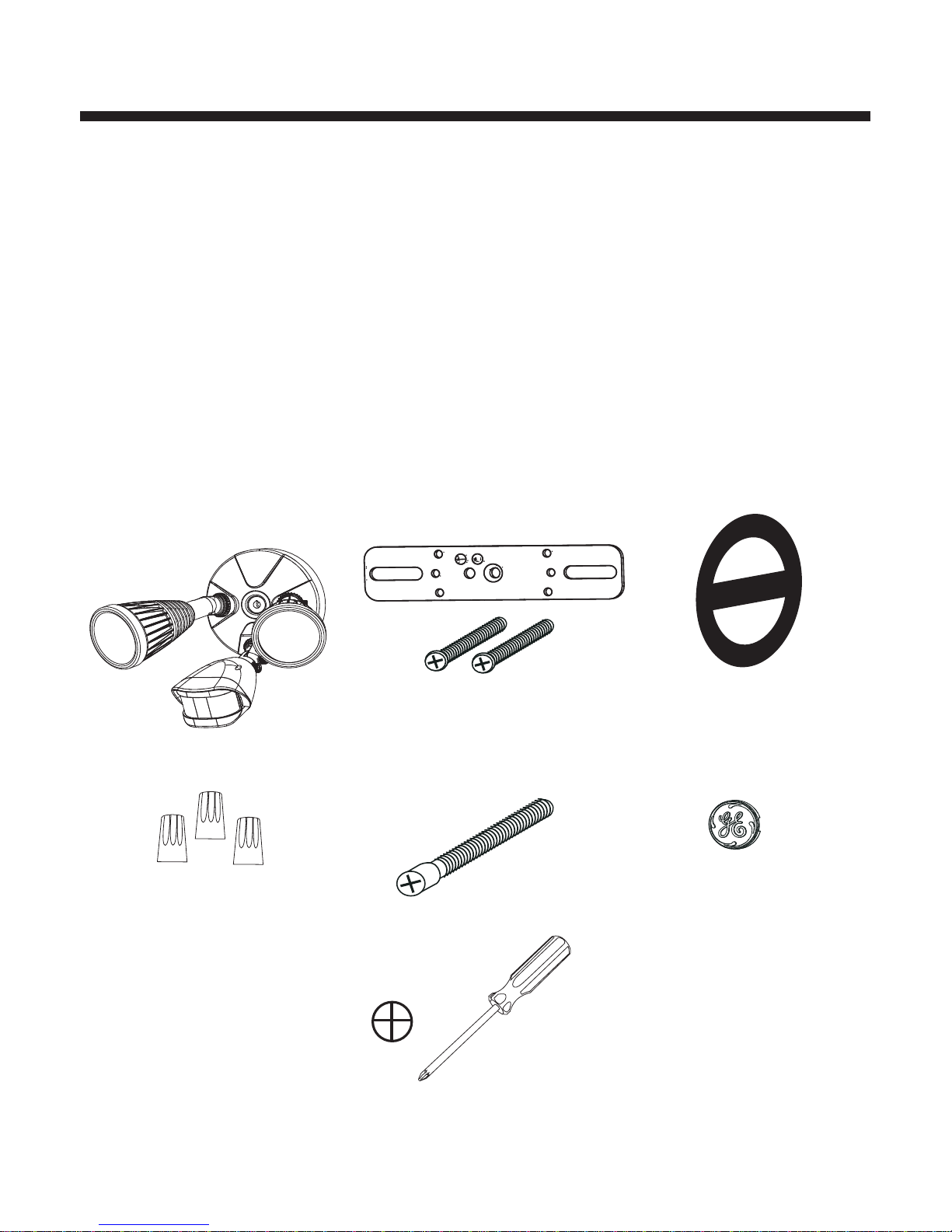

PARTS LIST
Before installing please ensure all the following items are
included in the package:
TOOLS NEEDED
Phillips head screwdriver #2
LED Security light with
two light housings
and motion sensor
Mounting plate
and screws Gasket
3 Wire Connectors GE BadgeMounting Bolt
3
Questions? Problems? Missing Parts?
If you have any questions regarding the installation or operation of the
product, Before returning to Retailer, please contact Technical Support at
1-800-654-8483,option 4.
Consult a local licensed electrician or electrical contractor if you are not
sure about the installation. Always install wiring connections in accor-
dance with local code, ordinances and National Electric Code.
WARNING: The LED light output is strong enough to injure human eyes.
Do not stare directly at the LEDs for more than a few seconds.
WARNING: Turn power off at circuit breaker or fuse box. Do Not rely
on a wall switch alone to turn off power.
4
INSTALLATION
Select an existing light fixture, either wall or eave mount for replacement.
Note: The fixture must be connected to 120v, 60Hz power source.
MOUNTING PREPARATION FOR THE LED LIGHT FIXTURE
Note: For maximum flexibility, the LED Security Light can be mounted on a
wall (vertical) or under the eave (horizontal).
Eave Mount Wall Mount
LED Housing
Lock Nut
Motion
Sensor
Adjustment Knob Cover
Housing
Mounting
Plate
Time Adjustment
for Lights
Dusk/Dawn
Adjustment
5
Locate the adjustment knob and lock nut on the LED fixture. Loosen both and
position LED light housings into the approximate position prior to mount-
ing. For wall mount, the LED light housings should be positioned above the
motion sensor. For under eave mount, position cover housing horizontally so
that LED light housings are facing outward, away from the wall and motion
sensor is positioned in front of LED light housings.
Fine tune adjustment can be completed after LED light fixture is mounted to
junction box.
WIRE CONNECTION
1. Remove the existing light fixture and disconnect house wires (black, white
and ground).
2. Install mounting plate to junction box as shown using two mounting
screws (included). Install screws until snug so that mounting plate does not
move. Do not over tighten screws. See Fig. A.
3. Position gasket over junction box. Route black, white and ground house
wires through one of the large openings of the gasket. See Fig. B.
WARNING: Turn power off at circuit breaker or fuse box. Do Not rely
on a wall switch alone to turn off power.
Fig. A Fig. B
6
4. Locate black, white and ground wires coming from LED light fixture. Strip
wires 3/8” (9.5mm) if not previously stripped. Hold BLACK house wire and
BLACK fixture wire together with ends even. Align any frayed strands or con-
ductors. Push wires into wire nut and screw ClockWise until two twists are
visible in the wires. Repeat above procedure for both the WHITE house wire
and the WHITE fixture wire. Repeat above procedure for both the GREEN or
BARE COPPER house wire and the BARE COPPER fixture wire.
5. Insert mounting bolt through center
of cover housing as shown. Align
mounting bolt thru the small center hole
of gasket to hold gasket in place.
Position cover housing and gasket over
the junction box. Align center bolt with
center hole of mounting plate. Using
Phillips screwdriver, screw mounting bolt
into mounting plate until LED light
fixture is snug; do not over-tighten.
6. Cover mounting bolt by inserting GE badge into hole;
align badge with mounting slots. Press in until snug.
7. If a location junction box was not used, caulk edge of
cover housing surface with silicone weather resistant
sealant (not included).
Mounting Plate
Black to
Black
White to
White
House ground
wire to copper
ground wire from
fixture
Gasket
!
!
!
7
ADJUSTING LIGHT HOUSINGS
1. Slightly loosen adjustment knob and lock nut for
one housing at a time. Gently position LED housing
to final desired position. Tighten adjustment knob
and lock nut. If necessary, follow same adjusting for
the other Light Housing.
2. Turn on power at circuit breaker or fuse box. Turn on light switch (if pres-
ent). Check LED light output to ensure proper coverage.
TEST MODE, INITIAL SET-UP
Note: After power is turned on, the motion sensor requires approximately
one minute to ‘warm-up’ before it will detect motion levels.
The LED light fixture is pre-set to the ‘TEST’ mode
from the factory to help you position the mo-
tion sensor so it can detect motion in the desired
area. In ‘TEST’ mode, the LED lights will turn on for
approximately 5 seconds each time motion is de-
tected (including during daylight). After complet-
ing the test set-up, you can adjust the time the
lights remain on from 1 to 10 minutes (variable).
While in ‘TEST’ mode the lights will turn on during
daylight.
Adjustment
Knob
Time
TEST
MAX
MAX
Dark
Focused spot with surrounding flood for
entrances, driveway or cars, gate access, etc.
Broad spot with expanded flood
for yards, large areas, decks, etc.
Focused flood for fence line,
shed or remote building,
detached garage, side of
house, boat, trailer, etc.
OPTIMIZED LIGHT OUTPUT
Provides a variety of lighting applications. Simply adjust the angle of the lights.
8
MOTION SENSOR POSITION SET-UP
Note: The motion detection range has been set to a maximum sensitivity, up
to 60ft. This is the optimum, reliable distance. At longer distances, there is
a greater tendency for ‘false activations’. Maximum sensitivity distance will
vary based on outside conditions (temperature, weather), mounting location
and detection angle.
1. Ensure power is turned on to the
LED Light fixture.
2. Loosen the adjustment knob and lock nut for the
motion detection sensor and position it
so points outward toward the approximate middle
of the area to be detected.
3. Angle the Motion sensor slightly downward (ap-
proximately 10-15°). This will create a maximum
detection area with the most accuracy, from 6ft to 60ft.
Avoid pointing sensor too far downward as this will reduce detection cover-
age and overall distance. If the sensor is pointed too high, it may not detect
movement closer to the fixture. It may be necessary to make minor adjust-
ments until you have the sensor set to the optimum position.
4. Position the sensor so any areas to the far left or far right are covered.
Distance outward from the sensor is fixed, so no adjustments are necessary.
The detection pattern is similar to a half circle, however it will detect farther
ahead than on each side.
Adjustment
Knob
Lock
nut
Too Far To Close Best Option
9
Important Note:
(1) Do not point motion sensor toward bright lights or reflective surfaces
as this will affect accuracy of the motion sensor.
(2) Avoid areas with heavy traffic or pet areas as this may trigger lights
consistently.
(3) Avoid pointing sensor directly towards severe temperature surfaces
such as heating vents, air conditioners, driveway or asphalt surfaces,
large light-colored objects that reflect heat, or other light sources. These
heat sources can generate ‘false activations’ and reduce motion sensor
distance.
5. Ensure the ‘Time’ knob is set to ‘TEST’ (rotate
counter-clockwise to left). The Dark knob is set to
the minimum position (rotate counter-clockwise
to left). In this ‘TEST’ mode, the lights will turn on
for 5 seconds after motion is detected and then
turn off. In the ‘TEST’ mode, the lights will turn
on during daylight.
6. To test motion activation coverage, walk
through detection area noting your position when the lights turn on. To
increase the coverage area, raise the motion sensor up slightly. To reduce
the coverage area, position the sensor downward slightly. Once optimum
coverage set, tighten lock nut and adjustment knob until snug. Do not over-
tighten.
7. Once you have completed the test set-up, adjust the ‘Time’ setting from
‘Test’ position from 1 to 10 minutes as desired. When out of ‘TEST’ mode, the
LEDs lights will not turn on during daylight hours when motion is detected.
Time
TEST
MAX
MAX
Dark
10
DUSK/DAWN LIGHT LEVEL ACTIVATION SETTING
The LED light fixture has an adjustable light level activation setting
labeled ‘Dark’. This adjustment allows you to determine when the
LED lights will turn on based upon the darkness level outside. In
some situations, depending upon on where the fixture is located,
you may wish to have the LED lights turn on sooner (example-the
LED light fixture is positioned in a shaded area). Or you may wish
to have the LED lights turn on when it is darker outside.(example -
the LED light fixture is located in an area that receives direct
afternoon sunlight).
1. To set lights to turn on under darker conditions, rotate DARK
knob to the right (clockwise) to ‘Max’ position.
2. To set lights to turn on under lighter conditions turn rotate
knob to the left (counter-clockwise) to ‘Min’ position.
3. It may be necessary to make minor adjustments until
satisfied with activation levels.
Time
TEST
MAX
MAX
Dark
Time
TEST
MAX
MAX
Dark
Time
TEST
MAX
MAX
Dark
