JVM3670SK – GE Profile™ 36” Spacemaker® 1.8 Cu. Ft. Over-the-Range Microwave Oven

Dimensions (in inches)

Note: Requires 120V grounded outlet. Electrical receptacle must be

located in cabinet above Spacemaker microwave oven. No additional

wiring, venting or cabinet rebuilding necessary in many cases. Complete

detailed, easy-to-follow installation instructions and convenient full-size

templates are packed with the Spacemaker microwave oven.

Important Information: When installing the Spacemaker microwave oven

over a range, allow minimum of 2" from bottom of Spacemaker microwave

oven to top of range backguard to allow for removal of light covers.

Installation Information: This information is not intended to be used for

installing unit described. Before installing, consult installation instructions

packed with product/kit for current dimensional data.

21-3/4"

Door open

16-1/2

66" MIN.

Mounting

height

from floor

36" MIN.

width required

MAX.

Exhaust outlet

connects to

3-1/4" X 10" duct

12"

15-3/4

Listed by

Underwriters

Laboratories

For answers to your Monogram,

® GE Profile™ or

GE appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center® service, 800.626.2000.

Specification Created 9/05

240268

Optional Accessories (Available at additional cost)

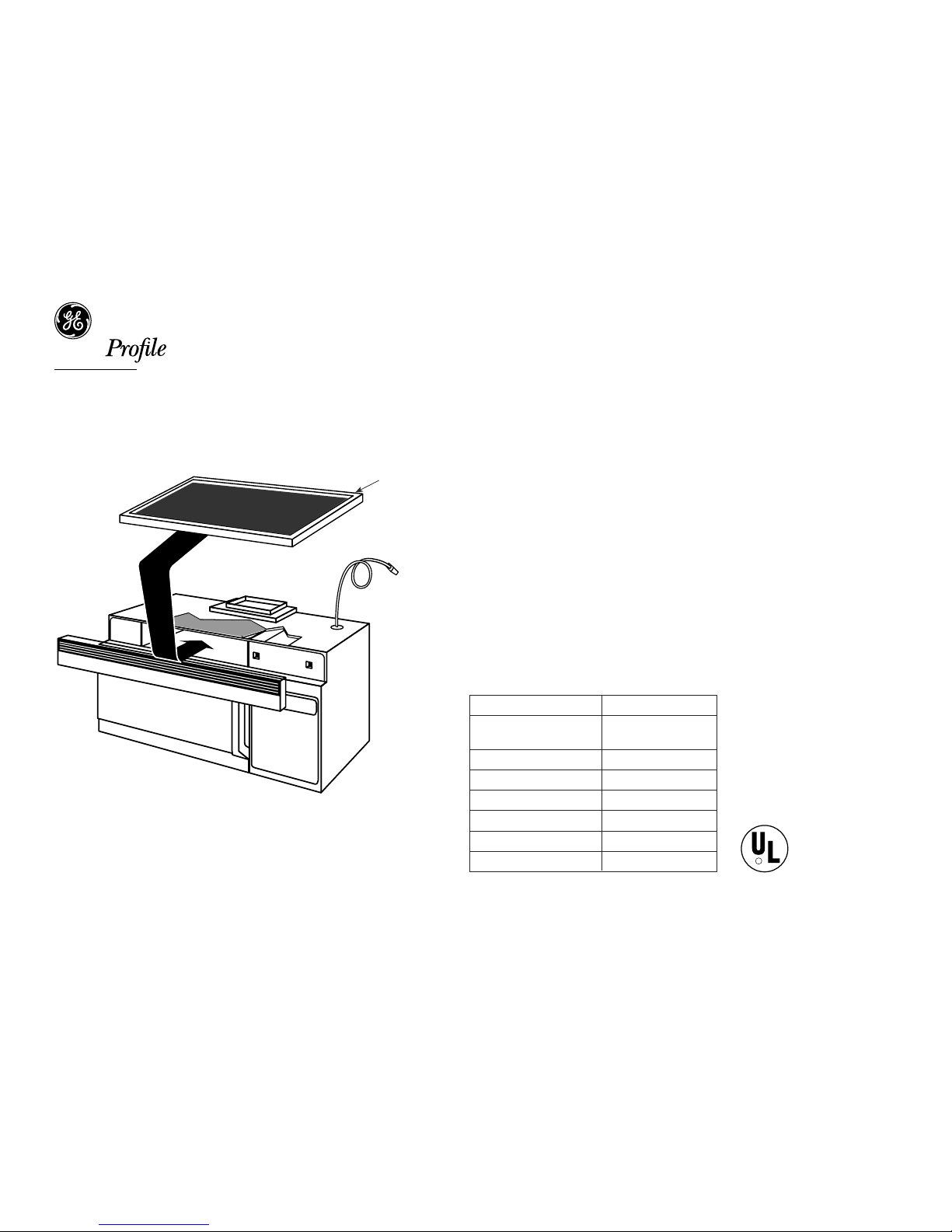

HOOD EXHAUST DUCT

Outside ventilation requires a HOOD EXHAUST DUCT. Read the following carefully.

EXHAUST CONNECTION: The hood exhaust has been designed to mate with a standard

3-1/4” x 10” rectangular duct.If a round duct is required, a rectangular-to-round transition adaptor

must be used. Do not use less than a 6” diameter duct

REAR EXHAUST: If a rear or horizontal exhaust is to be used, care should be taken to align exhaust

with space between studs,or wall should be prepared at the time it is constructed by leaving enough

space between the wall studs to accommodate exhaust.

MAXIMUM DUCT LENGTH: For satisfactory air movement, the total duct length of 3-1/4” x 10”

rectangular or 6” diameter round duct should not exceed 140 equivalent feet.

ELBOWS, TRANSITIONS,WALL AND ROOF CAPS, etc., present additional resistance to airflow

and are equivalent to a section of straight duct which is longer than their actual physical size. When

calculating the total duct length, add the equivalent length of all transitions and adaptors plus the

lengths of all straight duct sections. The chart below shows the approximate feet of equivalent

length of some typical ducts.

Filter Kits

JX81B–Recirculating

Charcoal Filter Kit

To be used when the

Spacemaker microwave

oven cannot be vented

to the outside.

Duct Equivalent Feet

A. Rectangular-To-round 5 ft.

Transition Adaptor

B. Wall Cap 40 ft.

C. 90° Elbow 10 ft.

D. 45° Elbow 5 ft.

E. 90° Elbow 25 ft.

F. 45° Elbow 5 ft.

G. Roof Cap 24 ft.

Listed by

Underwriters

Laboratories

For answers to your Monogram,

® GE Profile™ or

GE appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center® service, 800.626.2000.

JVM3670SK – GE Profile™ 36” Spacemaker® 1.8 Cu. Ft. Over-the-Range Microwave Oven

Specification Created 9/05

240268

EXPRESS COOK

CLEAR

OFF

START

PAUSE

POWER

LEVEL

ADD

30 SEC.

TIME

COOK

AUTO / QUICK

DEFROST

TIME

DEFROST

CUSTOMCLOCK

AM / PM

DELAY

START

VENT FAN SURFACE

LIGHT

VENT FAN

BOOST

BEVERAGE POTATO CHICKEN/

FISH

POPCORN

VEGETABLE

REHEAT

ONE TOUCH SENSOR

OPTIONS

TURNTABLE

HELP

MESSAGE

REMINDER

TIMER

Spacemaker

Profile

JVM3660.EPS

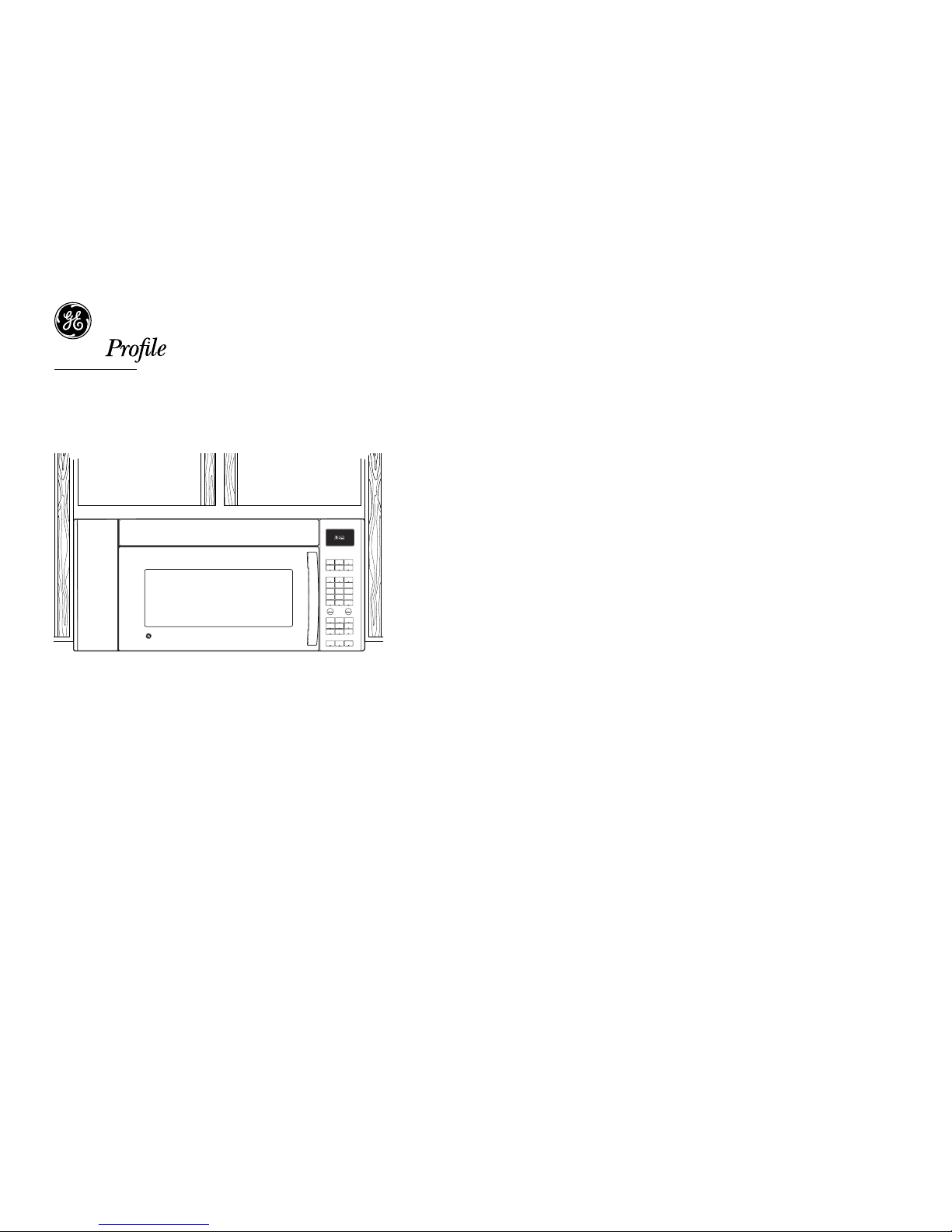

Features and Benefits

• 1.8 cu. ft. Cavity/Powerful 1100 Watts*

• New GE Profile™ Appearance and Sculptured Handle

• Electronic Touch Controls

• Custom Pads and One Touch Sensor Cooking Controls for Chicken, Fish,

Beverage, Popcorn, Potatoes, Reheat and Vegetables

• Recessed Turntable (On/Off) and Removable Cooking Rack

• SmartControl System with Interactive Electric Scrolling Digital Display

• Three Speed, High-Capacity Exhaust Fan with Boost (300 CFM)/Halogen Cooktop

Lighting and Halogen Cavity Light

• Auto Defrost/Time Defrost/Quick Defrost

• Display On/Off (Bilingual)

• Express Cook (1-6 mins.) with Instant-On Controls

• CircuWave™ 1100 with 10 Power Levels

• Clock and AM/PM Pad

• Complete Cooking Reminder with Beeper Volume Control

• Easy Mount Installation

• Bright View Window and Designer-Style Handle

• Model JVM3670SK – Stainless steel

*IEC-705 Test Procedure

JVM3670SK – GE Profile™ 36” Spacemaker® 1.8 Cu. Ft. Over-the-Range Microwave Oven

Specification Created 9/05

240268
