OWNER’S MANUAL
SAFETY INFORMATION.................. 3
USING THE OVEN
Features .............................................................7

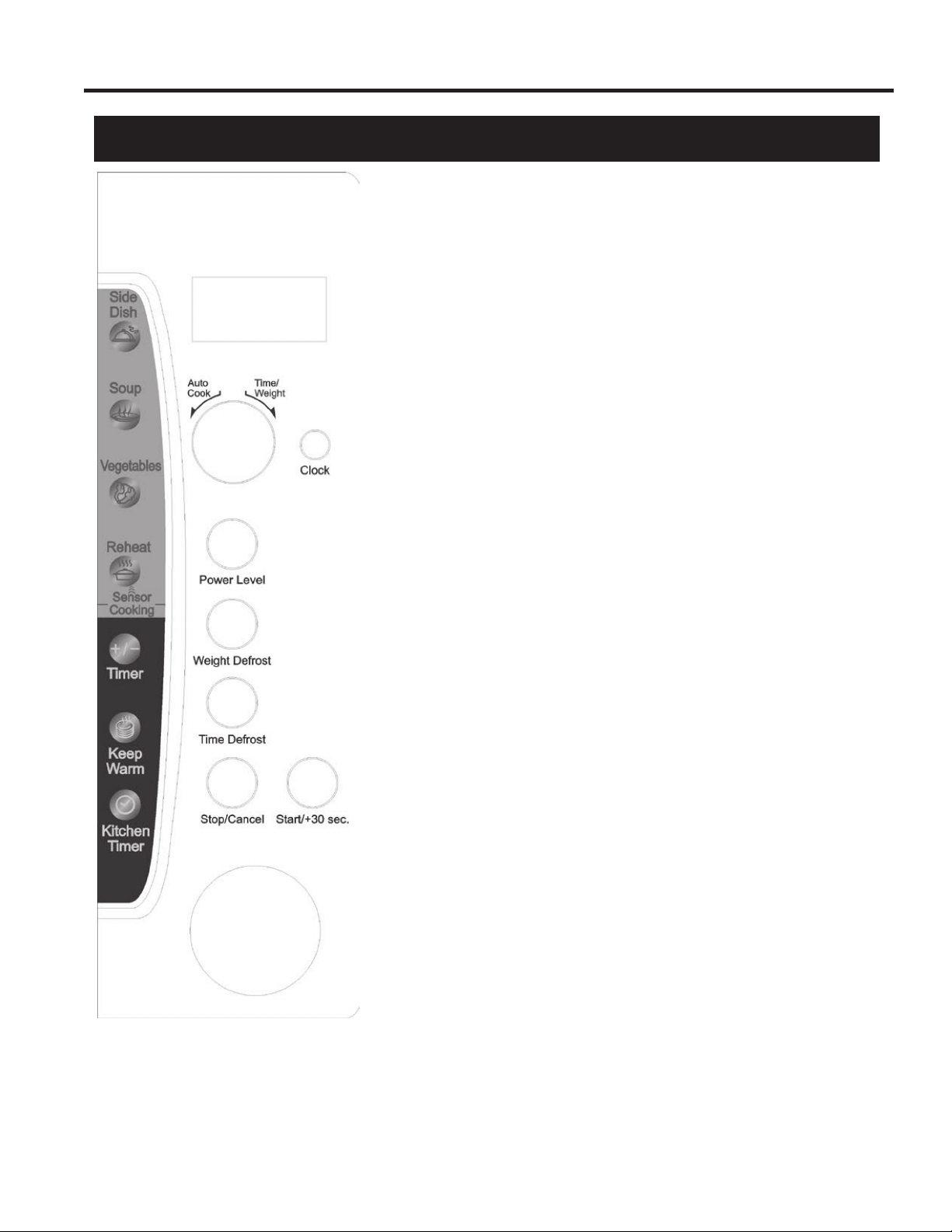

Controls..............................................................8
Time and Auto Microwave Features ..... 9-12
Microwave Terms........................................... 13
CARE AND CLEANING
Inside ................................................................14
Outside.............................................................14
TROUBLESHOOTING ....................... 15
WARRANTY ............................................ 16
OPTIONAL ACCESSORIES .......... 17
CONSUMER SUPPORT .................... 19
Write the model and serial
numbers here:
Model # _____________
___
Serial # _________________
Find these numbers on a
label inside the oven.
PEB3228 Series
GE is a trademark of the General Electric Company. Manufactured under trademark license.
29-6293 11-18 M
OVER THE RANGE
MICROWAVE OVEN
THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.
Whether you grew up with GE Appliances, or this is your rst, we’re happy to have you in the family.
We take pride in the craftsmanship, innovation and design that goes into every GE Appliances
product, and we think you will too. Among other things, registration of your appliance ensures that we
can deliver important product information and warranty details when you need them.
Register your GE appliance now online. Helpful websites and phone numbers are available in the
Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration
card included in the packing material.
2 29-6293
....................To reduce the risk of burns, electric shock, re, injury to persons, or
exposure to excessive microwave energy:
When using electrical appliances, basic safety precautions should be followed, including the following:
■Read all instructions before using this appliance.
■Read and follow the specic precautions in the
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY section on
page 6.
■Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This oven is
specically designed to heat, dry or cook food, and is
not intended for laboratory or industrial use.
■This microwave must only be serviced by qualied
service personnel. Contact nearest authorized service
facility for examination, repair or adjustment.
INSTALLATION
■ Install or locate this appliance only in accordance with
the provided installation instructions.
■This appliance must be grounded. Connect only
to properly grounded outlet. See “GROUNDING
INSTRUCTIONS” found on page 5.
■ This microwave oven is UL listed for installation over
both gas and electric ranges.
■ This unit is suitable for use above gas or electric
cooking equipment, 36” or less wide.
■ Do not operate this appliance if it has a damaged
power cord or plug, if it is not working properly, or if it
has been damaged or dropped.
■ Keep cord away from heated surfaces.
■ Do not let cord hang over the edge of the table or
counter
■ Do not immerse cord or plug in water.
■ Do not cover or block any openings on the appliance.
■ Do not store this appliance outdoors. Do not use this
product near water—for example, in a wet basement,
near a swimming pool, near a sink or in similar
locations.
■ Do not mount this appliance over a sink.
TO REDUCE THE RISK OF FIRE IN THE CAVITY:
■ Do not overcook food. Carefully attend appliance
when paper, plastic or other combustible materials
are placed inside the oven to facilitate cooking.
■ Remove wire twist-ties and metal handles from paper
or plastic containers before placing them in the oven.
■ Do not store any materials,other than our
recommended accessories, in this oven when not in
use. Do not leave paper products, cooking utensils
or food in the cavity when not in use. Microwave rack
should be removed from oven when not in use.
■ If materials inside the oven ignite, keep the oven door
closed, turn the oven off and disconnect the power
cord or shut off power at the fuse or circuit breaker
panel.
■ Do not operate the microwave feature without food in
the oven.
TO REDUCE THE RISK OF BURNS:
■ Be careful when opening containers of hot food. Use
pot holders and direct steam away from face and
hands.
■ Vent, pierce, or slit containers, pouches, or plastic
bags to prevent build-up of pressure.
■ Be careful when touching the turntable, door, racks, or
walls of the oven which may become hot during use.
■ Liquids and certain foods heated in the microwave
oven can present a risk of burn when removing
them from the microwave. The potential for a burn is
greater in young children, who should not be allowed
to remove hot items from the microwave.
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
29-6293
READ AND SAVE THESE INSTRUCTIONS
3
SAFETY INFORMATION
WARNING
WARNING Continued
OPERATING AND CLEANING
■ As with any appliance, close supervision is necessary
when used by children.
■ Do not store anything directly on top of the microwave
oven surface when the microwave oven is in
operation.
■ Oversized foods or oversized metal utensils should
not be inserted in a microwave/convection oven as
they may create a re or risk of electric shock.
■ Do not clean with metal scouring pads. Pieces can
burn off the pad and touch electrical parts involving a
risk of electric shock.
■ Do not use paper products in oven when appliance is
operating in any cooking mode except microwave.
■ Some products such as whole eggs and sealed
containers—for example, closed jars—are able to
explode and should not be heated in this microwave
oven.
■ Do not cover any part of the microwave with metal
foil. This will cause overheating of the microwave
oven.
■ Cook meat and poultry thoroughly— meat to at least
an INTERNAL temperature of 160°F, and poultry to
at least an INTERNAL temperature of 180°F. Cooking
to these temperatures usually protects against
foodborne illness.
■ Make sure all cookware used in your microwave oven
is suitable for microwaving. Most glass casseroles,
cooking dishes, measuring cups, custard cups,
pottery or china dinnerware which does not have
metallic trim or glaze with a metallic sheen can be
used.in compliance with cookware manufacturers’
recommendations.
■ It is important to keep the area clean where the
door seals against the microwave. Use only mild,
nonabrasive detergents applied with a clean sponge
or soft cloth. Rinse well.
SUPER HEATED WATER
■ Liquids, such as water, coffee, or tea, are able to
be overheated beyond the boiling point without
appearing to be boiling. Visible bubbling or boiling
when the container is removed from the microwave
oven is not always present. THIS COULD RESULT
IN VERY HOT LIQUIDS SUDDENLY BOILING OVER
WHEN THE CONTAINER IS DISTURBED OR A
SPOON OR OTHER UTENSIL IS INSERTED INTO
THE LIQUID.
■ To reduce the risk of injury to persons:
- Do not overheat the liquid.
- Stir the liquid both before and halfway through
heating it.
- Do not use straight-sided containers with narrow
necks.
- After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
- Use extreme care when inserting a spoon or other
utensil into the container.
4
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
READ AND SAVE THESE INSTRUCTIONS
29-6293
SAFETY INFORMATION
VENT FAN
The fan will operate automatically under certain
conditions. Take care to prevent the starting and
spreading of accidental cooking res while the vent
fan is in use.
■ Clean the underside of the microwave often. Do not
allow grease to build up on the microwave or the fan
lters.
■ In the event of a grease re on the surface units
below the microwave oven, smother a aming pan on
the surface unit by covering the pan completely with
a lid, a cookie sheet or a at tray.
■ Use care when cleaning the vent fan lters.
Corrosive cleaning agents, such as lye-based oven
cleaners, may damage the lters.
■ When preparing aming foods under the microwave,
turn the fan on.
■ Never leave surface units beneath your microwave
oven unattended at high heat settings. Boilovers
cause smoking and greasy spillovers that may ignite
and spread if the microwave vent fan is operating.
To minimize automatic fan operation, use adequate
sized cookware and use high heat on surface units
only when necessary.
PACEMAKERS
Most pacemakers are shielded from interference from electronic products, including microwaves. However,
patients with pacemakers may wish to consult their physicians if they have concerns.
GROUNDING INSTRUCTIONS
To prevent risk of electric shock, follow these instructions:
— Plug microwave into a grounded 3-prong outlet.
— Do not remove the ground prong or use an adapter.
— Do not use an extension cord.
Improper use of the grounding plug can result in a risk
of electric shock.
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current.
This appliance is equipped with a power cord having a
grounding wire with a grounding plug. The plug must
be plugged into an outlet that is properly installed and
grounded.
Consult a qualied electrician or service technician
if the grounding instructions are not completely
understood, or if doubt exists as to whether the
appliance is properly grounded.
A short power-supply is provided to reduce the risks
resulting from becoming entangled or tripping over
a longer cord. Do not use an extension cord with
this appliance. If the power cord is too short, have a
qualied electrician or service technician install an
outlet near the appliance.
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
29-6293
READ AND SAVE THESE INSTRUCTIONS
5
SAFETY INFORMATION
WARNING
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do Not Attempt to operate this oven with the
door open since open-door operation can result
in harmful exposure to microwave energy. It is
important not to defeat or tamper with the safety
interlocks.
(b) Do Not Place any object between the oven front
face and the door or allow soil or cleaner residue
to accumulate on sealing surfaces.
(c) Do Not Operate the oven if it is damaged.
It is particularly important that the oven door close
properly and that there is no damage to the:
(1) door (bent),
(2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.
(d) The Oven Should Not be adjusted or repaired by
anyone except properly qualied service personnel.
Contact nearest authorized service facility for
examination, repair or adjustment.
6
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
READ AND SAVE THESE INSTRUCTIONS
29-6293
SAFETY INFORMATION

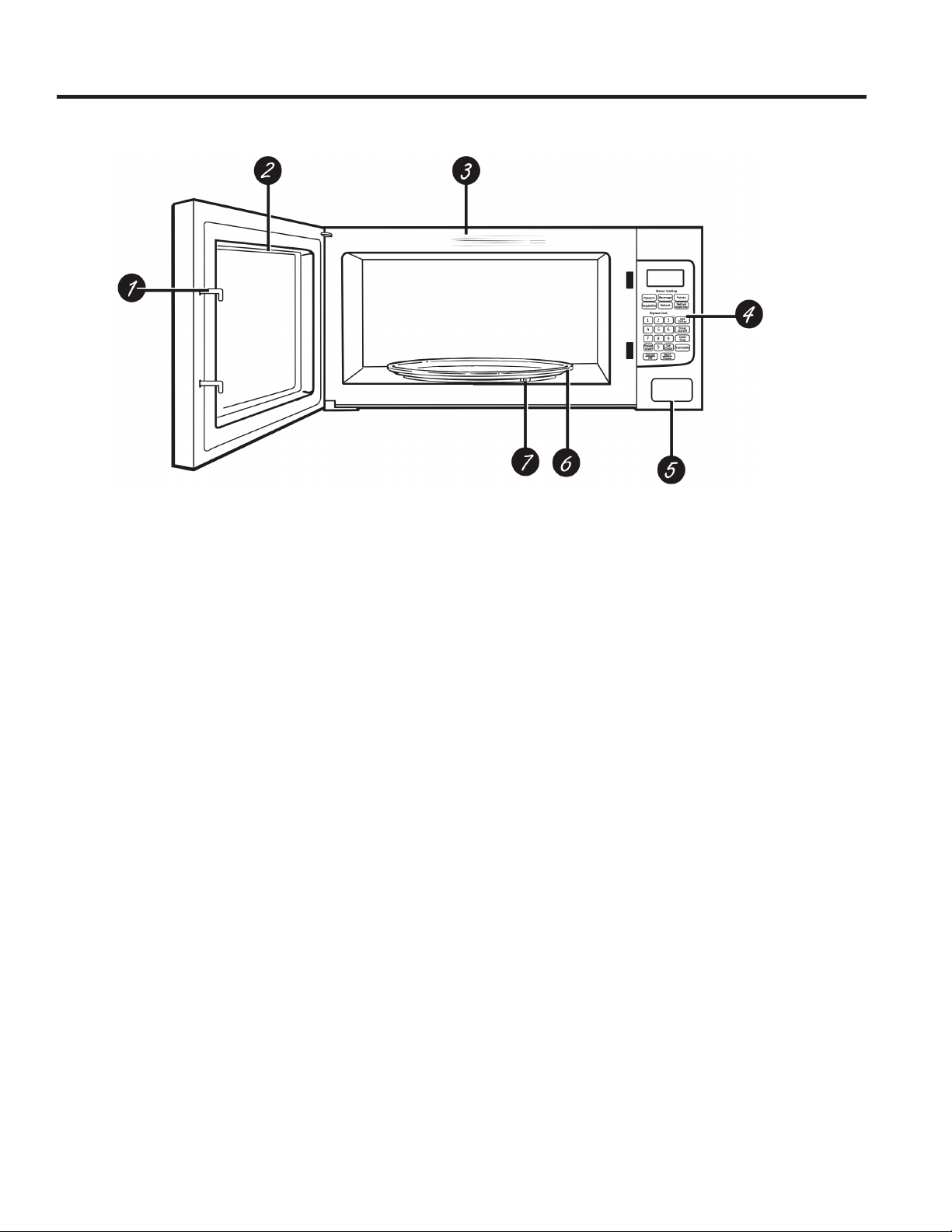

Features
Throughout this manual, features and appearance may vary from your model.
1 Door Handle. Pull to open the door. The door must be
securely latched for the microwave to operate.
2 Door Latches.
3 Window with Metal Shield. Screen allows cooking to
be viewed while keeping microwaves conned in the
oven.
4 Control Panel.
29-6293
5 Door Latch Release.
6 Removable Turntable. Turntable and support must
be in place when using the oven. The turntable may
be removed for cleaning.
7 Removable Turntable Support.
7
USING YOUR OVEN: Features
8
Controls
Control Panel
●DISPLAY
Cooking time, power, indicators and present time are
displayed.
●POWER LEVEL
Use to set microwave power levels.
●SENSOR COOKING MENUS
Instant settings to cook popular foods
●CLOCK
Touch to set CLOCK function.
●KITCHEN TIMER
Touch to set timer function.
●KEEP WARM
Touch to set keep warm program.
●STOP/CLEAR
Touch to stop the oven or reset the oven before setting a
program.
Touch to set the child lock
●WEIGHT DEFROST
Use to set weight defrost program.
●TIME DEFROST
Touch to set defrost program base on the time
●START/+30SEC
Touch to start the oven; also use to add cooking time
during cooking process and use to set the express
cooking.
●TIMER +/-
Use to change cooking time during cooking process
●AUTO COOK/TIME/WEIGHT DIAL
Use to choose auto cook menus; also use to select time or
weight.
29-6293
USING YOUR OVEN: Controls
Time and Auto Microwave Features
Operation Instructions
¾ When the display rst plugged in, beep will sound and the display will show “1:01” and .
¾During the setting mode, the system will return to waiting mode if there is not any operation within
25 seconds.
¾ During cooking, if press STOP/CANCEL pad once, the program will be paused, then press
START/+30SEC pad to resume, but if press STOP/CANCEL pad twice, the program will be canceled.
¾ After ending cooking, the system will sound beeps to remind user every two minutes until user press
STOP/CANCEL pad or turn the AUTO COOK/TIME/WEIGHT dial or open the door..
SETTING THE CLOCK
This is a clock in 24 or12 hour cycle. Suppose you want to enter 8:08.
1. In standby mode, you can choose to set the clock time in 24 or 12 hour cycle by pressing the
CLOCK button once or twice.
2. Turn AUTO COOK/TIME/WEIGHT dial to indicate the hour digit.
3. Press CLOCK button once.
4. Turn AUTO COOK/TIME/WEIGHT dial to indicate the minute digits until the screen shows.
5. Press START/+30SEC to conrm..
NOTE: During cooking, you can press CLOCK pad to check the current time.
MICROWAVE COOKING
The longest cooking time is 95 minutes. During cooking process, you can add cooking time by touching
START/+30SEC pad.
Select power level by pressing the POWER LEVEL button:
Press POWER LEVEL button COOKING POWER DISPLAY
Once 100% P-100
Twice 90% P-90
3 times 80% P-80
... ... ...
9 times 20% P-20
10 times 10% P-10
Suppose you want to cook for 5 minutes at 60%:
1. Touch POWER LEVEL pad a number of times to select the power level.
2. Turn AUTO COOK/TIME/WEIGHT dial to enter 5 minutes
3. Press START/+30SEC pad to start.
NOTE: During cooking you can check the cooking power level by touching POWER LEVEL pad. If you want to cook
at full power level, omit the rst step.
EXPRESS COOK
In standby mode, press START/+30SEC pads to enter cooking time, and the oven will start automatically at 100%
high power level. During cooking, you can add the cooking time by pressing START/+30SEC pad ( each press for
30 seconds). The longest cooking time is 95 minutes.
29-6293 9
USING YOUR OVEN: Time and Auto Microwave Features
Time and Auto Microwave Features
10 29-6293
USING YOUR OVEN: Time and Auto Microwave Features
ADJUST THE COOKING TIME
During cooking process (except the auto cook), you may press TIMER +/- pad once and then turn the AUTO
COOK/TIME/WEIGHT dial to extend or shorten the cooking time while the sign COOK is twinkling
KEEP WARM
1. In standby mode, press KEEP WARM pads once
2. Turn AUTO COOK/TIME/WEIGHT dial to enter desired time.
3. Press START/+30SEC pad to conrm.
SETTING THE TIMER
The countdown longest time is 95 minutes
1. Press KITCHEN TIMER pad once.
2. Turn AUTO COOK/TIME/WEIGHT dial to enter time. The longest time you can set is 95 minutes.
3. Press START/+30SEC pad to conrm.
NOTE:
1. If you want to cancel the timer, press KITCHEN TIMER pad, during the display showing the time, press
STOP/CANCEL pad.
2. When the countdown ends, the buzzer will beep to remind you.
3. During sensor cooking, the timer program cannot be set and check.
TIME DEFROST
The longest defrosting time is 95 minutes
1. Touch TIME DEFROST pad once.
2. Enter desired defrosting time by turning AUTO COOK/TIME/WEIGHT dial.
3. Touch START/+30SEC pad.
NOTE: During defrost, the oven will pause and sound beep to remind user to turn the food over and then press
START/+30SEC pad to resume.
WEIGHT DEFROST
The oven could be used to defrost food on the weight you entered. The defrosting time and power level are
automatically set once the weight is programmed.
FOR EXAMPLE: Suppose you want to defrost food.
1. In standby mode, press WEIGHT DEFROST pad once.
2. Enter weight by turning AUTO COOK/TIME/WEIGHT dial. The maximum weight is 6 LB.
3. Press START/+30SEC pad.
NOTE: During defrosting process, the system will pause and sound to remind user to turn food over, after that,
press START/+30SEC to resume.
MULTIPLE COOKING
Your oven can be programmed for up to 3 automatic cooking sequences.
Suppose you want to set the following cooking program.
Microwave cooking
Microwave-cooking (with lower power level)
Altri manuali per PEB3228 Series
1
Indice
Altri manuali GE Forno
GE
GE PT7050SFSS Manuale utente
GE
GE JB860 Manuale utente
GE
GE PT925SNSS - Profile 30" SC Convection Ovens Manuale utente
GE
GE JKS06 Manuale utente
GE
GE JGBS66REK-SS Manuale utente
GE
GE PT9551SLSS Manuale utente
GE
GE Profile JT980SHSS Manuale utente
GE
GE PLD617RT Manuale utente
GE
GE PROFILE JTP18BABB Istruzioni utente
GE
GE Profile Advantium PSB1200N Manuale
