GE Profile PT920DR Manuale

Listed by

Underwriters

Laboratories

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Specification Created 5/10

220249

PT920DR

GE Profile™30" Built-In Single Convection Wall Oven

KW Rating

240V 3.8

208V 2.8

Breaker Size

240V 20 Amps

208V 20 Amps

Most 30” Wall Cabinets can be used with this unit.

Note: These ovens are not approved for

stackable installations. Cabinets installed

adjacent to wall ovens must have an adhesion

spec of at least a 194°F temperature rating.

Door handle protrudes 3" from door face. Cabinets

and drawers on adjacent 45° and 90° walls should

be placed to avoid interference with the handle.

Electric wall ovens are not approved for

installation with a plug and receptacle. They

must be hard wired in accordance with

installation instructions.

Installation Information: Before installing, consult

installation instructions packed with product for

current dimensional data.

Side-by-side installations require at least 2"

between cutouts.

L2 x 4 or

equivalent

runners

Suitable

bracing

to support

runners

21-5/8"

over centerline

of cabinet

(must support 275 lbs.)

Cutout width

28-1/2'' MIN.

28-5/8'' MAX.

29-3/4

Recommended

cutout location

32-1/2"

from floor

Junction

box

location

Allow minimum of 21'' for clearance

to adjacent corners, drawers, walls, or etc.

A=Allow 1" overlap of oven over top and bottom edges of cutout.

B=Allow 11/16"–3/4" for overlap of oven over side edges of cutout.

C=28-1/4" without trim and 28-3/4" with trim.

Conduit

48-1/2"

27-1/4'' MIN.

27-5/16'' MAX.

Cutout height

23-1/2'' MIN.

Cutout depth

22'' MIN.

L2 x 4 or

equivalent

runners

Suitable

bracing

to support

runners

21-5/8"

over centerline

of cabinet

(must support 275 lbs.)

Cutout width

28-1/2'' MIN.

28-5/8'' MAX.

29-3/4

Recommended

cutout location

32-1/2"

from floor

Junction

box

location

Allow minimum of 21'' for clearance

to adjacent corners, drawers, walls, or etc.

A=Allow 1" overlap of oven over top and bottom edges of cutout.

B=Allow 11/16"–3/4" for overlap of oven over side edges of cutout.

C=28-1/4" without trim and 28-3/4" with trim.

Conduit

(72"

long)

27-1/4'' MIN.

27-5/16'' MAX.

Cutout height

23-1/2'' MIN.

Cutout depth

22'' MIN.

Dimensions and Installation Information (in inches)

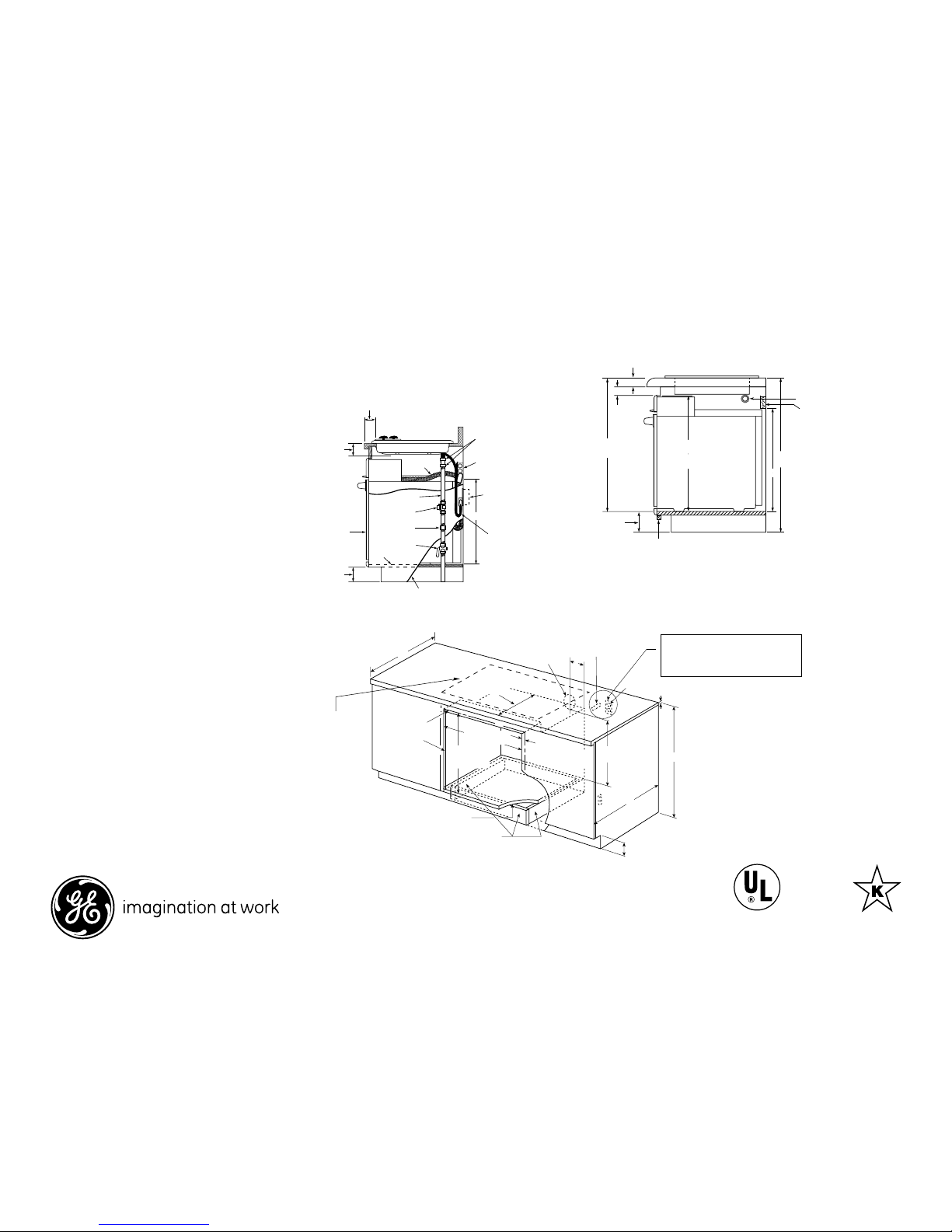

Optional Undercounter Dimensions and Installation Information

Listed by

Underwriters

Laboratories

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Specification Created 5/10

220249

PT920DR

GE Profile™30" Built-In Single Convection Wall Oven

Note: 36” radiant and induction cooktops are

approved for use over GE 30” single wall ovens

only. 30” radiant and induction cooktops are

approved for use over GE 30” and GE 27” single

wall ovens. Refer to cooktop and wall oven

installation information packed with products

for current dimensional data.

Note: CleanDesign or Sealed Burner Gas

This installation is to achieve minimum gap

between bottom of countertop and control

panel. For this installation, the bottom trim will

not be flush with a typical 4” toe kick

Note: Cabinets installed adjacent to wall ovens

must have an adhesion spec of at least a 194°F

temperature rating.

Installation Information: Before installing,

consult installation instructions packed with

product for current dimensional data.

Dimension and installation information are shown in inches.

Power cord

for cooktop

Junction box

for oven

Junction box in

adjacent cabinet

for cooktop

hook-up

2 (two) 90°elbows &

sufficient pipe to

connect in adjacent

cabinet

Right cabinet side

3/4" Support

Shut-off

valve

Pressure

regulator

1/2" Black

iron pipe

Union

Conduit

48-1/2"

30" built-in

oven

3-1/2" MIN.

Free space

4" To 4-1/2"

3-1/4

Side View

4-3/4"

5-1/4"

36" Typical

Countertop height

Power cord

30-3/4"

31-3/4"

1-1/2" MIN.

Free space

1-1/2" Typical countertop

Side View

27-5/16" MAX.

Cutout height

27-1/4" MIN.

Junction box(s) for

oven & radiant

cooktop 22"

from floor

Add suitable filler to match

adjacent cabinets when needed

to maintain toe kick alignment

30" Oven W/ Rad. Cktp.

Gas or electric cooktops may be installed

over this oven. See cooktop installation

instructions for cutout size. See label on

top of oven for approved cooktop models.

Gas (including the pressure regulator) and

electrical connections for gas cooktop must

be located in an adjacent accessible location.

For a 30" gas cooktop, the connections are

more conveniently made to the right.

120 Volt

Outlet

Gas

connection

Junction box

location

240/208V

36'' MIN.

4'' To 4-1/2 '' Toe kick allowable

Match toe kick height

front and two sides

22'' MIN. above

support platform

Top and/or side

fillers may be

necessary if unit

is positioned

between

existing cabinets

28-1/2'' MIN.

28-5/8'' MAX.

3/4'' Support

platform required

23-1/2" MIN.

Cutout depth

Allow 11/16''

overlap over side

edges of cutout

1-1/2"

Countertop

27-1/4'' MIN.

27-5/16'' MAX.

Cutout height

With Gas Cooktop

With Electric Cooktop

Note: For this installation, the bottom trim will not be flush with a

typical 4" toe kick.

Note: Cabinets installed adjacent to wall ovens must have an

adhesion spec of at least a 194°F temperature rating.

Specification Created 5/10

220249

Features and Benefits

• GlassTouchLCDControls–Combineasmooth,easy-to-cleanglassdesign

with large, easy-to-read graphics to facilitate easier usage

• Blackglossoveninterior–Blackoveninterioraddsastylishtouchtoany

kitchen

• PreciseAir™convectionsystem–Areversingfancirculatesheatandairfor

evenly browned and baked foods

• Heavy-dutyrollerrack–Racksprovideeasyaccesstoitemsinsidetheovenby

simplifying loading and unloading

• ConvectionBake–Thissettingisoptimalforbakingcasserolesorlasagnas,

yeast breads, pies and pizzas with no need to turn the pan

• Convectionroast–Optimalforlargercutsofmeat,thissettingrotatestheheat

around all sides, sealing in the juices, producing rotisserie results at up to 25%

faster than a conventional oven

• Flatbackconvection–Convectionfansystemisonly1"deeptoprovide

additional room for cookware

• Hiddenbakeoveninterior–Concealsthelowerovenbakeelementtoeliminate

hard-to-reach areas that collect food and spills for easy cleaning

• Self-cleanoven–Self-cleanallowsyoutospareyourselffromthetroubleand

effort it takes to scrub the oven interior

• Dualinteriorlighting–Brightinteriorlightshelpyoucheckontheprogressof

your cooking

• ModelPT920DRBB–Blackonblack

PT920DR

GE Profile™30" Built-In Single Convection Wall Oven
