GE Profile PT960SMSS Manuale

Dimensions and Installation Information

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Listed by

Underwriters

Laboratories

Specification Created 1/07

220137

KW Rating

240V 9.0

208V 6.8

Breaker Size

240V 40 Amps

208V 40 Amps

PT960SM

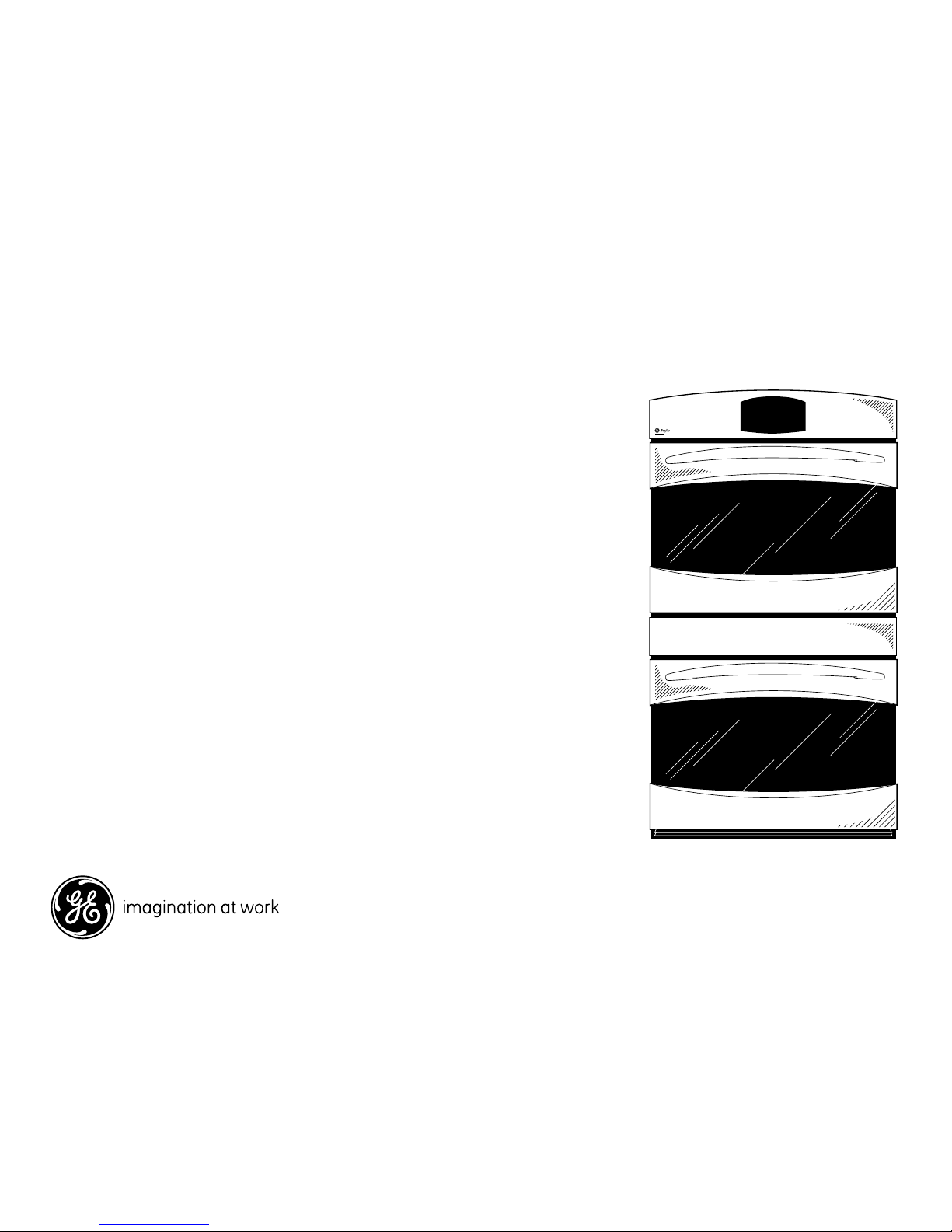

GE Profile™30" Built-In Double Convection Wall Oven

Note: Cabinets installed adjacent to wall ovens

must have an adhesion spec of at least a 194°F

temperature rating. Electric wall ovens are

not approved for installation with a plug and

receptacle. They must be hard wired in accordance

with installation instructions.

Door handle protrudes 3" from door face. Cabinets

and drawers on adjacent 45° and 90° walls should be

placed to avoid interference with the handle.

Installation Information: Before installing, consult

installation instructions packed with product for

current dimensional data.

21" minimum

Door Opening

Allowance

Cutout height

51-13/16" MIN.

51-15/16" MAX.

Minimum cutout location

12" from the floor.

Cutout depth

23-1/2" MIN

47" to

bottom of

junction box

Cutout width

28-1/2'' MIN.

28-5/8'' MAX.

Cabinet

width 30"

MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.

THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.

Conduit

(72"

long)

Junction box

location

L2 x 4 or

equivalent

runners

Suitable

bracing

to support

runners

21-5/8"

over centerline

of cabinet

(must support 325 lbs.)

Cabinet 30"

A – Overlap of oven over side of edges of cutout 11/16"-3/4"

B – Overlap of oven at top and bottom of cutout 1"

Oven

C – Overall depth* 23-1/2"

D – Overall height with trim 53-3/8"

Overall height without trim 52-7/8"

E –Overall width 29-3/4"

*Depth including door handle is approximately 26-6/10" min. to

26-9/10" max.

21" minimum

Door Opening

Allowance

Cutout height

51-13/16" MIN.

51-15/16" MAX.

Minimum cutout location

12" from the floor.

Cutout depth

23-1/2" MIN

47" to

bottom of

junction box

Cutout width

28-1/2'' MIN.

28-5/8'' MAX.

Cabinet

width 30"

MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.

THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.

Conduit

(72"

long)

Junction box

location

L2 x 4 or

equivalent

runners

Suitable

bracing

to support

runners

21-5/8"

over centerline

of cabinet

(must support 325 lbs.)

Cabinet 30"

A – Overlap of oven over side of edges of cutout 11/16"-3/4"

B – Overlap of oven at top and bottom of cutout 1"

Oven

C – Overall depth* 23-1/2"

D – Overall height with trim 53-3/8"

Overall height without trim 52-7/8"

E –Overall width 29-3/4"

*Depth including door handle is approximately 26-6/10" min. to

26-9/10" max.

Specification Created 1/07

220137

PT960SM

GE Profile™30" Built-In Double Convection Wall Oven

Features and Benefits

• Glass Touch LCD Controls - Combine a smooth, easy-to-clean glass design

with large, easy-to-read graphics to facilitate easier usage

• PreciseAir™Convection System - Delivers even air and heat circulation for

superior baking and roasting results

• Flat Back Convection - Features a more streamline convection fan that better

accommodates baking and roasting pans

• Convection Bake - Provides ideal airflow throughout the oven cavity, ensuring

better baking results

• Convection Roast - Provides even cooking and consistent results, roasting

meats faster than a traditional oven

• Hidden Bake Oven Interior - Hides previously exposed bottom element to

deliver a clean interior appearance

• Self Clean Oven - Conveniently cleans the oven cavity without need

of scrubbing

• Improved Lighting - Positions lamps diagonally across the top of the oven to

promote better viewing

• Self-Clean Heavy-Duty Oven Racks - Double coated porcelain-enameled racks

no longer require hand cleaning

• Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking

more items at once

• Model PT960SMSS – Stainless steel

PT960SM
