TM

Specification Revised 9/04

221072

JBP99TH/KH/BH – GE

Profile

™

30" Free-Standing CleanDesign Electric Range

Dimensions and Installation Information (in inches)

*Dimension from wall to front of closed door handle is 27-3/8

"

.

†

Note:

Check local codes for required breaker size.

Effective January 1, 1996, the National Electrical Code requires that new construction (not existing)

utilize a 4-conductor connection to an electric range.

Receptacle Locations

Locally approved flexible service cord or conduit must be used because terminals are not

accessible after range installation. See shaded area in drawing for location of electrical outlet

box. Recommended outlet locations allow range to be installed directly against wall.

Note:

Conforms to U.L. requirements for 0" spacing for adjacent walls below countertops. To

reduce

possibility of scorching walls, it is recommended a minimum of 1-1/2" spacing be allowed

from adjacent side walls to allow for possible extended, high-heat, no-load heating element

operation.

Installation Information:

Before installing, consult installation instructions packed with product

for current dimensional data.

30

25

2-1/2

7-1/2

29-7/8

25-3/8*

47-5/8

46-7/8

2-1/2

Acceptable electrical

outlet area

Preferred electrical

outlet area

Roughed-in dimensions

Electrical outlet locat ABC.eps

KW Rating

240V

11.5

208V

8.3

Breaker Size

40 Amps

†

R

Listed by

Underwriters

Laboratories

For answers to your Monogram

,

®

GE Profile

™

or

GE

®

appliance questions, visit our website at

ge.com or call GE Answer Center

®

service,

800.626.2000.

All GE ranges are equipped with

an Anti-Tip device. The installation

of this device is an important,

required step in the installation

of the range.

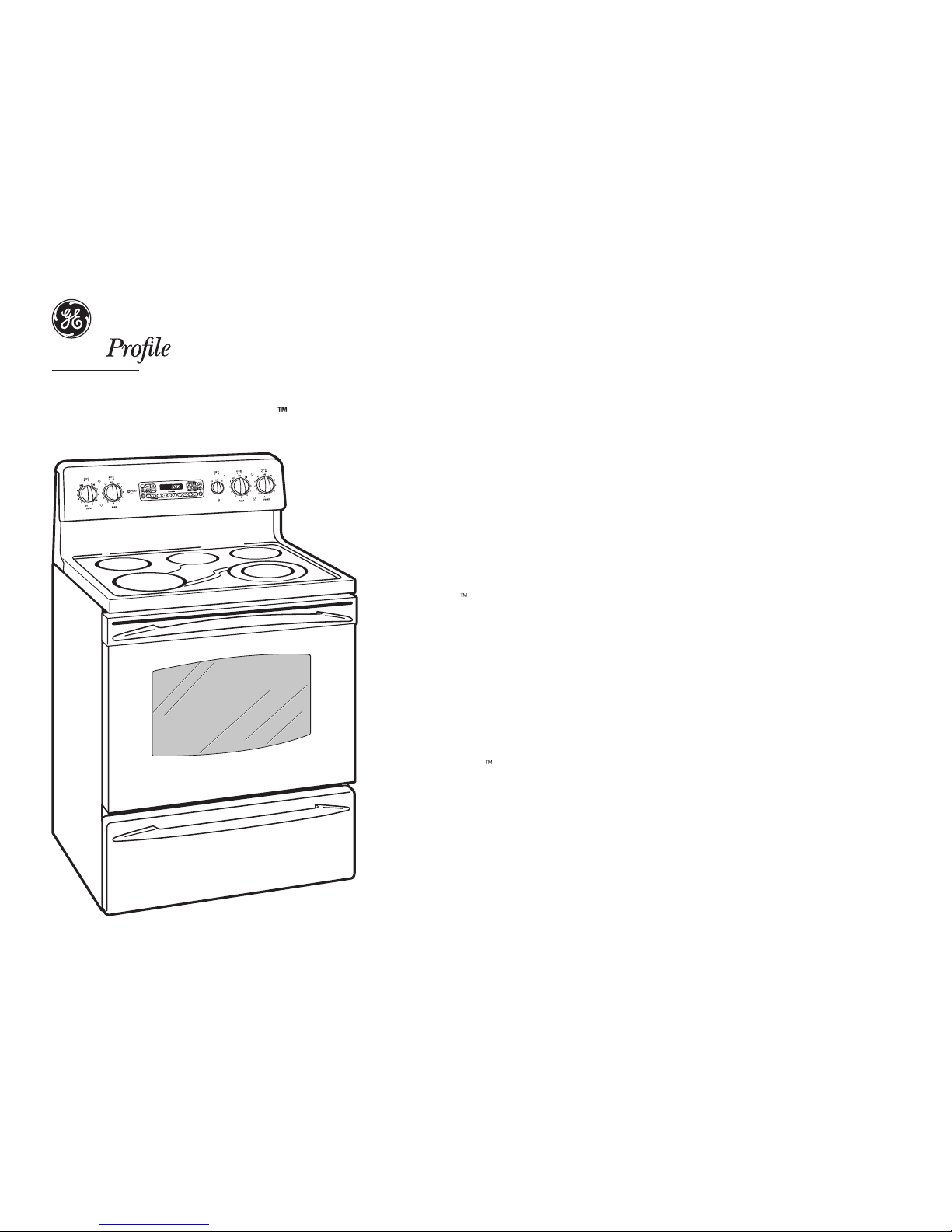

TM

Specification Revised 9/04

221072

JBP99TH/KH/BH – GE

Profile

™

30" Free-Standing CleanDesign Electric Range

JBP99TH/KH/BH

WARMING ZONE

MED

FRONT

BURNER

BRIDGE

BURNER

SMALL

BURNER

LARGE

BURNER

WARMING

ZONE

Features and Benefits

• True European convection – A third dual-loop heating element surrounds the fan to deliver

uniform and savory cooking results.

• Self-clean oven – Conveniently cleans oven cavity without the need for scrubbing.

• Super-large oven capacity – Provides an impressively large oven interior for cooking more

dishes and large meals at one time.

• TrueTemp

™

system – Delivers even heat distribution and maximum oven control.

• Dual size ribbon element – Offers a convenient choice of using a 6" or 9" heating element,

depending on the size of the pan.

• Warming zone – Provides low heat capability for foods, making meal coordination simple.

• QuickSet V oven controls – Feature an easy to use design that allows you to set precise

cooking temperatures.

• Ceramic glass cooktop – A smooth cooktop surface makes cleaning quick and easy.

• Big ClearView

™

window – An extra large clear window makes monitoring the progress of

food easy.

• Six-pass bake element – A powerful, continuous heating element that loops throughout

the oven, delivering evenly cooked foods.

• Model JBP99SHSS – Stainless steel with black accents

• Model JBP99THWW – True white (white glass door and true white cooktop)

• Model JBP99KHCC – True bisque (bisque glass door and true bisque cooktop)

• Model JBP99BHBB – Black on black (black glass door and black patterned cooktop)
