Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

All GE ranges are equipped with

an Anti-Tip device. The installation

of this device is an important,

required step in the installation

of the range.

JGB805SEP

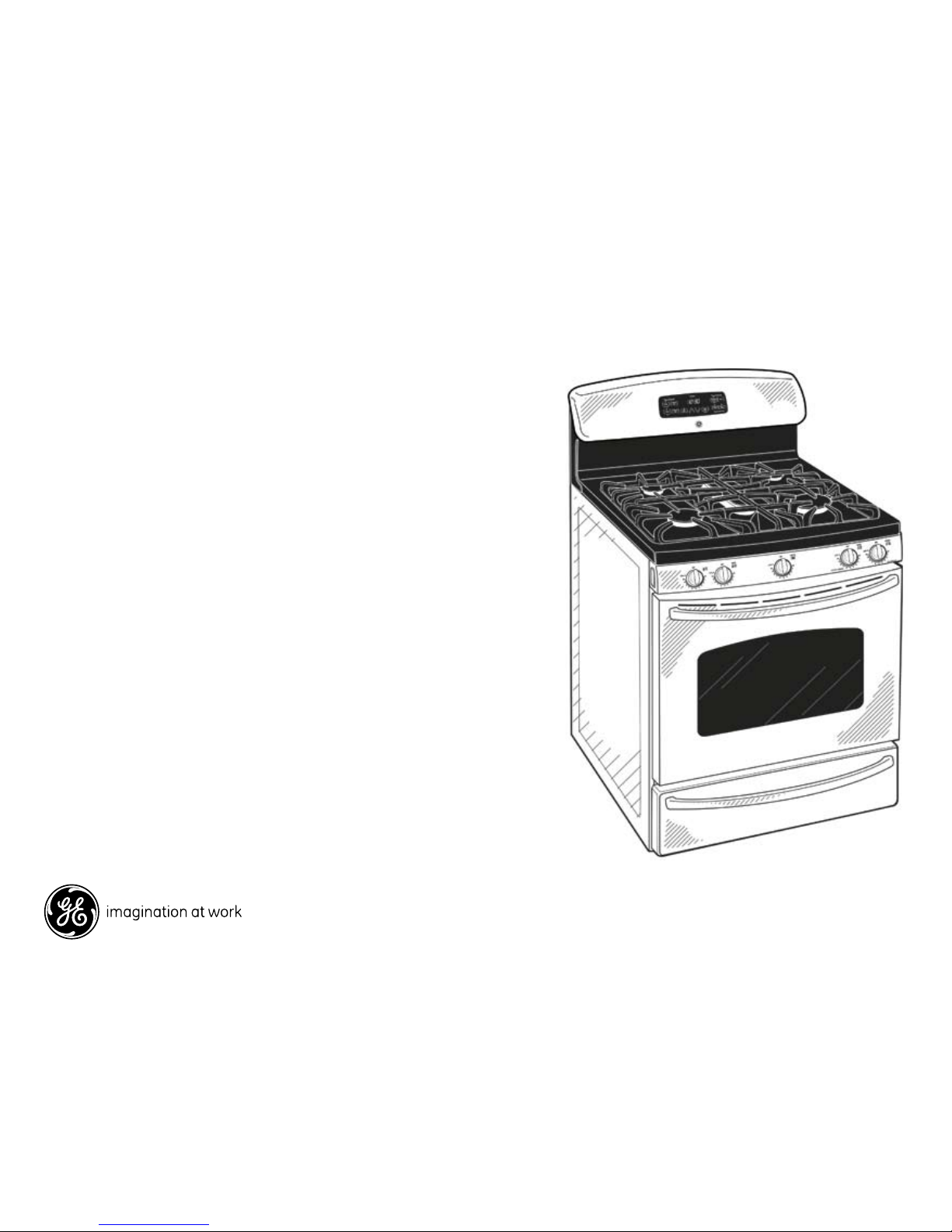

GE®30" Free-Standing Self-Clean Gas Range

Electrical Rating: 120V, 60Hz, 9A

Installation Information: Before installing,

consult installation instructions packed

with product for current dimensional data.

330546

Specification Created 6/09

All 30" GE gas and electric range backguards

are 30-7/8" wide.*

Note: 30" ranges conform to U.L. requirements

for 0" spacing from adjacent walls below

countertops. To reduce possible scorching of

walls, engineering recommends a minimum of

1-1/2" spacing to allow for possible extended,

high heat, no-load heating element operation.

*Except these models: JGBS07, JGBS04, JGBP90,

all GE Profile free-standing electric and gas

ranges

Fits most countertop backsplash applications.

Consult Use & Care Manual for detailed

installation instructions.

30-7/8"

24

30" FS Gas Ranges-CL

30

8

4

9

2

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

30"

47"

26-1/4"

46-3/8"

36-1/4"+_1/4

Installation Information (Dimensions in inches)

Recommended common

area for gas outlet and

electrical outlet

C

L

24

30" FS Gas Ranges-CL

30

8

4

9

2

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

30"

47"

26-1/4"

46-3/8"

36-1/4"+_1/4

Installation Information (Dimensions in inches)

Recommended common

area for gas outlet and

electrical outlet

C

L

Features and Benefits

• Self-cleanOven-Self-cleanallowsyoutospareyourselffromthetroubleand

effort it takes to scrub the oven interior. The oven does all the work!

• Super-large5.0cu.ft.OvenCapacity-Remarkablylargeoveninteriorisidealfor

holidays, dinner parties and everyday family cooking

• Heavy-cast,ContinuousGrates-Matte-finishcooktopgratesprovideasturdy,

uninterrupted surface that allows pots and pans to move easily

• Deep-recessedCooktop-Deeprecessedcooktopkeepsspills,andeverythingelse,

contained in one area that’s easy to wipe clean

• ReversibleCast-ironGriddle/Grill-Providestheflexibilitytosearmeatsonthegrill

and cook delicate meals on the griddle

• PowerBoil™17K Burner - This powerful element instantly supplies the intense heat

need for boiling, sautéing and stir frying

• CenterOvalBurner-Ovalfifthburnerinthecenterofthecooktopislargeto

accommodate odd-sized cookware or griddles

• Self-cleanHeavy-dutyOvenRacks-Tough,double-coatedrackscanstayinthe

oven during the self-clean cycle to eliminate hand cleaning

• PreciseSimmerBurner-Simmerburnersallowsforlow,evenheatdistributionthat

is ideal delicate foods and sauces

•  T r u e T e m p ™OvenSystem-Thisfeaturehelpsensurethetemperatureyousetis

the temperature you get, with less variance, to give you the baking and broiling

performance you desire

• ModelJGB805SEPSS-Stainlesssteel

JGB805SEP

GE®30" Free-Standing Self-Clean Gas Range

330546

Specification Created 6/09
