GE JGBS18SERSS Manuale

CERTIFIED

Dimensions and Installation Information (in inches)

Factory set for Natural gas. A set of LP orifices is included with

each range for LP conversion.

Gas Self-Clean Range Anti-Tip Bracket

(Part No. 205C1714P001)

Electrical Rating: 120V, 60Hz, 5A

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

All GE ranges are equipped with

an Anti-Tip device. The installation

of this device is an important,

required step in the installation

of the range.

JGBS18SER

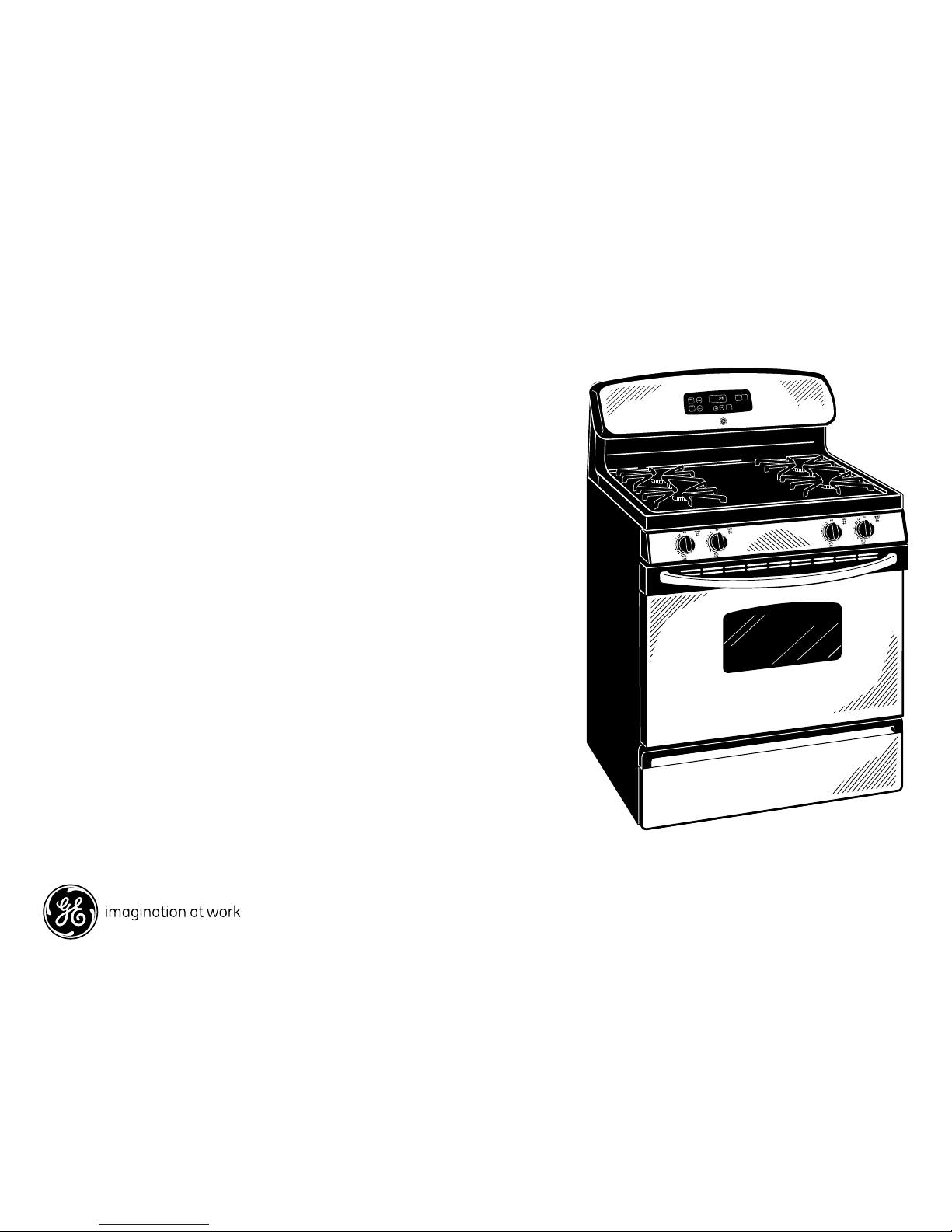

GE® 30" Free-Standing Gas Range

Specification Created 5/10 330501

All 30" GE gas and electric range backguards

are 30-7/8" wide.*

Note: 30" ranges conform to U.L. requirements

for 0" spacing from adjacent walls below

countertops. To reduce possible scorching of

walls, engineering recommends a minimum of

1-1/2" spacing to allow for possible extended,

high heat, no-load heating element operation.

*Except these models: JGBS07, JGBS04, all GE

Profile free-standing electric and gas ranges

Fits most countertop backsplash applications.

Consult Use & Care Manual for detailed

installation instructions.

30-7/8"

30" FS Gas Ranges-CL

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

46-1/8

26-1/4*

46-3/8

36-1/4±1/4

Installation Information (Dimensions in inches)

Recommended common

area for gas outlet and

electrical outlet

*Dimension from wall

to front of closed

door handle is 28-5/8".

30" FS Gas Ranges-CL

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

46-1/8

26-1/4*

46-3/8

36-1/4±1/4

Installation Information (Dimensions in inches)

Recommended common

area for gas outlet and

electrical outlet

*Dimension from wall

to front of closed

door handle is 28-5/8".

JGBS18SERSS_JGBS19SERSS

BROIL OVEN

LIGHT

CLOCK

TIMECONTROLS

OVENCONTROLS TrueTemp

KITCHEN

TIMER

BAKE START

CLEAR

OFF

Features and Benefits

• Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking

more items at once

• Standard Clean Oven - Offers a traditional oven design that requires

hand cleaning

• All Purpose Burners - Deliver a wide range of heat output ideal for most

cooking requirements

• Sealed Cooktop Burners - Eliminate the space between the burners and the

cooktop to help contain spills and boil over liquids, ensuring easy cleanup

• Electronic Clock And Timer - Features a convenient digital clock and easy-

to-use timer with an audible signal to help coordinate cooking times in the

kitchen

• Standard Grates - Provide a sturdy and convenient cookware surface for

everyday cooking

• Small Hearth Oven Window - Features a convenient viewing area to check

the progress of food

• Two Oven Racks - Feature a durable construction to help accommodate any

size or type of cookware

• Six Rack Positions - Provides flexibility and allows consumers to make the

most of available oven capacity

• Model JGBS18SERSS - Stainless steel

JGBS18SER

GE® 30" Free-Standing Gas Range

Specification Created 5/10 330501
