GE JGBS23DEM Manuale

CERTIFIED

Dimensions and Installation Information (in inches)

Factory set for Natural gas. A set of LP orifices is included with

each range for LP conversion.

Gas Self-Clean Range Anti-Tip Bracket

(Part No. 205C1714P001)

Electrical Rating: 120V, 60Hz, 5A

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

All GE ranges are equipped with

an Anti-Tip device. The installation

of this device is an important,

required step in the installation

of the range.

JGBS23DEM

GE® 30" Free-Standing Gas Range

Specification Revised 10/08 330573

30" FS Gas Ranges-CL

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

46-1/8

26-1/4*

46-3/8

36-1/4±1/4

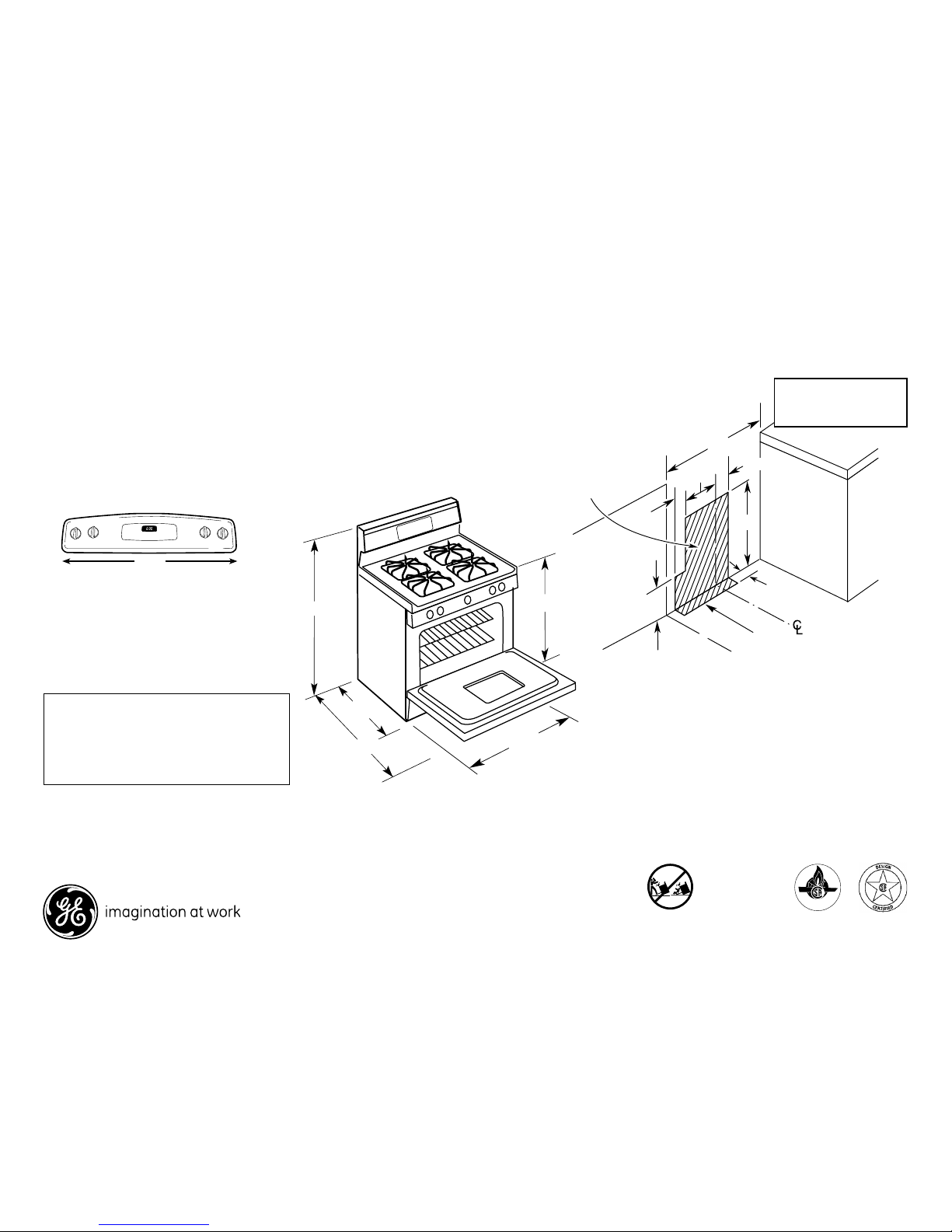

Installation Information (Dimensions in inches)

Recommended common

area for gas outlet and

electrical outlet

*Dimension from wall

to front of closed

door handle is 29".

30" FS Gas Ranges-CL

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

46-1/8

26-1/4*

46-3/8

36-1/4±1/4

Installation Information (Dimensions in inches)

Recommended common

area for gas outlet and

electrical outlet

*Dimension from wall

to front of closed

door handle is 29".

All 30" GE gas and electric range backguards

are 30-7/8" wide.*

Note: 30" ranges conform to U.L. requirements

for 0" spacing from adjacent walls below

countertops. To reduce possible scorching of

walls, engineering recommends a minimum of

1-1/2" spacing to allow for possible extended,

high heat, no-load heating element operation.

*Except these models: JGBS07, JGBS04, JGBP90,

all GE Profile free-standing electric and gas

ranges

Fits most countertop backsplash applications.

Consult Use & Care Manual for detailed

installation instructions.

30-7/8"

JGBS23DEM

BROILOVEN

LIGHT

CLOCK

TIMECONTROLS

OVENCONTROLSTrueTemp

TEMP

NORMAL

HI LOOFF

KITCHEN

TIMER

ONOFF

BAKESTART

CLEAR

OFF

Features and Benefits

• Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking

more items at once

• Standard Clean Oven - Offers a traditional oven design that requires

hand cleaning

• Precise Simmer Burner - Offers a low setting of 600 BTUs, ensuring more

temperature control for simmering

• All Purpose Burners - Deliver a wide range of heat output ideal for most

cooking requirements

• Sealed Cooktop Burners - Eliminate the space between the burners and the

cooktop to help contain spills and boil over liquids, ensuring easy cleanup

• Electronic Clock And Timer - Features a convenient digital clock and easy-to-

use timer with an audible signal to help coordinate cooking times in the kitchen

• Deluxe Grates - Provide a sturdy and durable cookware surface for

everyday cooking

• Frameless Glass Oven Door - Offers an easy-to-clean and stylish design that

blends seamlessly into existing cabinetry

• Big ClearView™Window - An extra large clear window makes monitoring the

progress of the food easy

• Two Oven Racks - Feature a durable construction to help accommodate any

size or type of cookware

• Model JGBS23DEMWW - White on white (white door and white cooktop)

• Model JGBS23DEMCC - Bisque on bisque (bisque door and bisque cooktop)

• Model JGBS23DEMBB - Black on black (black door and black cooktop)

Specification Revised 10/08 330573

JGBS23DEM

GE® 30" Free-Standing Gas Range
