GE 45234 Manuale utente

www.jascoproducts.com

1-800-654-8483

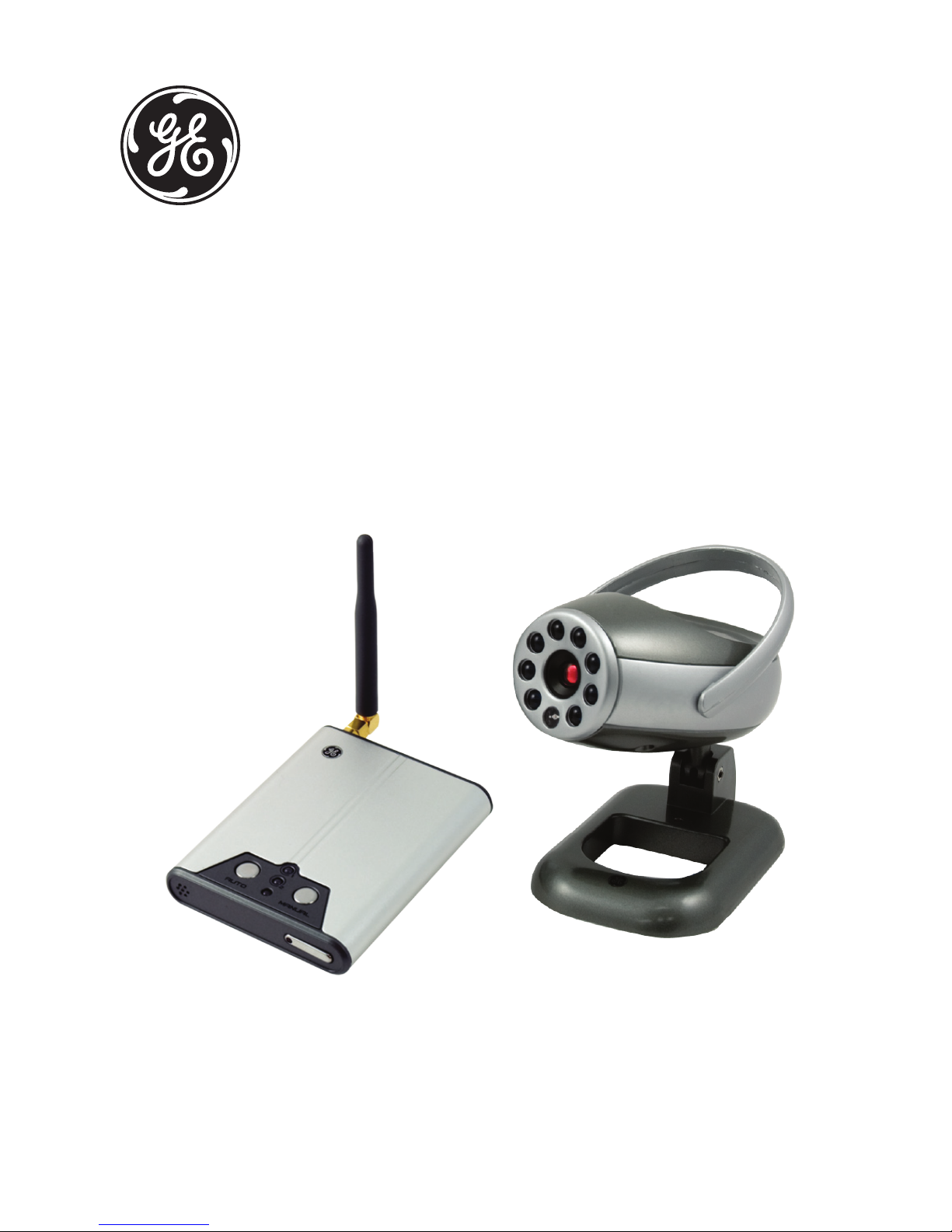

45234

Home Monitoring

Wireless Color

Camera with

Receiver

User Manual

Thank you for purchasing the GE 45234 Wireless

Color Camera System with Receiver. Please review

these instructions carefully before attempting to

operate the unit.

PRODUCT FEATURES

• “Wi-Fi” internet friendly wireless system—won’t

interfere with home wireless networks

• View up to two cameras automatically

• Audio Detection & Notiﬁcation feature—alerts

when sound is detected in a monitored area

• Night Vision feature for low or no light viewing

up to 10 ft.

• Unique “axis-swivel” camera mount allows for

desktop or wall installation

• Adjustable antenna for camera and receiver

• Wirelessly transmits audio and video up to

200 ft. (unobstructed line of sight).

• Receiver connects to any TV or monitor with

AV inputs

• Camera for Indoor/Outdoor use

PACKAGE CONTENTS

Please check and identify all the parts before

proceeding with the installation.

1. 45233 Wireless Color Camera

2. 45234 Wireless Receiver

3. Wall plate and mounting hardware for camera

4. 2 AC adapters

5. AV cable

BEFORE YOU INSTALL

When choosing the best location for the placement

of the camera and receiver, it is best to avoid any

sources of possible RF interference such as

microwave ovens and cordless phones. Proximity

to these and other sources of RF interference can

inhibit the proper functioning of the receiver.

The 900MHz video signals pass easily through

your home’s interior walls, but the signal may be

reﬂected by power wires or plumbing inside those

walls. Usually a slight adjustment to the position of

the Receiver and/or Camera antenna will improve

reception. Position the antenna upwards to improve

sensitivity, and downwards to reduce sensitivity.

Take care not to force the antenna past its lock

positions.

CHOOSING A CAMERA MOUNTING LOCATION

The 45233 Wireless Color Camera can be positioned

on a desktop, or mounted to a wall. It is suitable for

indoor or outdoor use. When choosing a mounting

location, please be advised:

• Do not use in wet locations. If using outside,

position camera in a sheltered location.

• Do not position the camera so that it points

directly into the sun or any bright light, as this

may cause damage to the camera.

• Avoid viewing areas where half the area is in

bright sunlight and the other half is dark, such

as in the shadow of a building. All types of

cameras have difﬁculty “seeing” into areas of

such divergent light levels.

• In low light conditions, the camera will

automatically activate the Infrared (IR) LED’s and

switch the camera to Night Vision mode. Night

Vision viewing distance is up to 10 feet.

• The AC adapter used to power the camera

cannot be positioned farther than 8 ft. from

an AC socket. Do not use the supplied adapter

outside or run the cable through walls. If you

need to extend the adapter cable, 15 ft.

extensions are available by contacting

Customer Service at 800-654-8483.

• The Camera has an unobstructed wireless

transmission range up to 200 ft. from the

receiver. Transmission distance indoors is

reduced due to interior walls, wiring, household

ﬁxtures and metal plumbing.

CONNECTING TO A TV OR MONITOR

To prepare for installation of the system, we

recommend that you temporarily connect the

45234 Receiver to a TV or Monitor to help you

choose the best location for installing the camera.

The camera connects wirelessly and automatically

to the receiver when both are powered on and

within 200 ft (unobstructed view) of each other.

This system will accommodate up to 2 cameras.

1. Connect one end of the cable (3.5mm male) to the

rear of the receiver, and the other end (white/yellow)

to your television’s A/V inputs. Match the yellow

Video In

Power

Audio In

Power

Yellow White

Shown with optional

rechargeable battery

(Sold separately)

plug to the yellow VIDEO IN jack and the white plug

to the white AUDIO IN jack.

2. Plug the AC adapter into the power jack (marked

on the back of the receiver, then into an AC outlet.

3. Rotate the antenna to a vertical position. Do not

over-tighten. Place the receiver either on top or

near to your TV.

4. Set your TV to monitor the VIDEO INPUT

designated for the Receiver.

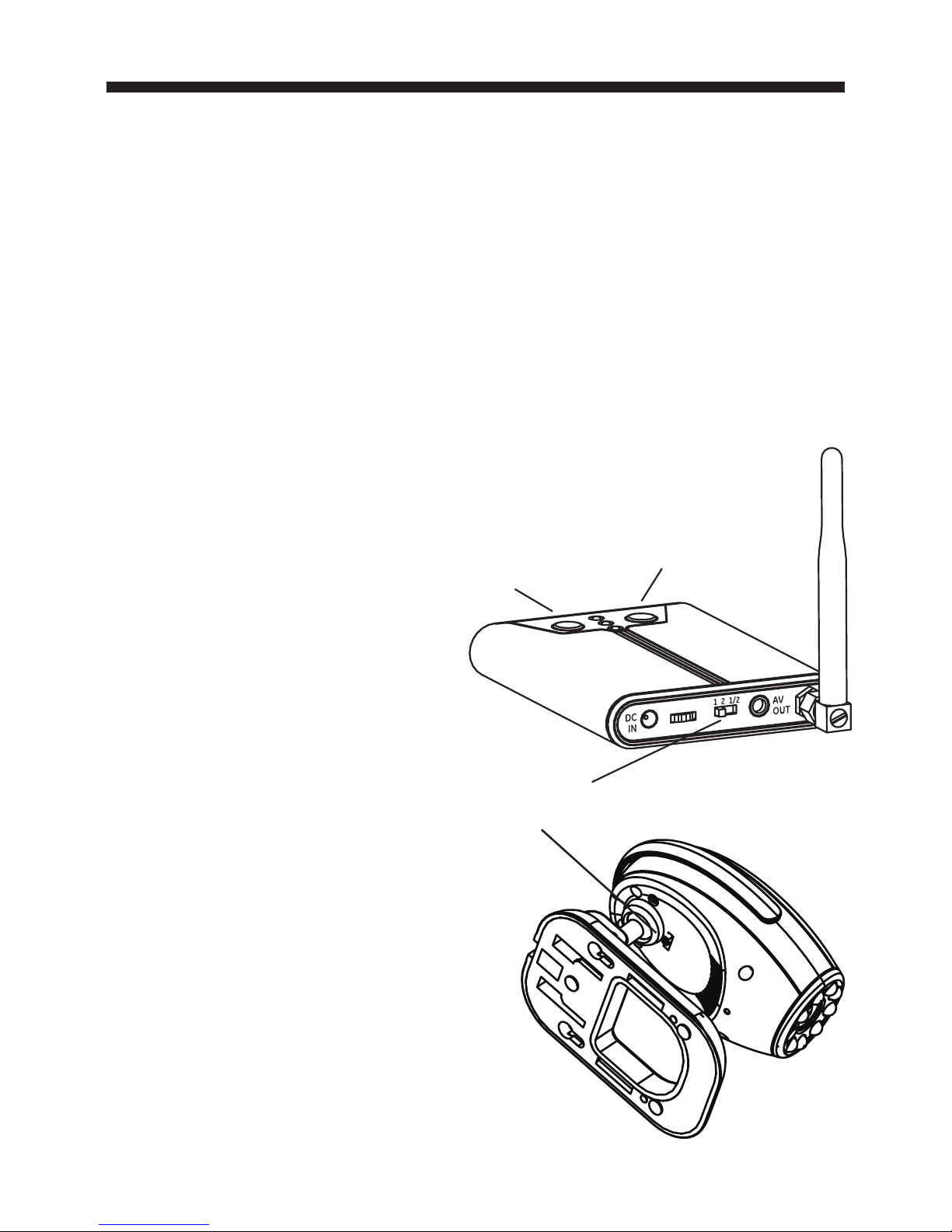

CHANNEL SELECTION

Manual Mode

To select one of the two

channels manually,

press the MANUAL button

on the top panel of the

Receiver. The green LED

will light for the

corresponding channel.

The receiver will switch to a

different channel (1 or 2)

each time the MANUAL button

is pressed. When you have

selected the channel with the

active camera, that video will

appear on the monitor/TV screen.

Each camera must be assigned to

a speciﬁc channel; both cameras

cannot be on the same channel or the signals will

Auto

Manual

Channel

Selection

switch

1 2

cancel out.

Multi-Camera Operation

This wireless surveillance system is designed to

work with up to 2 cameras. Additional cameras are

sold separately. IMPORTANT: When using more

than one camera, each camera must be assigned

to a speciﬁc channel using the channel selection

switch located on the underside of the camera

housing. Select either 1 or 2 for each camera. Each

camera must be assigned to a speciﬁc channel;

both cameras cannot be on the same channel or

the signals will cancel out. If using only one camera

you can select either Ch 1 or Ch 2, whichever

provides the best picture. The slide switch located

on the rear of the Receiver must be set to reﬂect the

channels in use.

Auto Mode (2 Camera Operation)

CAMERA 1

Channel Setting

CAMERA 2

Channel Setting

RECEIVER

Channel Setting

1 2 1 2

1 2 1/2

To have the receiver automatically switch between

two active channels, ﬁrst check the receiver is set

to 1/2 position. Next, press the AUTO button on the

top panel of the receiver. The green LED will light

and the receiver will automatically select between

the two active cameras. The monitor will display

images from both cameras alternately.

Cycle Time Setting (Time interval between

camera selections)

The default cycle time for the receiver is preset to

4 seconds. To change the cycle time, press both of

the buttons (Auto and Manual) on top of the receiver

simultaneously. The LED will ﬂash; each ﬂash adds

one extra second of cycle time. The cycle time can

be veriﬁed by the number of ﬂashes the LED makes

when you release the buttons—one ﬂash equals

one second. Cycle time can be set between 2-30

seconds.

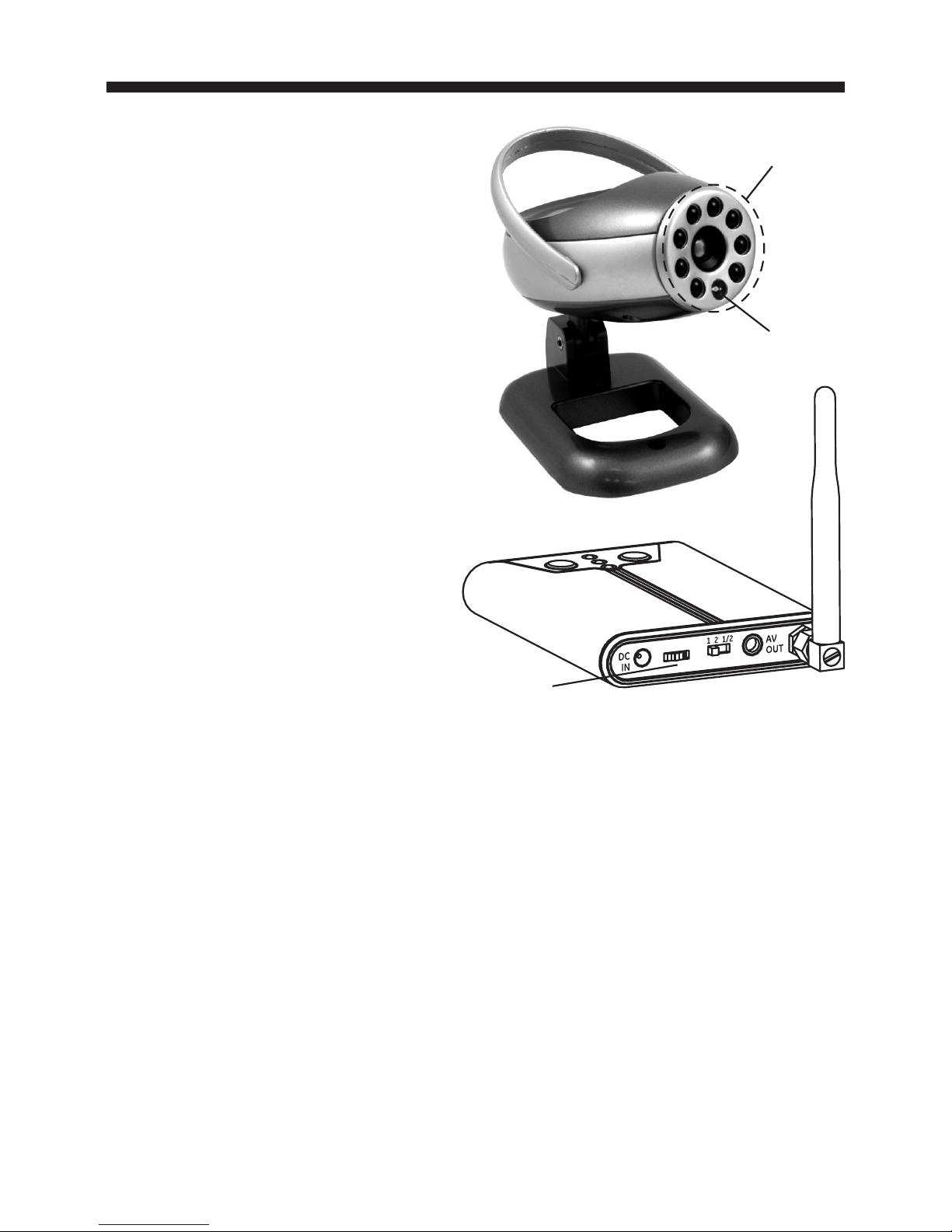

NIGHT VISION

The 45233 Wireless Color Camera features Night

Vision technology. Objects and images can be seen

in little or no light up to 10 ft. The camera uses a

special image sensor that automatically detects

available light levels. It turns on/off the Infra-Red

(IR) LEDS on the front of the camera. These LEDs

provide artiﬁcial light that allows the camera to

‘see’ in the dark.

Sensor

Infra-Red

(IR) LEDs

Night Vision will

appear as a Black and

White image. When

the image sensor detects

enough light, color will

return to the images.

AUDIO DETECTION AND

NOTIFICATION FEATURE

This feature allows the system

to emit an audio alert

whenever sound is

detected within a

monitored area.

When the camera

detects a sound, the receiver will sound an alert

and a notiﬁcation light will ﬂash. The feature can be

turned ON/OFF by pressing the button on the front

panel of the receiver. The sensitivity for the level of

audio detection (when the receiver will sound an

alert) can be adjusted with the sensitivity control

located at the back of the receiver.

CAMERA INSTALLATION

Once your preferred camera mounting location

has been chosen, disconnect the AC adapter from

the camera and power off the TV/monitor before

proceeding.

Sensitivity

Control Wheel

Desktop Mount:

1. Place camera in desired location on a ﬂat surface.

2. Set Channel switch on camera to 1 or 2.

3. Power ON the TV/monitor; reconnect AC adapter

to the camera.

4. Select the channel (1 or 2) on the receiver that

corresponds to the camera channel setting. (See

Channel Selection)

5. Adjust antenna and camera angle as needed for

the clearest picture. Positioning

the antenna upwards to

improve sensitivity, and

downwards to reduce

sensitivity. Take care not

to force the antennas

past their lock positions.

Wall Mount:

1. To simplify the wall mount

process, you will ﬁnd a custom

wall mounting plate included with

the mounting hardware.

2. Select the ideal location. Using

the supplied mount as a template, drill two 3/16”

holes in the desired mounting location, and install

the two wall anchors (included) into the holes, or

screw directly into a wall stud. Secure the mounting

MIN

SENSITIVITY

MAX

Antenna pivots to

increase/decrease

signal strength
