GE GE universal remote Manuale utente

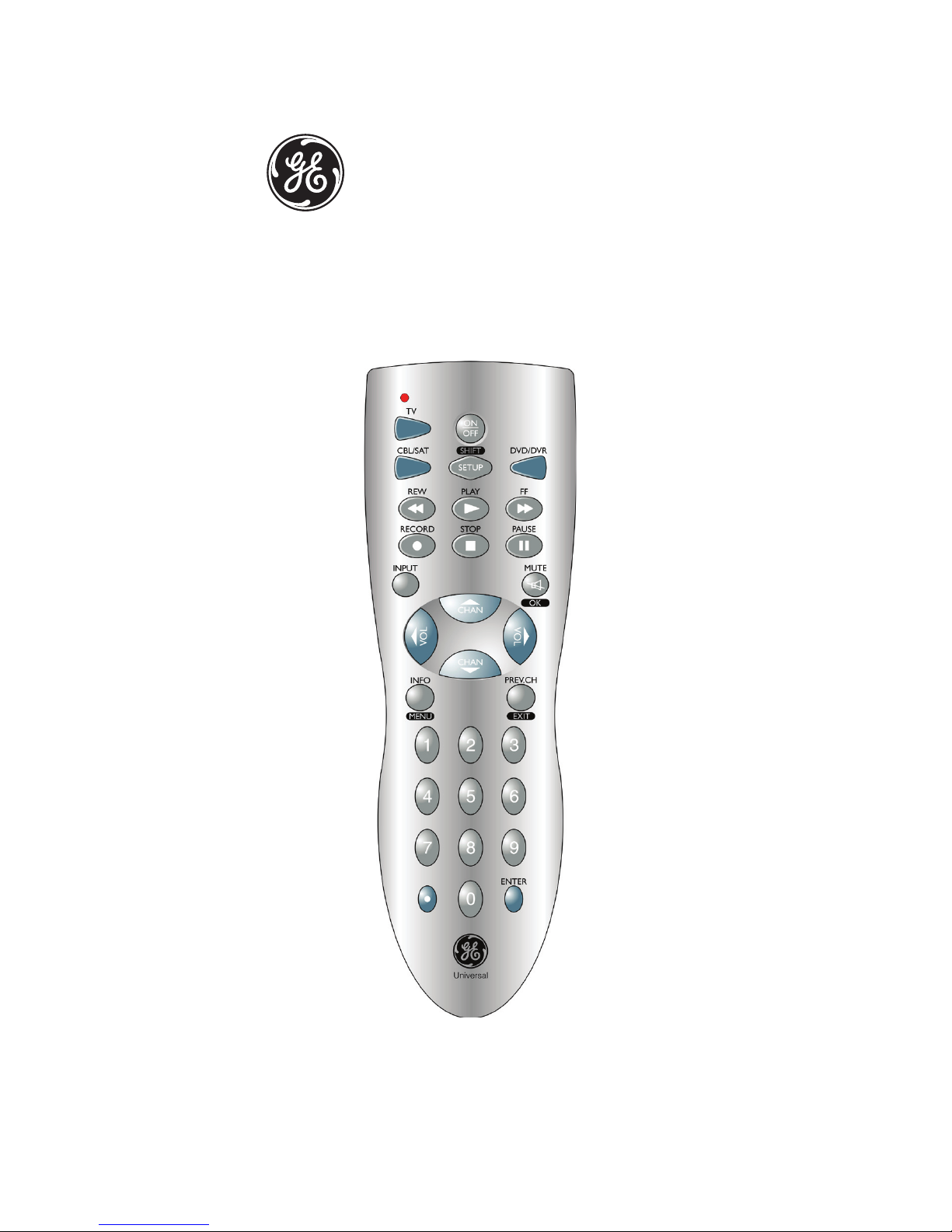

Universal Remote
Instruction Manual
24912
2
Congratulations on your purchase of the 24912
Universal Remote Control. The 24912 is one of the
most easy to use remote controls available today.
With the 24912, juggling multiple remote controls
is a thing of the past! Your 24912 controls up to
three devices, including the most popular brands
of TV, DVD, DVR, CBL, and SAT. The 24912 is
easy to use, easy to program, and it gives you total
control—at the touch of your ngertips!
Note: Some functions from your original remote
may not be controlled by this remote. Use the
original remote, if available, to control such
functions. Sometimes buttons other than described
in these instructions may actually perform the
function. For example, the CHAN and VOL
buttons might be used to navigate through menu
choices. We recommend you experiment with the
remote to identify if such situations pertain to your
equipment.
Introduction............................................................ 3
Setup ..................................................................... 3
Battery Installation............................................ 3
Battery Saver.................................................... 3
Code Saver ...................................................... 3
Code Setup ...................................................... 3
Button Functions.................................................... 4
Direct Code Entry .................................................. 6
Code Search.......................................................... 7
Using Your Remote................................................ 8
Code Identication............................................ 8
Using SHIFT for Menu and Navigation............. 9
Controlling Devices with Separate
Power On and Off........................................... 10
Controlling Combo Devices............................ 10
DVD/DVR Punch-Through ............................. 10
Volume/Mute Control and Punch-Through ..... 11
Setting All Volume/Mute Control
to any one Mode............................................. 11
Setting any Mode for its own
Volume/Mute Control...................................... 12
Troubleshooting................................................... 13
Table of Contents
3
Battery Installation
1. On the back of the remote, push down on the
tab and lift the cover off.
2. Match the batteries to the + and - marks inside
the battery case, then insert 2 AAA Alkaline
batteries.
3. Press the battery cover back into place.
Battery Saver
Your remote automatically turns off if the buttons
are depressed more than 30 seconds. This will
save your batteries should your remote get stuck in
a place where the buttons remain depressed (e.g.,
between the sofa cushions).
Code Saver
You will have up to 10 minutes to change the
batteries in your remote without losing codes you
have programmed. However, do not press any
buttons until batteries are installed in the remote.
If buttons are pressed without batteries in the
remote, all codes will be lost.
Code Setup
The SETUP button is used to setup the remote.
You can either setup the remote using the code
tables (on separate sheet), or you can search
through the library of codes until you nd a code
that works for your product. Please refer to “ Code
Search” on page 7 for more information on using
the code search feature to learn how to search
through the library of codes for your products.
NOTE: You can store any kind of code under any
mode (except TV). I.e., you can store a DVR code
under the CBL/SAT button, or a Cable code under
the DVD/DVR button, etc. However, you can only
store TV codes under the TV button.
Setup
4
INPUT
For some TVs, press repeatedly
to select from available viewing
sources (antenna, cable box,
DVR, etc.).
RECORD, PLAY, STOP,
REW, FF, PAUSE DVR
control buttons operate
your DVR even when the
remote is set to operate
the TV. Also operates DVD
Scan -/+. Note the DVR
buttons also control DVD
when in DVD Mode.
Some buttons on the remote might have functions that
are referred to by different names on the device you
are controlling. E.g., PREV.CH may be called RECALL,
or ENTER may be called DISPLAY. These differences
depend on the brand and model of your product. Also,
this remote can only operate features that exist on your
product. E.g., your product must have PREV.CH ability
for the PREV.CH button to operate this feature.
TV, CBL/SAT, DVD/DVR
Selects product to be
operated.
Red Indicator
Lights when any
button is pressed.
Button Functions
INFO button brings up DVD
Display or Control Menu for
Chapter/Track/Title number,
Time remaining/elapsed,
system information, etc. Also
displays on-screen channel
information.
MENU Press and release
SHIFT/SETUP then MENU/
INFO to display the Menu on
the TV. See “Using SHIFT
for Menu and Navigation”
description on Page 9 for
more information.
DOT: Used to select digital
channels, e.g., 2.3.
5
VOLUME UP/DOWN
Changes the volume
level of the product,
normally the TV.
NUMBERS
Enter numbers for direct
channel selection. Some
products require ENTER to
be pressed after channel
selection.
ON-OFF Turns
product On or Off.
CHANNEL Up/Down
Changes the channels.
Button Functions, cont.
SETUP Used to setup the remote,
and for code search function.
SHIFT Press and release to access buttons
labeled in reverse print (OK, MENU, EXIT).
See “Using SHIFT for Menu and Navigation”
description on Page 9
for more information.
Note: The REC button must be pressed TWICE to record
from your DVR. For some brands of DVRs, you might
need to press the REC button once, then press it again
for three seconds.
ENTER
For some TV models,
used after direct
channel number
entry to immediately
change to the selected
channel.
MUTE Turns off the
TV sound while the
picture remains.
OK Selects menu
items for the device
you are controlling.
PREV.CH Returns to
the previously selected
channel.
EXIT Exits On-Screen Menus
and/or Returns to previous On-
Screen selection.
6
Write your codes down here for easy reference
later.
Direct Code Entry
1. Press and hold the SETUP button until
the red indicator stays on, then release
the SETUP button.
2. Press and release the desired device
button (TV,DVR, etc.). The red indicator
blinks, then stays lit.
3. Enter the 4-digit code
from the code tables
(on separate sheet).
Note: after a valid
code entry, the red
indicator turns off. For
an invalid code, the
red indicator ashes.
4. With your device on, press ON/OFF.
If the device turns off, no further
programming is required. Note: If
some buttons do not operate your
equipment, try one of the other
codes for your brand.
Device Device stored Code
TV TV
CBL/SAT
DVD/DVR
7
Code Search
If your device does not respond after you have
tried all the codes for your brand, or if your brand is
not listed, try searching for your code by following
these steps.
1. Manually turn on the device (TV, DVR, etc.) to
be controlled.
2. Press and hold the SETUP button
until the red indicator stays on, then
release the SETUP button.
3. Press and quickly release the desired
device button (TV, DVR, etc.). The red
indicator blinks off once.
4. Press the ON-OFF button repeatedly
(up to 300 times) until the device
to be controlled turns off. The red
indicator blinks off with each button
press.
Most users will store DVR codes under the DVR
button, Cable codes under CABLE, etc. If (for
example) you want to store a DVR code under
CABLE, rst follow the procedure for Direct Code
Entry (previous page) and press CABLE in step 2
of Direct Code Entry, then enter ANY DVR code in
step 3 of Direct Code Entry. Then follow the steps
above for Code Search.
Note: Code Search starts from the currently
stored 4-digit number under that mode. Sometimes
the rst code that “works” with your device may
only allow limited functionality (e.g., the MENU
button might not work). There may be a code
that performs more functions. Continue the code
search process until the best code is found.
5. Press and release ENTER to install the
code.
8
Using Your Remote
Code Identication
The Code Identication Feature allows you to
identify the 4-digit library code stored under your
device button. For example, if you want to nd out
what 4-digit code is stored under your TV device
button, follow the six steps below:
1. Press and hold the SETUP button until
the red indicator stays on. Release the
SETUP button.
2. Press and release the desired
device button (TV, DVR, etc.). The
red indicator blinks, then stays lit.
3. Press and release the SETUP button.
The red indicator blinks once and
remains lit.
4. To nd the rst digit
for the code stored
under the device
button pressed in step
2, press each numeric
button from 0-9 in
turn. The number that
causes the indicator
light to blink is the rst
digit in your code.
5. To nd the second digit, repeat step 4, this
time when the red indicator blinks off this is the
second digit.
6. Repeat step 4 to nd the third and fourth digits.
9
Using Your Remote, cont.
MENU/INFO.
For OK, press and release SHIFT/
SETUP then OK/MUTE.
For EXIT, press and release
SHIFT/SETUP then PREV.CH/
EXIT.
For Up, Down, Left or Right
Navigation, press and release SHIFT/
SETUP followed by the respective
Channel or Volume button.
Using SHIFT for Menu and Navigation
The SHIFT button allows access to more than one
function for certain buttons.
Use the SHIFT/SETUP button prior to accessing
the MENU, OK, EXIT and Navigation functions, for
example:
For MENU, press and release SHIFT/SETUP then
10
Using Your Remote, cont.
Controlling Devices with Separate
Power On and Off Buttons
Some GE, RCA and ProScan models require
you to press the device button for more than one
second to turn the device on and the ON•OFF
button to turn the device off.
Controlling Combo Devices
Some Combo devices (e.g., TV/DVR, TV/DVD,
DVR/DVD, etc.) will require you to set up two
different Mode buttons to control both parts of the
Combo device. For example, if you have a TV/
DVD Combo, you might need to set up one code
under the TV button to control the TV part AND a
separate code (under any other Mode button) to
control the DVD part.
DVR/DVD Punch-Through
This remote allows the 6 DVR transport buttons
(i.e., PLAY, PAUSE, STOP, FF, REWIND, and
REC) to Punch-Through control from any Mode
programmed with TV, SAT or Cable codes to the
last DVR, or DVD programmed Mode you used.
This feature will not operate if the programmed
TV, SAT or Cable code has its own DVR transport
button control, e.g., a TV Combo, DVR/SAT, etc.
