GE Profile WPGT9150 Manuale utente
GE Profile HE Washer (3/3/08)
GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE
Copyright 2008 General Electric Company 1
gGE imagination at work
GE Profile Washer
WPGT9150
GE Profile HE Washer (3/3/08)
GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE
Copyright 2008 General Electric Company 2
gGE imagination at work

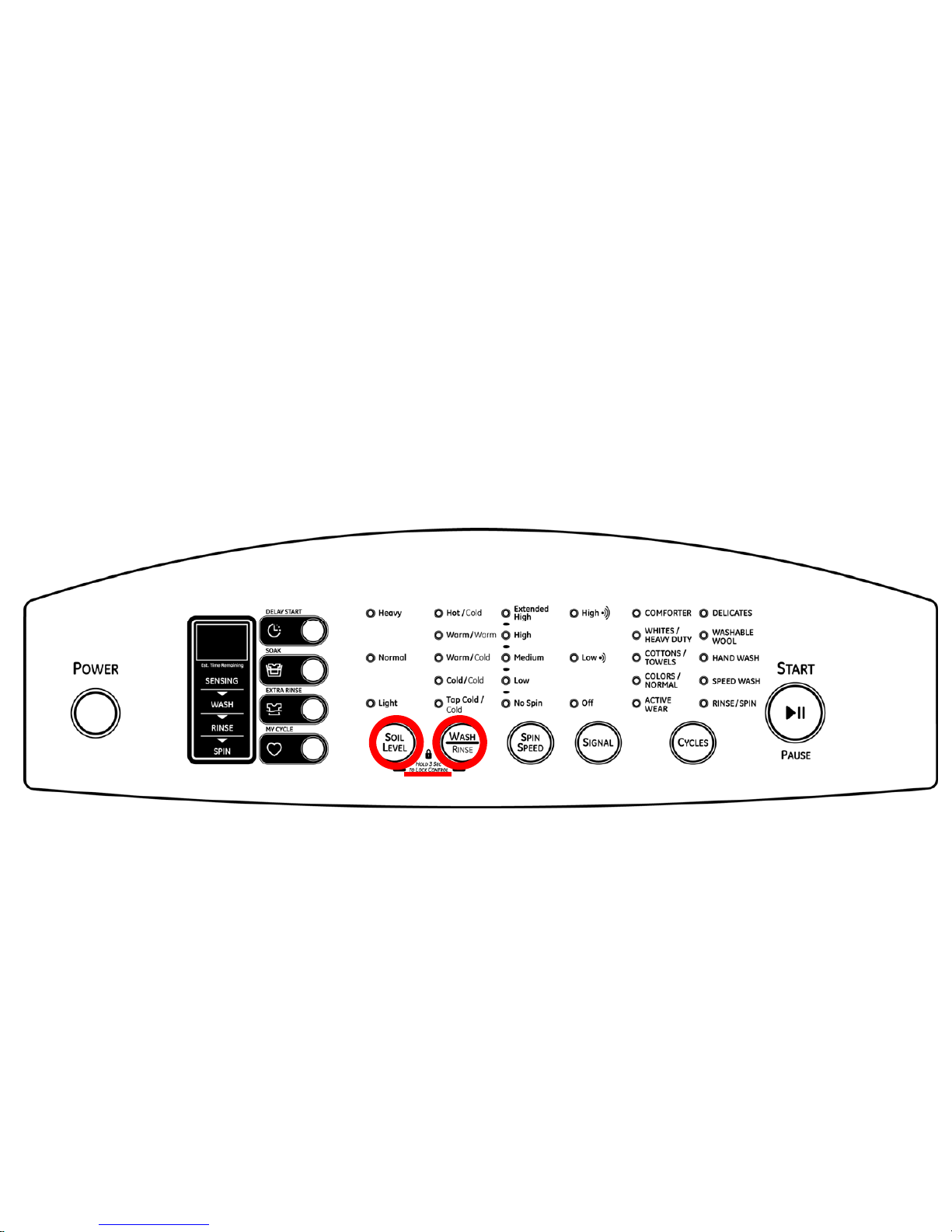

Control Lock
cl
•To lock and unlock control
•Press soil level and wash/rinse for 3 seconds
•Replacement control may be shipped in locked mode
GE Profile HE Washer (3/3/08)
GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE
Copyright 2008 General Electric Company 3
gGE imagination at work
WPGT9150 Service Mode
•To Enter Service Mode:
•In idle state (No display on SSD)
•Press and hold Wash/Rinse + Spin Speed then
press Power button to enter service mode
•If control does not display “t1”, the press and
hold sequence was not executed correctly.
•Press POWER to clear display, then re-enter
Service Mode.
GE Profile HE Washer (3/3/08)
GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE
Copyright 2008 General Electric Company 4
gGE imagination at work
To Enter Service Mode
•First press and Hold Wash/Rinse and Spin Speed buttons
•Then press the Power button
•Display will show t1
t1
GE Profile HE Washer (3/3/08)
GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE
Copyright 2008 General Electric Company 5
gGE imagination at work
Service Mode
•Press the Cycles Button to Navigate from Test to Test
(This also exits an existing Test)
•Press the Start Button to enter/enable a Test and to
navigate from subtest to subtest
GE Profile HE Washer (3/3/08)
GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE
Copyright 2008 General Electric Company 6
gGE imagination at work
Service Mode
•T1 - LED Check
•T2 - Software Revision
•T3 - Water Valve and Dispenser Check
•T4 - Drain Pump Check
•T5 - Agitate Test
•T6 - Spin Test
•T7 - Controlled Spin Test Approx 230rpm’s
•T8 - Error Code Test
GE Profile HE Washer (3/3/08)
GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE
Copyright 2008 General Electric Company 7
gGE imagination at work
Error Codes
Display Error
E1 Over flow Error Critical
E2 Inverter not operating correctly Critical
E4 Inlet Valve Failure Critical
E5 Pump Failure Critical
E6 Clutch Error Critical
E7 Pressure Sensor Failure Critical
E8 Lid Switch Failure Critical
E9 EEPROM Error Control inoperable
D1 Motor not rotate properly Critical
D2 No Brake Resistance Critical
D3 Coupling Error Critical
D4 IPM Thermistor Error Non-Critical
D5 Lid Switch Error
(3 continuous wash cycles without a Lid Switch operation.) Critical
GE Profile HE Washer (3/3/08)
GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE
Copyright 2008 General Electric Company 8
gGE imagination at work
Error Codes
•All Error codes will be displayed to
consumer (except for E9 EEPROM error)
•All critical errors will disable washer until
error is cleared
•Power off unit to clear errors (if error
returns, machine will require service)
•D-5 error may not be critical on early
production units (see D5 information)
GE Profile HE Washer (3/3/08)
GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE
Copyright 2008 General Electric Company 9
gGE imagination at work
Service Mode
•To Exit Service Mode:
•Press the Power Button.
•If no key is pressed for 15 minutes, the
control will automatically exit Service
Mode and enter the Idle State.
GE Profile HE Washer (3/3/08)
GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE
Copyright 2008 General Electric Company 10
gGE imagination at work
Test 1 – LED Component Check
•The display will initially show “t1”.
•Press the Start button, the Display will initially
toggle between “t1” and “H3”. All LED’s turn on.
This cycle will continue until the Start button or
Cycle button is pressed.
•When Start button is pressed, come back to “t1”.
When Cycle button is pressed, Control
advances to “t2
