Gefen 1x16 Audio DA Manuale utente

®

1x16 Audio DA

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday Paciﬁc Time

Write To:

Gefen, LLC

C/O Customer Service

20600 Nordhoff St.

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

The 1x16 Audio DA is a trademark of Gefen, LLC

Macintosh is a trademark of Apple Computer Inc.

All trademarks are the property of their respective owners.

© 2010 Gefen, LLC, All Rights Reserved

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

Box Contents

How it works

Operation Notes

1x16 Audio DA Front Panel Layout

1x16 Audio DA Back Panel Functions

Link Cable - Wiring Diagram

System Speciﬁcations

Warranty

1

2

3

4

5

6

7

8

9

Thank you for purchasing the ex•tend•it 1x16 Audio DA series.

The ex•tend•it 1x16 Audio Distribution DAallows 16 audio locations from the same audio

source. The 1x16Audio Distribution DAalso extends the distributed audio to 16 locations

up to a 1000 feet away with CAT5.

INTRODUCTION

1

The 1x16 Audio DA system consists of:

(1) 1x16 Audio DA

(1) 5 VD power supply

(1) 6-ft Audio Cable

(1) User Manual

BOX CONTENTS

2

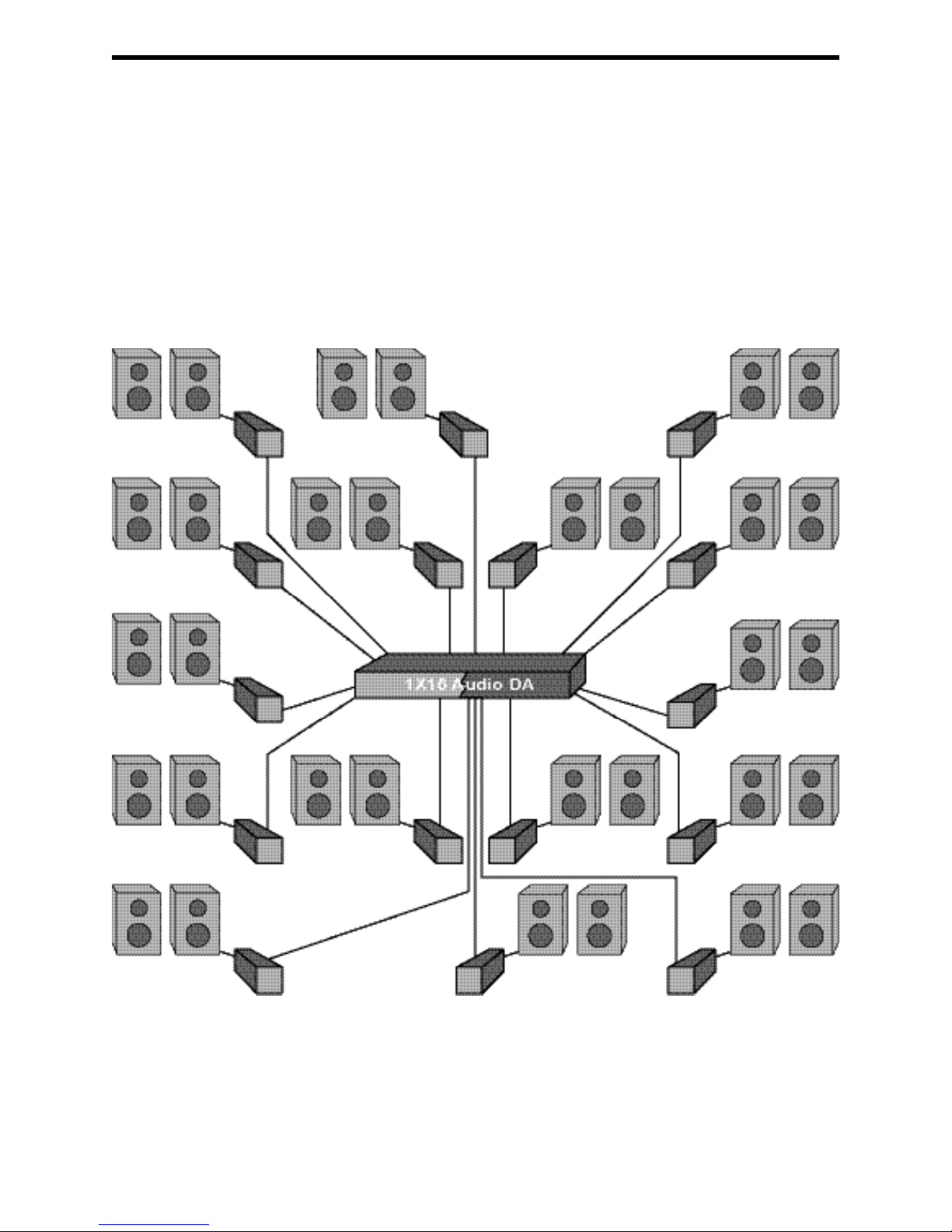

HOW IT WORKS

3

The ex•tend•it 1x16 Audio Distribution unit sits next to your audio source. Stereo cables

supplied with the 1x16 Audio Distribution package connects your audio source to the

1x16 Audio Distribution sender. TheAudio Extender receiver unit connects to your

speakers or audio output device. One CAT-5 cable per channel connects the 1x16 Audio

Distribution unit and the Audio Extender receive unit to each of the distributed locations

- up to 1000 feet away.

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE 1X16 AUDIO DA SYSTEM

* Industry standard Category-5 (CAT-5) cables are used to link the 1x16 Audio DA and

receiver boxes together.

* The 1x16 Audio DA units are housed in a metal box for better RF shielding.

OPERATION NOTES

4

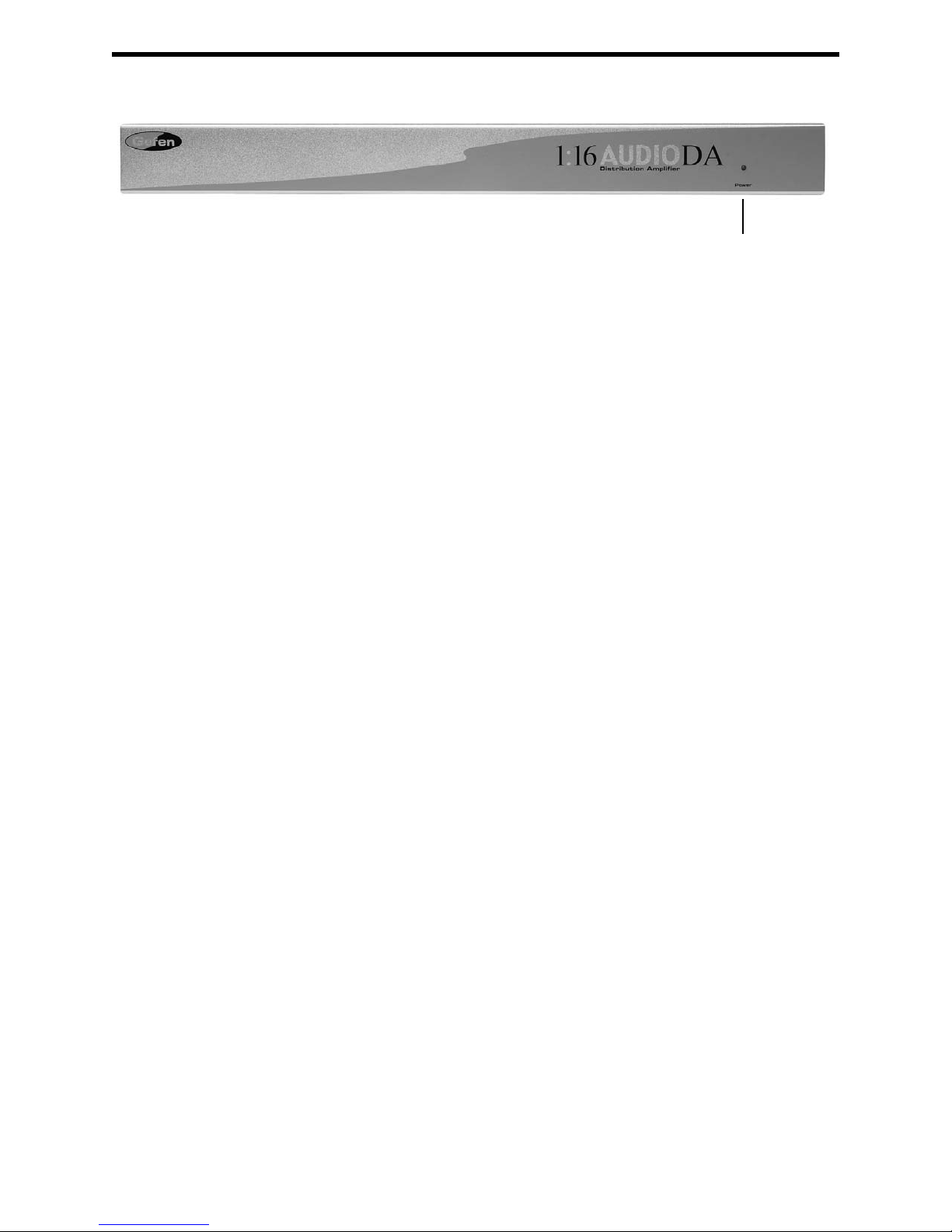

Front Panel Function Descriptions

POWER ON INDICATOR - Indicates that the unit is plugged in and powered on

1x16 AUDIO DA FRONT PANEL LAYOUT

5

1

1

12

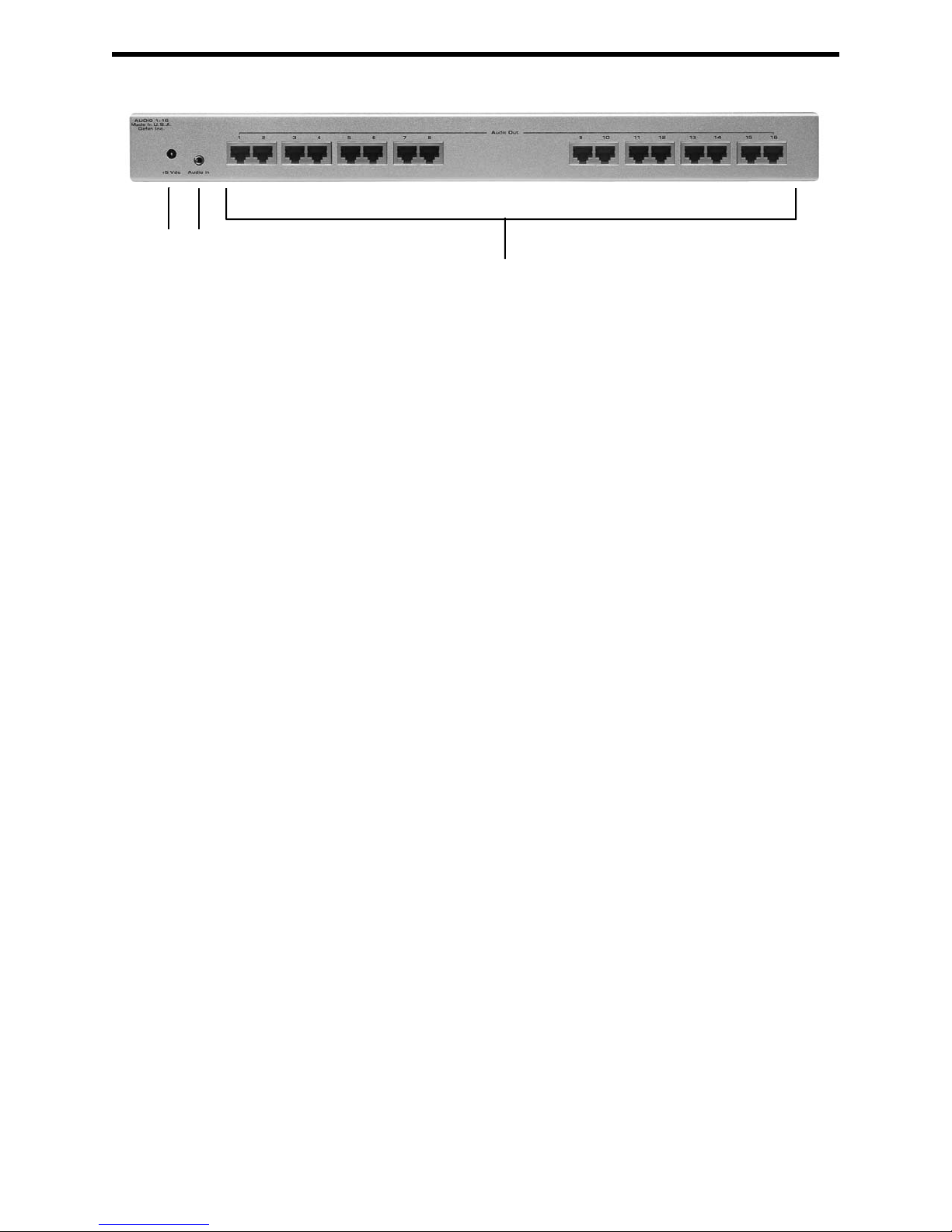

POWER - 5V DC external power supply

AUDIO - Audio mini Jack input from source

Audio Out - RJ-45 connector connects to Audio Extender Receiver units.

1x16 AUDIO DA BACK PANEL FUNCTIONS

6

1

2

3

3

LINK CABLE - WIRING DIAGRAM

7

White/Orange

Orange

White/Green

Blue

White/Blue

Green

White/Brown

Brown

RJ-45 Jack RJ-45 Jack

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

1818
