Gefen EXT-DP-144 Manuale utente

1:4 Splitter

for

DisplayPort

EXT-DP-144

User Manual

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen, LLC

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging, and

any accompanying documentation without prior written notice.

1:4 Splitter for DisplayPort is a trademark of Gefen LLC

All trademarks are the property of their respective owners.

ASKING FOR ASSISTANCE

Rev A4

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Front Panel Layout

5 Front Panel Descriptions

6 Back Panel Layout

7 Back Panel Descriptions

8 Connecting the 1:4 Splitter for DisplayPort

8 Wiring Diagram

9 EDID Management

11 Specications

12 Warranty

INTRODUCTION

Congratulations on your purchase of the 1:4 Splitter for DisplayPort.

Your complete satisfaction is very important to us.

Gefen

Gefen delivers innovative and progressive computer and electronics add-

on solutions that harness integration, extension, distribution, and conversion

technologies. Gefen’s reliable plug-and-play products supplement cross-platform

computer systems, professional audio/video environments, and HDTV systems

of all sizes with hard-working solutions that are easy to install and simple to

operate.

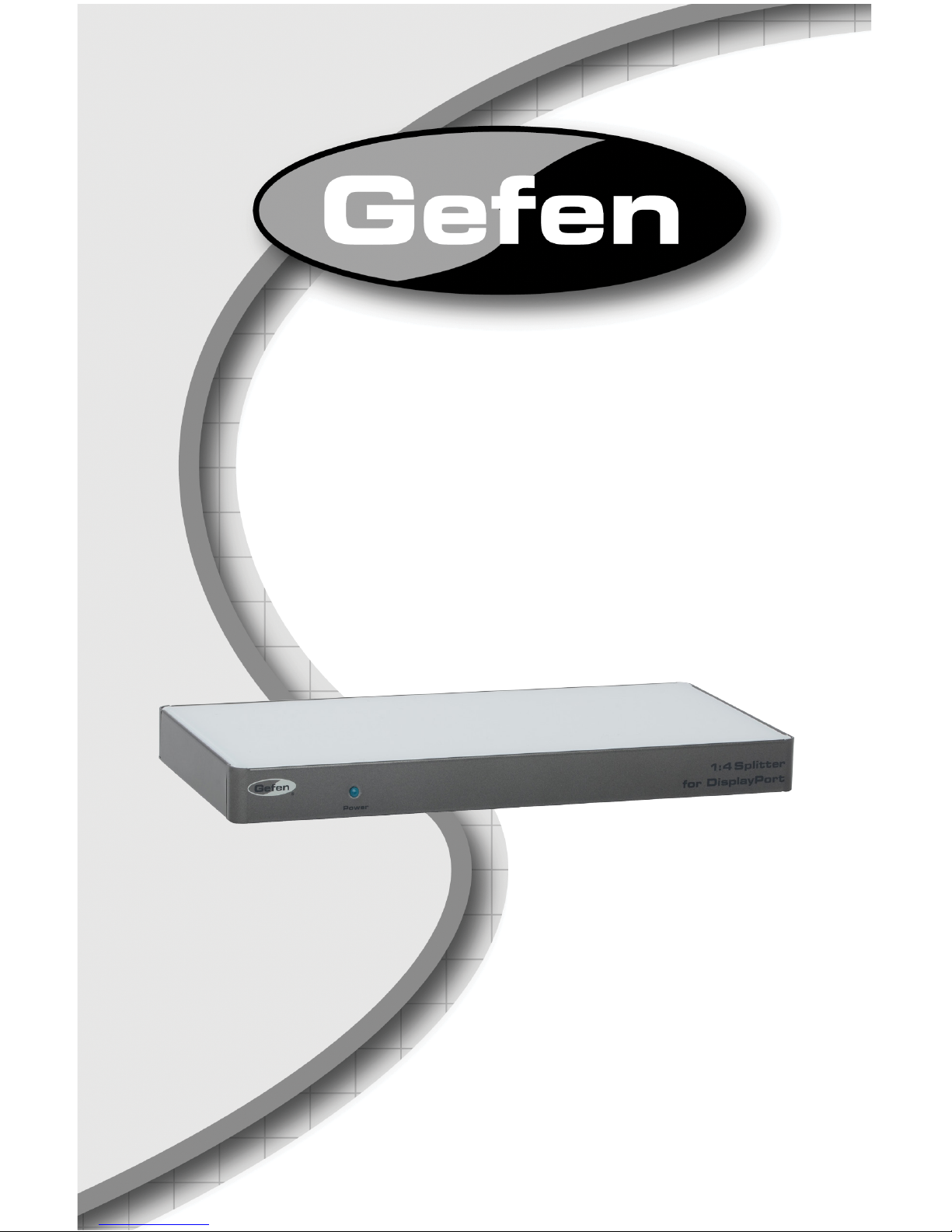

The Gefen 1:4 Splitter for DisplayPort

The Gefen 1:4 Splitter for DisplayPort allows a DisplayPort-equipped computer

to be connected to four DisplayPort displays. Resolutions up to 2560 x 1600 are

supported. EDID management provides rapid integration of DisplayPort sources

and displays. Two or more of these splitters can be connected together to create

larger video distribution networks.

How It Works

Connect the DisplayPort computer to the input on the Splitter using the supplied

cable. Connect up to four DisplayPort displays to the 1:4 Splitter for DisplayPort.

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE 1:4 SPLITTER FOR DISPLAYPORT

• All other DisplayPort devices/displays connected to the output ports must be

compatiblewithatleastoneresolution/audioformatspeciedinthisEDID.

It is recommended to set, on the source device, a common resolution and

audio format shared by all attached devices/displays. This is to ensure a

compatible signal is output to all connected devices/displays.

• HDCP content is supported.

• NOTE: If the source and/or display is not 100% DisplayPort compliant, a

protocol-specicadapterwillberequiredinordertoconnectthesourceto

the Splitter and/or the Splitter to a high-resolution display.

OPERATION NOTES

FEATURES

Features

• Simultaneously displays one DisplayPort source on up to four displays

• Supports 1080p Full HD at 120Hz and dual-link resolutions up to 2560 x

1600 (WQXGA)

• EDID Management for rapid integration of source and displays

• EDID Reset button

• Supports up to 7.1 channels of linear PCM audio (32 kHz - 192 kHz

sampling rate)

• Supports DisplayPort version 1.1a

Package Includes

(1) 1:4 Splitter for DisplayPort

(1) 6 ft. DisplayPort cable

(1) 5V / 3A DC power supply

(1) Quick Start Guide

FRONT PANEL LAYOUT

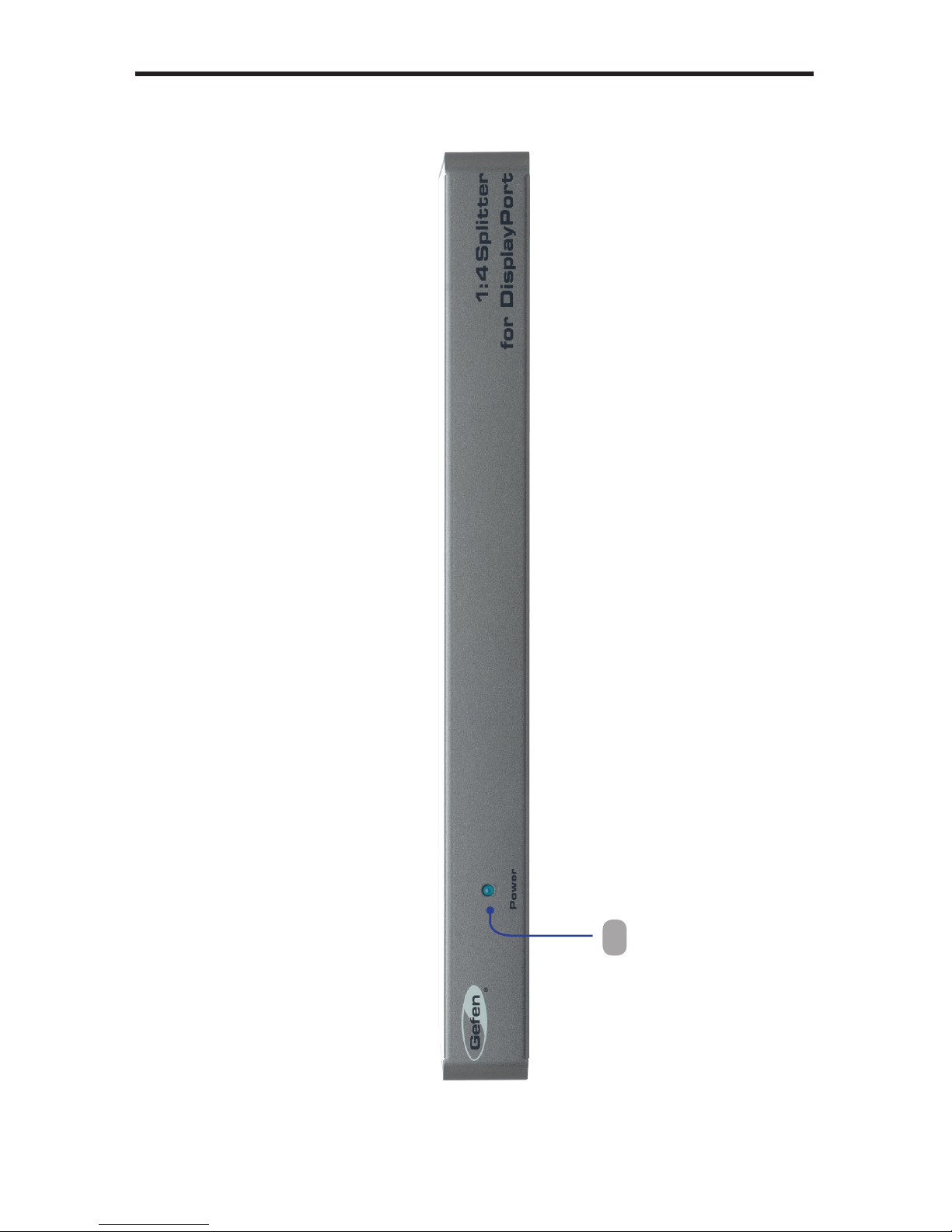

Front Panel

FRONT PANEL DESCRIPTIONS

1 Power

This LED indicator will glow bright blue when the unit is powered.

BACK PANEL LAYOUT

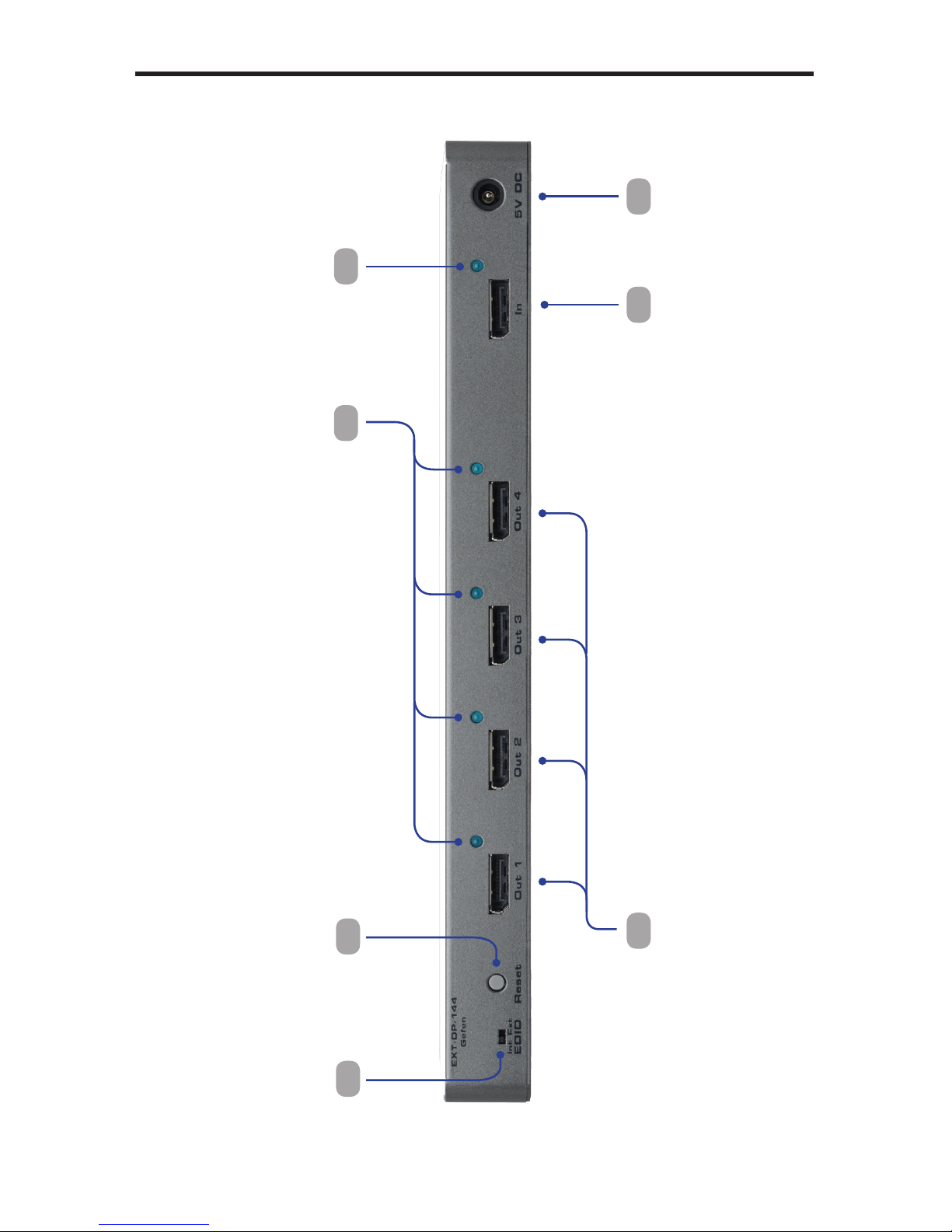

Back Panel

1 2 3
