Gefen EXT-HDMISB Manuale utente

www.gefen.com

Super

Booster Cable

EXT-HDMISB

User Manual

HDMI®

ASKING FOR ASSISTANCE

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday PST

Write To:

Gefen, LLC

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

HDMI®, the HDMI Logo, and High-Deﬁnition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing in the United States and

other countries.

HDMI Super Booster Cable is a trademark of Gefen, LLC

All trademarks are the property of their respective owners

Rev A2

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Panel Layout

5 Connecting The HDMI Super Booster Cable

6 Using Video Equalization To Get An Optimal Picture

7 Speciﬁcations

8 Warranty

Congratulations on your purchase of the HDMI Super Booster Cable. Your

complete satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive AV, computer and electronics add-

on solutions that harness integration, extension, distribution and conversion

technologies. Gefen’s reliable, plug-and-play products supplement cross-platform

computer systems, professional audio/video environments and HDTV systems

of all sizes with hard-working solutions that are easy to implement and simple to

operate.

The Gefen HDMI® Super Booster Cable

The HDMI Super Booster Cable runs between your HDMI video source and your

HD display in order to regenerate an HDMI signal over long distances without

signal loss.

The HDMI Super Booster Cables are a copper cable based HDMI signal

extension solution with an integrated Gefen HDMI Super Booster available in

the lengths of 50, 75, 100, 125 and 150 feet. The HDMI Super Booster cables

will offer the highest resolution possible at any desired length with support

for all resolutions up to 1080p. Embedded multichannel HDMI Digital Audio

is also supported by this cable and allows for the highest possible quality A/V

experience.

How It Works

This plug and play installation takes mere seconds. Simply connect the HDMI

cable end to your HDMI source and the HDMI Super Booster end to the display’s

cable or a small mating cable. A vibrant, beautiful HD picture emerges on the

display. That’s all there is to it.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE HDMI SUPER BOOSTER CABLE

• A 5V DC power supply is included. In normal scenarios, the source powers

the cable by providing a 5V signal within the cable. If the necessary voltage

is not present, the included 5V DC power supply may be used to provide

power. Please see page 5 for more information.

• The HDMI Super Booster Cable must be connect as instructed on page 5.

The metal booster head should be located on the display side. The HDMI

cable that connects the display to the unit should not exceed 15 feet.

• The HDMI Super Booster Cable is HDMI 1.3 Compliant*. Please see the

next page for supported HDMI 1.3 features.

• The HDMI Super Booster Cable is HDCP Compliant.

*This cable meets HDMI 1.3 bandwidth requirements at lengths of up to

100ft. The 150ft and 200ft HDMI Super Booster Cables only support HDMI

1.2 speciﬁcations.

OPERATION NOTES

Features

• Perfect digital high deﬁnition video sent over long stretches of HDMI cables

• Locate an HDMI display up to 200 feet away from any HDTV source

• Supports resolutions up to 1080p, 2K, and 1920 x 1200

• HDMI/HDCP compliant

HDMI 1.3 Features Supported (for lengths up to 100ft):

• Deep Color (XV Color)

• Dolby TrueHD & DTS Master Audio

• 225 MHz (up to 12 bit YUV 444 @ 1080p)

• Color Space Conversion

• CEC Pass Through

• Lip-Sync Pass Through

Package Includes

(1) HDMI Super Booster Cable

(1) 5V DC Power Supply

(1) User’s Manual

FEATURES

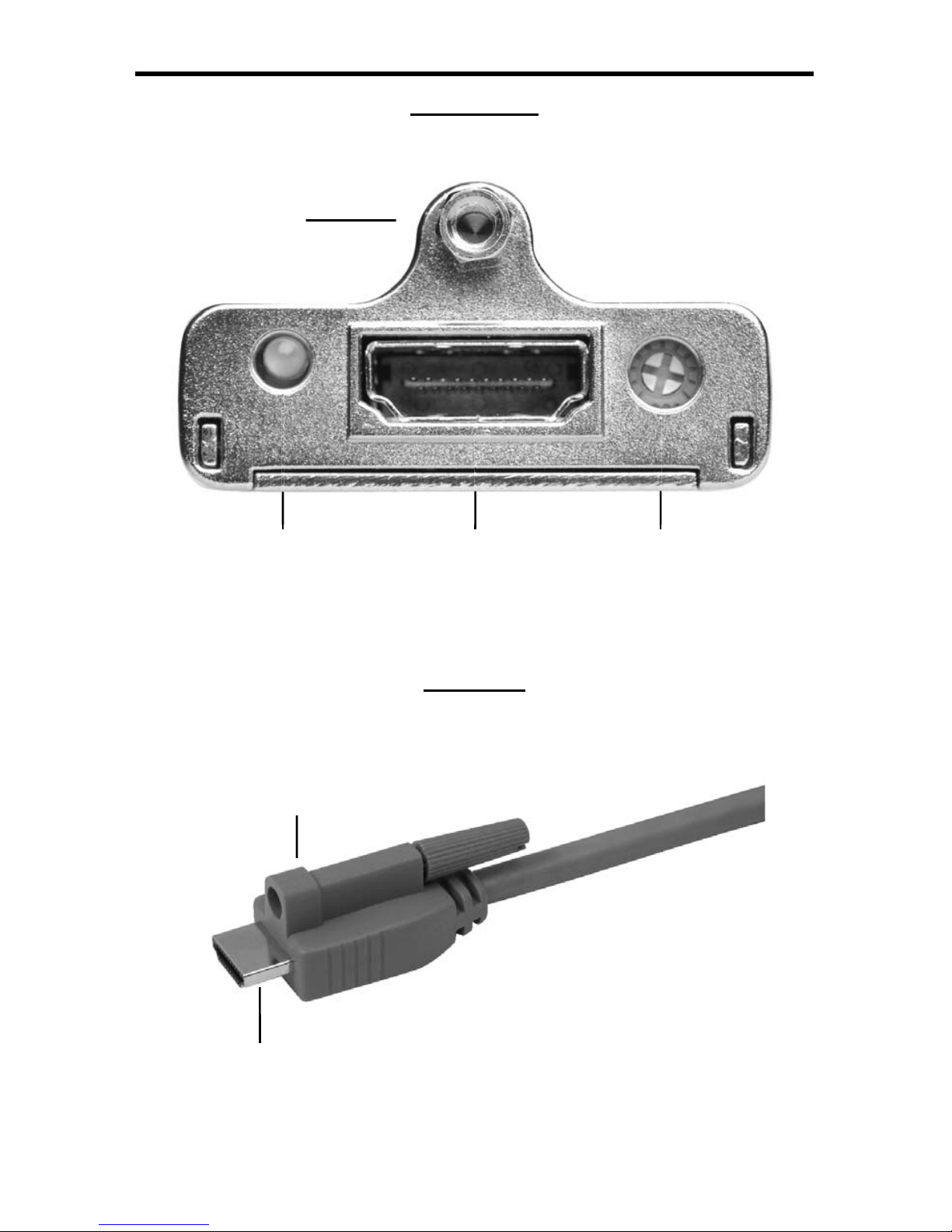

Female Side

Male Side

HDMI Male Connector

Mono-Lok™ Secure Cable

Locking Screw

PANEL LAYOUT

Power LED Indicator HDMI Output Equalization Trim Pot

Mono-Lok™

Secure Cable

Locking Nut

How to Connect the HDMI Super Booster Cable

1. Connect the HDMI Super Booster Cable’s male end to the HDMI source.

The male end has no lights or adjustment controls on it and is considerably

smaller than the larger female end.

2. Connect the HD display to the large female end of the HDMI Super Booster

Cable using a short user-supplied HDMI cable. The female end of the HDMI

Super Booster has the LED Power Indicator and the EQ Trim Pot control

plainly visible.

3. Should it be necessary (see NOTE below), plug the power supply into the

female end of the HDMI Super Booster Cable.

NOTE: In normal scenarios, the AV source device outputs the 5V signal needed

to power the cable. If a sufﬁcient voltage is not provided by the source, the

included 5V DC power supply can be connected to the Super Booster Cable.

To determine if this is necessary, look to see if the power LED indicator on the

front of the HDMI Super Booster Cable head is active (see page 4). If the power

LED is not active, the AV source is not supplying the requisite 5V needed to

power the HDMI Super Booster Cable and the included power adapter will need

to be connected to the power jack on the rear of the Super Booster Cable head

(Female Side) as shown below.

CONNECTING THE HDMI SUPER BOOSTER CABLE

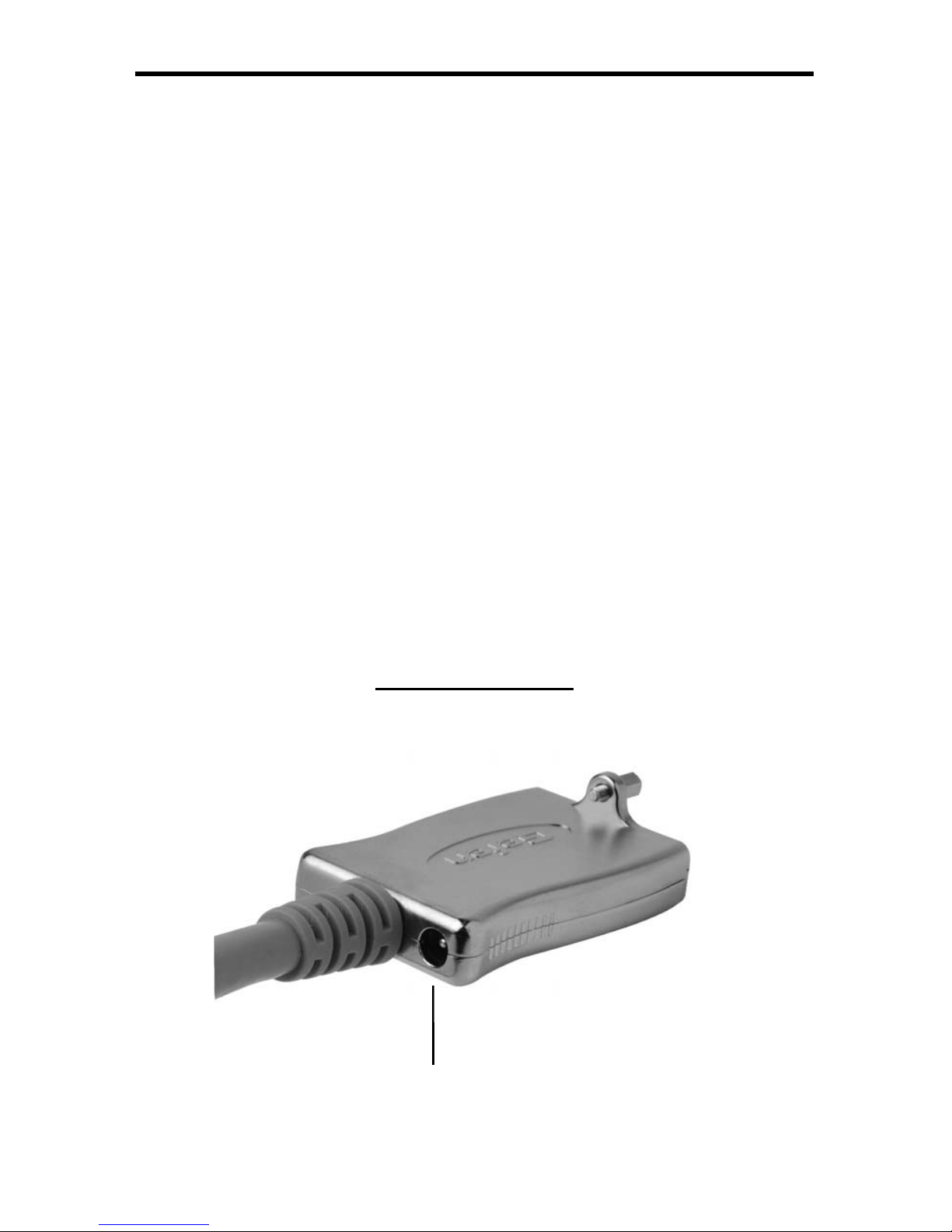

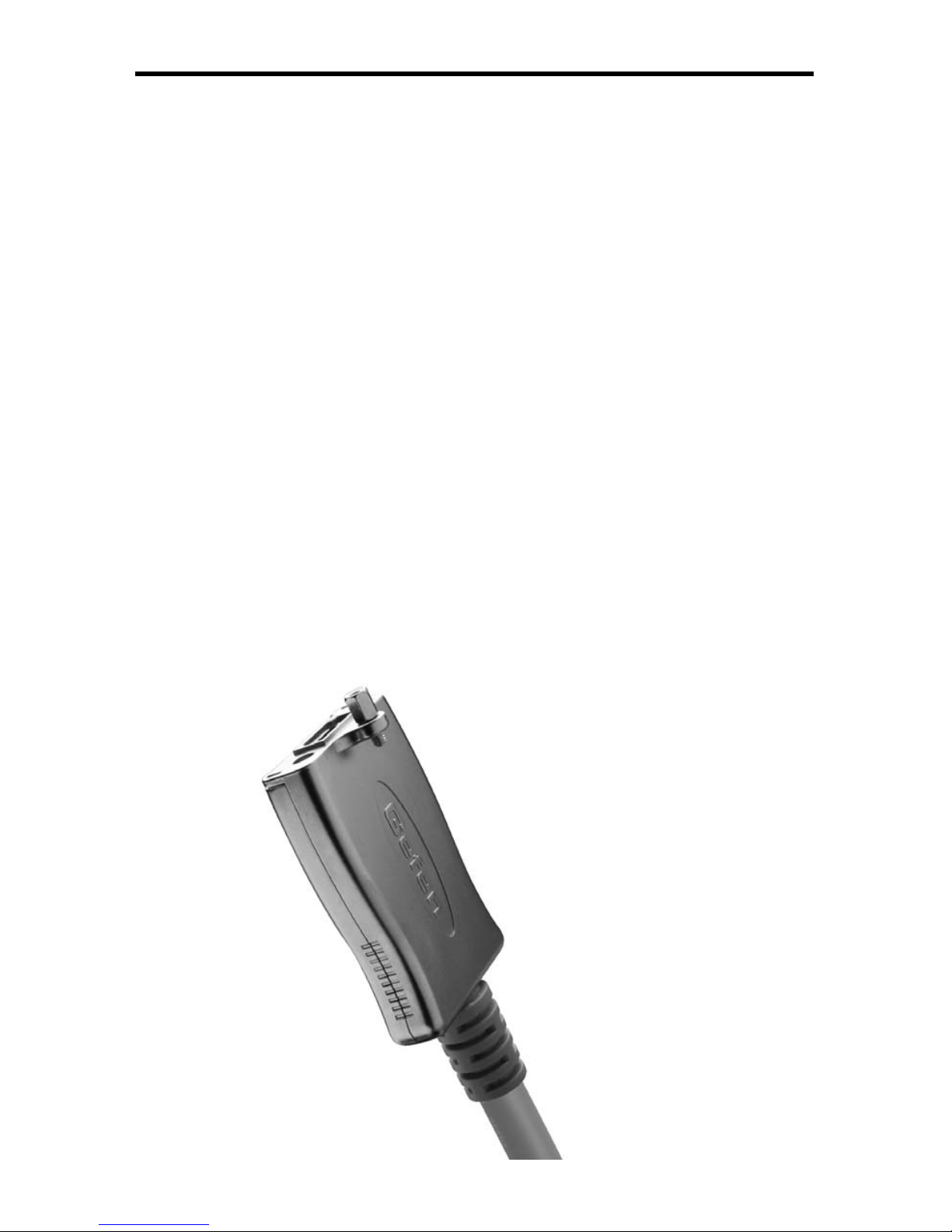

Rear of Female Side Showing

5V Power Jack for the

included Power Supply

Female Side (Rear)

Manual Video Equalization with the Trim Pot Control

The equalization Trim Pot (Potentiometer) can be used to manually ﬁne tune

the video signal coming from the source device. If there is noise or no picture,

adjusting the Trim Pot can resolve the issue.

1. Locate the Trim Pot adjustment port on the HDMI Super Booster Cable

head. Insert a small ﬂat-head tool into the port.

2. Gently turn the Trim Pot in either a clockwise or counter-clockwise direction

in very small increments until all video noise has been eliminated. The

position in which noise is eliminated can be easy to miss.

3. Once the desired video image is obtained, remove the adjustment tool.

NOTE: Do not force the Trim Pot past the point where it stops turning. This may

break the adjustment dial and render the HDMI Super Booster Cable useless.

USING VIDEO EQUALIZATION TO GET AN OPTIMAL PICTURE

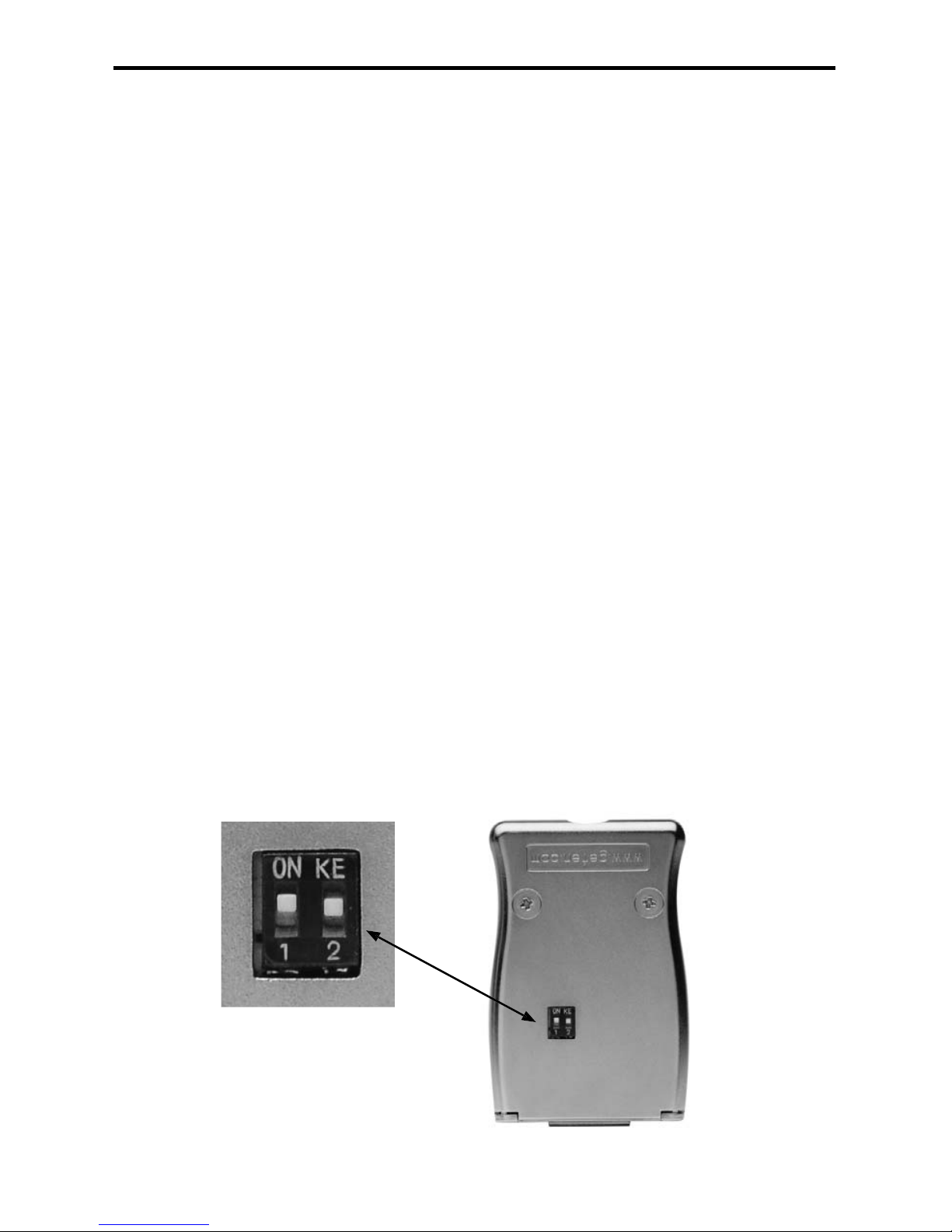

Video Equalization using the internal DIP switches

There is a small bank of switches underneath the booster chassis known as DIP

switches. To use them to adjust the video behavior, use a small pointed object

to push the switches ON or OFF as follows:

DIP Switch 2 is not used. DIP Switch 1 turns on automatic video equalization

(tuning out of unwanted noise) when in the OFF position. If video noise is still

present, turn DIP Switch 1 to the ON position and then manually tune the signal

using the manual equalization (EQ) Trim Pot control. Gently adjust the EQ Trim

Pot control using the techniques described immediately below.

USING DIP SWITCHES TO TOGGLE AUTO EQ:

Video Ampliﬁer Bandwidth ....................................................................... 165 MHz

Input Video Signal .............................................................................. 1.2 Volts p-p

Single Link Range ................................................................... 1080p/1920 x 1200

HDMI™ Connector .............................................................. Type A 19 Pin Female

Female Connector Dimensions ................................. 1.563”W x 1.008”H x 1.05”D

SPECIFICATIONS
