G
-
S
DI Fiber
Op
ti
c
Extende
r
E
XT-3GSDI-FO-14
1
USER
M
ANUA
L
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM PST Monday thru Friday.
Write To:
Gefen LLC
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen LLC reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
3GSDI Fiber Optic Extender is a trademark of Gefen LLC
All trademarks are the property of their respective owners.
© 2010 Gefen LLC, All Rights Reserved
ASKING FOR ASSISTANCE
Rev A1
1 Introduction
2 Operation Notes
3 Features
4 Connector Layout
5 Connector Descriptions
6 Connecting and Operating The 3GSDI Fiber Optic Extender
7 Troubleshooting
8 Specifications
9 Warranty
CONTENTS
1
INTRODUCTION
Congratulations on your purchase of the 3GSDI Fiber Optic Extender. Your
complete satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen 3GSDI Fiber Optic Extender
The Gefen 3GSDI Fiber Optic Extender is a miniature digital video data transport
system over fiber optic cable supporting 1080p for 3G-SDI and HD-SDI. It
converts a one-channel SMPTE-424M 3G-SDI, SMPTE-292M HD, or SMPTE-
259M serial digital video signal over extended distances up to 12 miles (20 km)
over either single-mode or multi-mode fiber optic cable.
How It Works
The Sender receives the SDI input signal and converts the SMPTE-424M / 292M
/ 259M SDI signals to optical data. The Receiver unit collects the optical data
from the fiber cable and converts it to an SDI signal.
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE 3GSDI FIBER OPTIC EXTENDER
• The use of an intermediate cable or adapter is not recommended. Additional
coupling devices may deteriorate the signal transmission.
OPERATION NOTES
2
3
FEATURES
Features
• Extends 3G-SDI up to 12 miles (20km)
• Transports Multi-rate HD-SDI Digital Video over a single ST fiber cable.
• Supports SMPTE-424M (3G-SDI), SMPTE-292M (HD-SDI), or SMPTE-
259M (SDI) specifications.
• Automatic Input Equalization
• Latch-Locking Power Connector
• HD-SDI BNC input connector and ST terminated fiber optical connector
• Robust metal die-casting enclosure for harsh environments
Package Includes
(1) 3GSDI Fiber Optic Extender Sender Unit
(1) 3GSDI Fiber Optic Extender Receiver Unit
(2) 5V DC Power Supplies
(1) User manual
SMPTE Standards Table (Showing Bit Rates for SDI):
Standard Name Bit Rates Example Video
Formats
SMPTE 424M 3G-SDI 2.970 Gbit/s 1080p
SMPTE 292M HD-SDI 1.485 Gbit/s 720p, 1080i
SMPTE 259M SD-SDI 270 Mbit/s, 360 Mbit/s
143 Mbit/s and 177
Mbit/s
480i, 576i
4

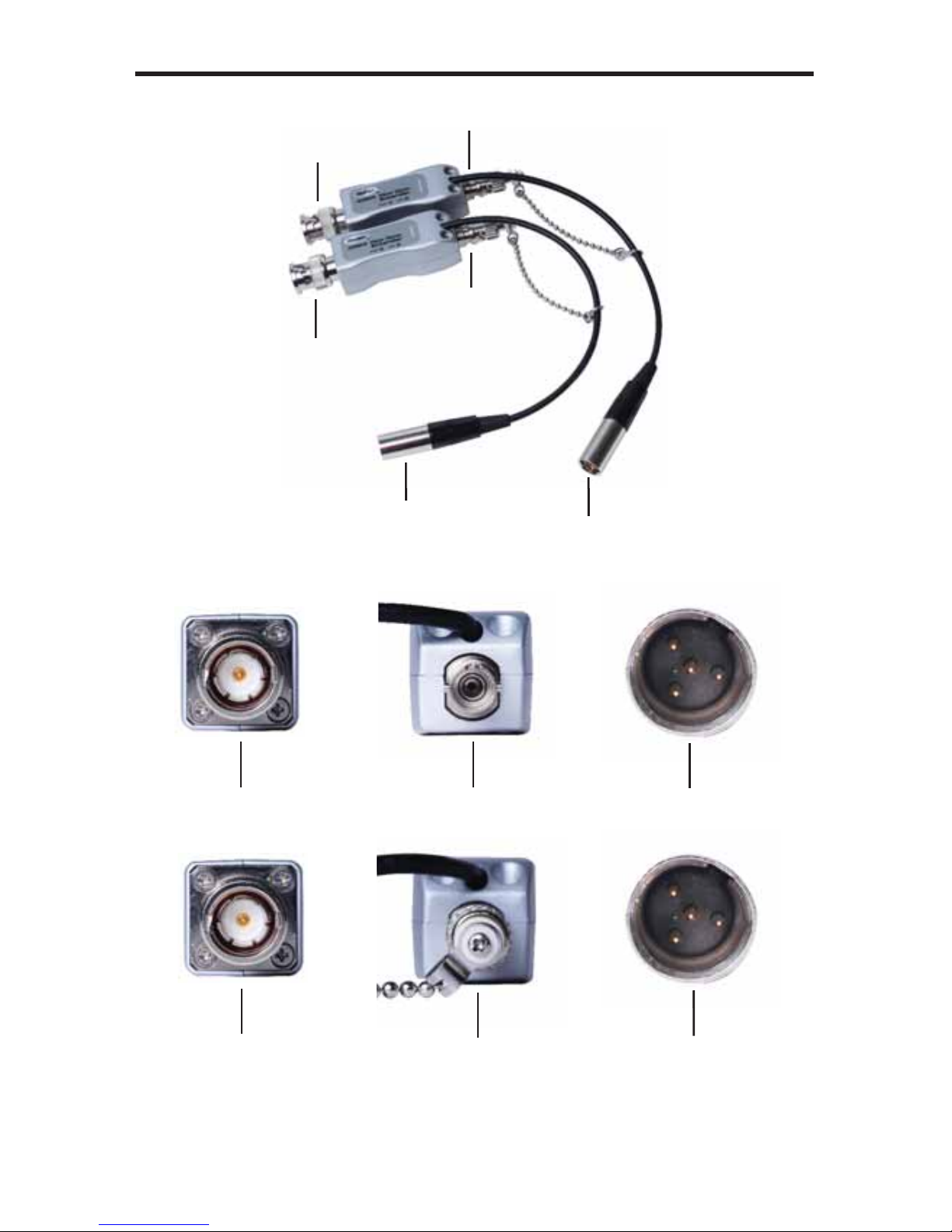

CONNECTOR LAYOUT
6
4
1
5
2
Receiver
Sender
3
6
5
1
4
23
(shown with protective cover)
5
CONNECTOR DESCRIPTIONS
1 3G-SDI BNC Output
Connect the Receiver to the input of the SDI display.
2 ST Fiber Connector Input
Connect the ST-fiber cable to this connector.
3 5V DC Power Supply Connector (Receiver)
Connect this cable to the included 5V DC power supply.
4 3G-SDI BNC Input
Connect the Sender to the output of the SDI source.
5 ST Fiber Connector Output
Connect the ST-fiber cable to this connector.
6 5V DC Power Supply Connector (Sender)
Connect this cable to the included 5V DC power supply.
6
CONNECTING & OPERATING
THE 3GSDI FIBER OPTIC EXTENDER
How to Connect the 3GSDI Fiber Optic Extender
1. Connect the Sender of the Gefen 3GSDI Fiber Optic Extender to the 3G-SDI
source equipment via the BNC connector.
2. Remove the locking protective cover from the fiber connector of the Sender
and connect one end of the fiber cable to the ST connector of the Sender.
3. Remove the locking protective cover from the fiber connector of the Receiver
and connect the other end of the fiber cable to the ST connector of the
Receiver.
4. Connect the BNC output connector to the SDI display device.
5. Connect the included 5V DC power supplies to both the Sender and
Receiver.
Pantone426C
BackgroundC
EXT-3GSDI-FO-141
3G-SDI Display
Sender
Receiver
ST FIBER OPTIC CABLE
3G-SDI Source
Pantone426C
BackgroundCol
Wiring Diagram for the 3GSDI Fiber Optic Extender
7
No picture / display shows a blank screen
• Ensure that all jacks that are used by the 5V DC power supplies are firmly
connected.
• Ensure that the SDI connector is firmly plugged in to the SDI source and SDI
display. Ensure that the Sender and Receiver module parts are connected to
the SDI source and SDI display, respectively.
• Check if the SDI source and SDI display are powered on and properly
booted.
• Reset the system by unplugging and reconecting the Sender SDI module or
Receiver SDI module. Re-boot the system while connecting the 3GSDI Fiber
Optic Extender.
• Verify that the fiber cables are not damaged.
Picture is distorted or contains noise
• Verify the quality of the SDI source and check the length of the fiber cable.
The 3GSDI Fiber Optic Extender will work up to a distance of 12 miles
(20km) using single-mode fiber.
TROUBLESHOOTING
