Gefen VGA-141LR Manuale utente
www.gefen.com
f
VGA Extender LR
EXT-VGA-141LR
User Manual
f
EXT-VGA-141LR
Us
er
M
an
ua
l
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
VGA Extender LR is a trademark of Gefen Inc.
© 2008 Gefen Inc., All Rights Reserved
All trademarks are the property of their respective companies
ASKING FOR ASSISTANCE
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Panel Layout
5 Panel Descriptions
6 Connecting And Operating The VGA Extender LR
7 Network Cable Wiring Diagram
8 Specifications
9 Warranty
1
Congratulations on your purchase of the VGA Extender LR. Your complete satis-
faction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen VGA Extender LR
The VGA Extender allows users to extend video signals beyond the A/V rack.
The VGA Extender Series can be used to extend an analog signal to cover dis-
tances up to 330 feet. Industry standard Category 5e (CAT-5e) cable is used for
the extension.
How It Works
The VGA Extender LR sender unit connects to your source using the supplied
cable. The receiver unit connects to your display - up to 330 feet away. One
CAT-5 cable connects the sender and the receiver to each other, extending your
video flawlessly.
Note: This is a new VGAExtender that goes double the distance of the previous
version, and also has a trimpot for fine video adjustment.
INTRODUCTION
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE VGA EXTENDER LR
Display information (EDID) is not sent back to the source. Standard VESA• resolutions should be output by most computers without the need of an
EDID. If using a non-VESA standard resolution or if EDID is needed, an
EDID storage and relay device is necessary. Gefen recommends the use of
a DVI Detective (part# EXT-DVI-EDID, EXT-DVI-EDIDN, or EXT-DVI-EDIDP)
with two VGA to DVI adapters.
Use industry standard Category-5 (CAT-5) cable to operate the VGA• Extender LR system. CAT-5e cable is preferred.
Please connect all the cables between the computer and the VGA Extender• LR before powering up the VGA Extender LR unit.
The VGA Extender LR units are housed in a metal box for better RF• shielding.
2
OPERATION NOTES
3
Features
Extends any VGA or high definition component display up to 330 feet (100• meters)
One CAT-5e cable for extension•
Supports resolutions up to 1080p, 2K, and 1920 x 1200•
Package Includes
(1) VGA Extender S Sender Unit
(1) VGA Extender R Receive Unit
(1) 6 Foot VGA cable (M-F)
(1) 5V external power supply
(1)User’s Manual
FEATURES
4
Sender Unit Panel
Receiver Unit Panel
12 3
7456
PANEL LAYOUT
5
5V DC Power Supply Input1 Connect the included 5V DC power supply to this input. Power for the receiving
unit will be provided over the CAT-5e cable that connects the sending and
receiving units together.
Sender RJ-45 Input2 Connect a CAT-5e cable (terminated according to the TIA/EIA-568-B
specification. Please see page ##) between the sending and receiving units.
VGA Input3 Connect the VGA source to this input. EDID is not transmitted from the display
through the VGAExtender LR units. If the display has a non-standard VESA
resolution, please purchase an EDID storage device (part# EXT-DVI-EDIDN) to
record and transmit the displays EDID back to the source.
Focus Trim Pot4 Adjusting this Trim Pot will sharpen/blur the output video. Please see page ##
for more details.
Receiver RJ-45 Input5 Connect a CAT-5e cable (terminated according to the TIA/EIA-568-B
specification. Please see page ##) between the sending and receiving units.
Power LED6 This LED will become active once the included power supply is connected and a
properly connected CAT-5e cable is joining the sending and receiving units.
VGA Output7 Connect the VGA display to this output port.
PANEL DESCRIPTIONS
6
How to Connect the VGA Extender LR
Connect the VGA Extender LR sender unit to the VGA output on the back of1. your computer. The six foot M-F VGA cable connects the CPU and sender
unit together.
Connect the VGA Extender LR receiver unit to your monitor with the VGA2. cable that is attached to your monitor.
Connect the CAT-5e cable between the VGA Extender LR sender and3. receiver’s CAT5 input.
Plug the 5V DC power supply into the sender unit. The VGAExtender LR4. receiver will draw power from the sender.
BRIGHTNESS AND FOCUS TRIM POTS
Focus adjustments are found on the receiver unit and will help compensate for
issues that can be introduced by outside interference and cable variances. If
there is a ghosting or blurring effect on the image, the focus trim pot can be used
to eliminate these artifacts. Insert a small flat head device, such as a small screw
driver into the focus Trim Pot hole. Turn the Trim Pot in millimeter increments in
either a clockwise or counterclockwise direction. Once the desired focus setting
has been reached, simply remove the adjustment device from the Trim Pot hole.
CONNECTING AND OPERATING THE VGA EXTENDER LR
12345678

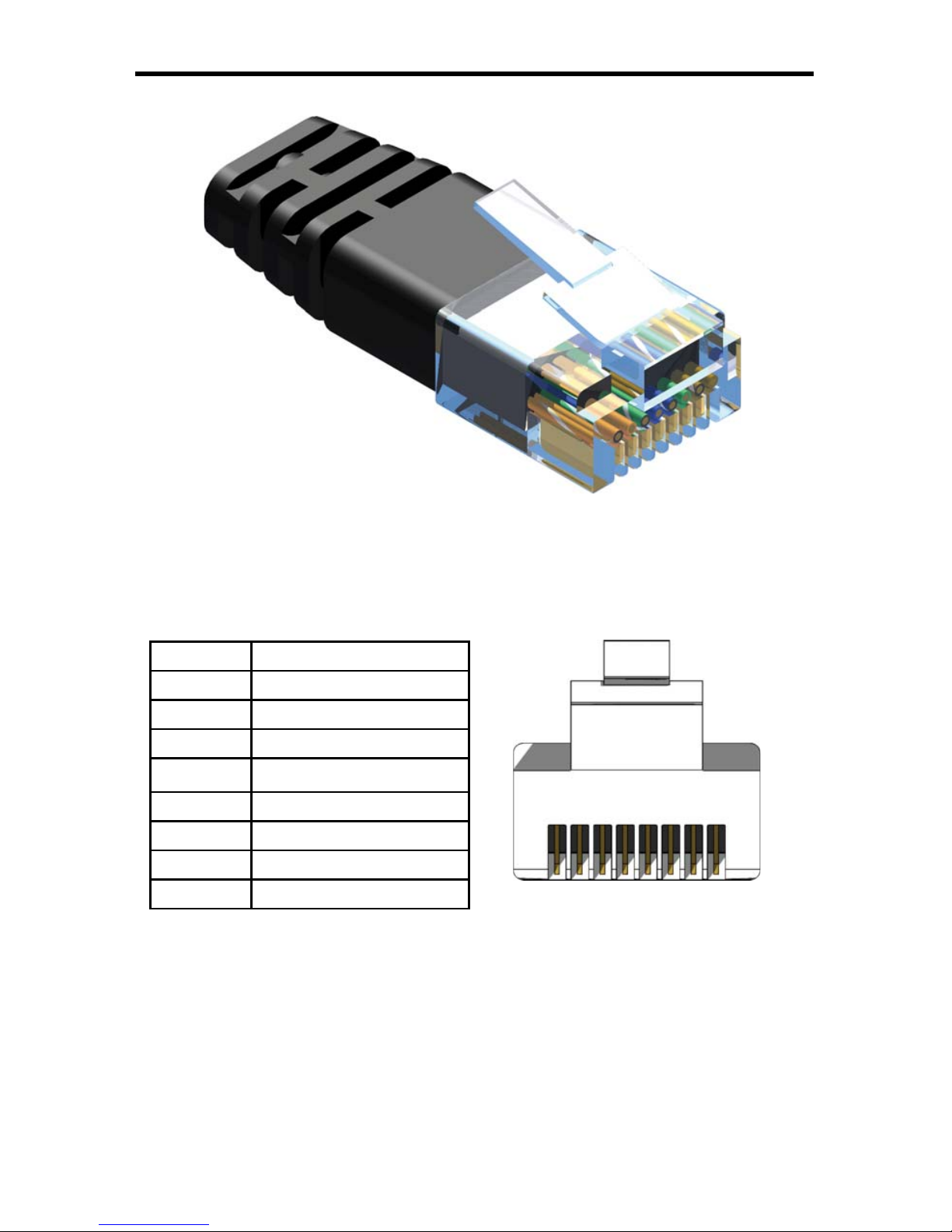

Gefen has specifically engineered their products to work with the TIA/EIA-568-B
specification. Please adhere to the table below when field terminating cable for
use with Gefen products. Failure to do so may produce unexpected results and
reduced performance.
CAT-5, CAT-5e, and CAT-6 cabling comes in stranded and solid core types.
Gefen recommends using solid core cabling. CAT-6 cable is also recommended
for best results.
Each cable run must be one continuous run from one end to the other. No splices
or use of punch down blocks.
Pin Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
7
NETWORK CABLE WIRING DIAGRAM
