Gembird WNP-RP-002 Manuale utente
USER MANUAL
HANDBUCH
HANDLEIDING
MANUEL DESCRIPTIF
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
КЕРІВНИЦТВО КОРИСТУВАЧА
WIFI REPEATER, 300 MBPS
WIFI-REPEATER, 300 MBPS
WIFI VERSTERKER, 300 MBPS
RÉPÉTEUR WIFI, 300 MBPS
РЕТРАНСЛЯТОР WIFI СИГНАЛОВ, 300 МБИТ/СЕК
РЕТРАНСЛЯТОР WIFI СИГНАЛІВ, 300 МБИТ/СЕК
WNP-RP-002
2
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
WNP-RP-002 WIFI REPEATER, 300 MBPS
Features
300 Mbps WiFi repeater with integrated antennas
Supports all IEEE802.11b/g/n WiFi standards (2.4GHz networks)
Up to 300 Mbps data transfer rate via the wireless 802.11n protocol
Maximum WLAN security with WPA2, WPA and WEP(128/64)
WPS button for easy WPS security setup
Can also be used as a normal wireless router
In ’repeater’ mode the LAN port can be used as wired network
connection
Practical signal strength indicator
Specifications
Supported standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b,
IEEE 802.3, IEEE 802.3u
Wireless transmission rate: max. 300 Mbps
Ports: 1 x 10/100M RJ45
Chipset: Realtek 8196E
Frequency band: 2.4~2.4835 GHz
Channels: 1-13 (Europe)
Power class: RF power 14 dBm (max. EIRP)
Internal antenna gain (typical): 3 dBi ±1 dBi
3
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
WNP-RP-002 WIFI REPEATER, 300 MBPS
Receive sensitivity 11n : -70dBm@10% PER; 11g : -70dBm@10%
PER; 11b: -85dBm@8% PER
Spread Spectrum: DSSS
Modulation: BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/
64-QAM)
Transmission distance: up to 100 m (indoor), 300 m (outdoor open air),
depending on the environment
Power consumption: up to 3 W
Supports 64/128bit WEP, complies with 128 bit WPA/WPA2
Supported modes: Router mode, repeater mode, AP client mode
Cascading: up to 5 levels (depending on usage environment)
Dimensions: 90 x 40 x 60 mm (W x D x H)
Net weight: 150 g
Operating temperature: 0 ~ 40 °C
Storage temperature: -40 ~ 70 °C
Operating humidity: 10 ~ 90% non-condensing
Storage humidity: 5 ~ 95% non-condensing
4
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
WNP-RP-002 WIFI REPEATER, 300 MBPS
5
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
WNP-RP-002 WIFI REPEATER, 300 MBPS
6
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
WNP-RP-002 WIFI REPEATER, 300 MBPS

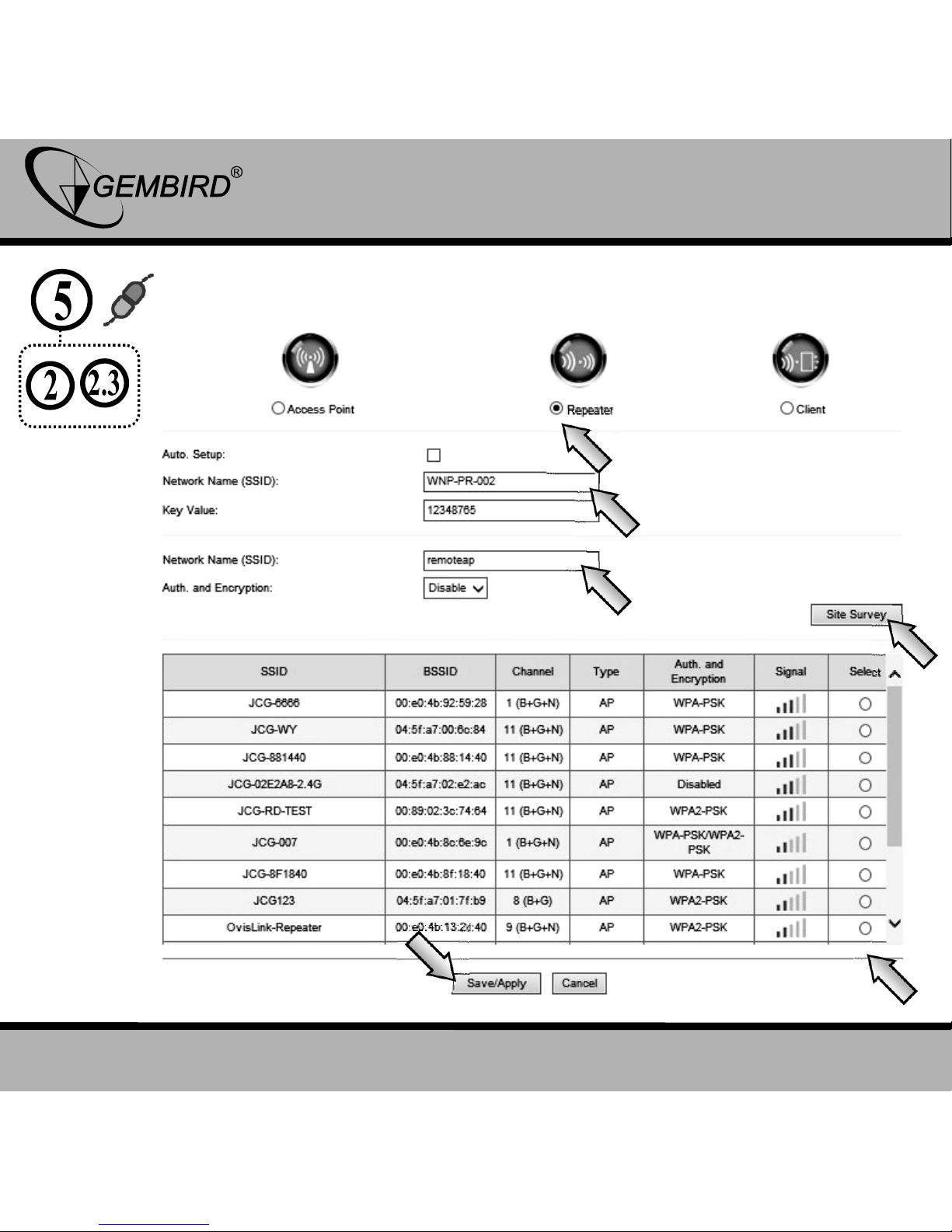

12348765
7
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
WNP-RP-002 WIFI REPEATER, 300 MBPS
8
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
WNP-RP-002 WIFI REPEATER, 300 MBPS
9
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
WNP-RP-002 WIFI REPEATER, 300 MBPS
10
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
WNP-RP-002 WIFI REPEATER, 300 MBPS
This product is tested and complies with the essential requirements of the
laws of member states concerning R&TTE(1999/5/EC). The CE declaration can be
found under www.gembird.eu
Dieses Produkt wurde getestet und stimmt mit den grundlegenden
Anforderungen der Richtlinie R&TTE(1999/5/EC) überein. Die Konformitätserklärung
kann auf unserer Webseite www.gembird.de heruntergeladen werden
