Generac Power Systems 005914-0 Guida all'installazione

STANDBY GENERATORS

8 kVA - 10 kVA - 13 kVA

INCLUDES:

• Tri-ligual Two Line LCD Digital Nexus™

Controller (English/Spanish/French)

• Electronic Governor

• External Main Circuit Breaker

& System Status LED

• Sound Attenuated Enclosure

• Flexible Fuel Line Connector

• Composite Mounting Pad

• Natural Gas or LP Gas Operation

FEATURES

¡INNOVATIVE DESIGN & PROTOTYPE TESTING are key components

of Generac's success in “IMPROVING POWER BY DESIGN.” But it

doesn’t stop there. Total commitment to component testing, reliability

testing, environmental testing, destruction and life testing, allows

you to choose Generac with the confidence that these systems will

provide superior performance.

¡TEST CRITERIA:

PROTOTYPE TESTED

MOTOR STARTING ABILITY

SYSTEM TORSIONAL TESTED

¡SOLID-STATE, FREQUENCY COMPENSATED VOLTAGE REGULATION

This state-of-the-art power maximizing regulation system is standard on

all Generac models. It provides optimized FAST RESPONSE to changing

load conditions and MAXIMUM MOTOR STARTING CAPABILITY by

electronically torque-matching the surge loads to the engine.

¡SINGLE SOURCE SERVICE RESPONSE from Generac's dealer

network provides parts and service know-how for the entire unit, from

the engine to the smallest electronic component.

Air-Cooled Gas Engine Generator Sets

Standby Power Rating

Model 005914-0 (Steel - Bisque) - 8 kVA 50Hz

Model 005915-0 (Steel - Bisque) - 10 kVA 50Hz

Model 005916-0 (Steel - Bisque) - 13 kVA 50Hz

ISO

9001:

2008

ISO

9001:

2008

FEATURES Generac Standby Generator - 8 kVA - 10 kVA - 13 kVA

ENGINE

•Generac (OHVI) Design

•”Spiny-lok” cast iron cylinder walls

•Electronic ignition

•Full pressure lubrication system

•Low oil pressure shutdown system

•High temperature shutdown

Maximizes engine “breathing” for increased fuel efficiency. Plateau honed cylinder walls and plasma

moly rings help engine run cooler, reducing oil consumption. Because heat is the primary cause of

engine wear, the OHVI has a significantly longer life than competitive engines.

Rigid construction and added durability provide long engine life.

This assures smooth, quick starting every time.

Superior lubrication to all vital bearings means better performance, less maintenance and

significantly longer engine life. Now featuring a 2 year/200 hour oil change interval.

Superior shutdown protection prevents catastrophic engine damage due to low oil.

Prevents damage due to overheating.

GENERATOR

•Revolving field

• Skewed stator

•Displaced phase excitation

•Automatic voltage regulation

Allows for smaller, light weight unit that operates 25% more efficiently than a revolving armature generator.

Produces a smooth output waveform for compatibility with electronic equipment.

Maximizes motor starting capability.

Regulates the output voltage to ±2% prevents damaging voltage spikes.

CONTROLS

•Manual/Auto/Off switch

•Utility voltage sensing

•Utility interrupt delay

•Engine warm-up

•Engine cool-down

•Seven day exerciser

•Trickle Battery charger

•Main Line Circuit Breaker

•Electronic governor

Selects the operating mode.

Constantly monitors utility voltage, setpoints 65% dropout, 75% pick-up, of standard voltage.

Prevents nuisance start-ups of the engine, setpoint approximately 10 seconds.

Ensures engine is ready to assume the load, setpoint approximately 10 seconds.

Allows engine to cool prior to shutdown, setpoint approximately 1 minute.

Operates engine to prevent oil seal drying and damage between power outages.

Maintains battery charge level to insure starting.

Protects generator from overload.

Maintains constant 50 Hz frequency.

UNIT

•Weather protective enclosure

•Enclosed critical grade muffler

•Small, compact, attractive

•SAE

Ensures protection against mother nature. Hinged key locking roof panel for security.

Lift-out front for easy access to all routine maintenance items. Electrostatically applied

textured epoxy paint for added durability.

Quiet, critical grade muffler is mounted inside the unit to prevent injuries.

Makes for an easy, eye appealing installation.

Sound attenuated enclosure ensures quiet operation.

INSTALLATION

SYSTEM

•1’ Flexible Fuel Line Connector

•Composite Mounting Pad

Easy Installation.

Rating definitions - All ratings in accordance with BS5514, ISO3046 and DIN6271. * Maximum wattage and current are subject to and limited by such factors as fuel Btu content, ambient temperature, altitude,

engine power and condition, etc.

Maximum power decreases about 3.5 percent for each 1,000 feet (304.8 meters) above sea level; and also will decrease about 1 percent for each 12° C (10° F) above 15.5° C (60°F).

SPECIFICATIONS

GENERATOR Model 005914-0 (8 kVA) Model 005915-0 (10 kVA) Model 005916-0 (13 kVA)

Rated Maximum Continuous Power Capacity (LP) 8,000 Watts* 10,000 Watts* 13,000 Watts*

Rated Maximum Continuous Power Capacity (NG) 7,000 Watts** 10,000 Watts** 13,000 Watts**

Rated Voltage 110/220 110/220 110/220

Rated Maximum Continuous Load Current

220 Volts, Single Phase 36.4 LP/31.8 NG 45.5 LP/45.5 NG 59 LP/59 NG

Main Line Circuit Breaker 35 Amp 50 Amp 65 Amp

Phase 1 1 1

Number of Rotor Poles 222

Rated AC Frequency 50Hz 50Hz 50Hz

Power Factor 111

Battery Requirement (not included) Group 26

12 Volts and

525 Cold-cranking

Amperes Minimum

Group 26

12 Volts and

525 Cold-cranking

Amperes Minimum

Group 26

12 Volts and

525 Cold-cranking

Amperes Minimum

Unit Weight (Pounds/Kilograms) 387/175.4 425.5/193 445/201.8

Dimensions L x W x H (Inches/Millimeters) 48 x 25 x 29/1218 x 638 x 732 48 x 25 x 29/1218 x 638 x 732 48 x 25 x 29/1218 x 638 x 732

Sound output in dB(A) at 23 ft. with generator operating at normal load 60 60 60

ENGINE Model 005914-0 (8 kVA) Model 005915-0 (10 kVA) Model 005916-0 (13 kVA)

Type of Engine GENERAC OHVI V-TWIN GENERAC OHVI V-TWIN GENERAC OHVI V-TWIN

Number of Cylinders 222

Displacement 530cc 992cc 992cc

Cylinder Block Aluminum w/Cast

Iron Sleeve

Aluminum w/Cast

Iron Sleeve

Aluminum w/Cast

Iron Sleeve

Valve Arrangement Overhead Valve Overhead Valve Overhead Valve

Ignition System Solid-state Magneto Solid-state Magneto Solid-state Magneto

Governor System Electronic Electronic Electronic

Compression Ratio 9.5:1 9.5:1 9.5:1

Starter 12 Vdc 12 Vdc 12 Vdc

Oil Capacity Including Filter (Quarts/Liters) 1.7/1.6 1.9/1.8 1.9/1.8

Operating RPM 3,000 3,000 3,000

Fuel Consumption

Natural Gas cu.ft./hr. (cu.meters/hr.)

1/2 Load

Full Load

Liquid Propane cu.ft./hr (gal/hr)/cu.meters/hr. (liters/hr.)

1/2 Load

Full Load

156 (4.42)

220 (6.23)

58 (1.56)/1.64 (5.9)

84 (2.30)/2.38 (8.7)

156 (4.42)

220 (6.23)

58 (1.56)/1.64 (5.9)

84 (2.30)/2.38 (8.7)

183 (5.18)

261 (7.39)

59 (1.61)/1.67 (6.1)

94 (2.57)/2.66 (9.7)

*Required fuel pressure to generator fuel inlet at all load ranges - 5 to 7 inches of water column for natural gas, 11 to 14 inches of water column for LP gas

**Outputs are based upon natural gas value @ 1000 Btu per cubic feet and 2520 Btu per cubic feet with LP

@ 28.32 Btu per cubic meter and 71.36 Btu per cubic meter with LP

CONTROLS

2-Line Plain Text LCD Display Simple user interface for ease of operation

Mode Switch

-Auto Automatic Start on Utility failure. 7 day exerciser

-Off Stops unit. Power is removed. Control and charger still operate.

-Manual/Test (start) Start with starter control, unit stays on. If utility fails, transfer to load takes place.

Engine Start Sequence Cyclic cranking: 16 sec. on, 7 rest (90 sec. maximum duration)

Engine Warm-up 10 seconds

Engine Cool-Down 1 minute

Starter Lock-out Starter cannot re-engage until 5 sec. after engine has stopped.

2.5 Amp Trickle Battery Charger Standard

Automatic Voltage Regulator w/Overvoltage Protection Standard

Automatic Low Oil Pressure Shutdown Standard

Overspeed Shutdown Standard, 60Hz

High Temperature Shutdown Standard

Overcrank Protection Standard

Safety Fuse Standard

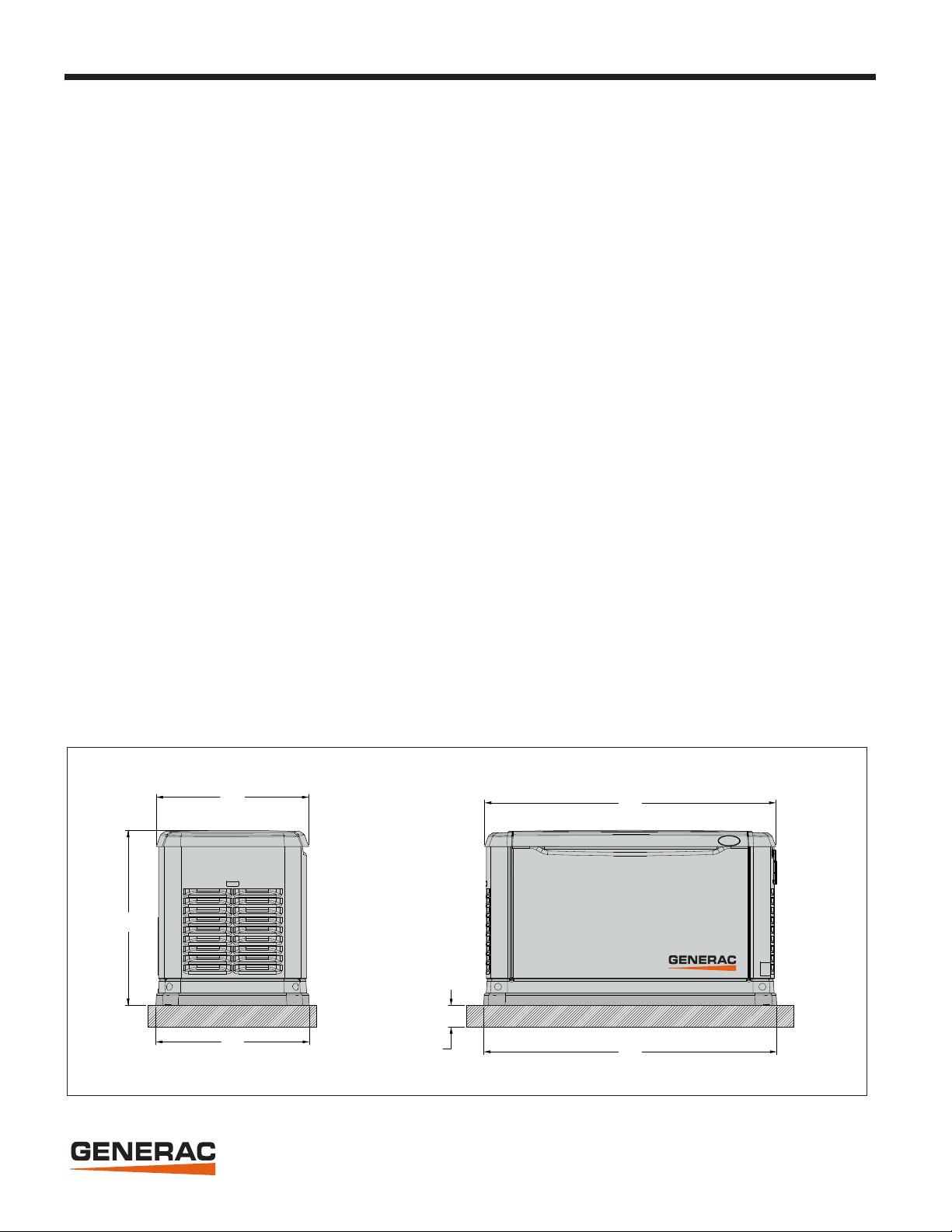

731.9

[28.8]

637.6

[25.1]

LEFT SIDE VIEW

642

[25.3] 76.2 [3.0]

PEA GRAVEL

MINIMUM

TRANSFER

SWITCH

8KW - 17KW

(IF SUPPLIED)

TRANSFER

SWITCH

20KW

(IF SUPPLIED)

1218

[47.9]

FRONT VIEW

1226

[48.3]

Generac Standby Generator - 8 kVA - 10 kVA - 13 kVA

Design and specifications subject to change without notice. Dimensions shown are approximate. Contact your Carrier dealer for certified drawings. DO NOT USE THESE DIMENSIONS FOR INSTALLATION PURPOSES.

Generac Power Systems, Inc. • S45 W29290 HWY. 59, Waukesha, WI 53189 • generac.com
