Wilga 30cc
Assembly Manual
Caution!
You should not regard this plane as a toy!
To ensure safety, please read this instruction manual thoroughly before
assembly.
Building and operating a model plane requires diligent practice and correct
guidance. An inexperienced flyer can cause serious injury and property
damage.
Seek the assistance of an experienced RC pilot or model airplane club for
help with assembly, operation and maintenance to ensure your flying
experience is both enjoyable and safe.
Fly only in AMA (Academy of Model Aeronautics) approved areas.
Approved areas or areas approved by the Model Association of your
country.
Note: the accessories coming with airplane may not same as below list. Please inquire it with the distributor.

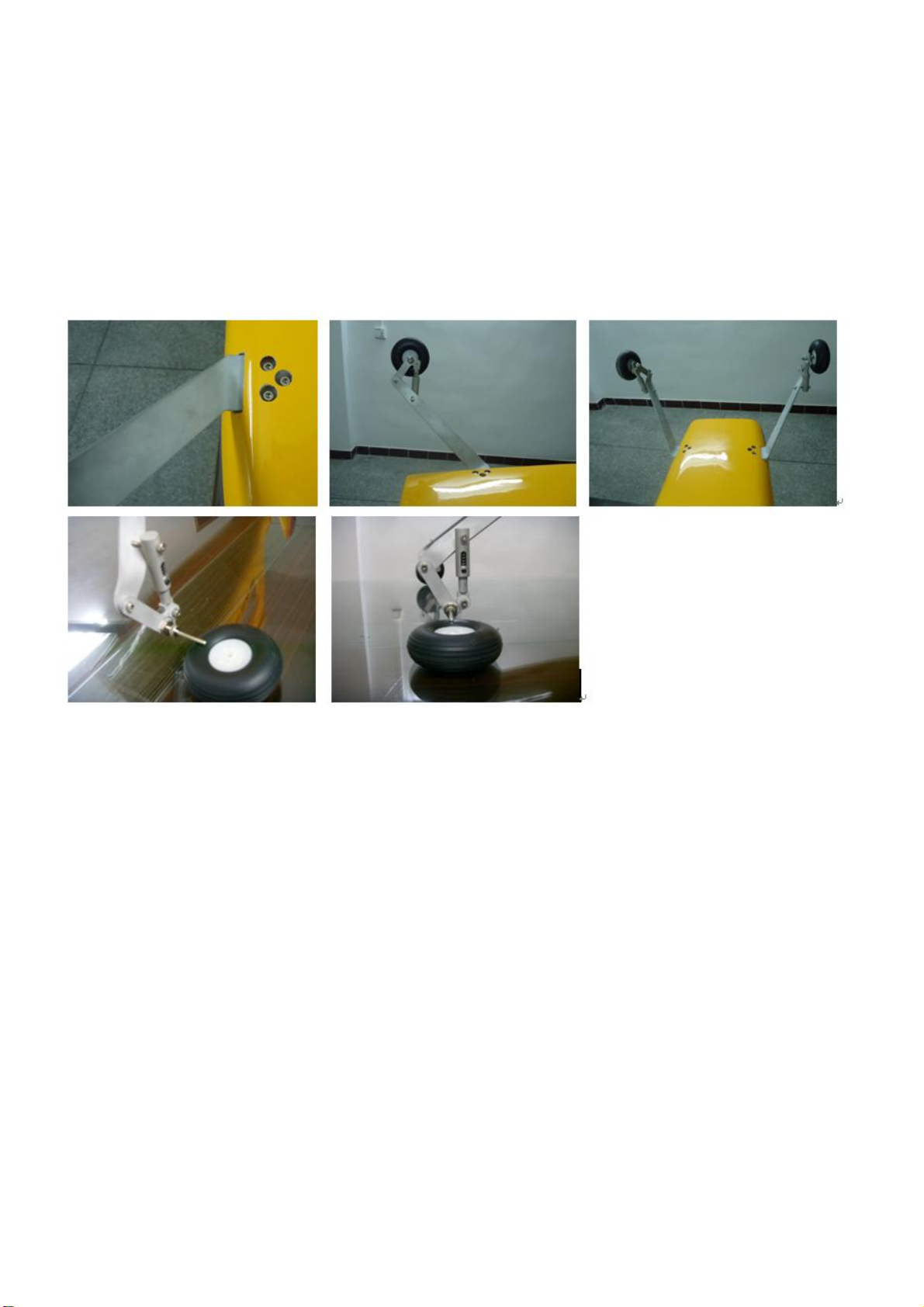

Main Landing Gear Installation
Install the landing gear into the fuselage by screws as shown.
Lock the wheels onto the landing gear by wheel axles.

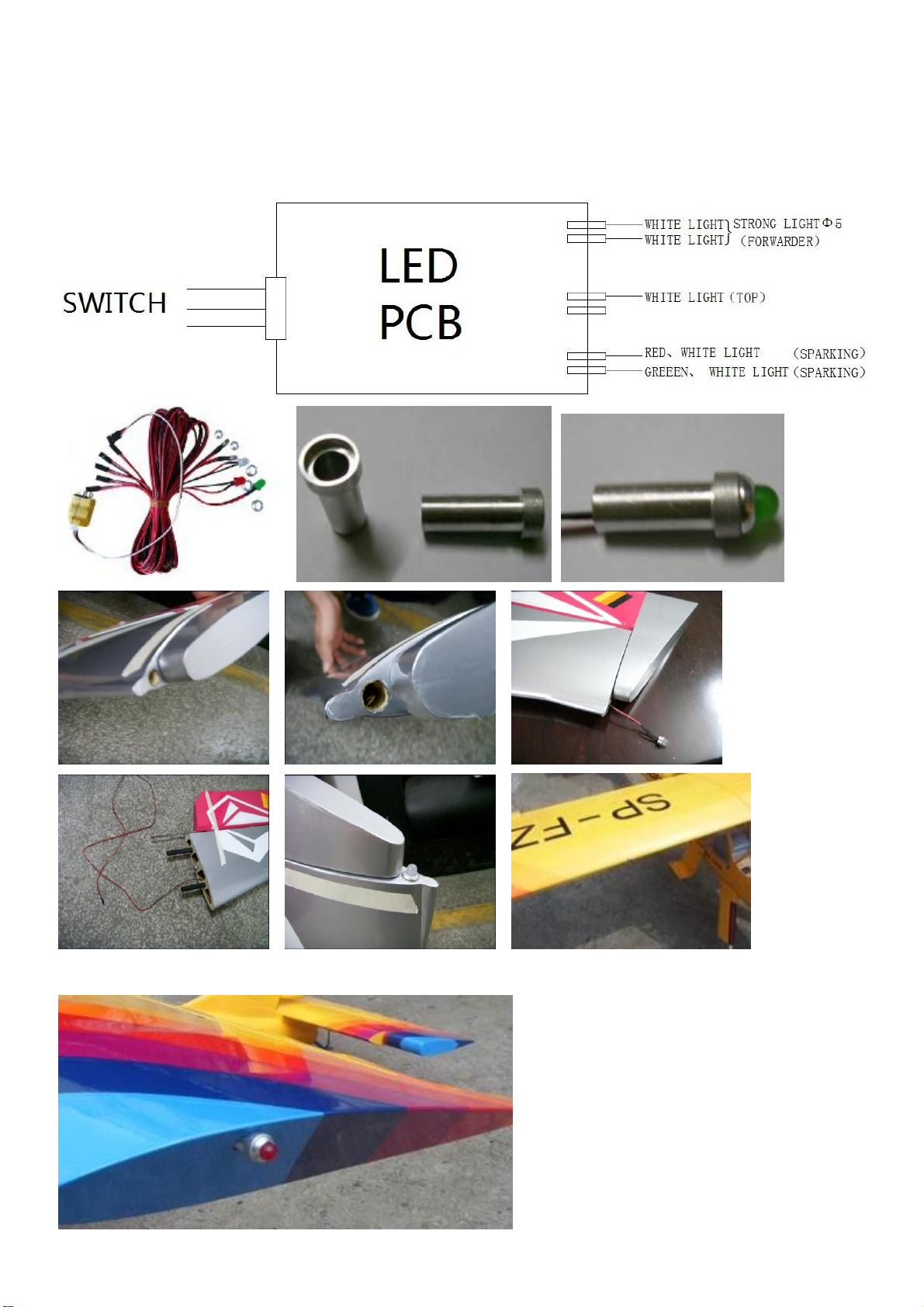

LED light
Find out the LED light system.
Insert the LED light into the holder as shown.
Find out the holes for the LED light in the wings and rudder.
The voltage for the light is 6V.
Find out the hole for the LED light on the top of the rudder and cut it out.
Insert the LED light wire from the top of rudder, and glue it onto the rudder.
Rudder and tail wheel Installation
Find out the rudder and rudder tube
Insert the rudder tube into rudder.
Connect the rudder onto the fuselage.
Find out the steel as shown, insert it into the rudder and glue it.
Connect the rudder onto the fuselage by two pcs of carbon fiber tubes.
Connect it as shown, totally four pcs of wires.
Always do the wire insert the metal tube twice and scrimp the tube.
Insert the steel into the arm, and use screw to lock the steel with the arms.
There are totally three place for you to install the tail servo. Choose the
middle one to pull the rudder and tail wheel.
Find out above wood servo tray, and stick it onto the rudder servo position,
to make the rudder servo on a higher level.
The rest two servo hole could be installed with elevator servo.

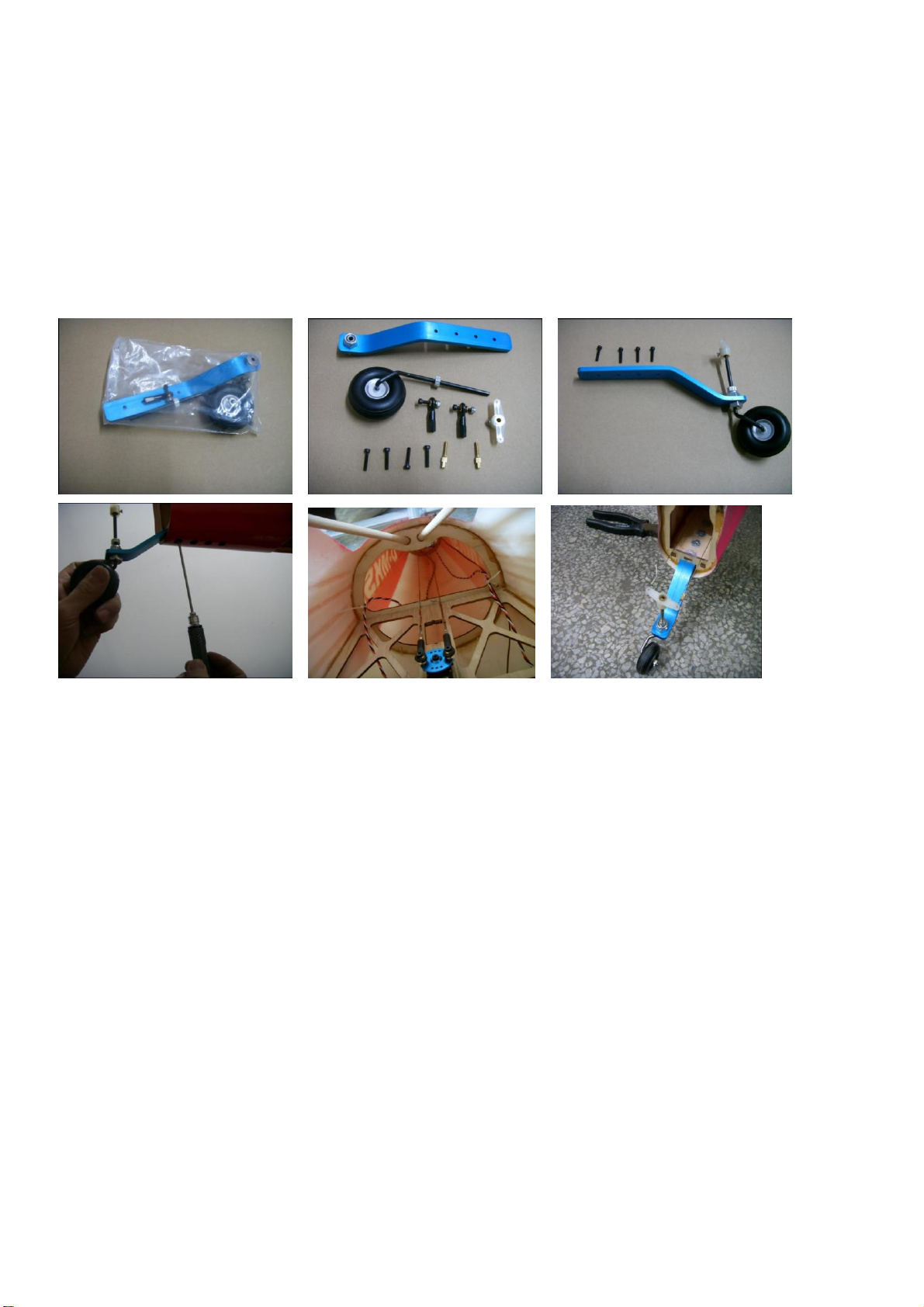

Find out the parts bag for the tail landing gear
Assembly it as shown
Install the tail landing gear into the fuselage tail with screws
Connect one side of the wire with the rudder and tail servo in the fuselage.
And another side to the arm to steel the tail wheel as shown.
Stabs and Elevator Installation

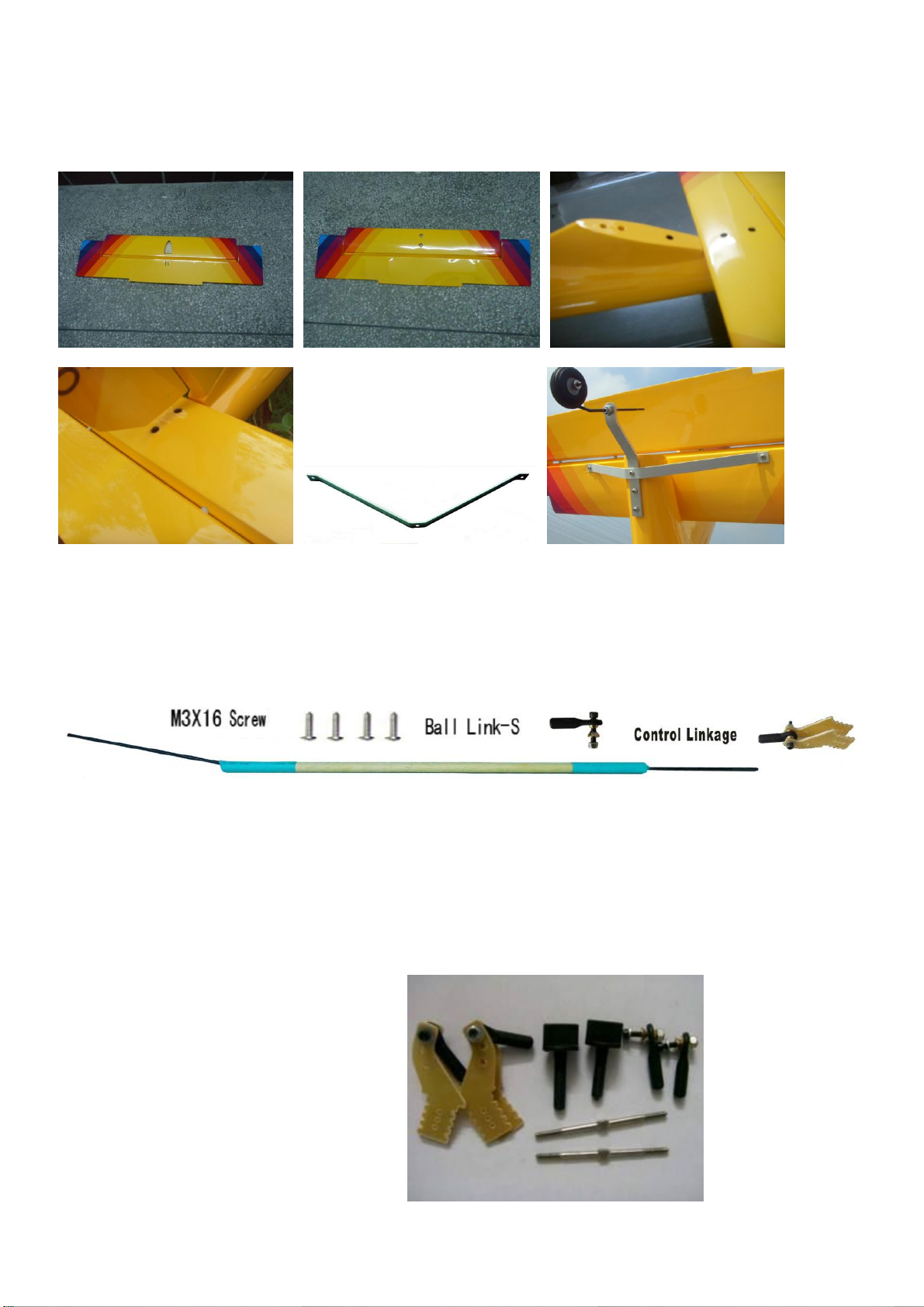

Install the control horn on the elevators, connect the servo to the control
horn by pull-pull wires and ball-links.
Cut out the holes to lock the stabs as shown.
Use self-taps to install the stabs onto the fuselage.
Because the stabs only very little part connected with fuselage, we add a
aluminum piece to support the stabs.
Lock the aluminum piece with self-tapped screw onto the fuselage and the
stabs.
Connect the servo arm and control horn with pushrod.
Main Wing Assembly
Parts for Main wing installation
