Genesis GLSD08B Manuale utente

Operator’s Manual

Manuel d’utilisation

Manual del Operario

8V Lithium-ion Screwdriver

Tournevis de 8 V au Lithium-ion

Destornillador de Litio-ion de 8 V

GLSD08B

888-552-8665

TOLL FREE

HELP LINE:

WEBSITE: www.genesispowertools.com

English

8V Lithium-ion Screwdriver

Operator’s Manual GLSD08B

SPECIFICATIONS

 

 

 

 

 

 

 

 

 





 WARNING:To reduce the risk of injury, user must read and understand this

operator’s manual before operating this tool. Save this Manual for future reference.

Toll-Free Help Line: 1-888-552-8665

WARNING:











Look for this symbol to point out important safety

precautions. It means attention!!! Your safety is

involved.

GENERAL SAFETY RULES

 WARNING:Some dust created by power sanding, sawing, grinding, drilling,

and other construction activities contains chemicals known to cause cancer, birth

defects or other reproductive harm. Some examples of these chemicals are:











.

WARNING:Read and understand all warnings, cautions and operating

instructions before using this equipment. Failure to follow all instructions listed below

may result in electric shock, ﬁre and/or serious personal injury.

SAVE THESE INSTRUCTIONS

WORK AREA SAFETY

 Keep your work area clean and well lit.

 Do not operate power tools in explosive atmospheres











English

 Keep bystanders, children, and visitors away while operating a power tool.



ELECTRICAL SAFETY

• Power tool plugs must match the outlet. 











• Do not expose power tools to rain or wet conditions. 



• Avoid body contact with earthed or grounded surfaces such as pipes,

radiators, ranges and refrigerators. 



• Do not abuse the cord. 



• When operating a power tool outside, use an extension cord suitable for

outdoor use. 

• Do not use AC only rated tools with a DC power supply. 



PERSONAL SAFETY

• Stay alert, 





• Use safety equipment. 



• Dress properly. 





• Avoid accidental starting. 



• Remove any adjusting keys or wrenches before turning the power tool on. 



• Do not overreach. 

.

• If devices are provided for connection of dust extraction and collection

facilities, ensure these are connected and properly used. 



• Do not use a ladder or unstable support. 



• Keep tool handles dry, clean and free from oil and grease. 



TOOL USE AND CARE

• Secure the workpiece. 



• Do not force the power tool. 



• Use the correct power tool for the job. 



• Do not use tool if switch does not turn it on or off. 

.

English

8V Lithium-ion Screwdriver

Operator’s Manual GLSD08B

• Turn the power tool off, and disconnect the plug 

. 

.

• Store idle tool out of reach of children and other inexperienced persons. 



• Maintain power tools with care. 







• Use recommended accessories. 





• Keep cutting tools sharp and clean. 

.

• Feed the workpiece in the correct direction and speed. 





• Never leave the tool running unattended, turn the power off. 



BATTERY TOOL USE AND CARE

 Ensure the switch trigger is in the off position before inserting battery pack.



 Recharge only with the charger speciﬁed by the manufacturer.



 Use battery tools only with speciﬁed battery packs



 Avoid storing the battery pack in a container with other metal objects such

as nails, coins, clips, keys, screws, or other small metal objects that can

make a connection from one terminal to another



 Under abusive conditions, liquid may be ejected from the batter





Battery tools do not need to be plugged into an electrical outlet





WARNING:USE OF THIS TOOL CAN GENERATE AND DISBURSE DUST OR

OTHER AIRBORNE PARTICLES, INCLUDING WOOD DUST, CRYSTALLINE SILICA DUST

AND ASBESTOS. Direct particles away from face and body. Always operate tool in a well-

ventilated area and provide for proper dust removal. Use dust collection system wherever

possible. Exposure to the dust may cause serious and permanent respiratory or other

injury, including silicosis (a serious lung disease), cancer, and death. Avoid breathing

the dust, and avoid prolonged contact with the dust. Allowing dust to get into your

mouth or eyes, or lay on your skin may promote absorption of harmful material. Always

use properly ﬁtting NIOSH/OSHA approved respiratory protection appropriate for dust

exposure, and wash exposed areas with soap and water.

SERVICE

• Haveyourpowertoolservicedbyaqualiedrepairperson



• Serviceyourpowertoolperiodically.



English

WARNING:READ AND UNDERSTAND ALL WARNINGS, CAUTIONS AND

OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT. Failure to follow all

instructions listed below may result in electric shock, ﬁre and/or serious personal injury.

SAVE THESE INSTRUCTIONS

EXTENSION CORDS

Grounded tools require a three wire extension cord.

















Guidelines for Using Extension Cords

 



 



 

SPECIFIC SAFETY RULES FOR CORDLESS SCREWDRIVERS

 WARNING:DO NOT LET COMFORT OR FAMILIARITY WITH THE PRODUCT

(GAINED FROM REPEATED USE) REPLACE STRICT ADHERENCE TO PRODUCT SAFETY

RULES. If you use this tool unsafe or incorrectly, you can suffer serious personal injury!

WARNING:Hold the tool by insulated gripping surfaces when performing an

operation where cutting tools may contact hidden wiring or its own cord. Contact with a

“live” wire will make exposed metal parts of the tool “live” and shock the operator!

•

Do not leave the tool running







•

Be Aware that this tool is always in an operating condition





•

When operating the tool from an elevated position







•

Always hold the tool ﬁrmly in your hands before switching the tool “ON”







•

Wear eye and hearing protection.









Recommended Minimum Wire Gauge for Extension Cords (120 Volt)

Nameplate

Amperes

(At Full Load)

Extension Cord Length

25 Feet 50 Feet 75 Feet 100 Feet 150 Feet 200 Feet

0–2.0      

2.1–3.4      

3.5–5.0      

5.1–7.0      

7.1–12.0      

12.1–16.0      

16.1–20.0      

English

8V Lithium-ion Screwdriver

Operator’s Manual GLSD08B

•

Protect your lungs





•

Always place the switch in the locked or off position





•

Do not place battery tools near ﬁre or heat.





SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS FOR CHARGER &

BATTERY

• Save these Instructions. 



• Before using the battery charger, 



• Use only the charger 



• Do not recharge the battery in damp or wet environments. 



• Do not operate the charger with damaged cord or plug. 

• Do not operate a charger if it has received a sharp blow, 



• Do not disassemble a charger or a battery pack. 

.

• Do not charge the battery pack 



 

• Place the charger on ﬂat non-ﬂammable surface 

.

• To reduce risk of electric shock, 



• If operating time has become excessively shorter, 



• Battery leakage may occur 







• Do not attempt to use a step-up transformer, 



• Do not short the battery pack. 





• Do not charge a battery pack inside a box or container of any kind. 



• Do not allow anything to cover or clog the charger vents.

• Do not incinerate the battery pack 



• Disconnect the charger from the power source when not in use. 





English

WARNING: A battery short can cause a large current ﬂow, overheating,

possible burns and even a breakdown.

IMPORTANT BATTERY INFORMATION: DISPOSING OF THE BATTERY

 



 

 



SAVE THESE INSTRUCTIONS

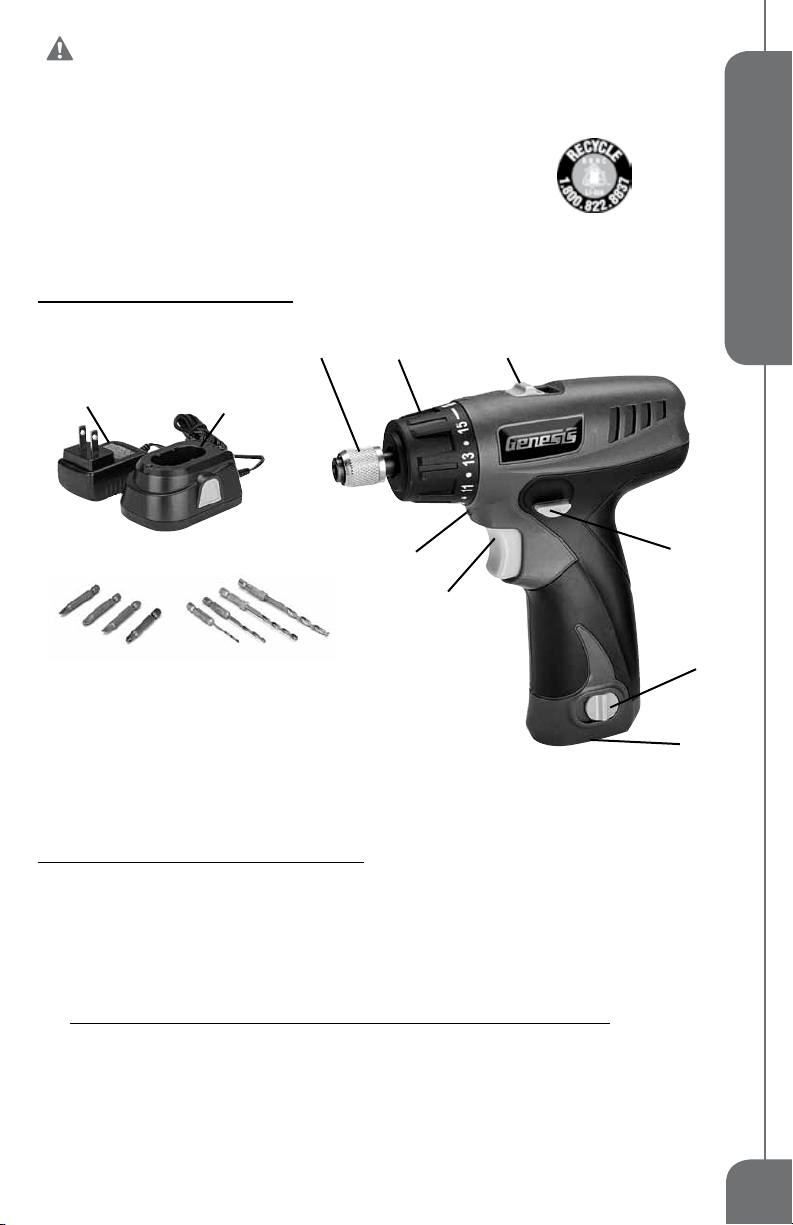

YOUR SCREWDRIVER

UNPACKING AND CONTENT

IMPORTANT:Due to modern mass production techniques, it is unlikely the product

is faulty or that a part is missing. If you ﬁnd anything wrong, do not operate the tool until

the parts have been replaced or the fault has been rectiﬁed. Failure to do so could result

in serious personal injury.

CONTENTS IN PACKAGE:

Description QTY Description QTY

    

     

     

 













































910

FIG 1

English

8V Lithium-ion Screwdriver

Operator’s Manual GLSD08B

OPERATION



WARNING:

To reduce the risk of serious personal injuries, read and follow all

important safety warning and instructions before using this tool.

WARNING: Always be sure that the tool is switched off before insertion or

removal of the battery pack.

INSTALLING OR REMOVING THE BATTERY PACK

(FIG 2)

 



 



CHARGING THE BATTERY (FIG 3)

NOTE: 



 

 









 

 



 

 



NOTE:

TRIGGER SWITCH ACTION









TWO-SPEED GEAR SWITCH

 



 

 

OVERLOAD PROTECTION









LED WORK LIGHT





FIG 2

FIG 3

10 LOCKING TAB

English

HEX CHUCK (FIG 4)

  







  

 



            

          



 

CLUTCH (TORQUE) SETTINGS

 

 



 



 



GENERAL SCREWDRIVING







GENERAL DRILLING







WARNING:Forcing a drill bit, bending or twisting the bit, or failure to maintain

balance in case of binding and breakthrough can result in serious personal injury.

 





 

FIG 4

LOCKING

SLEEVE

UNLOCK

English

8V Lithium-ion Screwdriver

Operator’s Manual GLSD08B

MAINTENANCE

CLEANING





WARNING: Do not at any time let brake ﬂuids, gasoline, petroleum-based

products, penetrating oils, etc., come in contact with plastic parts. Chemicals can

damage, weaken or destroy plastic which may result in serious personal injury.











LUBRICATION



TWO-YEAR WARRANTY









THIS PRODUCT IS NOT WARRANTED IF USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES.

ACCESSORIES INCLUDED IN THIS KIT ARE NOT COVERED BY THE 2 YEAR WARRANTY.

BATTERY INCLUDED IS WARRANTED FOR ONE (1) YEAR AFTER DATE OF PURCHASE.

TOLL-FREE HELP LINE

888-552-8665

www.genesispowertools.com






