Genie CCTV SDI06 Manuale utente
MODEL: SDI06
1 Input / 4 Output
3G/HD-SDI Video Distribution Amplier
User Manual
1 Input / 4 Output 3G/HD-SDI Video Distribution Amplier 3
Precautions and Safety Guidelines
Please read this user manual thoroughly prior to using this product
• Do not install the product in places having extremely low or high temperature conditions, those
exposed to rain, snow, or high humidity, places containing or exposed to oil and gas, or exposed to
vibration, shock, direct sunlight or exposed to outdoor weather conditions. Places exposed to radio
waves (RF) or near to power lines. They may cause low performance or a product malfunction.
• Do not disassemble the product or insert foreign objects.
• The unit may pose an electrical shock hazard. Take care not to get an electric shock while using the
device.
• Only use safety approved power supply units with electromagnetic compatibility.
• Do not use and/or connect any devices inappropriate to the unit. It may cause a product malfunction
or re.
• Use this product only in the temperature range -10°C to +50°C.
• Prior to turning on the device, check the condition of the data cable insulation connected to external
devices.
• Before installing the product, or applying power, check its voltage rating.
• Do not subject the product to physical shocks.
• Do not use the device if smoke or a burning smell is being produced. It may cause a re. If any smoke
or a burning smell is produced, immediately turn the unit off and remove the power cable. Contact
your distributor and get the product checked.
• If the power does not turn ON, make sure the power cable is correctly connected.
• If the device does not work properly, please contact your distributor.
1 Input / 4 Output 3G/HD-SDI Video Distribution Amplier
4
1. Introduction
1.1 Overview
This model is a single channel HD-SDI signal distribution amplier. Using this device,
you can split the HD-SDI signal input to up to four output signals. This device provides
stable signal distribution and clear video images as each channel has a separate video
chips.
1.2 Features
• 1 input / 4 outputs
• No artifacts or other signal degradation/distortion
• Durable aluminum body with optimum shielding
• Possible to send Full HD signals up to 100m (using RG6 cable)
• Re-clocker and equaliser included
• Supports SMPTE292M, SMPTE424M
1.3 HD Signal Standards
• Our HD-SDI transmission solutions conform with the SDI signal standards of the SMPTE (Society of
Motion Picture and Television Engineers)
• The SDI (Serial Digital Interface) is an innovative transmission system which cantransmit
uncompressed video signals over a single cable. As SDI signals are digital,it is possible to transmit
limitless distance without modication by equalising and reclockingat certain distance. Also, there is
no aging or delay caused by compression.
SMPTE292M-HD-SDI 1.485 Gbps
SMPTE372M-Dual link - HD-SDI 2.97 Gbps
SMPTE424M-Dual speed - HD-SDI 2.97 Gbps

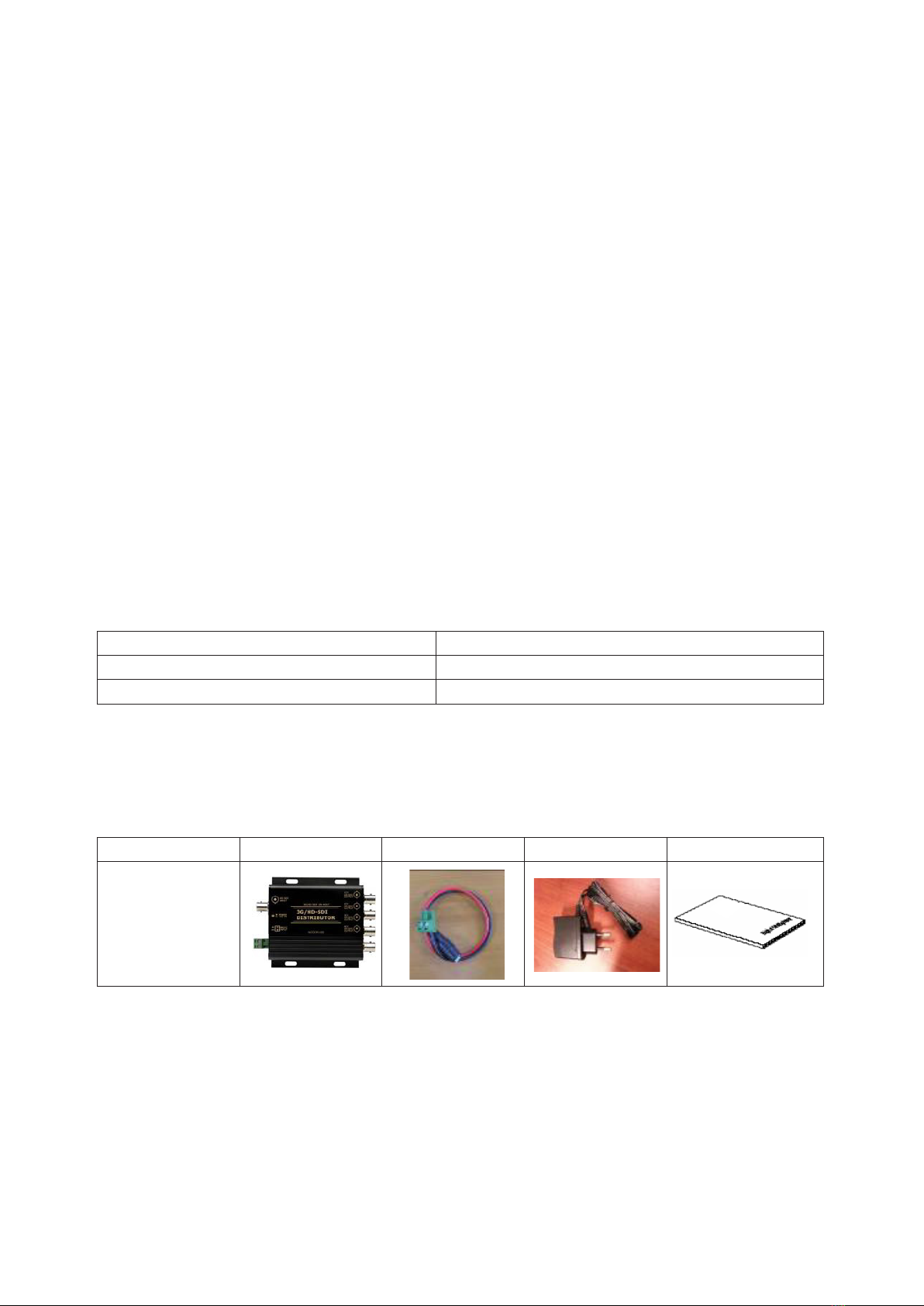

2. Components
The following components are included in the package.
Model Main Unit DC Power Cord Power Adapter User Manual
Distributor
1 Input / 4 Output 3G/HD-SDI Video Distribution Amplier 5
1
1
2
3
4
2
3
4
LED Indicator Description
Yellow ON Normal Power Supply
Green ON Normal Operation (Input HD-SDI Signal)
3. Product Parts & Peripheral Device Connection

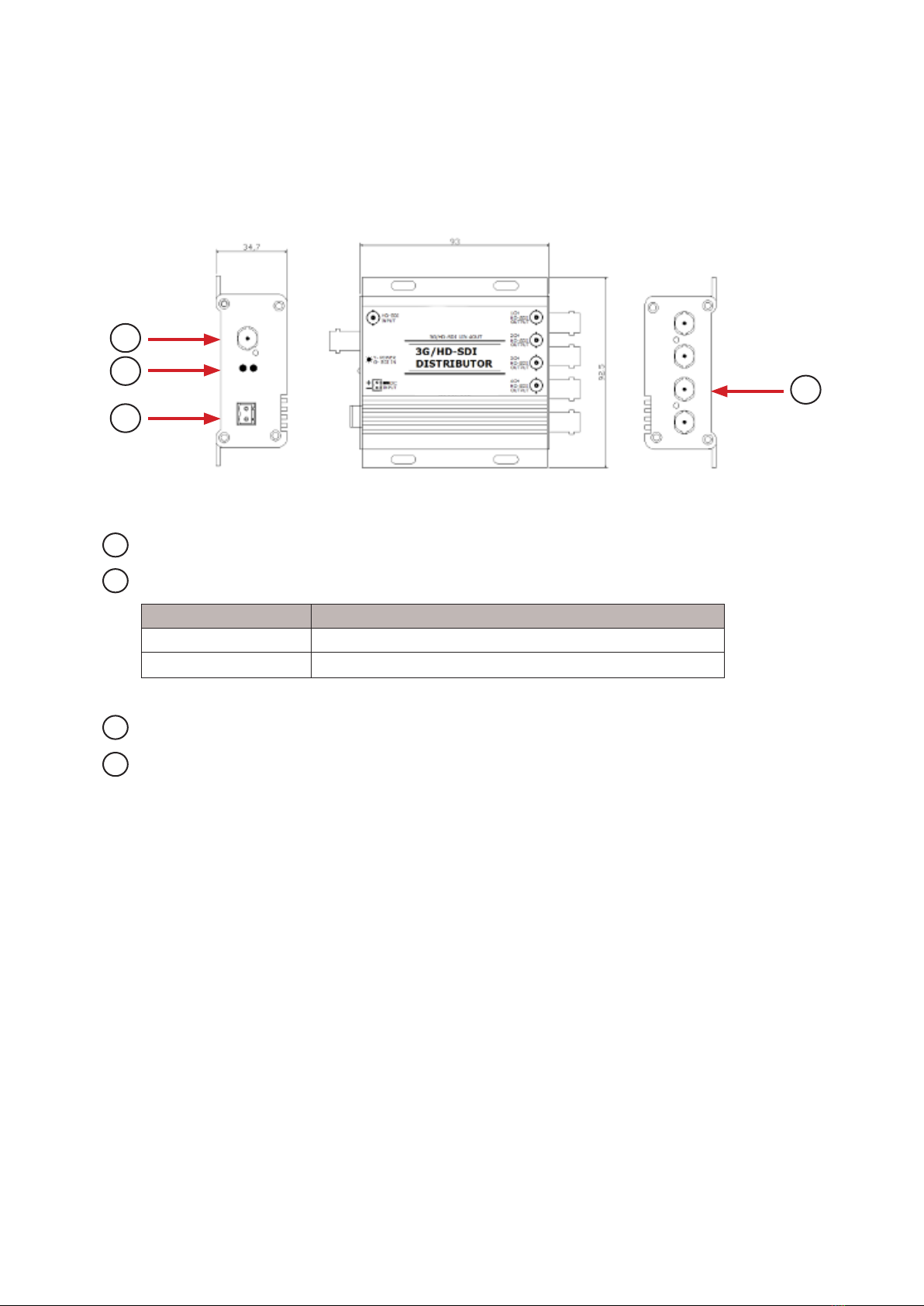

3.1 Product Parts and Functions
HD-SDI IN : HD-SDI Signal Input Port
LED Indicators
DC INPUT : DC12V~48V (DC12V/0.167A [2W])
HD-SDI OUT (Channel 1 ~ 4): HD-SDI Output Port (Connecting with HD-SDI Receiver)

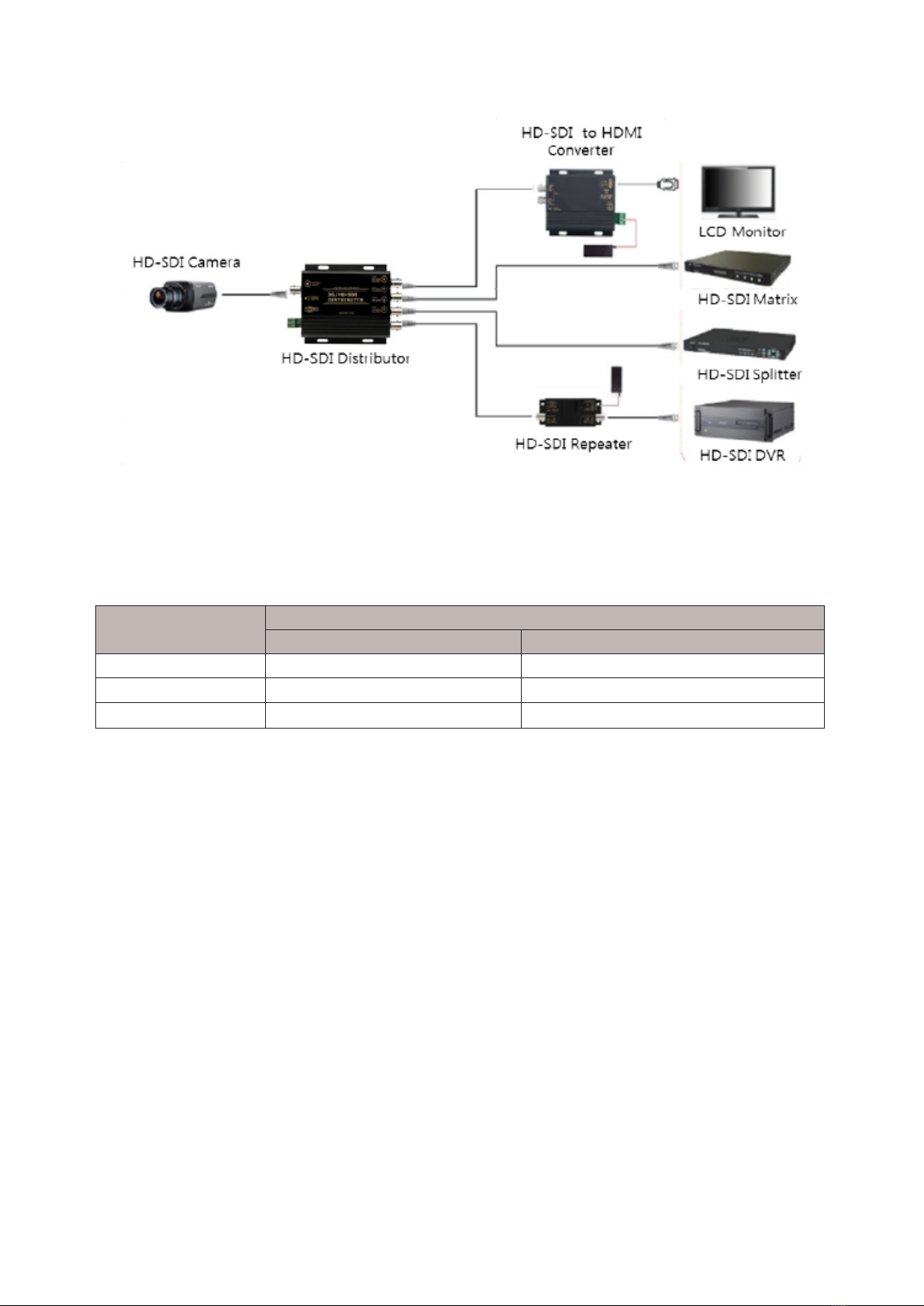

4. Connection Diagram
• Connect an HD-SDI camera to this device (using coaxial cable) and then connect the device output
ports with HD devices; such as HD monitor (with a converter), HD Matrix, HD Splitter and HD DVR.
• The maximum transmission distance between the distributor and other HD devices is 100m when
using RG6 coaxial cable. Transmission distances are affected by the type of coaxial cable used, and
the specication of HD receiving equipment.
1 Input / 4 Output 3G/HD-SDI Video Distribution Amplier
6
5. Transmission Distance
Cable Transmissions Distance (m)
1.485Gb/s (HD) 2.97Gb/s (FULL HD)
RG59 100 50
CT125 150 70
RG6 200 100
• The above assume high quality cable specications using copper conductor.
• We recommend only using 70% of the maximum distance stated above as there are other external
factors which sometimes cause signal degradation.
• Only use BNC connectors with a low connection resistance.
• Avoid using excessive force when installing your coaxial cable
• Never exceed the specied bending radius of the coaxial cable being used.
1 Input / 4 Output 3G/HD-SDI Video Distribution Amplier 7
Description
Video In / Out HD-SDI
Input Power DC12V ~ 48V
Power Consumption DC12V 165mA (DC48V 45mA)
Maximum Transmission Distance 100m (Full HD), 200m (HD) with RG6
Baudrate 270Mbps ~ 3Gbps
Connect Power
HD-SDI In / Out BNC-F (75Ω)
Video In 1 x IN
Video Out 4 x OUT
LED HD-SDI (Green) ON : Receiving HD-SDI Signal
Power (Yellow) ON : Working
Temperature / Humidity -10°C ~ +50°C / 0 ~ 80% RH
Case Body / Weight Aluminum / 240g
Dimension W x H x D (mm) 93 x 92.5 x 34.7
6. Specication
* SMPTE292M, SMPTE424M
7. Warranty
This product has passed thorough quality control and test, and in the unlikely event of failure during
normal use, we provide 12 months warranty service. This limited liability warranty is effective from the
date of purchase.
GENIE CCTV LTD.
CCTV House, City Park, Watchmead, Welwyn Garden City, Hertfordshire, AL7 ILT
Tel: +44 (0) 1707 330541 Fax: +44 (0) 1707 330543
www.geniecctv.com
Edition. GN-March 2013
