Genie ID73 Manuale utente

Model: ID73

Digital Day/Night

Internal Dome Camera

User Guide

- 3 -

Digital Day/Night Internal Dome Camera

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

The lightning flash with an arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of uninsulated

dangerous voltage within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with

limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.

These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

WARNING - Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

This installation should be made by a qualified service person and

should conform to all local codes.

CAUTION: To prevent electric shock and risk of fire hazards.

Do NOT use power sources other than those specified.

Do NOT expose this appliance to rain or moisture.

- 4 -

Digital Day/Night Internal Dome Camera

Contents

Dimensions

General Features

Package Contents

Safety Instructions

Precautions

Installation

Focus Adjustment

Specication

Troubleshooting

Menu Set Up

• OSD Control Keys

• Set Up Menu

• Menu Set Up

• Lens

• Exposure

• White Balance

• D-WDR/HSBLC

• 3D-DNR

• Day/Night

• Smart-IR

• Special

• Exit

• Camera Title

• Adjust

• Mirror

• Motion Detection

• Privacy

• Sync

• Resolution

• Reset

• Return

- 5 -

Digital Day/Night Internal Dome Camera

Φ150

Φ100

Φ150

114

56.5

Camera Dimensions

Package Contents

VIDEO TEST CABLE 1EA

INSTRUCTION MANUAL 1EA

SCREW TS T1, 4X25 2EA

GREEN TERMINAL 2P MAIL 1EA SCREW PH M4X8, BK, 3E

FOCUS CONTROL SCREW 1EA

- 6 -

Digital Day/Night Internal Dome Camera

Adjusting screw for focus(Near-Far)

Adjusting screw for fix(Fix)

Adjusting screw for angle of view(TELE-WIDE)

Focus Adjustment

1) Loosen the screw in the middle.

2) Ajust angle of view by using the controller.

3) Adjust focus by using the controller.

4) Tighten the screw in the middle.

- 7 -

Digital Day/Night Internal Dome Camera

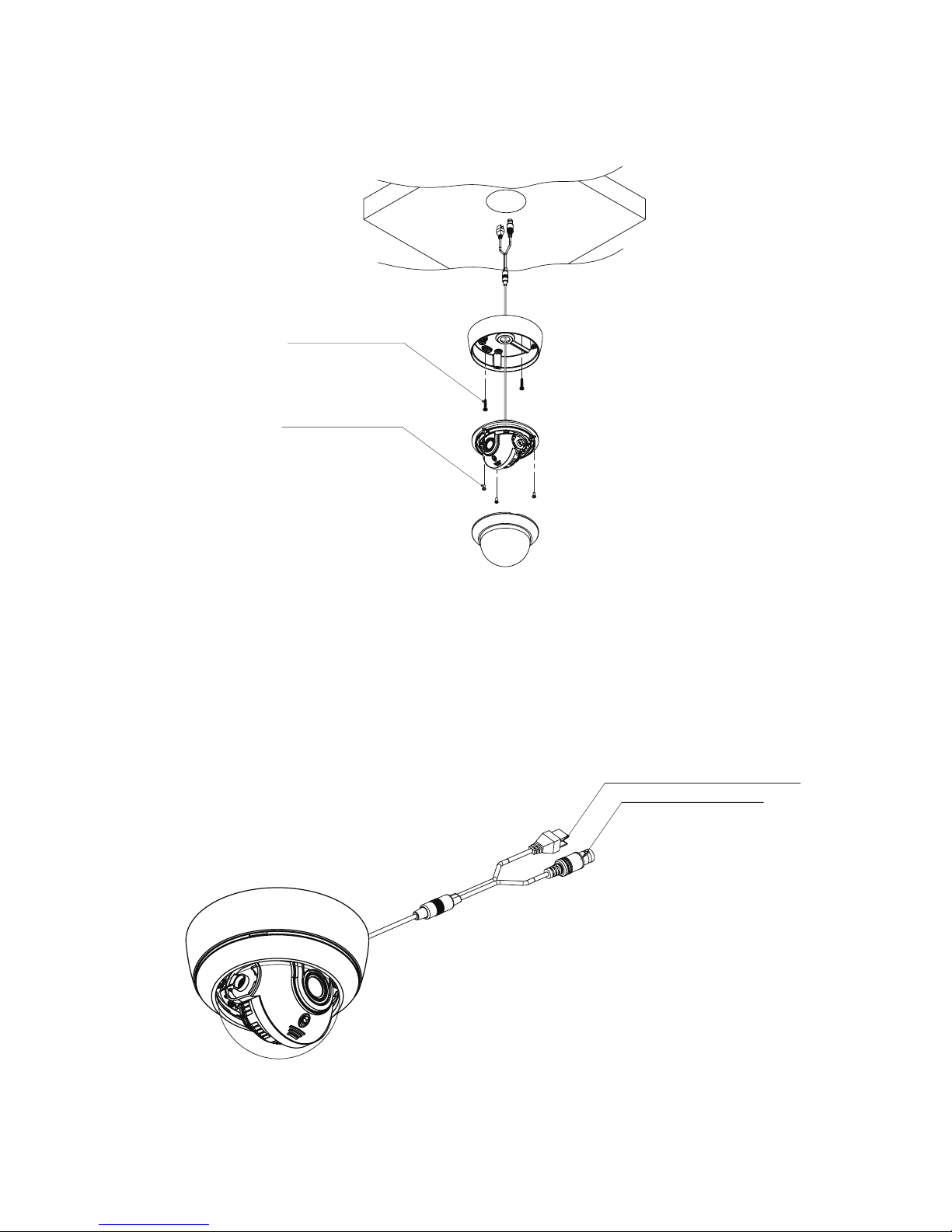

TAPPING SCREW 4X20, 2EA

MACHINE SCREW M4X8, 3EA

Video Output Connector

Power Input Te rminal : AC24V/DC12V

Camera + Installation

Cable Connection

- 8 -

Digital Day/Night Internal Dome Camera

General Features

Presets

Presets (Outdoor, Indoor, Elevator, Lobby, Hallway & Low Light). Used for a quick and easy setup

according to the prevailing installation environment.

3D Motion DNR Function

When movements in the picture are detected, 3D-DNR AUTO can reduce the level of noise; with a

low-level DNR setting. Opposingly, if there are no moving picture elements, noise can be reduced

using a high-level DNR setting.

620 TV Lines

The combination of a Sony Super HAD CCD image sensor and a DNR DSP provides an excellent

resolution of 620 TV lines.

D-WDR (Digital Wide Dynamic Range)

D-WDR is a powerful and ultra advanced technology that captures cleaner and superior high

Resolution pictures, even where images appear dark due to a strong backlight presence.

Auto Defect

When set to AUTO this function corrects black and white dots caused by pixel failure, in real time,

when Sens Up is on. When changing from OFF to AUTO, you will see the reduction in pixels which

are permanently on (white dot) and those permanently off (black dot).

Smart-IR (IR Models Only)

No Image Saturation. Vivid Images in Darkness. "Smart IR” gives a very sharp video image in

darkness. This technology eliminates video image IR saturation of close objects by controlling the

IR sensitivity.

Additional Functions

OSD - On Screen Display menu with multi-language support.

Privacy Masking - 8 Zones

Sens-Up - x1024

3D-DNR

Digital

Reduction

Noise

0.000001 Lux

Illumination

Minimum

Resolution

Horizontal

620

Wide Dynamic Range

Digital

WDR

Backlight

Compensation

BLC

DSP

3D-DNR

OSD

Smart-IR

3D-DNR

Digital

Reduction

Noise

0.000001 Lux

Illumination

Minimum

Resolution

Horizontal

620

Wide Dynamic Range

Digital

WDR

Backlight

Compensation

BLC

DSP

3D-DNR

OSD

Smart-IR

3D-DNR

Digital

Reduction

Noise

0.000001 Lux

Illumination

Minimum

Resolution

Horizontal

620

Wide Dynamic Range

Digital

WDR

Backlight

Compensation

BLC

DSP

3D-DNR

OSD

Smart-IR

3D-DNR

Digital

Reduction

Noise

0.000001 Lux

Illumination

Minimum

Resolution

Horizontal

620

Wide Dynamic Range

Digital

WDR

Backlight

Compensation

BLC

DSP

3D-DNR

OSD

Smart-IR

3D-DNR

Digital

Reduction

Noise

0.000001 Lux

Illumination

Minimum

Resolution

Horizontal

620

Wide Dynamic Range

Digital

WDR

Backlight

Compensation

BLC

DSP

3D-DNR

OSD

Smart-IR

- 9 -

Digital Day/Night Internal Dome Camera

Do not install the camera in

extreme temperature conditions.

Do not touch the front lens of the

camera.

Do not install or use the camera in an

environment where the humidity is high.

Do not install or use the camera in an

environment where the humidity is high.

Never keep the camera pointed

directly at strong light.

Do not expose the camera to rain

or spill liquids on it.

Do not expose the camera to

radioactivity.

Do not install the camera under

unstable lighting conditions.

Do not drop the camera or subject

it to physical shocks.

Only use the camera under conditions

where temperatures are between

-20°C and +50°C. Be especially careful to

provide ventilation when operating under

high temperatures.

This is one of the most important parts of

the camera. Be careful not to leave

fingerprints on the lens cover.

It can cause malfunctions to occur.

If exposed to radioactivity the CCD

will fail.

If it gets wet, wipe dry immediately.

Liquids can contain minerals that

corrode the electronic components.

Severe lighting change or flicker can

cause the camera to work improperly.

Housing damage can compromise

weatherproof ratings.

NOTE

* If the camera is exposed to

spotlightorobjectreecting

strong light, smear or blooming

may occur.

* Please check that the power

satisesthenormalspecication

before connecting the camera.

Precautions

- 10 -

Digital Day/Night Internal Dome Camera

Safety Instructions

Precautions for use:

Please handle this camera carefully:

Thiscamerashouldbeinstalledbyaqualiedpersononly.

There are no user serviceable parts inside.

Do not disassemble this camera other than to make initial adjustments.

Only use a CE approved regulated DC12V or AC24V power supply.

Useappropriatelowvoltagepowercabletopreventreorelectricalshock.

Please ensure that your installation area can support the weight of the camera.

Do not use strong or abrasive detergents when cleaning the camera.

Only use soft non-abrasive materials to clean the polycarbonate dome.

Do not expose the camera to direct sun.

Do not install the camera in places where humidity is high.

Do not install near cooling or heating devices.

Do not expose the camera to rain or moisture.
