Genius TVGO A03 Manuale utente
English
1
Chapter 1: Introduction

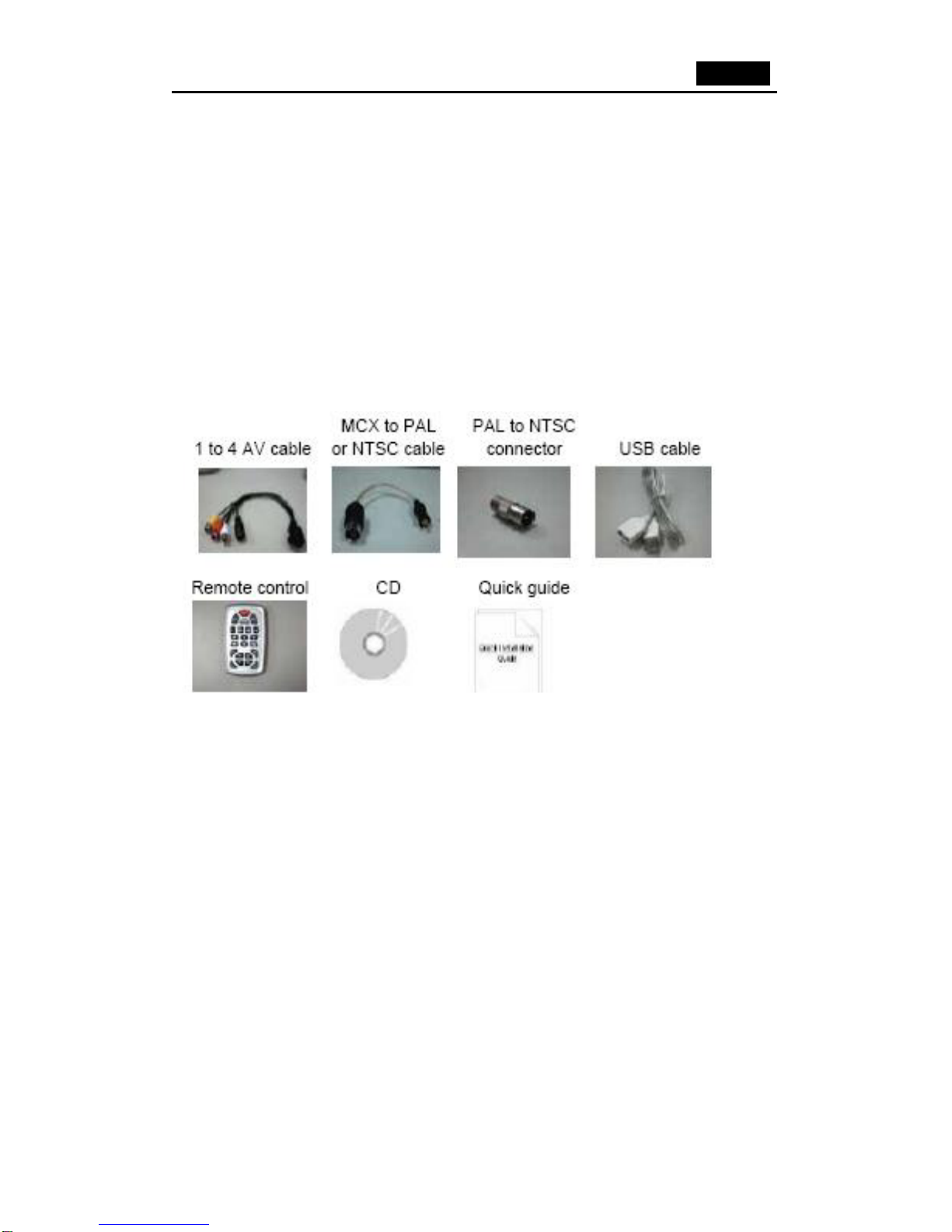

1.1 Package Contents
Upon receiving your TVGo A03, please make sure the following items are included in the USB
TV Super Mini package.
•TVGo A03
•Driver CD
•Remote Control
•Quick Guide
•Video & Audio in connecter
1.2 System Requirements
•IBM PC or compatible
•Intel Pentium 4 2.4GB MHz CPU or better processor
•Minimum 128 MB memory (256MB is better)
•Minimum 100 MB hard disk space available
•VGA and with DirectDraw driver supporting 16 bit color or higher
•One free USB2.0 / 1.1 slot
•Microsoft Windows 2000 or XP
•CD-ROM drive
English
2
Chapter 2: Getting Started
2.1 Connect USB TV Super Mini
To install the TVGo A03 into your computer, follow the steps below:
1. Connect the antenna cable to the
connector.
2. Connect the Device to PC USB
Hub.
2.2 Device Driver Installation for Windows XP
1. Once you connect TVGo A03 to
the USB port, you can just follow
the system’s prompted messages
to finish the driver installation.
2. When you insert TVGo A03,
system will show the “Found New
Hardware” dialogue box.
English
3

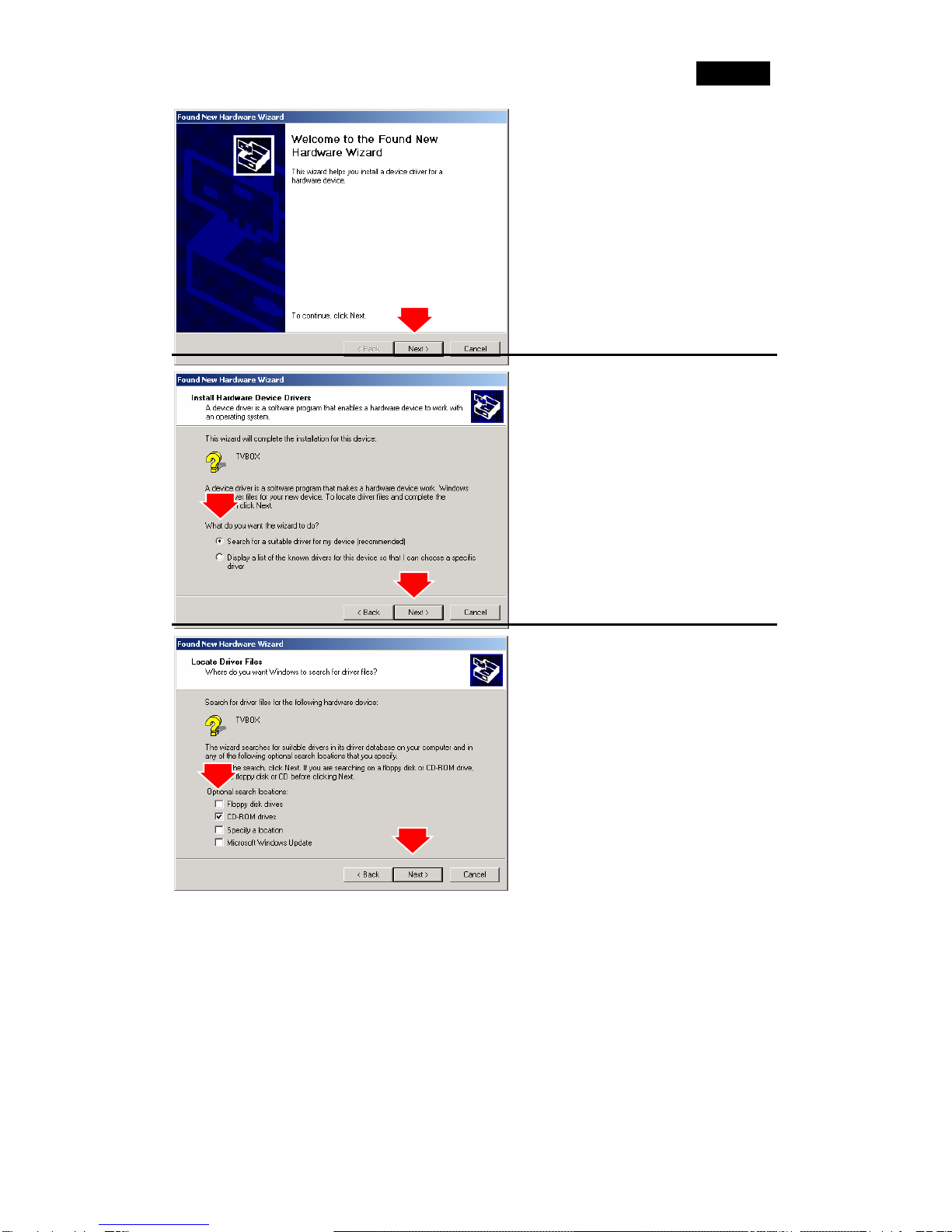

3. Click “Next” to start installation.
4. Select “Search for a suitable
driver for my device
[recommended]” and click “Next”.
5. Select “CD-ROM driver” and click
“Next” button to search driver.
English
4

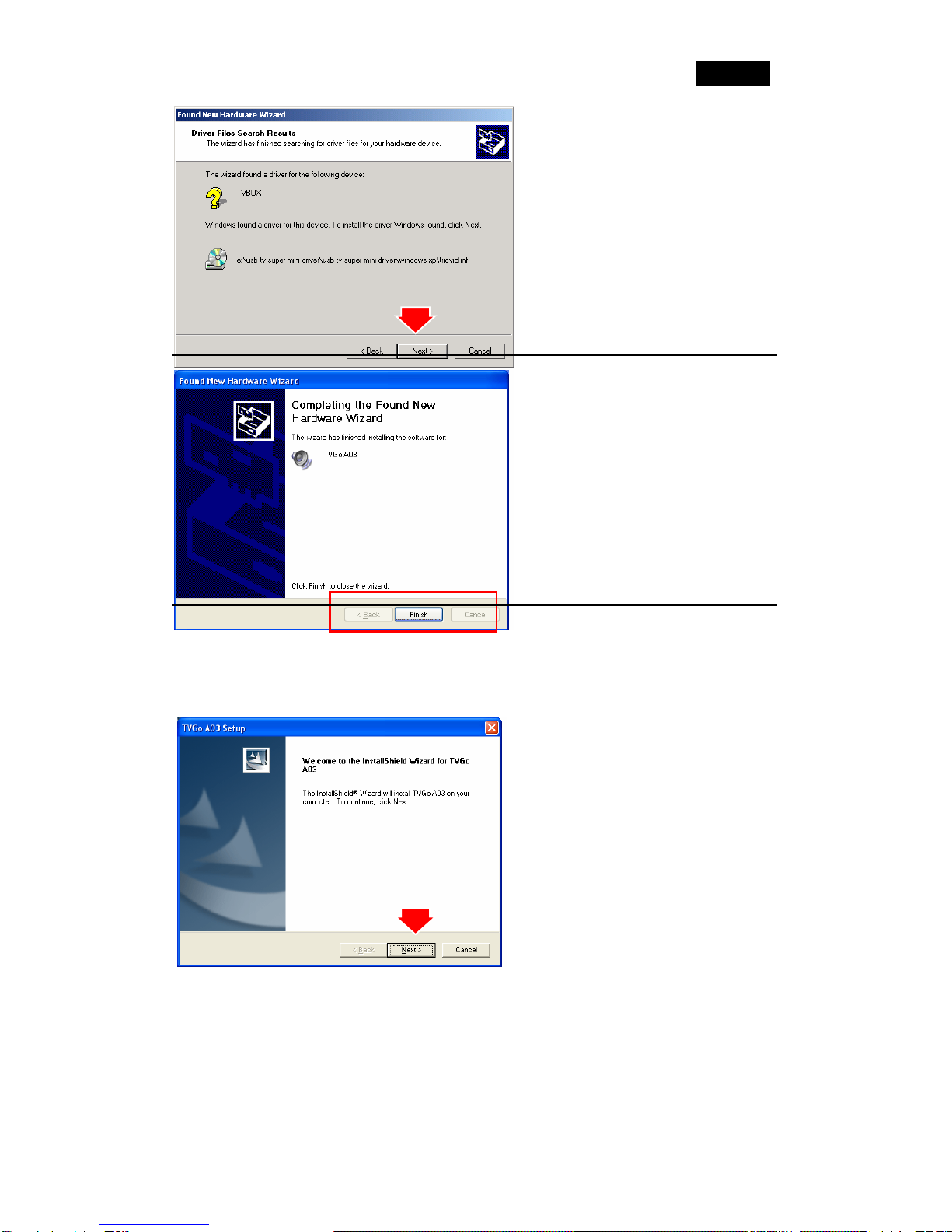

6. Click “Next” to continue the
installation.
7. Click “Finish” to complete the
driver install. Check your
driver ”TVGo A03” from Device
Manager after installation.
2.3 Install TVGo A03 utility software.
1. Click “Next” button to start installing.
English
5

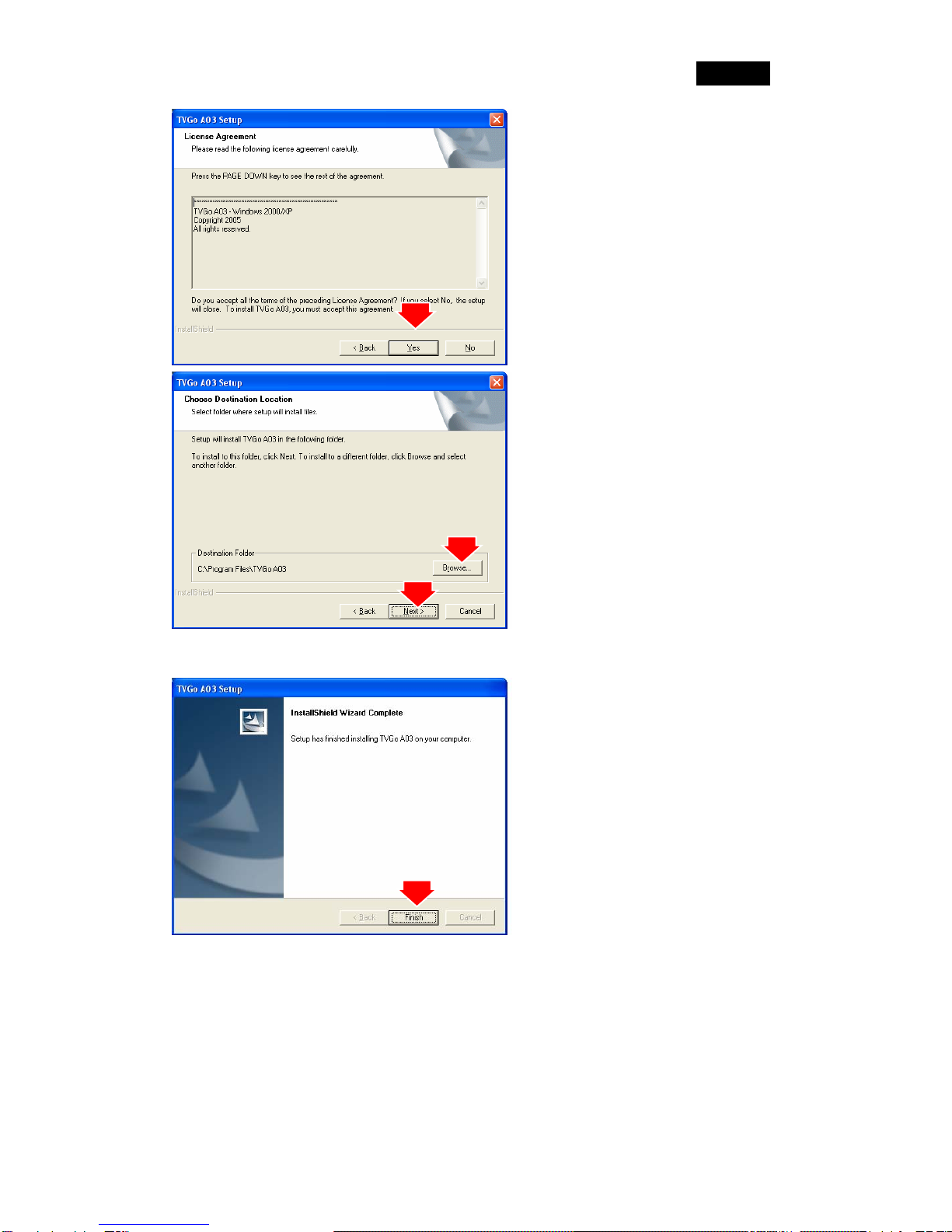

2. Please read the License Agreement
and click “Next” to begin copying
files.
3. Click “Next” or choose setup folder
for installation.

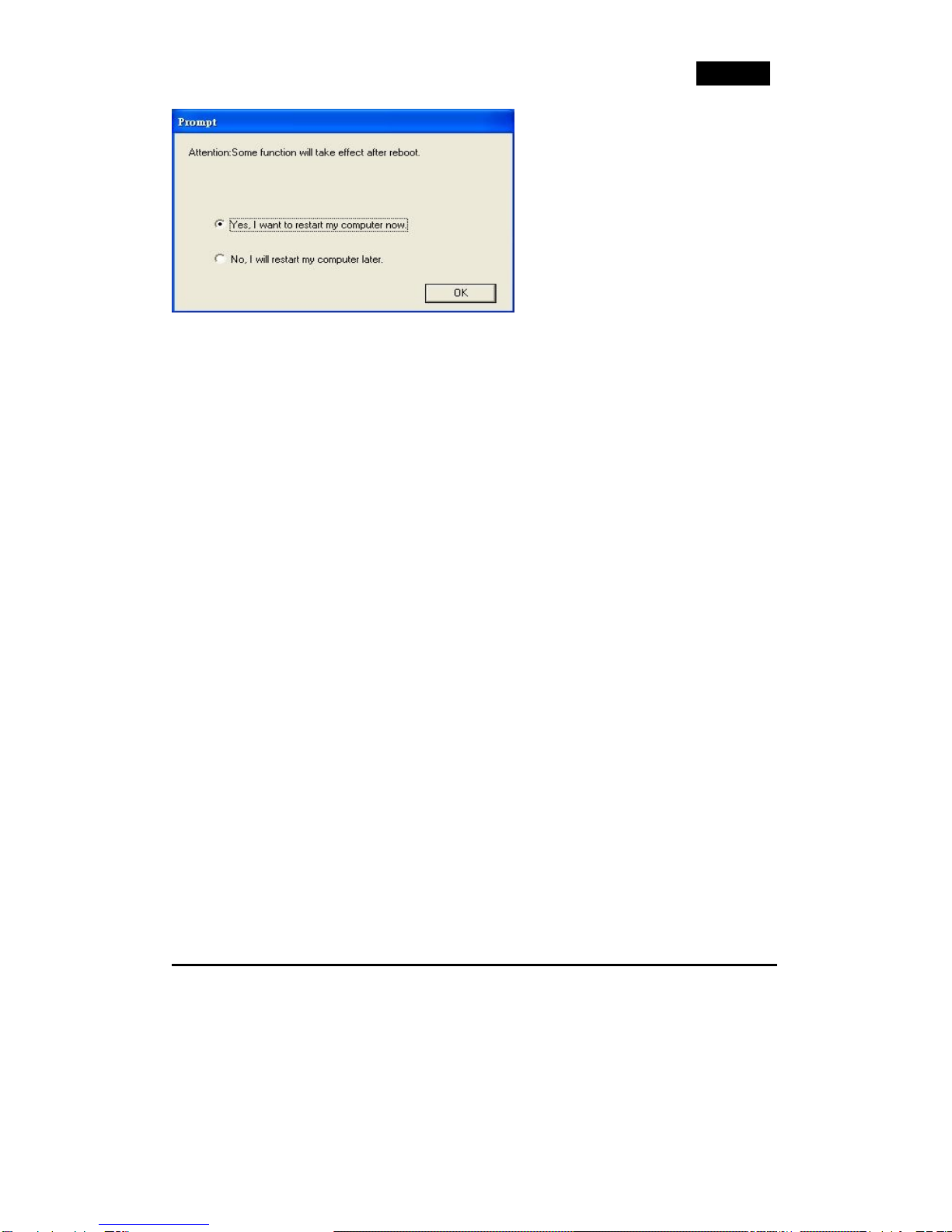

4. Then click “Finish” to complete the
installation of TVGo A03 and “Start”,
“Shut Down”, “Restart” to restart
your computer.
English
6
English
7
Chapter 3: Launch the Software

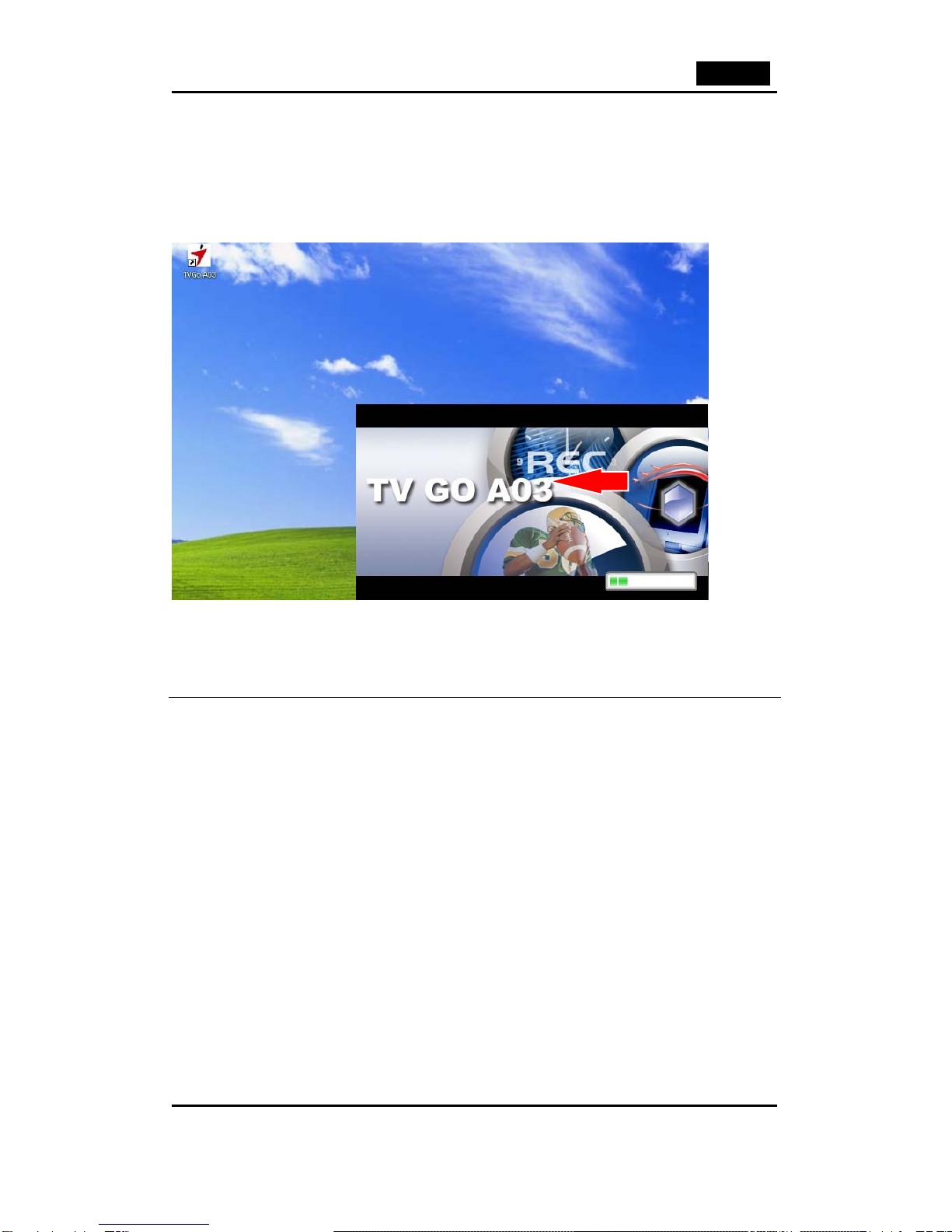

3.1 Running TVGo A03 for first time.
Click Start on Windows Taskbar, and then select Programs\TVGo A03
1. Click Start on Windows Taskbar, and then select Programs\TVGo A03
2. Click the AP of TVGo A03
3. Then the scanning device will start.
English
8

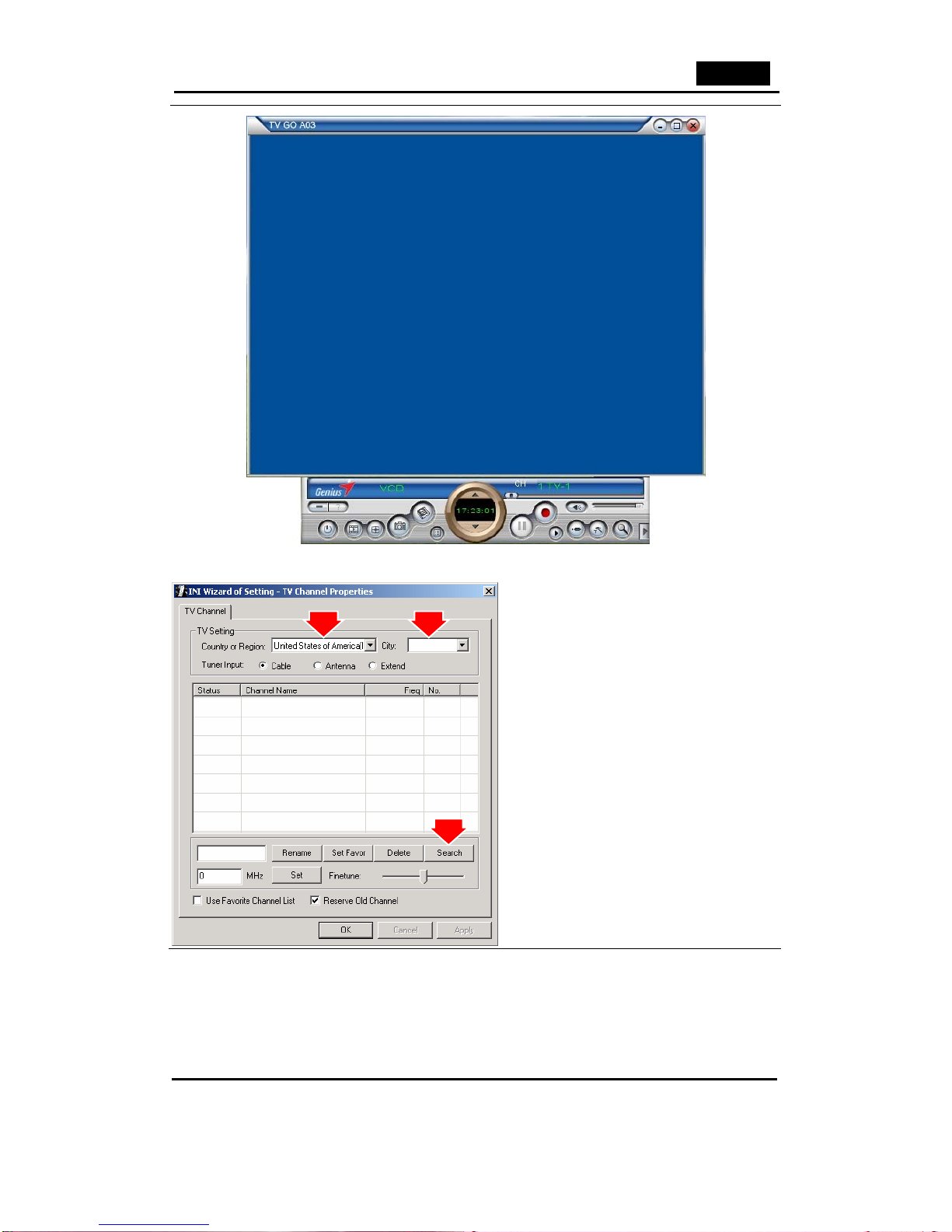

At the first time running, you should complete the setting and channel scanning.
1. Although the TV tuner on TVGo A03 is
fixed, you have to set up the country or
region right after the first time you
launch TVGo A03
2. Then press Search to scan the TV
channel.
3. After searching is finished, click OK to
start watching TV.
English
9
3.2 Watch TV or VCR
1. TV wall display: Show 4x4 TV wall on screen
2. Channel List: This is listing all available TV channel.
3. Channel control: Set channel up or down
4. Volume control: Adjust the Volume or mute.
5. Search TV channel: Click to search available TV channel.
6. Double click to full screen display.
7.

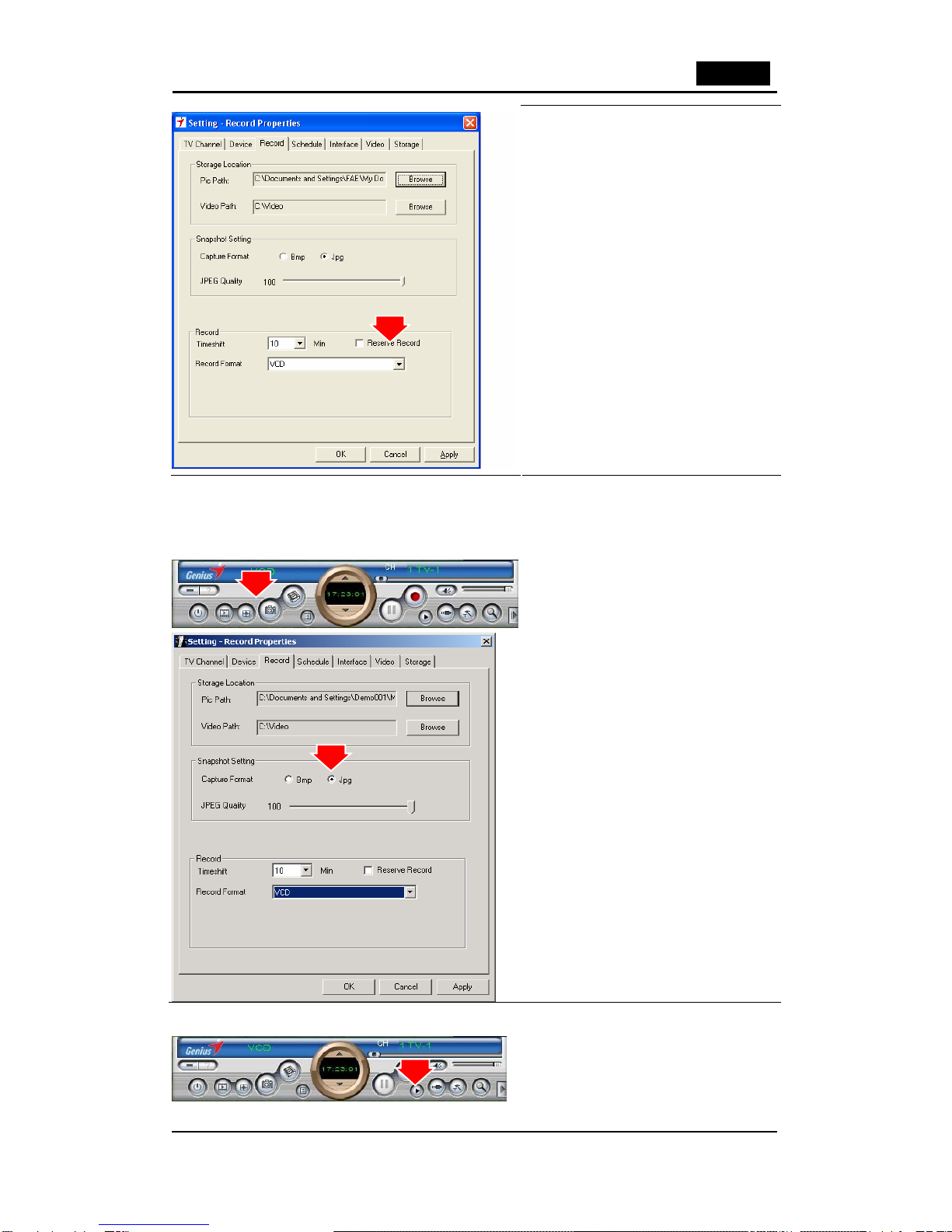

3.3 Record Video
Click “Record” button to start recording
video.
You can use the control panel or setting
table to set the video format. It can be
set to the following format.
1.TV wall display
2.Channel List
3.Channel Control
6. Double click to full screen display
4.Volume Control
5.Search TV Channel
English
10
MPEG-1, 2,4; AVI, DVD, VCD,
HiDVD…
3.4 Snapshot Image
Click the “Snapshot” button to capture
still image.
Click the “Setting” button to setup the
image format.
TVGo A03 supports BMP and JPEG
image format. Please choose your
desired format.
3.5 Playback Video
Click the “Playback” button to Play the
recording Video.
