Genius TVGo A03MCE Manuale utente

English

Chapter 1: Introduction

1.1 Package Contents

Upon receiving your TVGo A03MCE, please make sure the following items are included in the

package.

•TVGo A03MCE

•Driver CD

•Remote Control

•Quick Guide

•Video & Audio in connecter

1.2 System Requirements

•IBM PC or compatible

•Intel Pentium4 2.4G MHz CPU or better processor

•Minimum 128 MB memory (256MB is better)

•Minimum 100 MB hard disk space available

•One free USB2.0 slot

•Microsoft Windows 2000 or XP

•CD-ROM drive

1.3 Usage of Remote Control

The key definition is different when under WinXP and WinXP MCE. Please

study the below chart for key definition. Meanwhile, because Microsoft keeps

changing MCE’s version, if your MCE version is after version 5.1.2700.xxx ,

then our remote control can’t control My TV item of Media Center.

English

Key Win 2000/XP Win XP MCE

Open/Close TV Software Close MCE TV program

Record TV program Enter

Change screen size to

original window size or

return

Change screen size to

original window size or

return

Capture current screen

and save

Move curser back to

previous menu

0~9 Number 0 ~ 9 Number 0 ~ 9

Switch to the next

channel

Switch to the next

channel

Switch to the previous

channel

Switch to the previous

channel

Enlarge sound volume Enlarge sound volume

Reduce sound volume Reduce sound volume

Decade channel inputting

available

Move cursor upward

Click to start Time-shift

feature, click one more

time to play recorded

show.

Move cursor downward

Go back to the last

channel

Move cursor leftward

Switch input signal source

between TV, Composite,

and S-video

Move cursor rightward

English

Chapter 2: Getting Started

2.1 Connect the TVGo A03MCE

(If your PC is with WinXP MCE system, please also install “Setup Utility for Win

2000/XP” so that you can also use Genius’AP. Otherwise, you can only watch Life TV by

Media Center program.)

1. Connect the antenna cable to

the connector. (Use PAL to

NTSC adaptor if necessary)

2. Connect the Device to PC USB

Hub.

3. Once you connect TVGo

A03MCE to the USB port, you

can just follow the system’s

prompted messages to finish

the driver installation.

English

2.2 Device Driver & Software Installation for Windows 2000/XP

To install the TVGo A03MCE into your computer, follow the steps below:

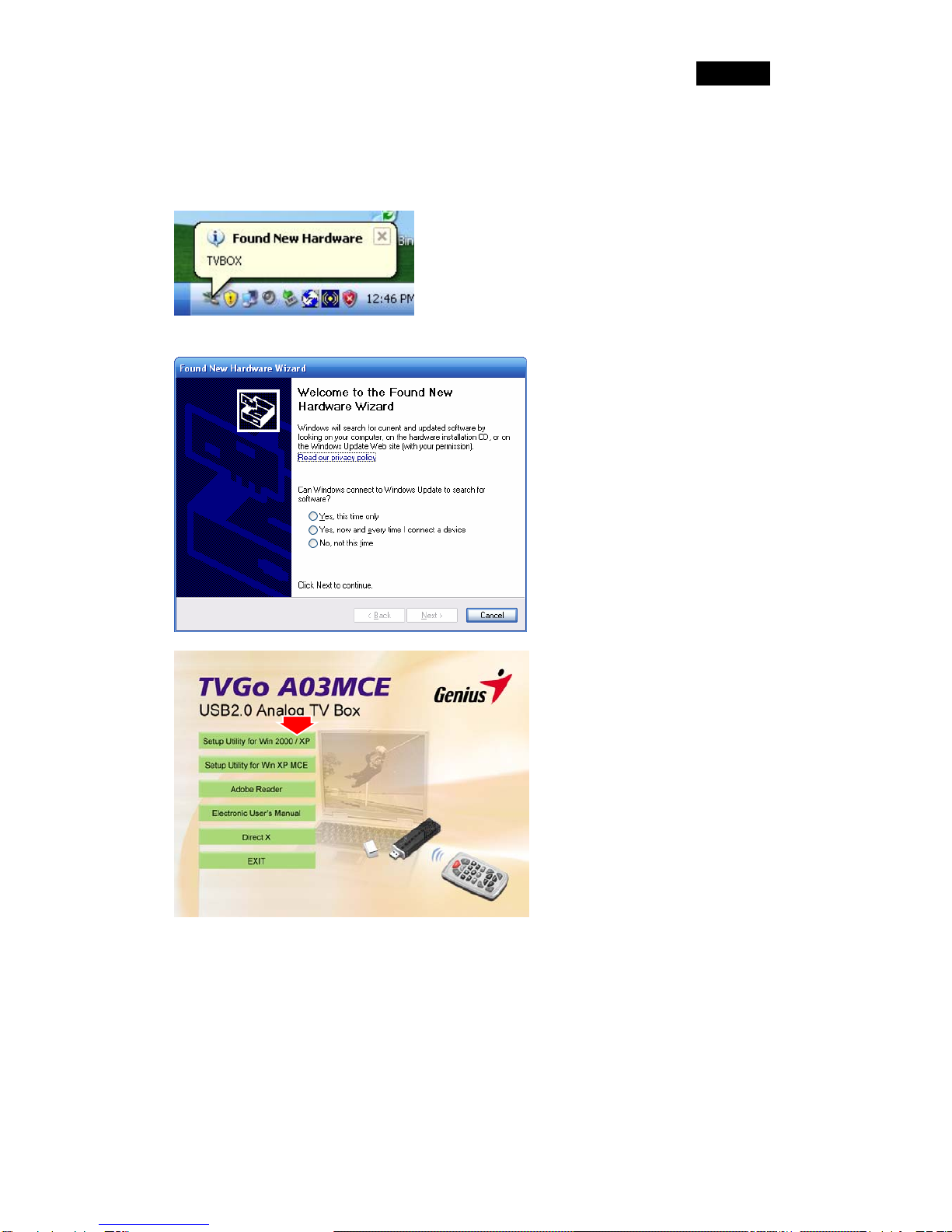

1. When you insert TVGo

A03MCE, system will

show the “Found New

Hardware” dialogue box.

2. ignore the pop-up window

and go to next step.

3. Insert TVGo A03MCE CD

into CD-ROM, Setup

menu will pop up, click

“Setup Utility for Win

2000/XP”

English

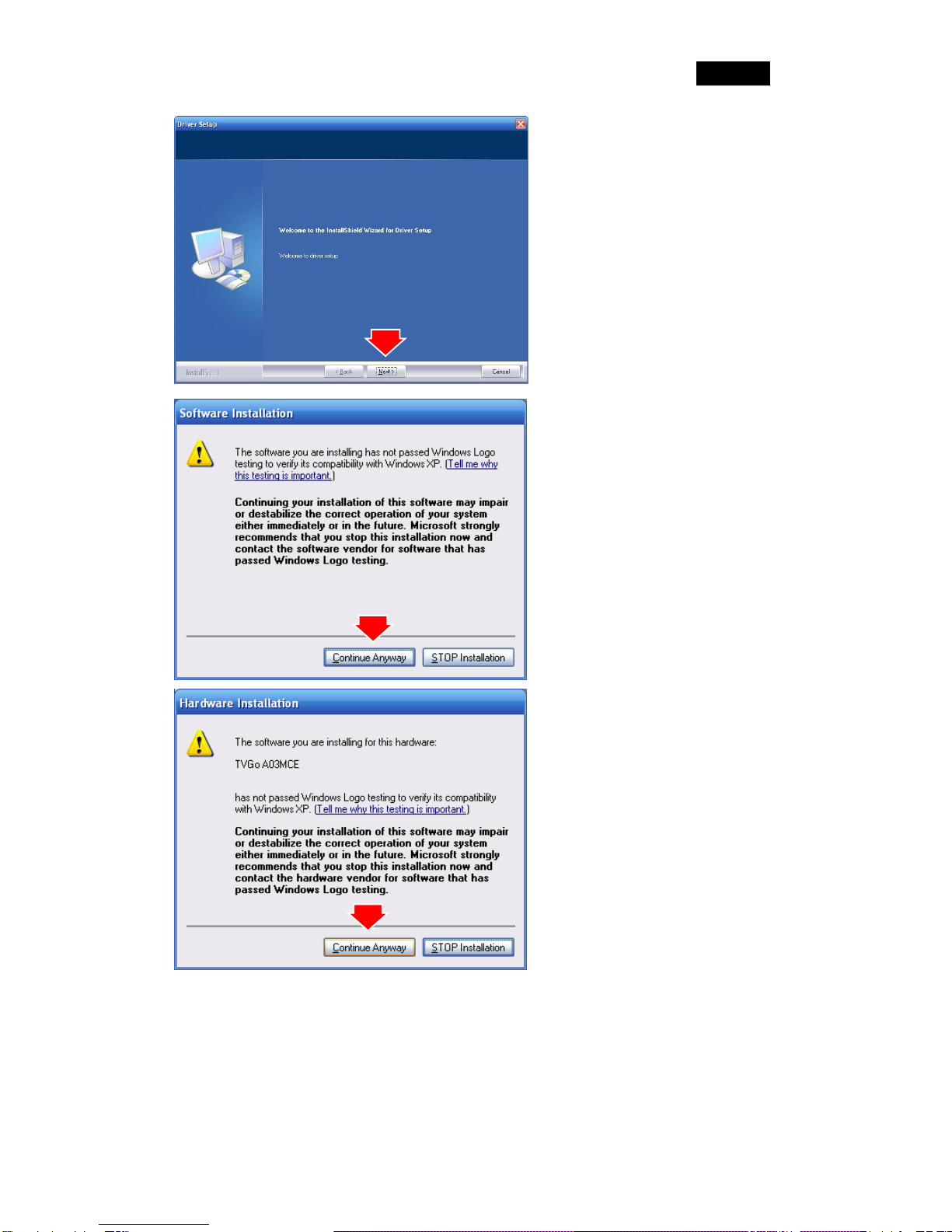

4. Click “Next” button to

continue.

5. Click “Continue Anyway”

button

6. Click “Continue Anyway”

button

English

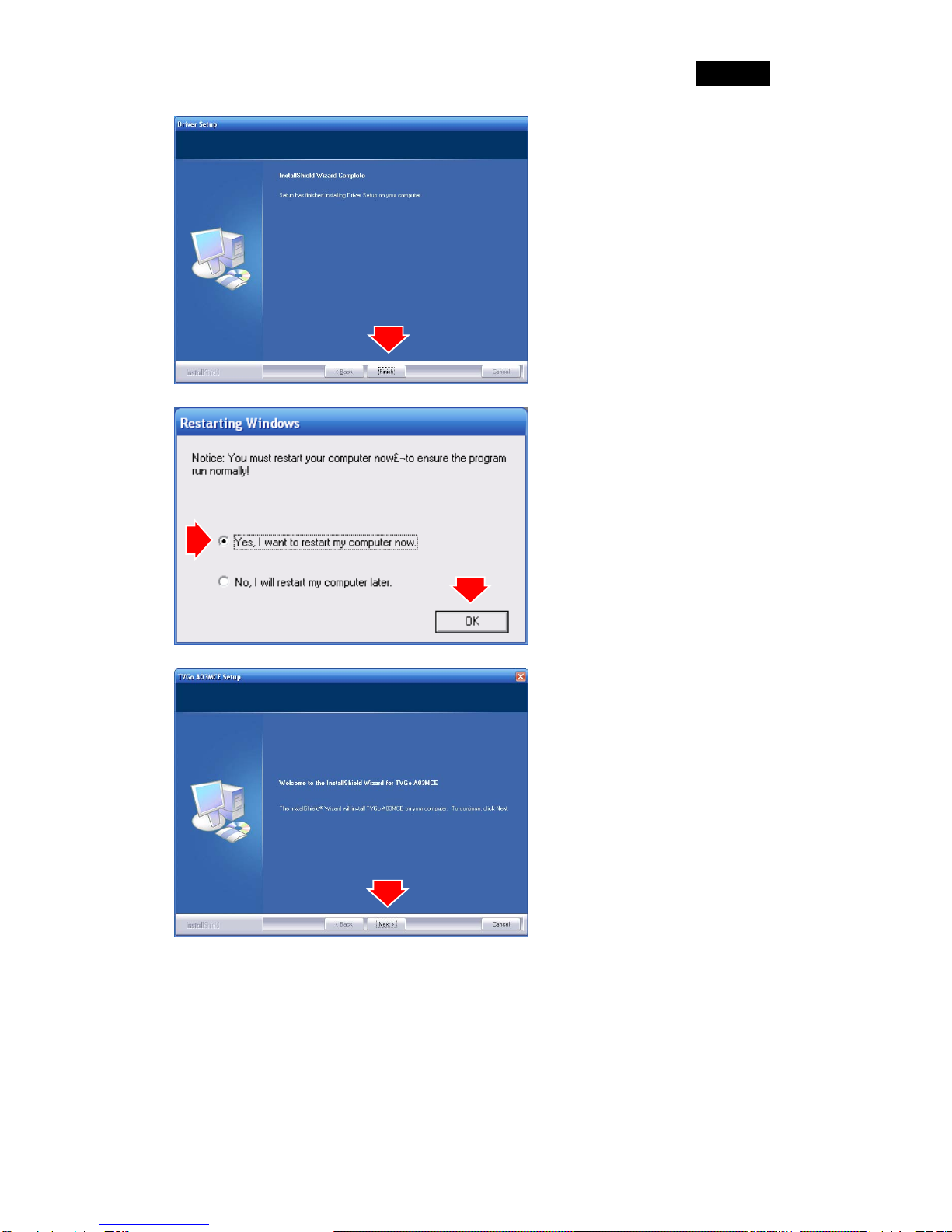

7. Click “Finish” button

8. Select “Yes, I want to

restart my computer

now” and click “OK” to

reboot PC.

9. Click “Next” to continue

software installation.

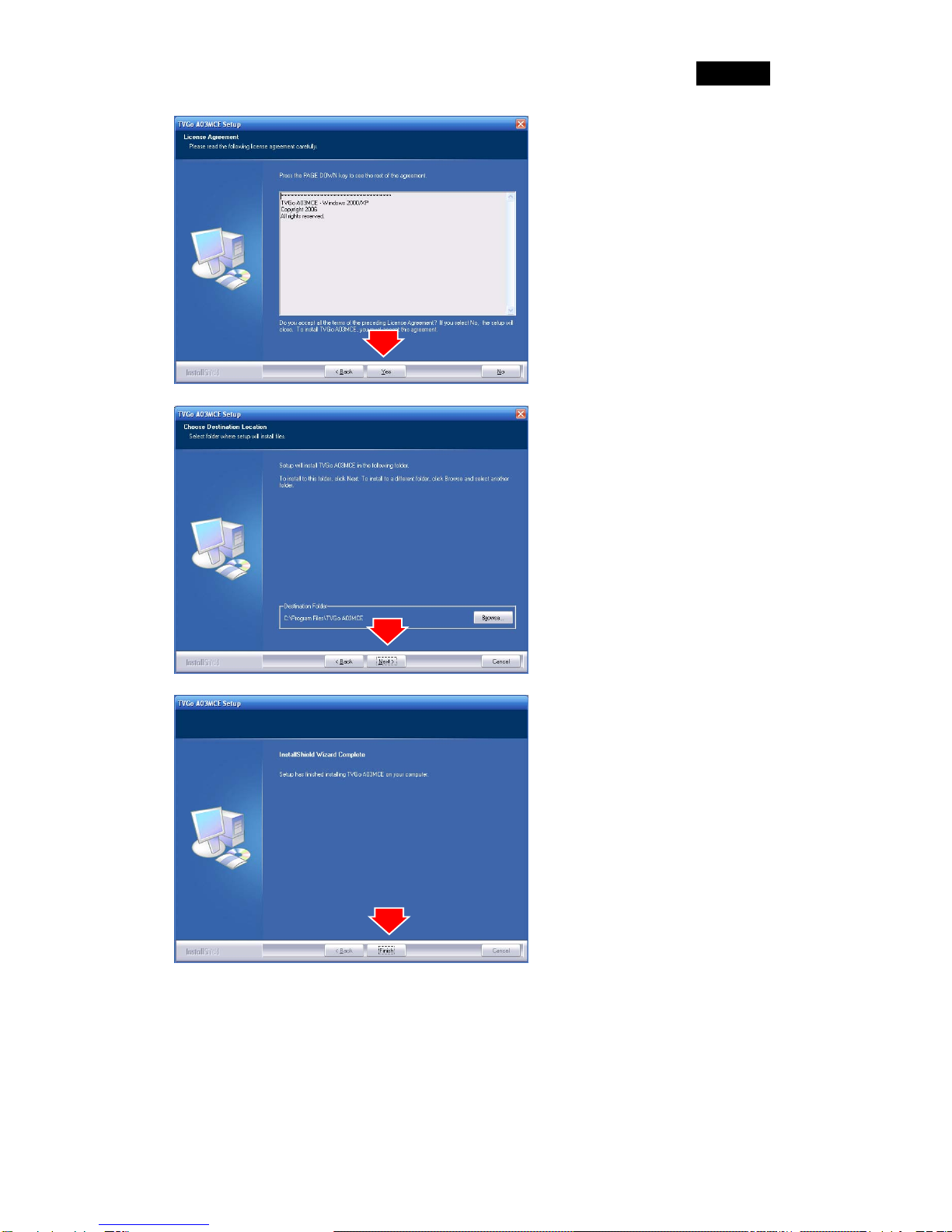

English

10. .Click “Yes” to continue.

11. Click “Next” button. ( Click

“Browse” if choose

different destination to

store TVGo A03MCE

folder)

12. Click “Finish” to end

setup

English

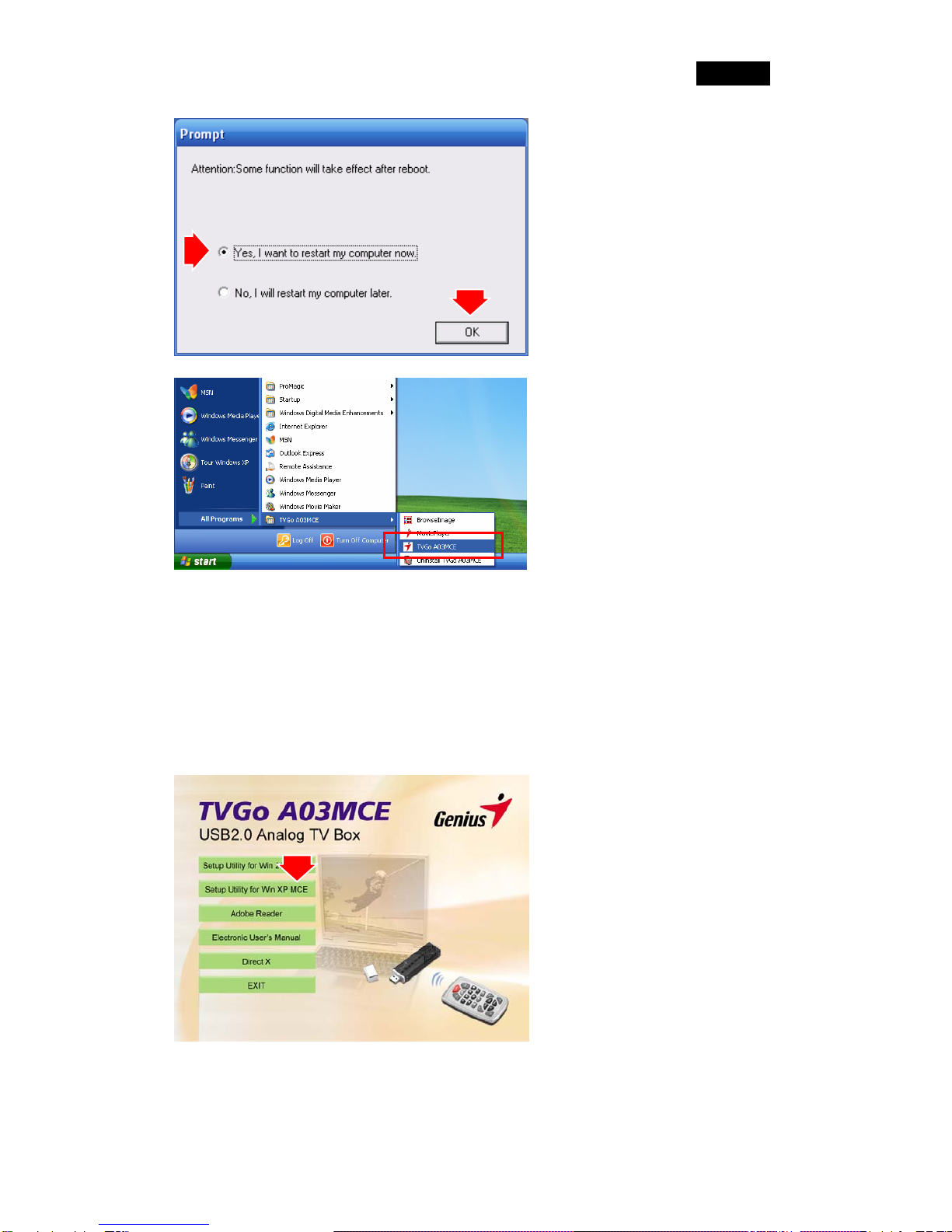

13.Select “Yes, I want to

restart my computer

now” and click “OK”

button to reboot

computer.

14.TVGo A03MCE is ready

to go

*If your PC is not Windows XP MCE system, please skip the following and

refer to Chapter 3 for more information.

2.3 Device Driver & Software Installation for Windows XP

Media Center Edition 2005

1. Insert TVGo A03MCE

CD into CD-ROM, Setup

menu will pop up, click

“Setup Utility for Win

XP MCE”

English

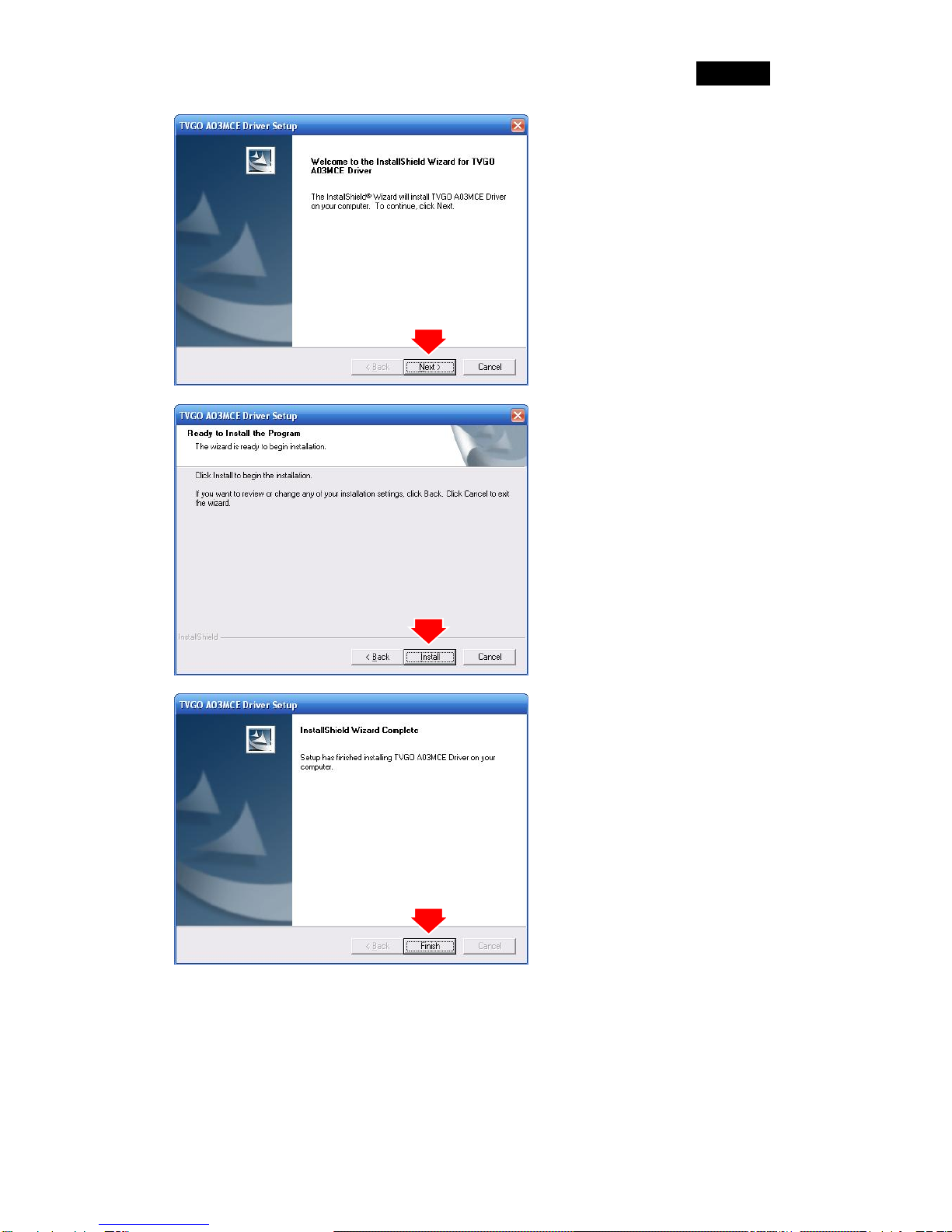

2. Click “Next” button to

start installation.

3. Click “Install” to

continue.

4. Click “Finish” to

continue.

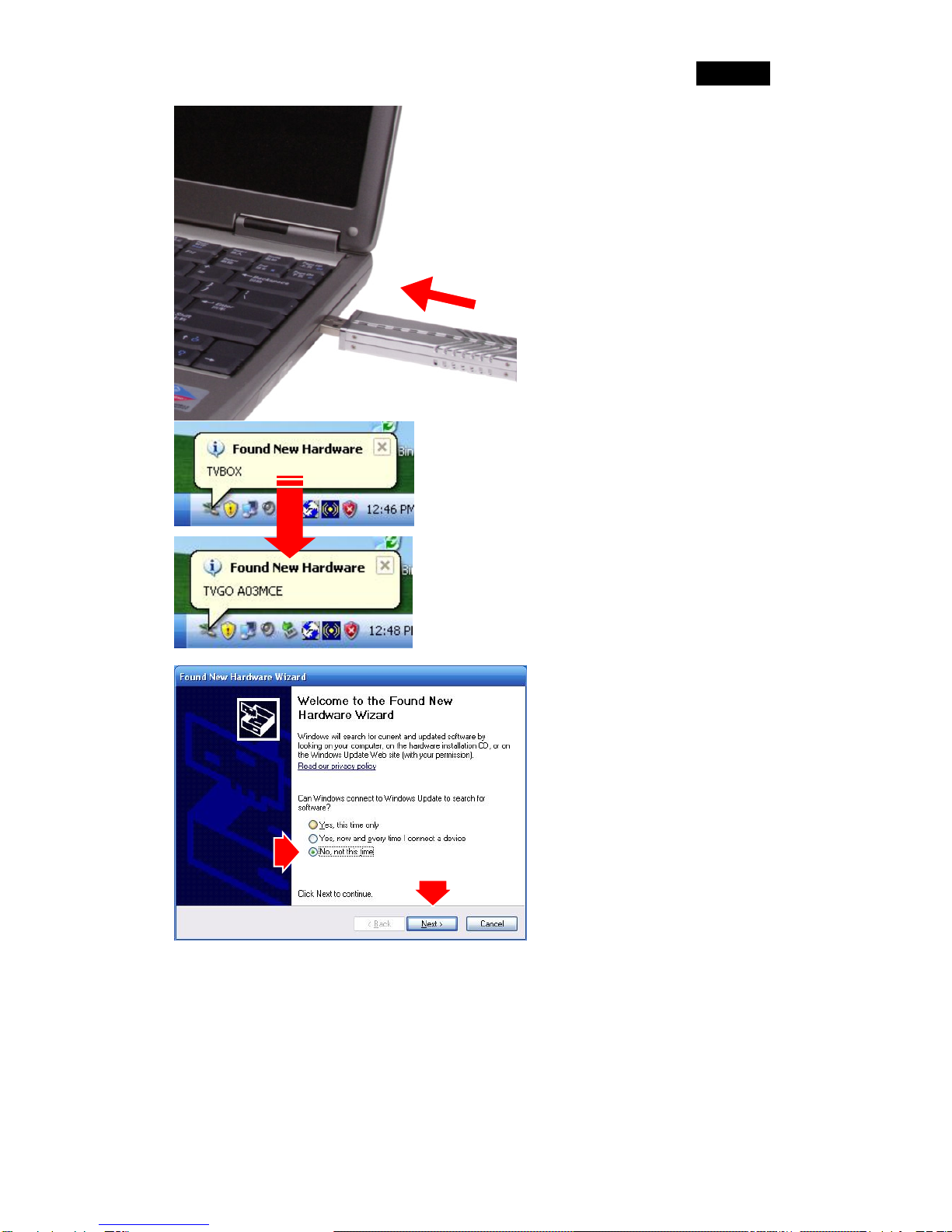

English

5. Once you connect TVGo

A03MCE to the USB

port, you can just follow

the system’s prompted

messages to finish the

driver installation.

6. Insert TVGO A03MCE

device into USB port,

MCE found New

Hardware.

7. The “Found New

Hardware Wizard”

window will be jumped up

after computer restart.

Select “No, not this

time” and Click “Next”

button to continue.
