ZEB PANO introduction
•Capture and create real estate floorplans with interactive 360°
panoramic photography for enhanced property surveys.
•The ZEB PANO uses our leading SLAM algorithm to
automatically and accurately position panoramic photos on a
floorplan for an interactive viewing experience.

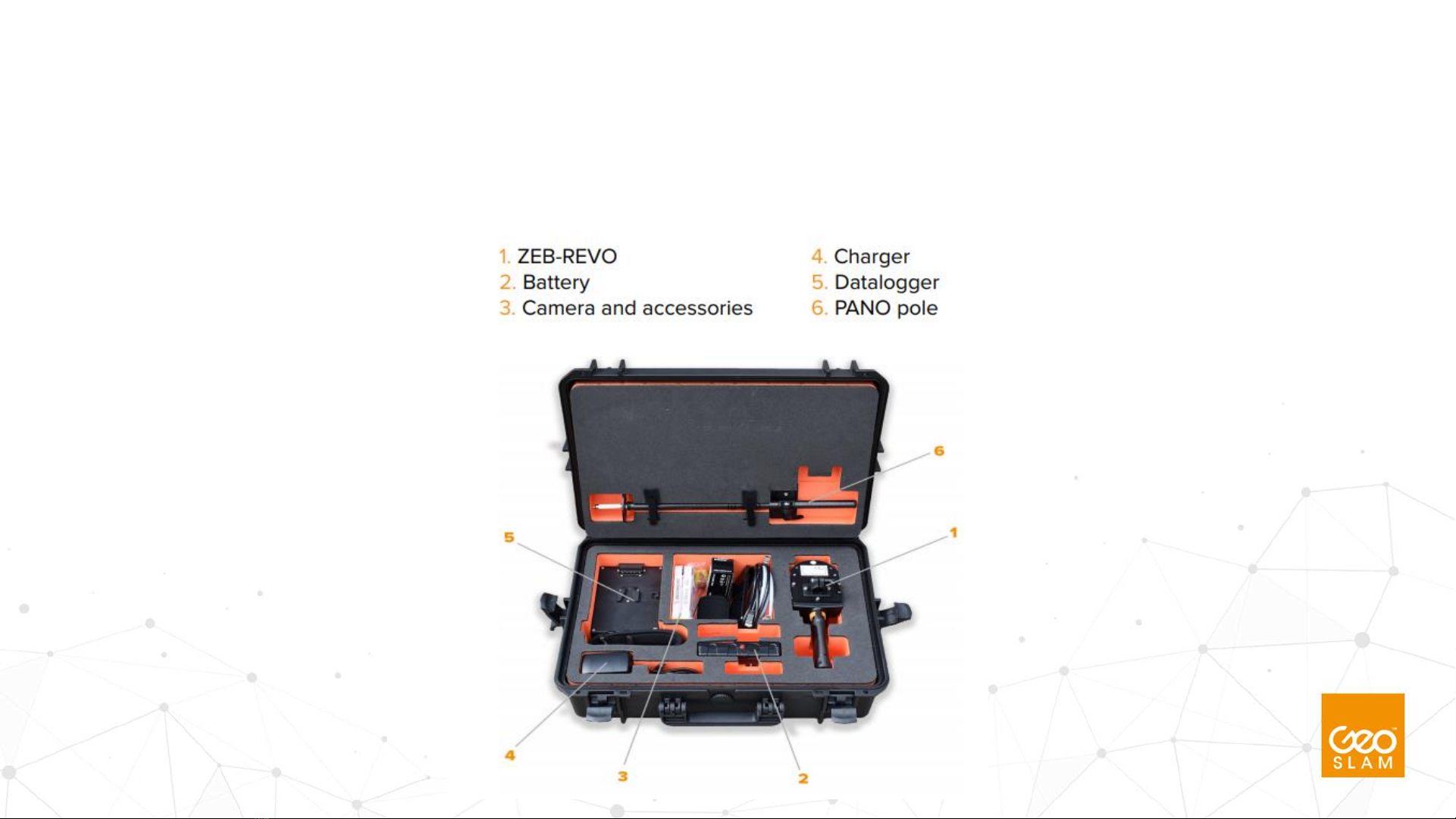

ZEB PANO case content
What is Zeb PANO?
Scanner Specification
Range
30m
FOV
360⁰ x 270⁰
Protection Class
IP 54
Scanner points per second
43,000
Relative accuracy
1
-3 cm*
ZEB Revo combined with a Ricoh Theta V 360⁰Camera
What is Zeb PANO?
Camera Technical Specification
Resolution
4K
Internal Memory
19GB
Battery Life
300 shots per charge
Charge method
MicroUSB
connection to PC
Charge Time
200 minutes
Point cloud colorization
No
ZEB Horizon combined with a Ricoh Theta V 360⁰Camera
Side View
Capture button
(also use trigger)
Lights indicate
capture mode
(picture/ video)
and wifi
connectivity (not
needed for pano)
Front View
Back View
3 buttons on side
toggle power, wifi
connectivity and
capture mode
For Pano
capture, make
sure camera
button is visible
What is Zeb PANO?
What is Zeb PANO?
•The PANO camera has several lighting distinctions to indicate
battery level
•80% or higher –Blue
•50 to 80% - Yellow
•30 to 50% - Lights Red
•Under 30% Flashes Red
Mounting and installation
•Screw pole into ZEB REVO brackets
Mounting and installation
•Insert the pole provided into
the bracket, tighten the
clamp, attach the scanner
handle to the reference place
using a screw provided
Mounting and installation

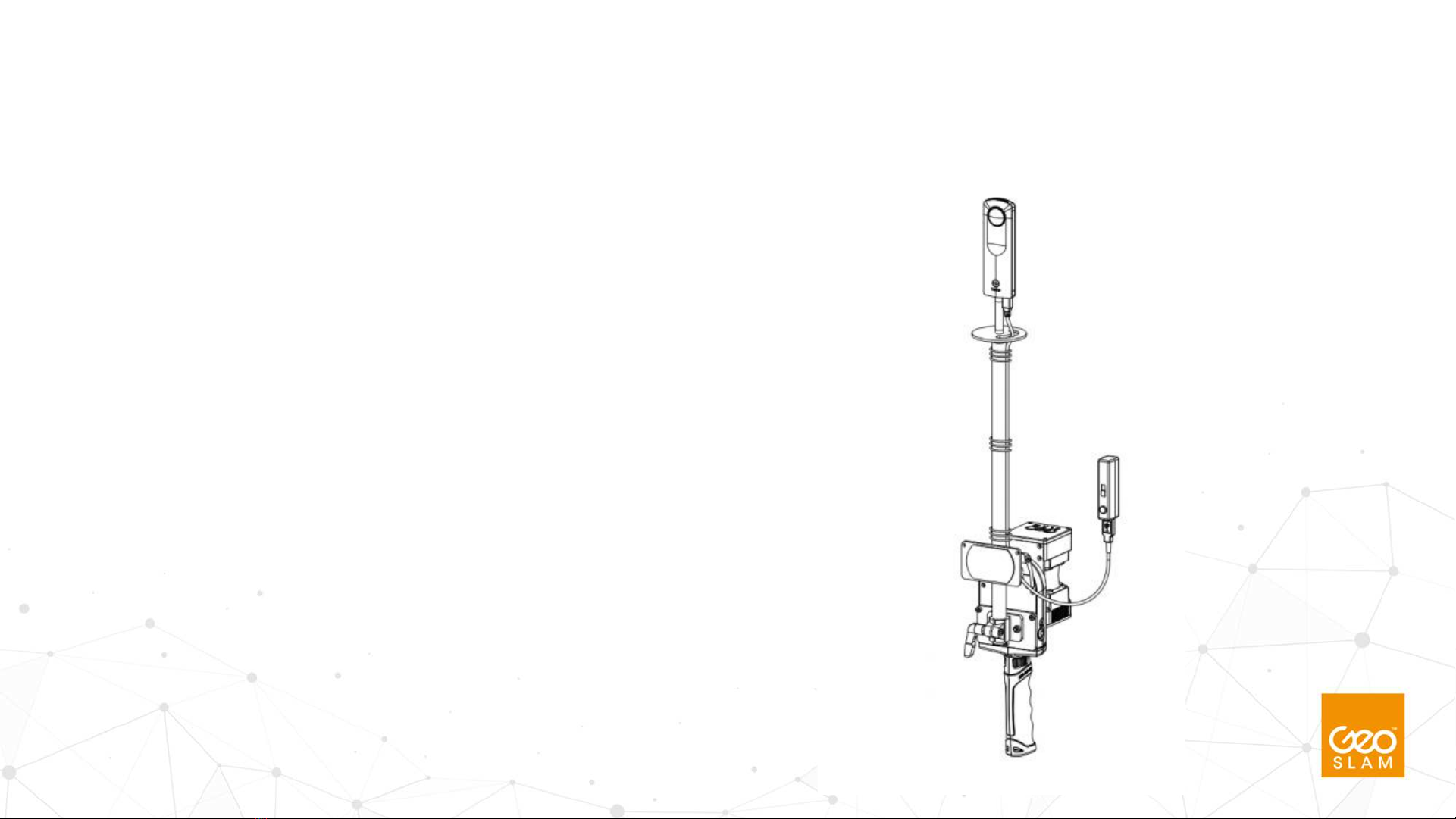

•Screw PANO camera to the
top of the pole and use the
cable to attach the remote
trigger
•Make sure the GeoSLAM
sticker (sticker should be on
the side of the trigger button)
on the camera is facing the
user capturing the scan. If you
need to, use the clamps to
rotate entire pole so that the
camera is in a correct
orientation.
