GeoVision GV-IRCAM Series Manuale utente
GV-IRCAM V1.5
Installation Guide
© 2008 Nov. GeoVision Inc. All rights reserved. IRCAMV15-A-TA
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
(10-Meter / 20-Meter Models)
GV-IRCAM offers a selection of models that support different optimal distances and video
formats to meet various needs. This installation guide will take you through the functionality
and use of GV-IRCAM.

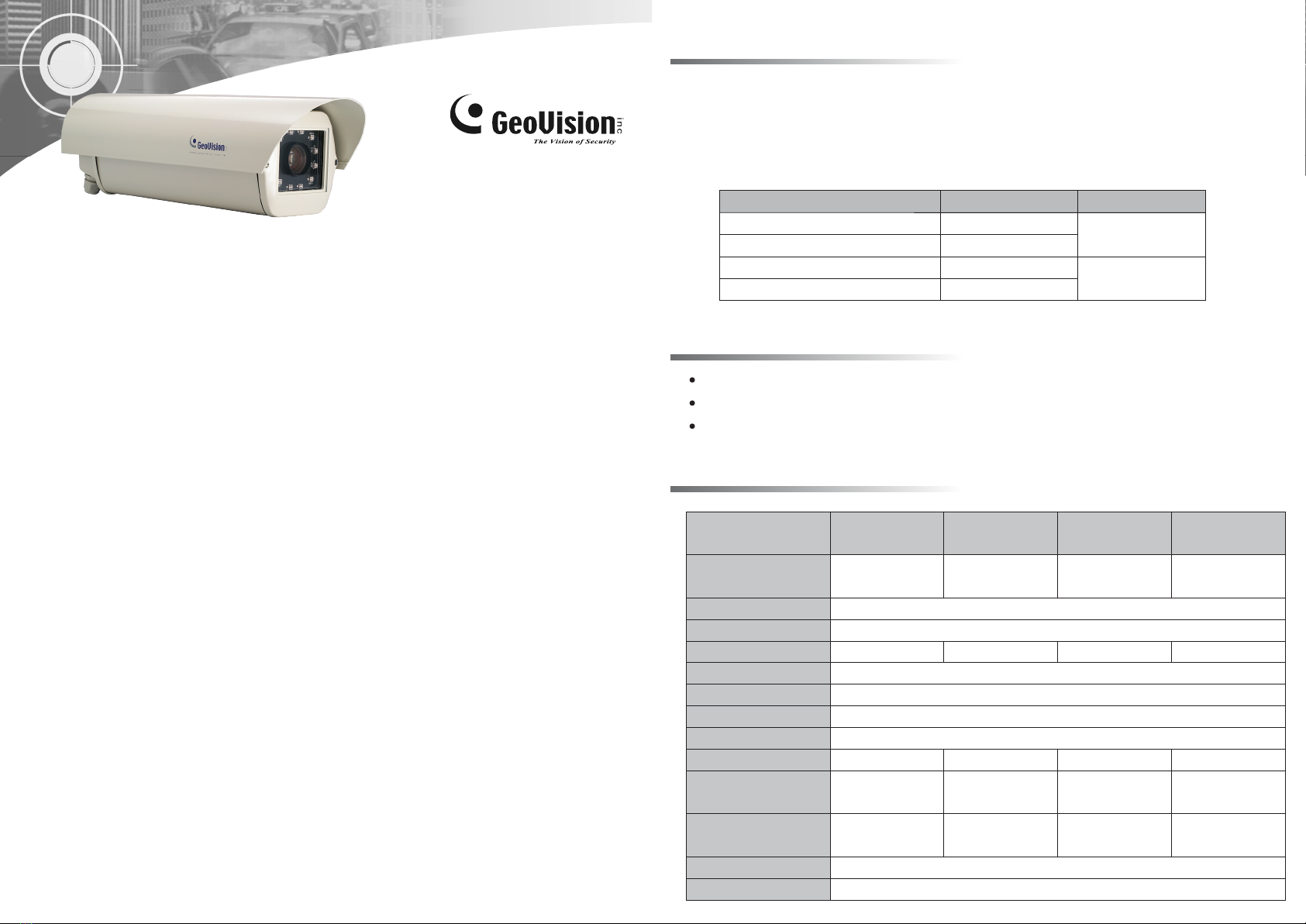

List of Models
AC Power Cable (110-125V, 10A) x 1
Power Adapter (100-240V, 12V/3A) x 1
Outdoor Mounting Bracket x 1
Models
Packing List
Model
GV-IRCAM 10M EIA DC12V
GV-IRCAM 20M EIA DC12V
GV-IRCAM 10M CCIR DC12V
GV-IRCAM 20M CCIR DC12V
Optimal Distance
10 m / 32.80 ft
20 m / 65.61 ft
10 m / 32.80 ft
20 m / 65.61 ft
Video Format
NTSC
PAL
Specifications
Model
Distance (optimal)
Sensor
Resolution
Lens Focal Length
Construction
Protection classification
Environmental
Power Supply
Power Consumption
LED Quantity
Illumination Range
Illumination View Angle
Illuminator Life
1/3" B/W EXview CCD
600 TVL
Robust aluminum with weatherproof sun-shield
IP 66
Operation: -20˚C ~ 50˚C / -4˚F ~ 122˚F Storage: -30˚C ~ 60˚C / -22˚F ~ 140˚F
DC 12V
30˚
25,000 hrs
GV-IRCAM 10M
EIA DC 12V
7~15 m /
22.96 ~ 49.21 ft
5 ~ 50 mm, 10X
15W
12 high-efficiency
reflex LED
20M (object of view
reflecting IR light)
GV-IRCAM 20M
EIA DC 12V
15 ~ 25 m /
49.21 ~ 82.02 ft
10 ~ 120 mm, 12X
20W
24 high-efficiency
reflex LED
30M (object of view
reflecting IR light)
GV-IRCAM 10M
CCIR DC 12V
7 ~ 15 m /
22.96 ~ 49.21 ft
5 ~ 50 mm, 10X
15W
12 high-efficiency
reflex LED
20M (object of view
reflecting IR light)
GV-IRCAM 20M
CCIR DC 12V
15 ~ 25 m /
22.96 ~ 49.21 ft
10 ~ 120 mm, 12X
20W
24 high-efficiency
reflex LED
30M (object of view
reflecting IR light)

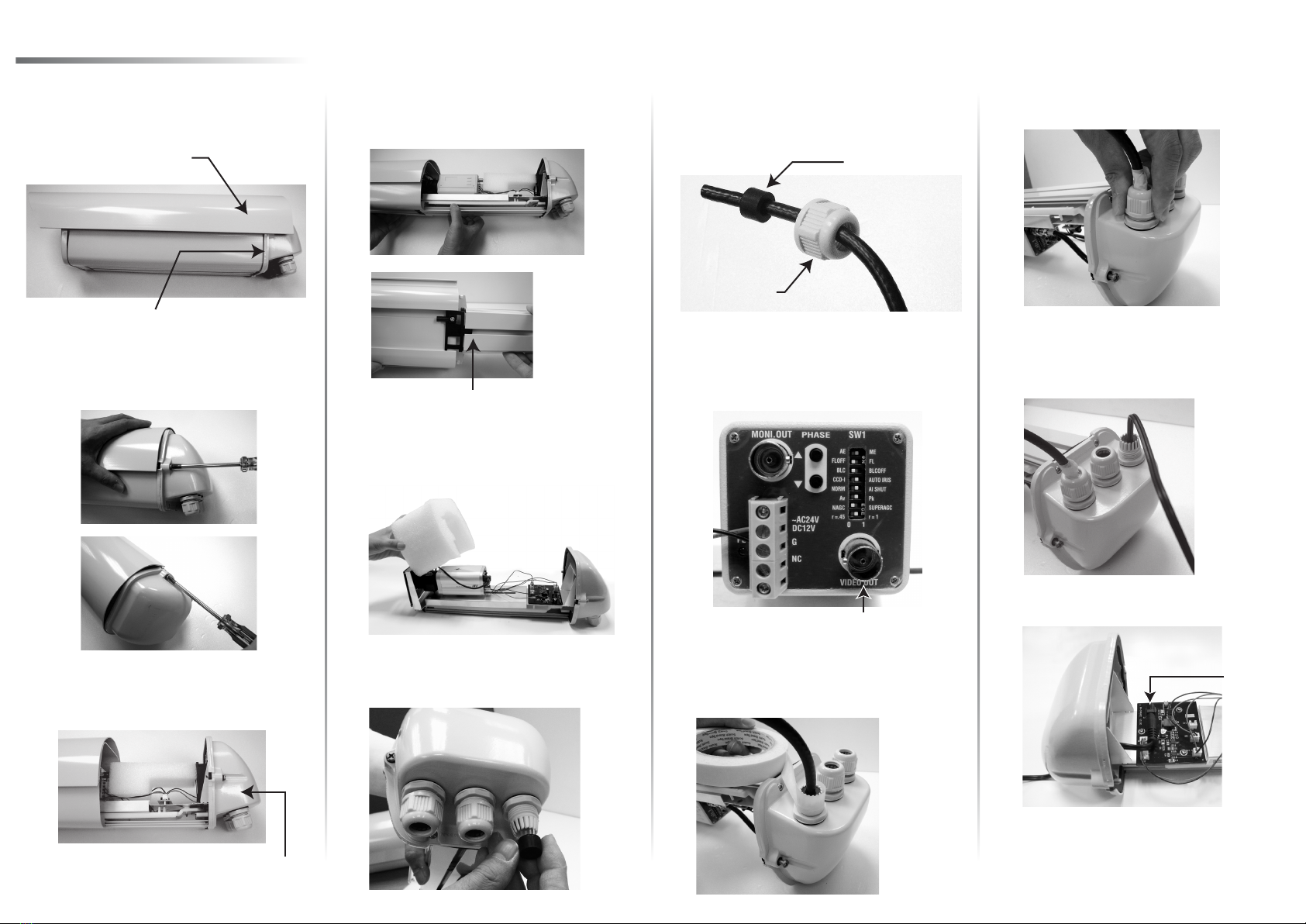

Installing Camera Module
Push the sun shield forward to align with
the back of camera enclosure.
1. Slightly lift the camera module and slide it
out completely.
4.
Remove the foam.5.
2.
Pull out the camera module.
Sun Shield
Camera Enclosure Back
Camera Module
Completely slide the camera
module out
Loosen the set screws on the back of the
camera enclosure.
3.
Loosen the screw cap on the right.6.
Insert the video cable through the screw
cap and the inside rubber of the cap.
7.
Rubber
Screw Cap
VIDEO OUT Jack
Attach the video cable to the BNC
connector and plug it into the “VIDEO OUT”
jack.
8.
Adjust the length of the video cable and
seal it with the waterproof tape.
9.
Tightly screw the cap.10.
Loosen the screw cap on the left, insert the
power cable through the screw cap and the
inside rubber.
11.
Plug the power cable into the DC jack.12.
Adjust the length of the cable, seal it with
the waterproof tape, and then tightly screw
the cap (see Steps 9 and 10 for the
pictures).
13.
DC Jack

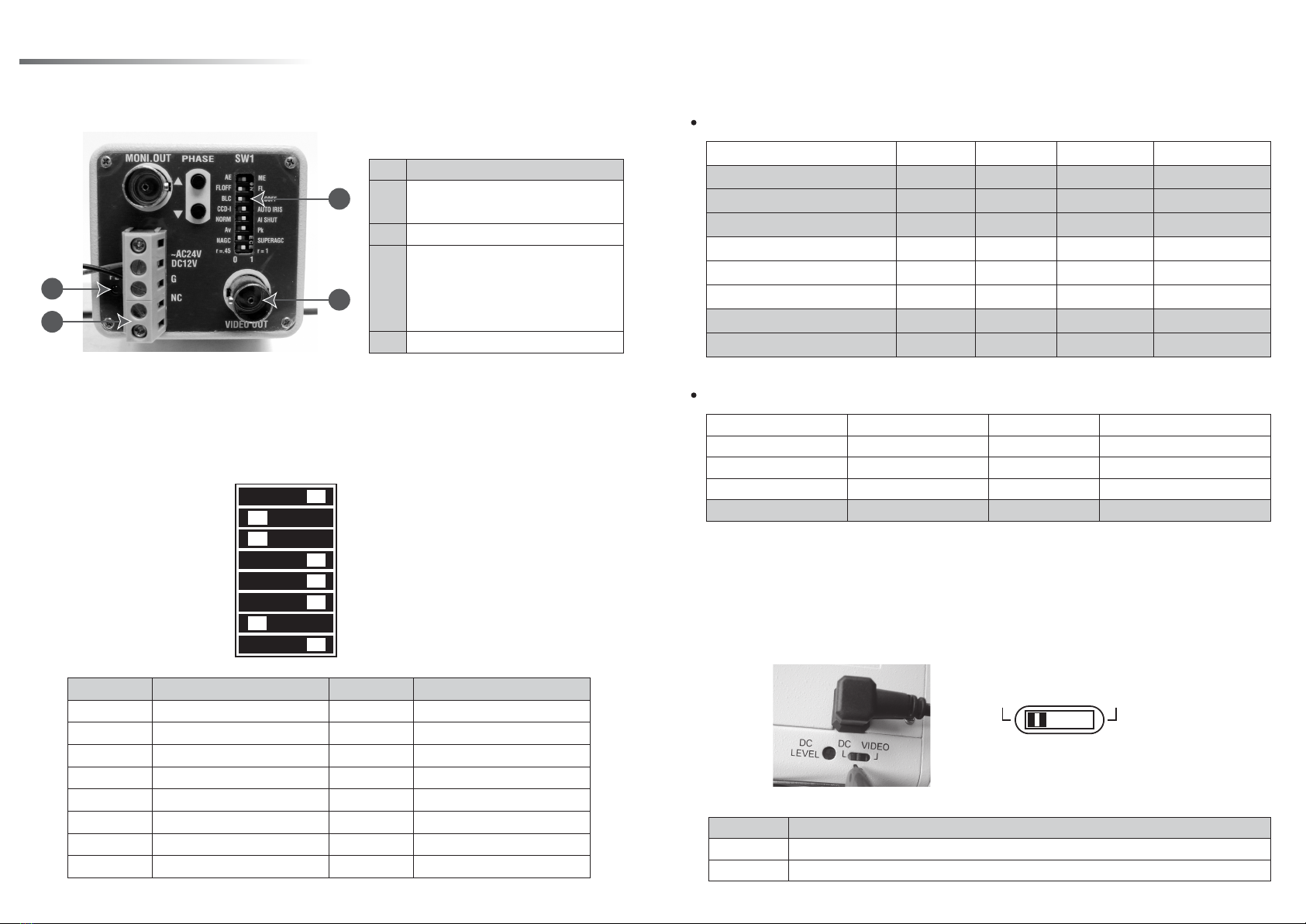

Adjusting Camera Settings
ME
FL
BLCOFF
AUTO IRIS
AI SHUT
Pk
SUPERAGC
r
AE
FLOFF
BLC
CCD-I
NORM
Av
NAGC
r=.45
Overview
Switch Control
1
4
3
2
No
1
2
3
4
Function
Switch Control (For details, see
the chart below.)
Video Out
Power Terminal (It is already
connected. Follow Steps 11 to 12
in Installing Camera Module to
insert the power cable.)
Power LED
The switches on the panel are set by default as the picture below shows.
Switch
AE
FLOFF
BLC
CCD-I
NORM
Av
NAGC
r = .45
Switch
ME
FL
BLCOFF
AUTO IRIS
AI SHUT
Pk
SUPERAGC
r = 1
Description
Auto Exposure Mode
Flickerless off
Auto Backlight on
CCD-Iris
Auto Iris + Shutter Mode
Average Convergence
Normal AGC=30dB
GAMMA (.45)
Description
Manual Exposure Mode
Flickerless on
Auto Backlight off
Auto Iris
Auto Iris + Shutter Speed
Peak Convergence
Super AGC=36dB
GAMMA (1)
ME Settings
Shutter Speed Settings
SHUTTER SPEED
1/50(1/60) SEC
1/120(1/100)SEC
1/250 SEC
1/500 SEC
1/1000 SEC (*)
1/2000 SEC
1/4000 SEC
1/10000 SEC
AE/ME
ME
ME
ME
ME
ME
ME
ME
ME
FLOFF
FL
FLOFF
FL
FLOFF
FL
FLOFF
FL
BLC
BLC
BLCOFF
BLCOFF
BLC
BLC
BLCOFF
BLCOFF
CCD-I
CCD-I
CCD-I
CCD-I
AUTO IRIS
AUTO IRIS
AUTO IRIS
AUTO IRIS
Notes:
1. The default settings are marked with (*).
2. The gray areas in the charts are not recommended for use.
The default setting is DC.
Gain Control Settings
GAIN
0 dB
6 dB (*)
12 dB
18 dB
AE/ME
ME
ME
ME
ME
Av
Pk
Av
Pk
NAGC
NAGC
SUPERAGC
SUPERAGC
Switch
DC
VIDEO
Description
DC Drive Lens
Video Drive Lens
Auto Iris Selection
DC VIDEO

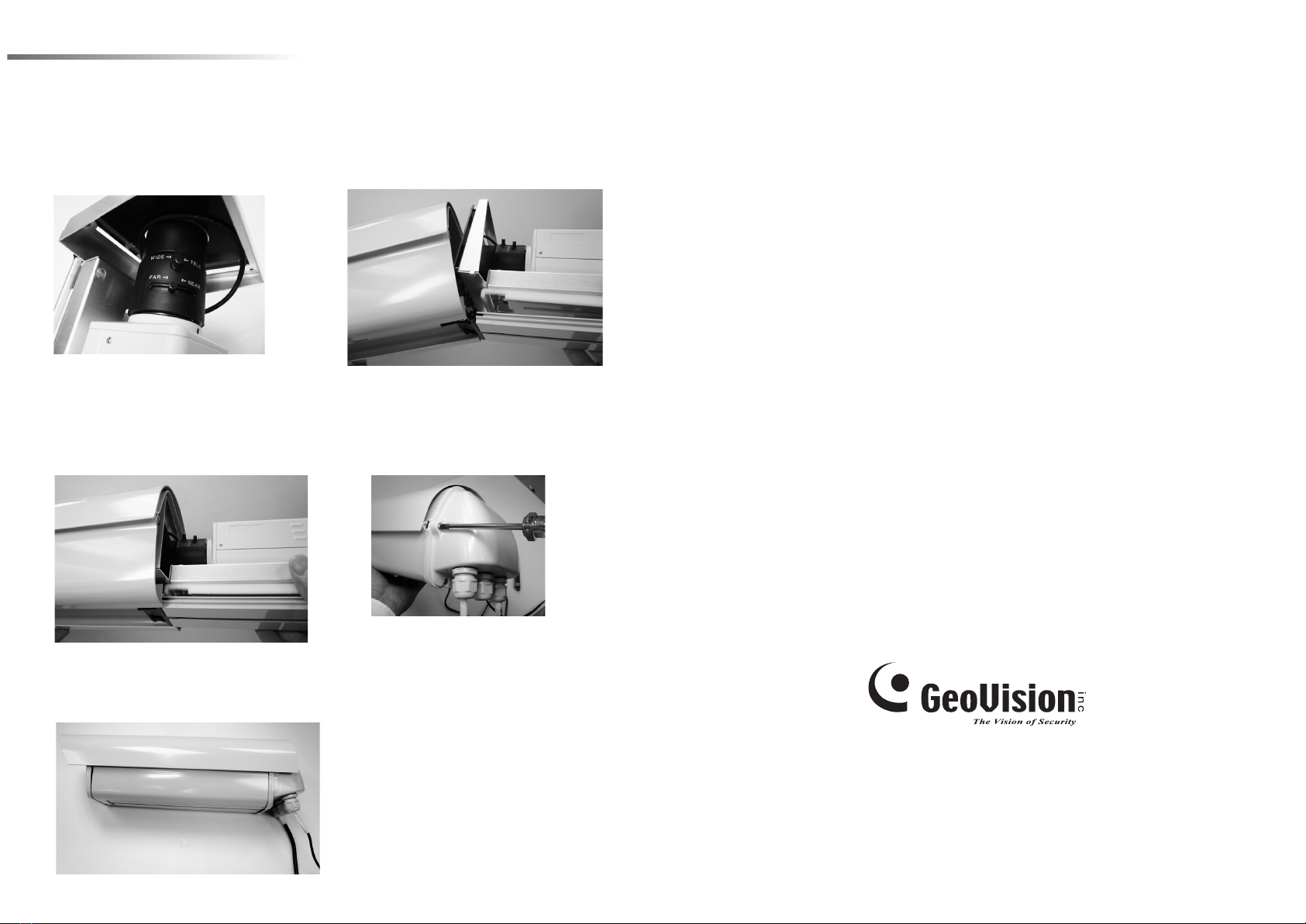

Installing Camera Enclosure
After the installation of camera module and settings adjustment, you are now ready to install the
camera enclosure back.
1. Adjust the lens focus. 2. Lift the camera module.
Align the camera module to the camera
enclosure and slide it back.
3. Secure the camera enclosure with the
screws on both sides.
4.
Push the sun shield back.5.
