Quick Start Guide

GV-PTZ010D / GV-PT110D Camera

Thank you for purchasing GV-PTZ010D / GV-PT110D Camera. This guide is designed to

assist the new user in getting immediate results from the GV-PTZ010D / GV-PT110D

Camera. For advanced information on how to use the GV-PTZ010D / GV-PT110D Camera,

please refer to GV-IPCam H.264 User's Manual on Software DVD.

1Introduction

Welcome to the GV-PTZ010D / GV-PT110D Camera Quick Start Guide. In

the following sections, you will learn about the basic installations and

configurations of the GV-PTZ010D and GV-PT110D. For a detailed user’s

manual, see GV-IPCam H.264 User’s Manual on the software CD.

Packing List

• GV-PTZ010D / GV-PT110D camera

• Mounting cover

• Wall mount bracket

• Round screws

• Screw anchors

• Washers

• DC 12V power adaptor

• GV-PTZ010D / GV-PT110D

software CD

GV-PTZ010D GV-PT110D

2010/10

English

ICH264V106-PTZ-QG-A

• Mounting base

• Short screws

• Long screws

2Hardware Installation

The GV-PTZ010D / GV-PT110D camera is designed for indoor usage.

Please make sure that the installing location is shielded from rain and

moisture. There are two ways to mount the PTZ / PT camera: Ceiling Mount

and Wall Mount.

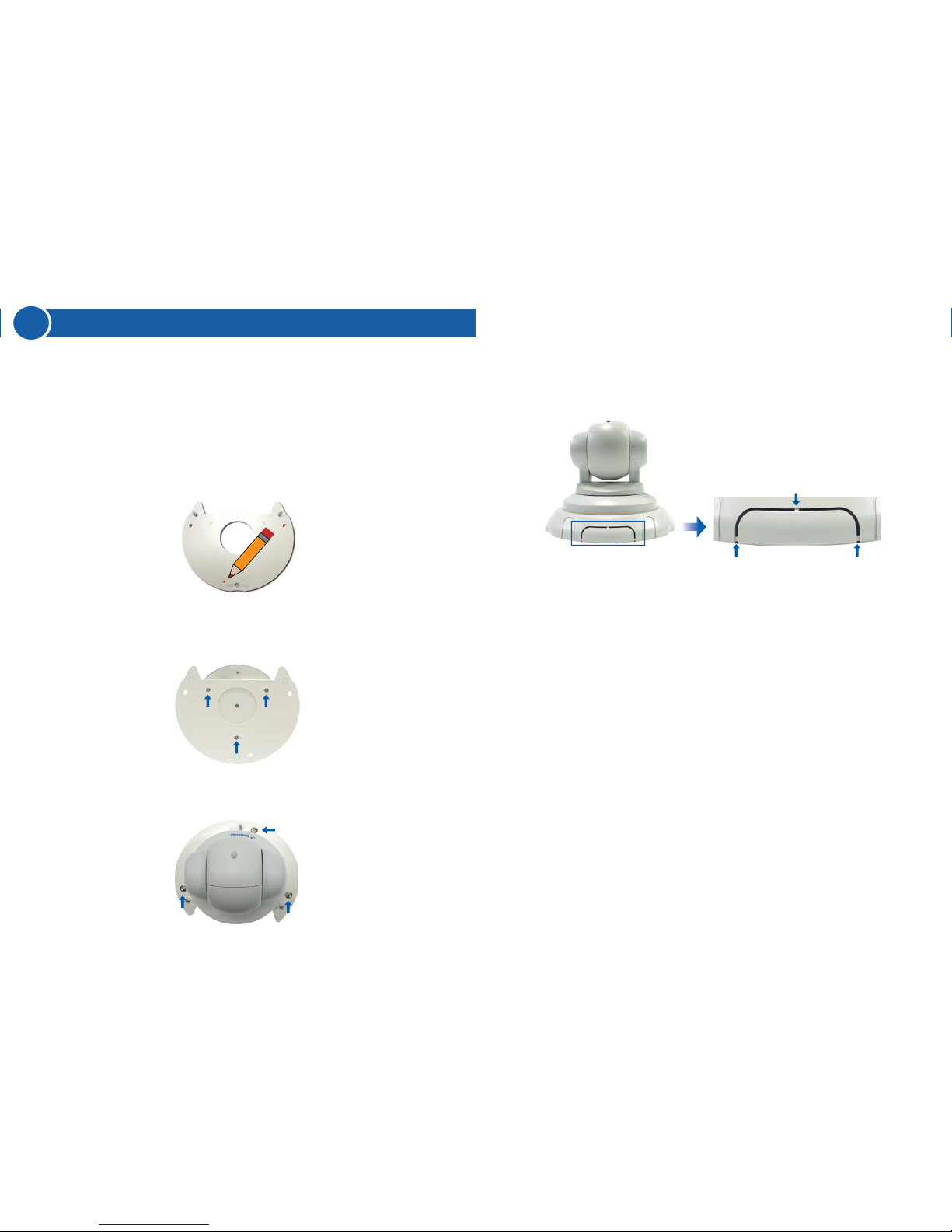

Ceiling Mount

1. Use the mounting base to make 3 marks on the wall for screw anchors.

5. Put on the mounting cover. To fit the installation environment, you can

cut the parts indicated by arrows to make an opening for wires and

cables.

2. Drill the marks and insert 3 screw anchors.

3. Attach the mounting base with the PTZ / PT camera with 3 short

screws.

4. Fix the mounting base (now with the PTZ / PT camera attached) to the

wall with 3 long screws.

Wall

You may mount GV-PTZ010D / GV-PT110D camera on the wall, with or

without the mounting cover.

Wall Mount

1. Take the wall mount bracket and make 2 marks on the wall for screw

anchors.

5. Without Mounting Cover

• Attach the wall mount bracket with the PTZ / PT camera using 3

washers and 3 round screws.

With Mounting Cover

• To install mounting cover, attach the mounting base to the camera

and then put on the mounting cover. See steps 3 and 5 in the

Ceiling Mount section.

• Attach the wall mount bracket with the PTZ / PT camera using 3

round screws.

2. Drill the marks and insert 2 screw anchors.

3. Insert the long screws and leave enough distance (approximately 2

mm) to hang the wall mount bracket later.

4. Hang the wall mount bracket on the screws and push the wall mount

bracket downward. Tighten the long screws to the wall.

Wall

Long Screw

2mm

Screw

Washer

Screw

3Overview

GV-PTZ010D GV-PT110D

1 2 3 4 5 6 8

Description

Connects to a DV 12V or AC 24V Power

Adapter.

Connects to a 10/100 Ethernet or PoE.

Connects to I/O devices. For details, see 5.7

I/O Terminal Block in the GV-IPCam H.264

User’s Manual on the software CD.

Inserts a micro SD/SDHC card to store

recording data.

Connects a speaker for audio output.

Connects a microphone for audio input.

Turns green when the system operates

normally and turns off when system error

occurs.

Turns green when the power is on and turns off

when the power is off.

Manually rotates this ring left or right to adjust

focus.

Turns on to illuminate a surveillance area by

infrared light to produce clearer images during

the night. For details, see 9.1.1 Video Settings

in the GV-IPCam H.264 User’s Manual on the

software CD.

Records the sounds.

Resets to default factory settings. See 10.

Restoring to Default Settings later in the Quick

Start Guide.

Name

DC 12V / AC 24V

Terminal Block

LAN/PoE

I/O Terminal Block

Micro SD Card Slot

Audio Out

Audio In

Status LED

Power LED

Focus Ring

Microphone

Default

No.

4Accessing the PTZ / PT Camera

To access GV-PTZ010D / GV-PT110D camera through the Web browser,

ensure your PC connects to the network properly and meets the system

requirement below:

Note: For the users of Internet Explorer 8, additional settings are

required. For details, see Appendix B in GV-IPCam H.264 User’s

Manual on the software CD.

Important:

1. Dynamic IP Address and PPPoE should only be enabled if you

know which IP address the camera will get from the DHCP server or

ISP. Otherwise you must use the Dynamic DNS service to obtain a

domain name linked to the camera’s changing IP address first.

2. If Dynamic IP Address or PPPoE is enabled and you cannot

access the camera, you may have to reset the camera to its factory

default and then perform the network settings again. To restore

factory settings, see 10. Restoring to Default Settings in the Quick

Start Guide.

System Requirement

Connect GV-PTZ010D / GV-PT110D camera with a standard network cable

and the supplied power adaptor. Alternatively, you can connect a Power

over Ethernet (PoE) adaptor and the power will be supplied over the

network cable.

Connecting the Cables

Designed for use on the network, assign an IP address to make the

GV-PTZ010D / GV-PT110D camera accessible:

Assigning an IP Address

• Microsoft Internet Explorer 6.x or later

1. Open your web browser, and type the default IP address

http://192.168.0.10.

2. In both the Login and Password fields, type the default value admin

and click Apply.

3. In the left menu, select Network and then LAN to configure the

network settings.

4. Select Static IP address. Type the IP Address, Subnet Mask,

Router/Gateway, Primary DNS and Secondary DNS in the Configure

connection parameters section.

5. Click Apply. The camera is now accessible by entering the assigned

IP address on the Web browser.

5The Web Interface

Function

Plays live video.

Stops playing video.

Talks to the surveillance area from the local

computer.

Listens to the audio around the camera.

Takes a snapshot of live video.

Records live video to the local computer.

Switches to full screen view. Right-click the

image to see additional options.

Brings up these functions: Alarm Notify, Video

and Audio Configuration, Remote Config, Show

Camera Name and Image Enhance.

Displays the PTZ Control Panel or Visual PTZ.

Enables the I/O Control Panel and Visual

Automation.

Displays the camera information, video

settings, audio data rate, I/O device status,

images captured upon alarm, and GPS location

of the camera. Also allows you to adjust image

quality and install the program from the hard

drive.

Name

Play

Stop

Microphone

Speaker

Snapshot

File Save

Full Screen

Show System Menu

PTZ Control Panel

I/O Control

Control Panel

No.

1 2 3 4 5 6 7

Continued on the reverse

Note : The functions related to focus, zoom and image quality on the

control panel are only available in GV-PTZ010D. For details on the

functions supported on the GV-PT110D, see 6.8 PT Control in the

GV-IPCam H.264 User’s Manual on the software CD.

Description

Closes the PTZ / PT control panel.

Moves the PTZ / PT camera to 8 directions: up,

down, left, right, left up, left down, right up and

right down.

Brings the camera view back to the home point

where the camera faces front at a 90 degree

angle to the base of the device.

Shortens (zoom in) or lengthens (zoom out) the

apparent distance between the camera and the

view.

Adjusts the sharpness of the camera view.

Brings up these functions: Auto focus, PTZ

speed, maximum number of preset points,

image quality, Preset point, Sequence, Auto

Pan, digital zoom and camera default loading.

Opens and closes the number pad.

Name

Exit

Pan / Tilt Control

Home

Zoom In / Out

Focus In / Out

Option

Show Preset

No.

Buttons on the PTZ / PT control panel:

For details of the PTZ / PT control panel, see Chapter 5, GV-IPCam H.264

User’s Manual on the software CD.

6Enabling PTZ / PT Control Panel

The PTZ / PT control panel allows you to adjust focus, image quality and

configure camera movements. To enable the PTZ / PT control panel, click

the PTZ Control button on the Web interface and select PTZ Control

Panel. The PTZ / PT control panel appears.

7Conguring a Preset Point

You can configure the GV-PTZ010D / GV-PT110D camera to automatically

move toward a point in live view. You can save up to 256 Preset points.

Follow the steps below:

To start a Preset movement, click the Option button on the control panel,

select Preset Go, and select a Preset number which has been set

previously.

To stop a Preset movement, click the Home button or click any of the Pan /

Tilt Control buttons.

1. On the PTZ / PT control panel, use Pan / Tilt Control buttons to move

the camera to a desired point in live view.

2. To save this Preset point, click the Option button, select Preset Set and

select the desired Preset number.

3. A confirmation message appears. Click Yes.

4. To configure more Preset points, repeat steps 1 to 3 and select a

different Preset number to save.

To start a Sequence, click the Option button on the control panel, select

Auto and select a Go Sequence number which you have set previously.

To stop a Sequence, click on a Pan / Tilt Control button or the Home

button.

4. Use the Index drop-down list to select a Sequence number.

5. Use the Point drop-down list to select the number of Preset points in the

Sequence.

6. Use the Preset drop-down list to select the Preset points.

7. Use the Dwell Time drop-down list to select the staying time at a Preset

point.

8. Use the Speed drop-down list to select the speed.

9. To configure another Sequence, repeat steps 4 to 8 and select a different

Index number.

10.Click Save to complete the settings.

8Conguring a Sequence

You can also configure the GV-PTZ010D / GV-PT110D camera to perform a

Sequence, which links up more than two Preset points to form a series of

movements. Up to 8Sequences can be created.

1. Follow the steps in 7. Configuring a Preset Point to save desired Preset

points.

2. On the PTZ / PT control panel, select Option, select Setup, and click the

Open button. The VISCA OSD Configuration dialog box appears.

3. Select Sequence.

9Upgrading System Firmware

GeoVision will periodically release updated firmware on the web site. To load

the new firmware into the GV-PTZ010D / GV-PT110D camera, read the

important note and then follow the instruction below.

1. In the Live View window, click the Show System Menu button, select

Remote Config, and click the Firmware Upgrade tab. This dialog box

appears.

2. Click the Browse button to locate the firmware file (.img) saved at your

local computer.

3. Click the Upgrade button to start the upgrade.

Important:

1. While the firmware is being updated,

WARNING: The interruption of power supply during updating causes

not only update failures but also damages to the camera. In this case,

please contact your sales representative and send your device back to

GeoVision for repair.

2. Do not turn the power off within 10 minutes after the firmware is

updated.

3. If you use the IP Device Utility for firmware upgrade, the computer

used to upgrade firmware must be under the same network of the

camera.

A) the power supply must not be interrupted, and

B) do not unplug the Ethernet cable if the cable is the source of

power supply (Power over Ethernet or PoE supported).

Altri manuali per GV-PTZ010D

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali GeoVision Telecamera di sicurezza

GeoVision

GeoVision GV-EBD4700 Manuale utente

GeoVision

GeoVision GV-BX2802 Manuale utente

GeoVision

GeoVision 86-PPTZ730-P01U Manuale utente

GeoVision

GeoVision GV-IP Speed Dome Manuale utente

GeoVision

GeoVision GV-EFER3700-W Manuale utente

GeoVision

GeoVision GV-OPAL S1 Manuale utente

GeoVision

GeoVision GV-VD120D Manuale utente

GeoVision

GeoVision GV-MFD2401 Manuale utente

GeoVision

GeoVision GV-EDR2700 Series Manuale utente

GeoVision

GeoVision GV-FD5300 Manuale utente

GeoVision

GeoVision GV-IPCam H.264 Series Manuale utente

GeoVision

GeoVision GV-EFER3700 Series Manuale utente

GeoVision

GeoVision GV-VR360 Manuale utente

GeoVision

GeoVision 84-VD870000-001U Manuale utente

GeoVision

GeoVision GV-LPR Manuale utente

GeoVision

GeoVision GV-SD220 Series Manuale utente

GeoVision

GeoVision GV-TFD Series Manuale utente

GeoVision

GeoVision GV-BL220D Manuale utente

GeoVision

GeoVision 84-FD34100-002U Manuale utente

GeoVision

GeoVision GV-IP SERIES Manuale utente

GeoVision

GeoVision GV-Fisheye GV-FE111 Manuale utente

GeoVision

GeoVision GV-BX110D Manuale utente

GeoVision

GeoVision GV Series Manuale utente

GeoVision

GeoVision GV-GEB4900 Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
