Copying

Scanning Position

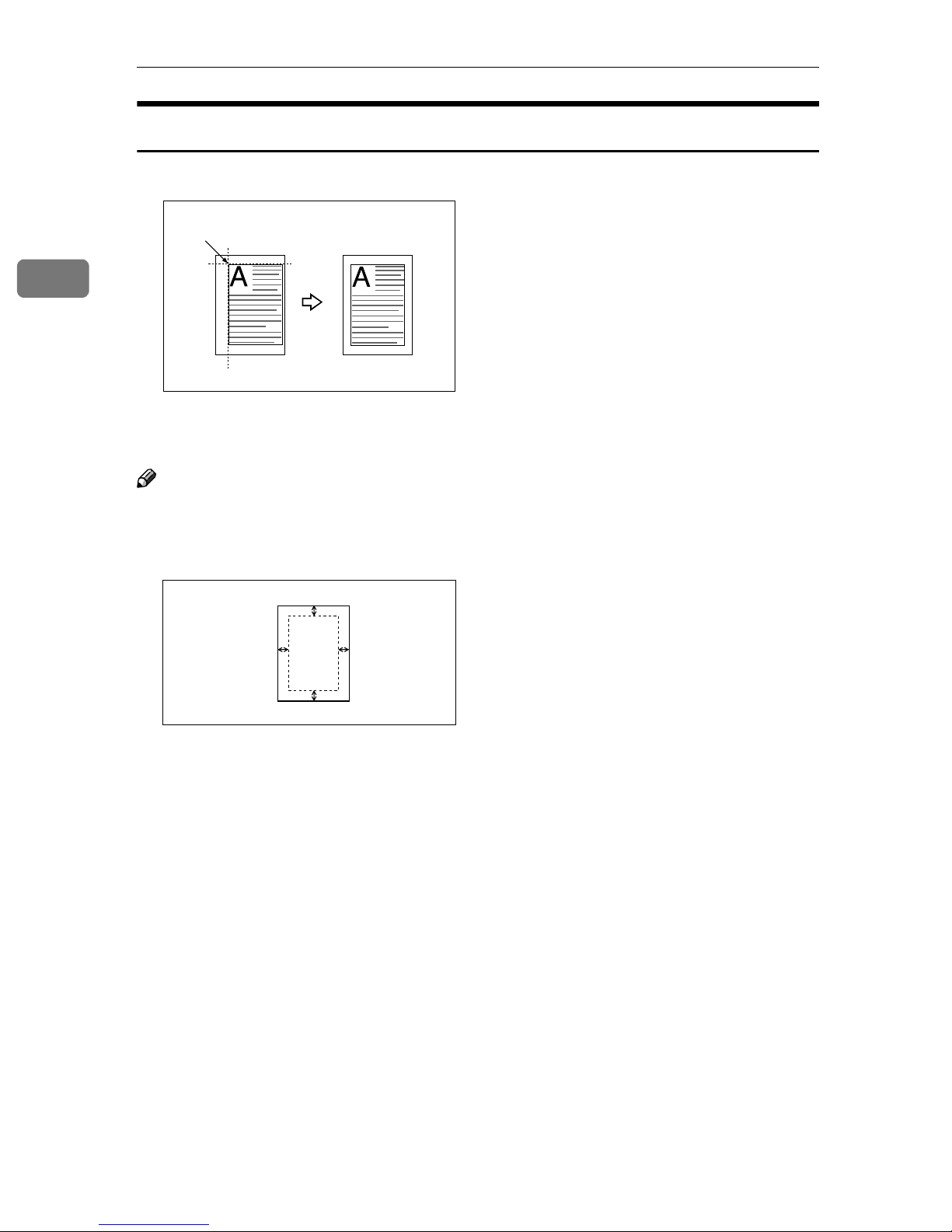

You can move the scanned position of each originals.

1. Point where the machine starts

scanning.

Note

❒You can move the scanned position up from 0 to 30 mm (in 1 mm increments),

0 to 1.2 inch (in 0.1 inch increments) upward, downward, left and right.

❒

1. Top: 0 –30 mm (0" –1.2")

2. Right: 0 –30 mm (0" –1.2")

3. Bottom: 0 –30 mm (0" –1.2")

4. Left: 0 –30 mm (0" –1.2")

APress [Edit].

BPress [Scan Position].

Copy Functions

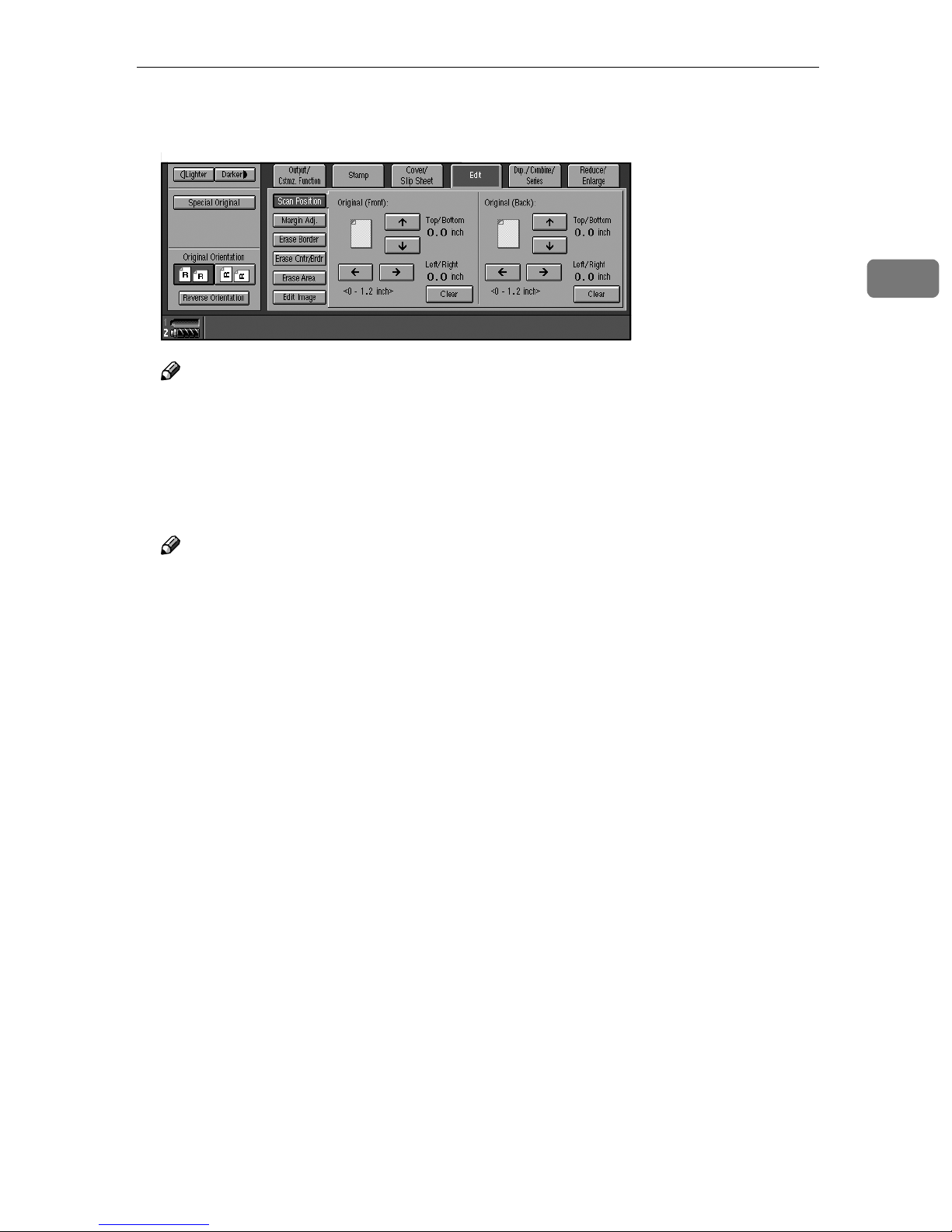

CSet the scan position for the face of the original. Press [↑

↑↑

↑]or [↓

↓↓

↓]to set the

top or bottom position. Press [←

←←

←]or [→

→→

→]to set the left or right position.

Note

❒If you have incorrectly set the position, readjust with [↑

↑↑

↑], [↓

↓↓

↓], [←

←←

←], or [→

→→

→].

❒If you do not need to set the scan position of the back of the original, pro-

ceed to step E.

DSet the scan position for the back of the original. Press [↑

↑↑

↑]or [↓

↓↓

↓]to set the

top or bottom position. Press [←

←←

←]or [→

→→

→]to set the left or right position.

Note

❒The scan position set here for the back of originals is valid when you copy

2-sided originals.

EPlace originals, and then press the {

{{

{Start}

}}

}key.

Copying

Margin Adjustment

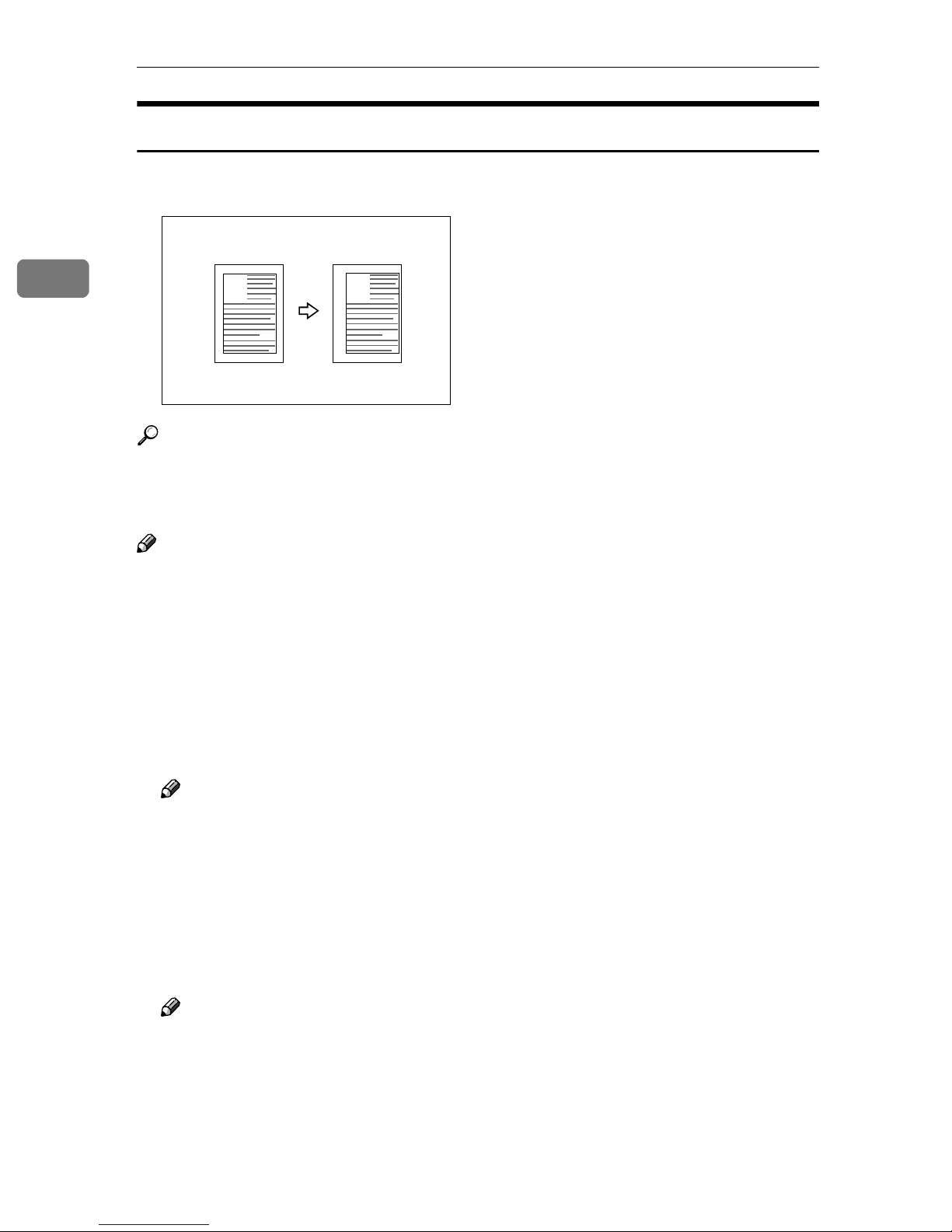

You can shift the image to the left, right, top or bottom to make a binding mar-

gin.

Reference

For initial settings, see p.131 “Front Page Margin : Left/Right”, p.131 “Back

Side Margins : Left/Right”, p.132 “Front Side Margin : Top/Bottom”, and

p.132 “Back Side Margin : Top/Bottom”.

Note

❒You can change the width of the binding margin up to 30 mm in 1 mm incre-

ments (1.2 inch in 0.1 inch steps) upward, downward, left and right.

APress [Edit].

BPress [Margin Adj.].

CSet a binding margin for a front page. Press [←

←←

←]and [→

→→

→]when setting the

left and right margins, and [↓

↓↓

↓]and [↑

↑↑

↑]when setting the top and bottom mar-

gins.

Note

❒To change the value entered, press [←

←←

←], [→

→→

→], [↓

↓↓

↓], and [↑

↑↑

↑]to set the new val-

ue.

❒If you do not need to specify margins for the back side pages, proceed to

step E.

DSet a binding margin for the back side pages. Press [←

←←

←]and [→

→→

→]when set-

ting the left and right margins, and [↓

↓↓

↓]and [↑

↑↑

↑]when setting the top and bot-

tom margins.

Note

❒Margin on the back side of the page is available only when [Duplex], [1 Sided

Combine]or [2 Sided Combine]is selected.

EPlace originals, and then press the {

{{

{Start}

}}

}key.

Copy Functions

Erase

This function erases the center and/or all four sides of the original image. This

function also erases the inside or outside of a specified area.

This function has the following three types:

❖

❖❖

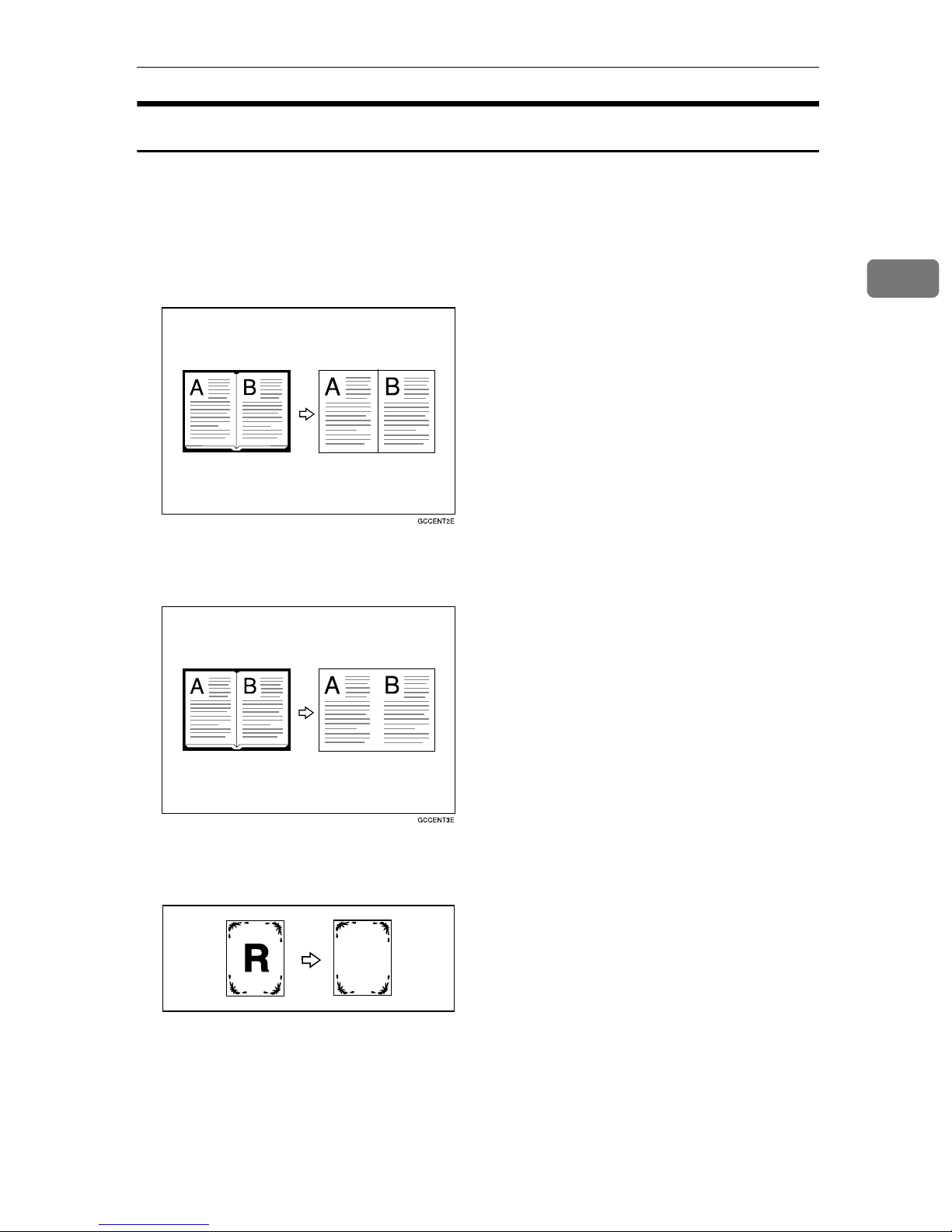

❖Border

This mode erases edge margin of the original image.

❖

❖❖

❖Center/Border

This mode erases both the center and edge margins from an original image.

❖

❖❖

❖Inside

This mode blanks out a designated area of the copy image.

Copying

❖

❖❖

❖Outside

This mode blanks out all areas of the copy image except the area you specify.

Reference

The erase width in the [Border], [Center], and [Center/Border]modes is set to

10 mm (0.4") by default. You can change this settings with the User Tools.

See p.132 “Erase Border Width”.

Note

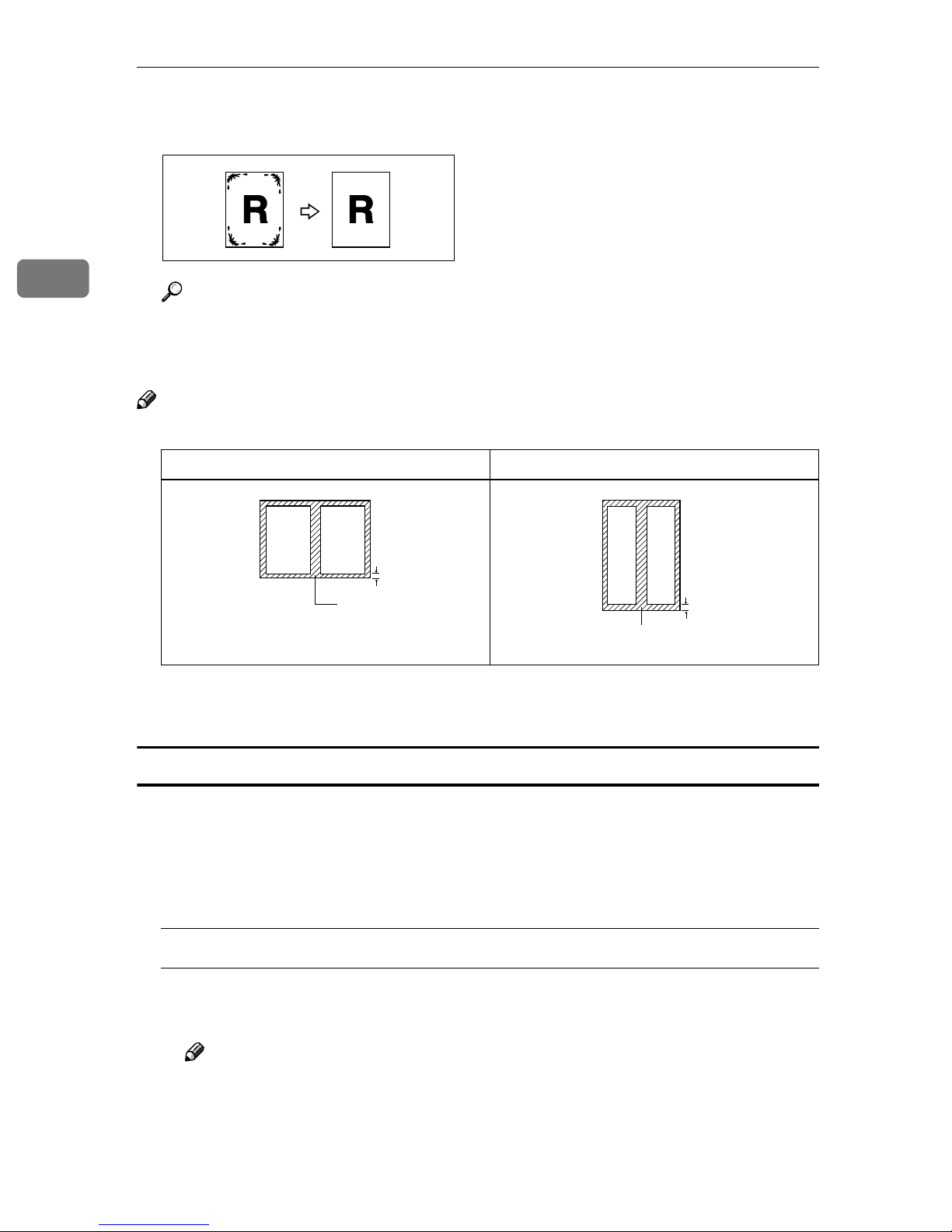

❒The relation between the original orientation and the erased part is as follows:

1. Erased part

2. 2 –99 mm (0.1" –3.9")

Border Erase

APress [Edit].

BPress [Erase Border].

CSet an erase border width.

Selecting [Same Width]

APress [Same Width].

BSet an erase border width using [n

n]and [o

o].

Note

❒To change the value entered, press [n

n]and [o

o]to set the new value.

Loriginal Koriginal

Copy Functions

Selecting [Diff. Width]

APress [Diff. Width].

BPress the key for the border you want to change, and then set an erase

border width using [n

n]and [o

o].

DPress [2-sided Setting], and then [Original (Back)].

Note

❒If you do not need to erase the border on the back of the original, proceed

to step F.

ESet the border to be erased the back.

Note

❒Erasing the border on the back is valid only when you copy two-sided

originals.

FPlace originals, and then press the {

{{

{Start}

}}

}key.

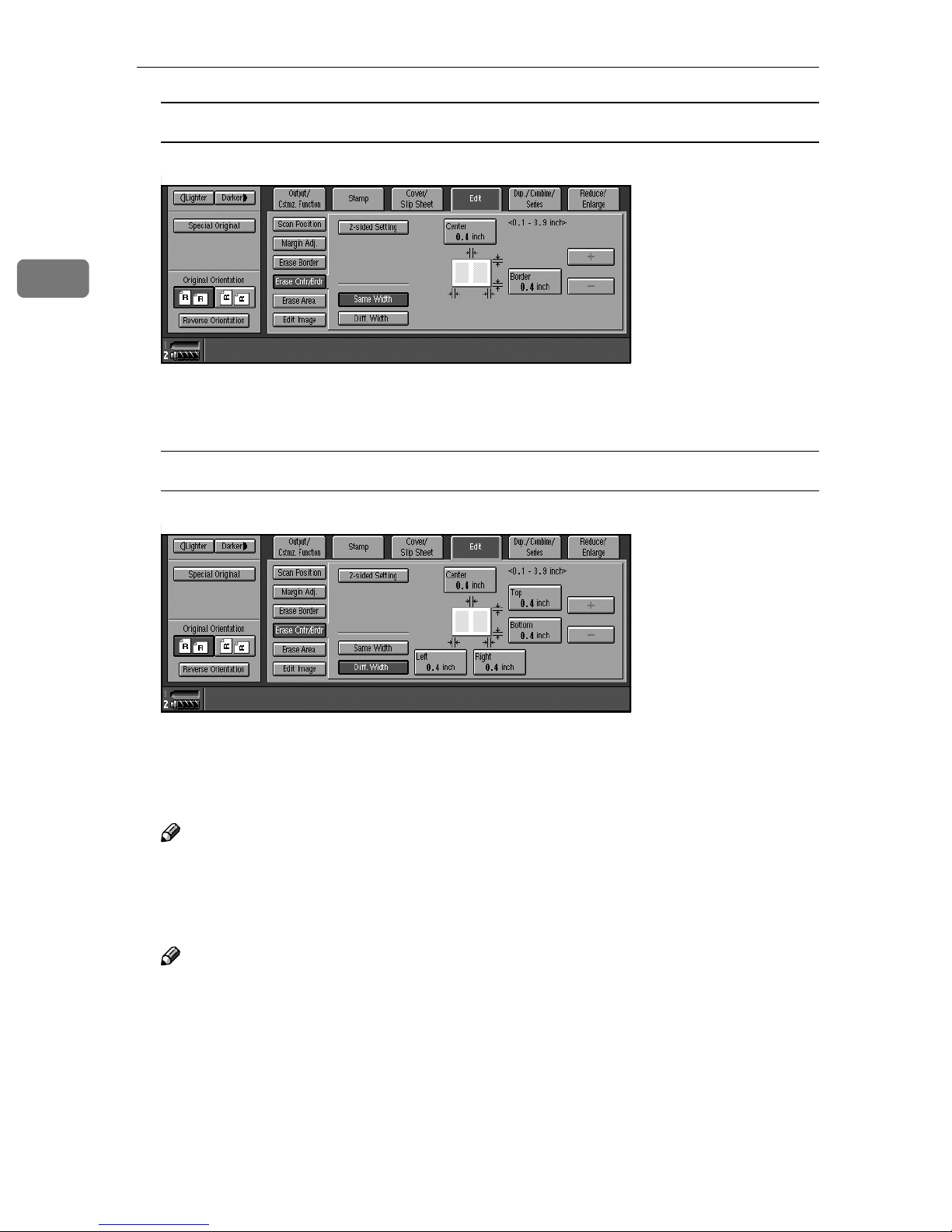

Center/border erase

APress [Edit].

BPress [Erase Cntr/Brdr.].

CSet the border to be erased.

Copying

Selecting [Same Width]

APress [Same Width].

BPress [Center], and then set the erase center width using [n

n]and [o

o].

CPress [Border], and then set the erase border width using [n

n]and [o

o].

Selecting [Diff. Width]

APress [Diff. Width].

BPress the key for the part you want to change, and then set an erase mar-

gin width with [n

n]and [o

o].

DPress [2-sided Setting]and [Original (Back)].

Note

❒If you do not need to erase the center or border on the back of the original,

proceed to step F.

ESet the center or border to be erased on the back.

Note

❒Erasing the center or border on the back is valid only when you copy two-

sided originals.

FPlace originals, and then press the {

{{

{Start}

}}

}key.

Copy Functions

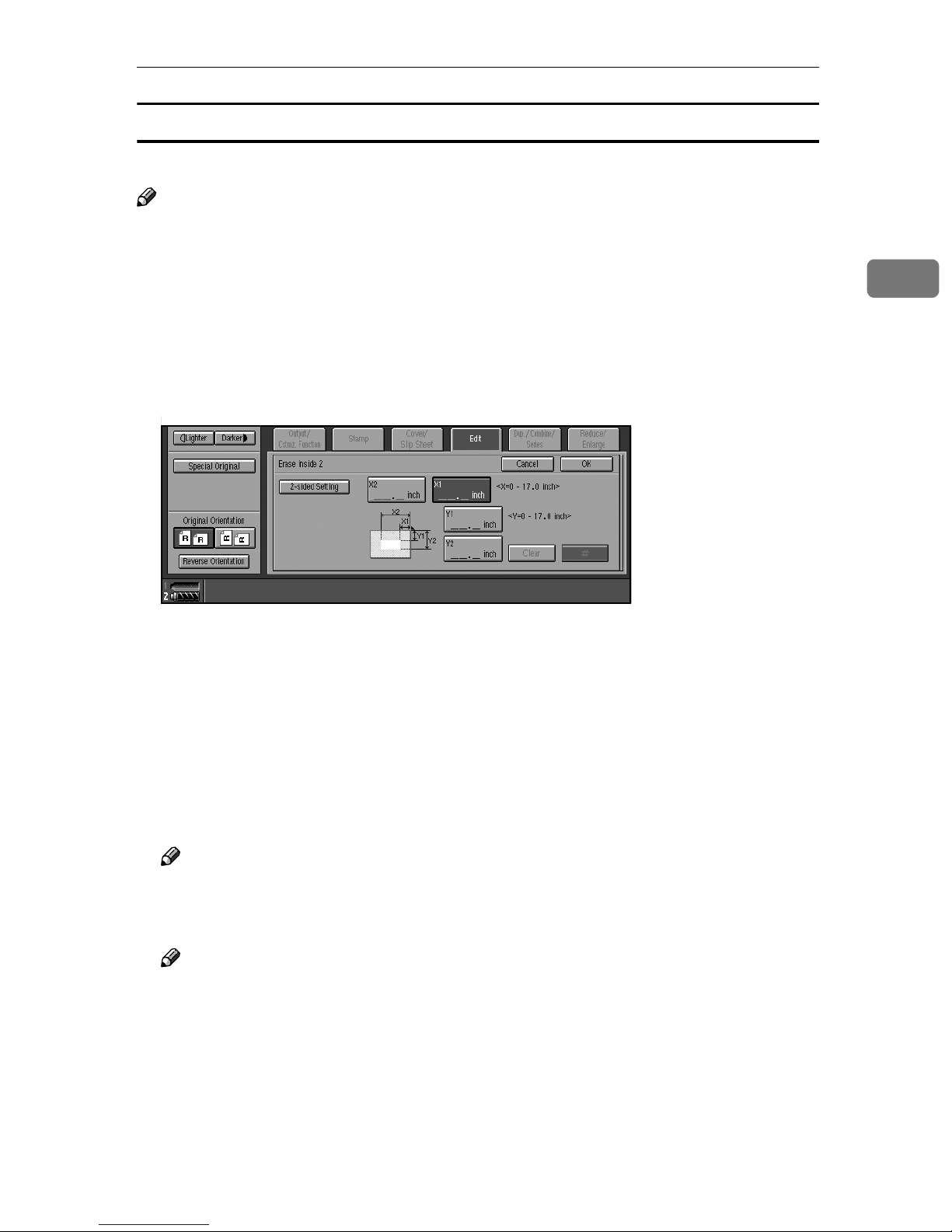

Inside erase

Decide where the machine starts (X1, Y1) and stops erasing (X2, Y2).

Note

❒You can input lengths of 0 –432 mm (0 –17 inch).

APress [Edit].

BPress [Erase Area].

CPress [Erase Inside 1]or [Erase Inside 2].

DEnter the value of [X1]using the number keys, and then press [#]or the {

{{

{#}

}}

}

key.

EEnter the value of [Y1]using the number keys, and then press [#]or the {

{{

{#}

}}

}

key.

FEnter the value of [X2]using the number keys, and then press [#]or the {

{{

{#}

}}

}

key.

GEnter the value of [Y2]using the number keys, and then press [#]or the {

{{

{#}

}}

}

key.

HPress [2-sided Setting]and [Original (Back)].

Note

❒If you do not need to erase the image on the back, proceed to step K.

IEnter the values of [X1], [Y1], [X2], and [Y2]for the back.

Note

❒Erasing the image on the back of originals is valid when you copy two-sid-

ed originals.

JPress [OK].

KPlace originals, and then press the {

{{

{Start}

}}

}key.

Copying

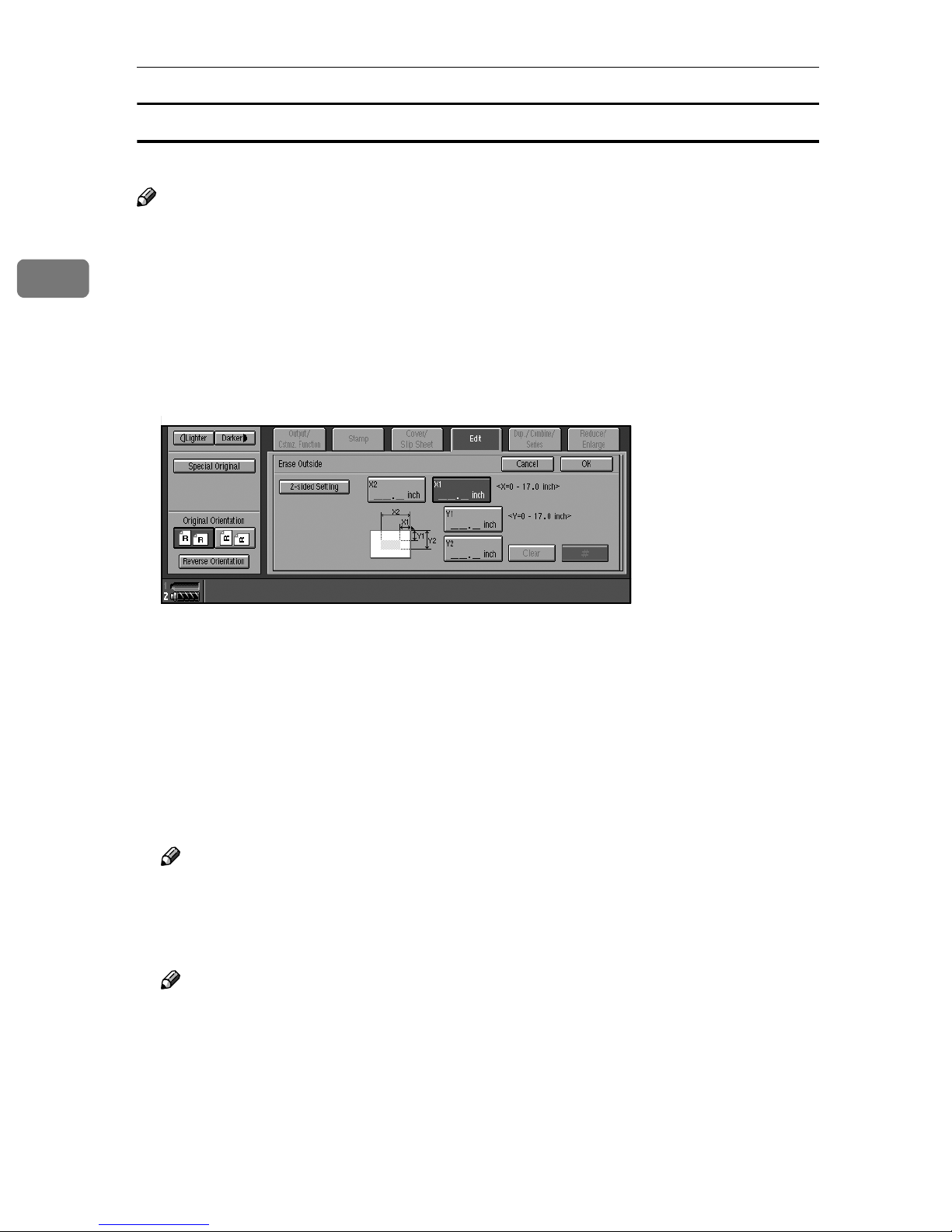

Outside erase

Decide where the machine starts (X1, Y1) and stops erasing (X2, Y2).

Note

❒You can input lengths of 0 –432 mm (0 –17 inch).

APress [Edit].

BPress [Erase Area].

CPress [Erase Outside].

DEnter the value of [X1]using the number keys, and then press [#]or the {

{{

{#}

}}

}

key.

EEnter the value of [Y1]using the number keys, and then press [#]or the {

{{

{#}

}}

}

key.

FEnter the value of [X2]using the number keys, and then press [#]or the {

{{

{#}

}}

}

key.

GEnter the value of [Y2]using the number keys, and then press [#]or the {

{{

{#}

}}

}

key.

HPress [2-sided Setting]and [Original (Back)].

Note

❒If you do not need to erase the image on the back of originals, proceed to

step K.

IEnter the values of [X1], [Y1], [X2], and [Y2]for the back.

Note

❒Erasing the image on the back of originals is valid when you copy two-sid-

ed originals.

JPress [OK].

KPlace originals, and then press the {

{{

{Start}

}}

}key.

Copy Functions

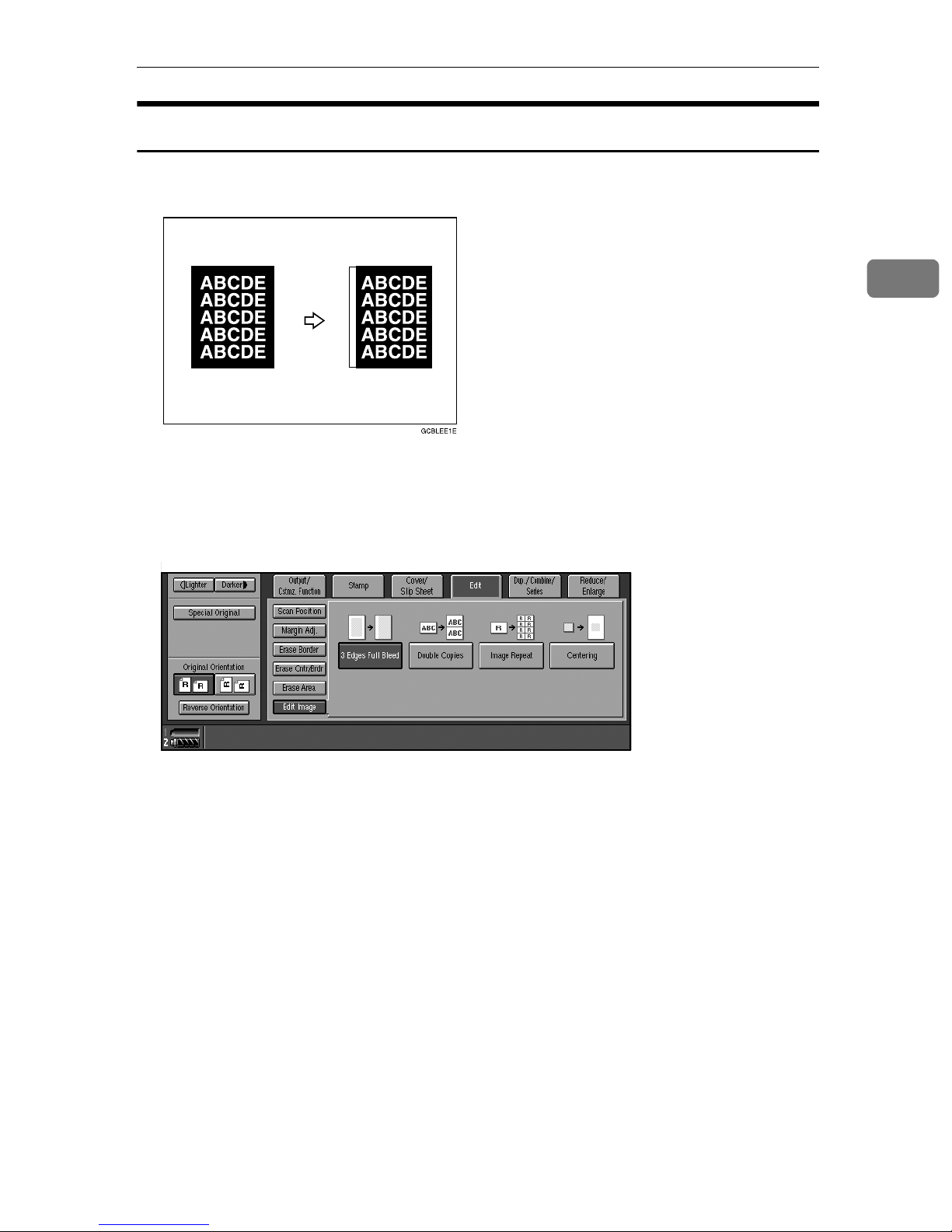

3 Edges Full Bleed

You can make full image copy by cutting down the top, bottom, and right side

margins. This function is useful for densely-filled originals.

APress [Edit].

BPress [Edit Image].

CPress [3 Edges Full Bleed].

DPlace originals, and then press the {

{{

{Start}

}}

}key.
