GEZE GC 304 R Manuale utente
130830-03
GC304 R
GC 304 R
2
Contents
Symbols and illustrations .................................................................................3
Product liability....................................................................................................3
1 Safety ..........................................................................................................3
1.1 Intended use........................................................................................................................3
1.2 Safety instructions ............................................................................................................4
1.3 Safety-conscious working..............................................................................................5
1.4 Environmentally conscious working ..........................................................................5
2 Description................................................................................................5
2.1 Supplied by GEZE ..............................................................................................................6
3 Work to be done before installation................................................6
3.1 Installing the drive ............................................................................................................6
3.2 Positioning the sensor .....................................................................................................7
4 Installation.................................................................................................8
4.1 Installation without accessories...................................................................................8
4.2 Installation with ceiling installation set.................................................................. 10
4.3 Installation with rain cover.......................................................................................... 12
4.4 Cabling ............................................................................................................................... 13
5 Commissioning......................................................................................14
6 Settings ....................................................................................................15
7 Fault messages and troubleshooting............................................16
8 Technical data ........................................................................................18
9 Accessories / Spare parts ...................................................................19
3
SafetyGC 304 R
Symbols and illustrations
Warning notices
In these instructions, warning notices are used to warn against material
damage and injuries.
XAlways read and observe these warning notices.
XObserve all measures marked with the warning symbol and warning
word.
Product liability
In compliance with the liability of the manufacturer for his products as
dened in the German “Product Liability Act”, compliance with the infor-
mation contained in this brochure (product information and intended use,
misuse, product performance, product maintenance, obligations to provide
information and instructions) must be ensured. Failure to comply releases
the manufacturer from his statutory liability.
1 Safety
1.1 Intended use
The GC 304 movement detector may only be used for the activation of
automatic sliding, curved sliding, folding, swing or revolving doors with
GEZE drives.
GC304 R
(in the direc-
tion of emer-
gency exit)
Safety GC 304 R
4
1.2 Safety instructions
àThe mandatory installation, maintenance and repair work must be per-
formed by properly trained personnel authorised by GEZE. Any attempts
at repairs by unauthorised personnel cancel the factory guarantee.
àThe device may only be operated with safety extra-low voltage (SELV)
with electrically protective separation.
àThe country-specic laws and regulations are to be observed during
safety-related tests.
àIf unauthorised changes are made to the system, GEZE cannot be held
liable in any way whatsoever for any resulting damage, and the approval
for use in escape and rescue routes ceases.
àGEZE does not accept any warranty for combinations with third-party
products.
àOnly original GEZE parts may be used for repair and maintenance work.
àObserve the latest versions of directives, standards and country-specic
regulations, in particular:
àASR A1.7 “Doors and gates”
àDIN 18650 “Building hardware - Powered pedestrian doors”
àDIN EN 16005 “Power operated pedestrian doorsets – Safety in use –
Requirements and test methods”
àAccident-prevention regulations, especially BGV A1 “General regula-
tions” and BGV A2 “Electrical installations and equipment”.
àThe risk assessment and installation of the sensor and the door system in
compliance with national and international regulations and door safety
standards are the responsibility of the door manufacturer.
àAny uses of the device other than those described in this manual do not
correspond to the approved purpose and cannot be guaranteed by the
manufacturer.
5
DescriptionGC 304 R
1.3 Safety-conscious working
àSecure workplace against unauthorised entry.
àWatch the swivelling range of long system parts.
àSecure the weather hood/drive panels against falling.
àAttach safety stickers to glass leaves.
àDanger of injury with opened drive. Hair, clothing, cables, etc. can be
drawn in by rotating parts.
àDanger of injury caused by unsecured crushing, impact, drawing-in or
shearing spots!
àDanger of injury due to glass breakage!
àDanger of injury due to sharp edges in the drive!
àDanger of injury during installation through freely moving parts!
1.4 Environmentally conscious working
àWhen disposing of the door system, separate the dierent materials and
have them recycled.
2 Description
The GC 304 R radar detector has been designed for use as an opening
pulse generator on automatic doors. Due to the Doppler eect, the sensor
detects movements, whereby a distinction is made between approach
and distance to the detector. It is not possible for several sensor systems to
inuence each other and result in a hazard.

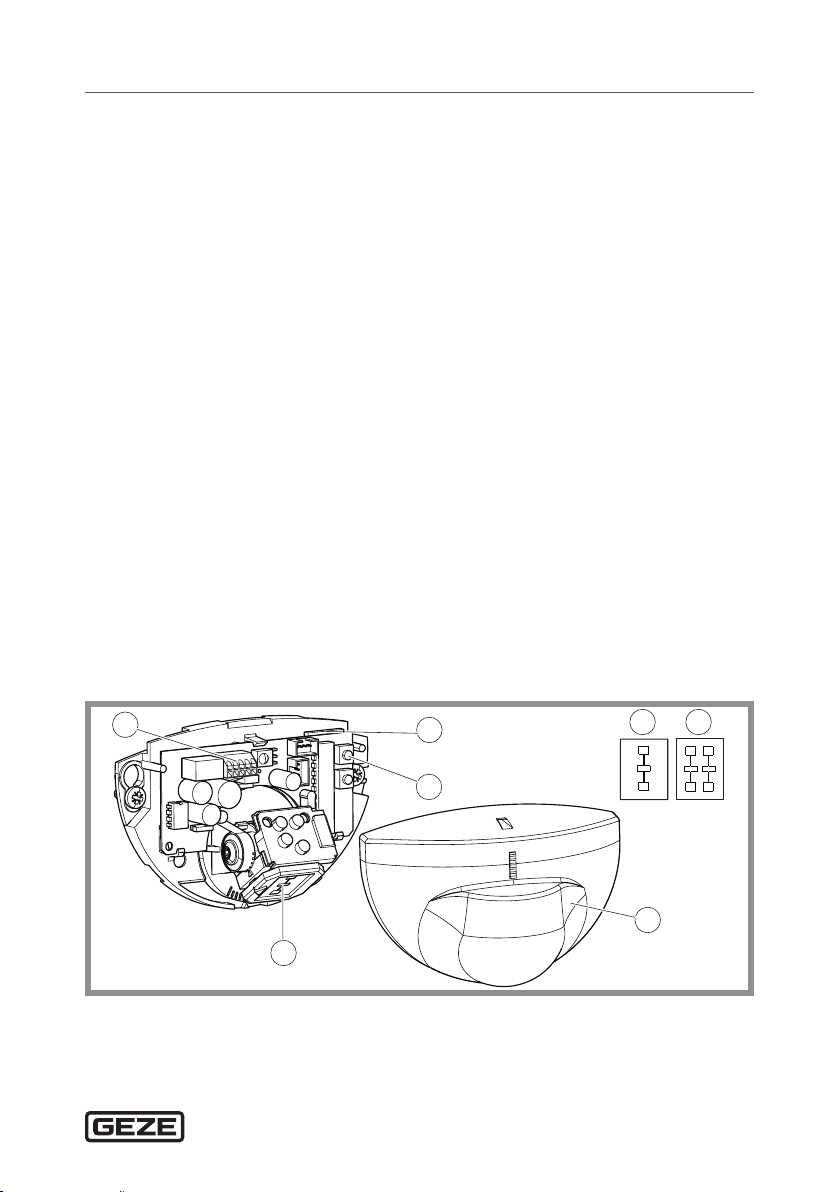

Material number GC 304 R: 130651
1 Connection terminal
2 Radar antenna for wide eld
3 Radar antenna for narrow eld
4 Push button
5 Weather hood
Work to be done before installation GC 304 R
6

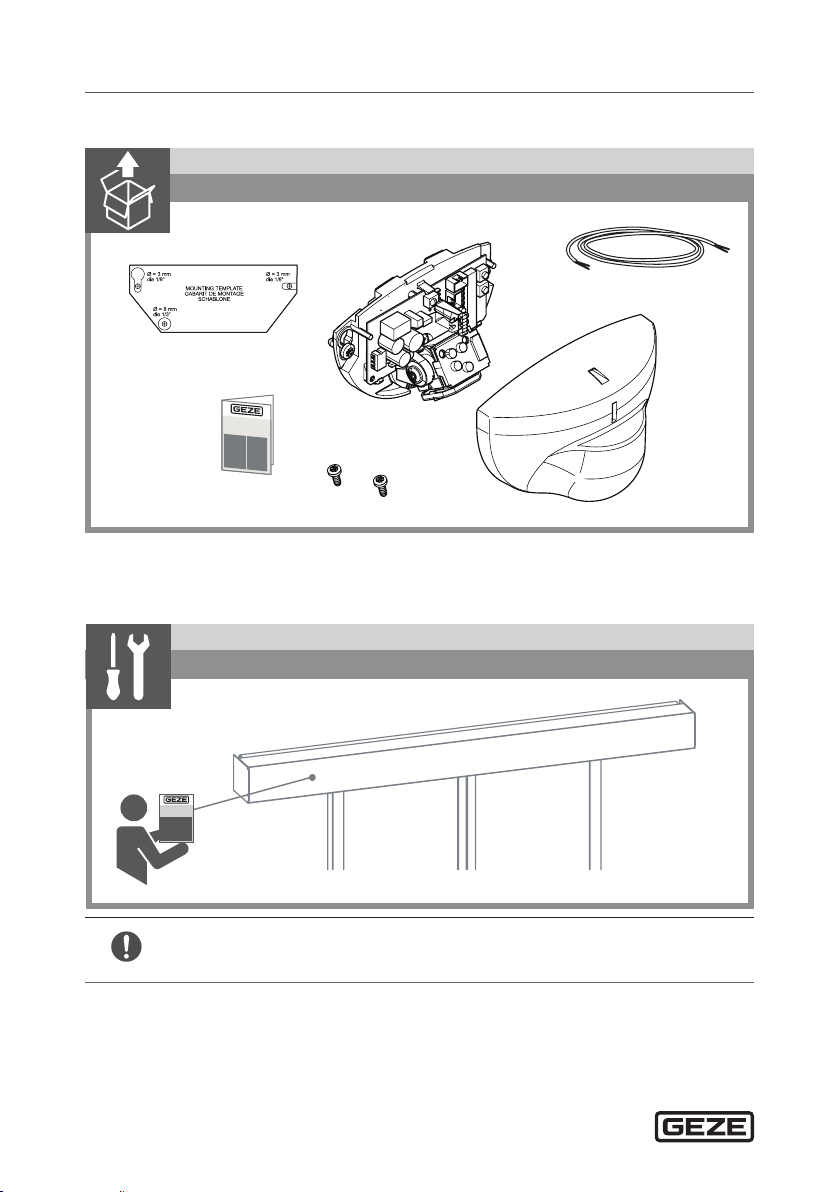

2.1 Supplied by GEZE
3 Work to be done before installation
3.1 Installing the drive
XMake sure that the weather hood of the drive is tted correctly and
earthed.
7
Work to be done before installationGC 304 R

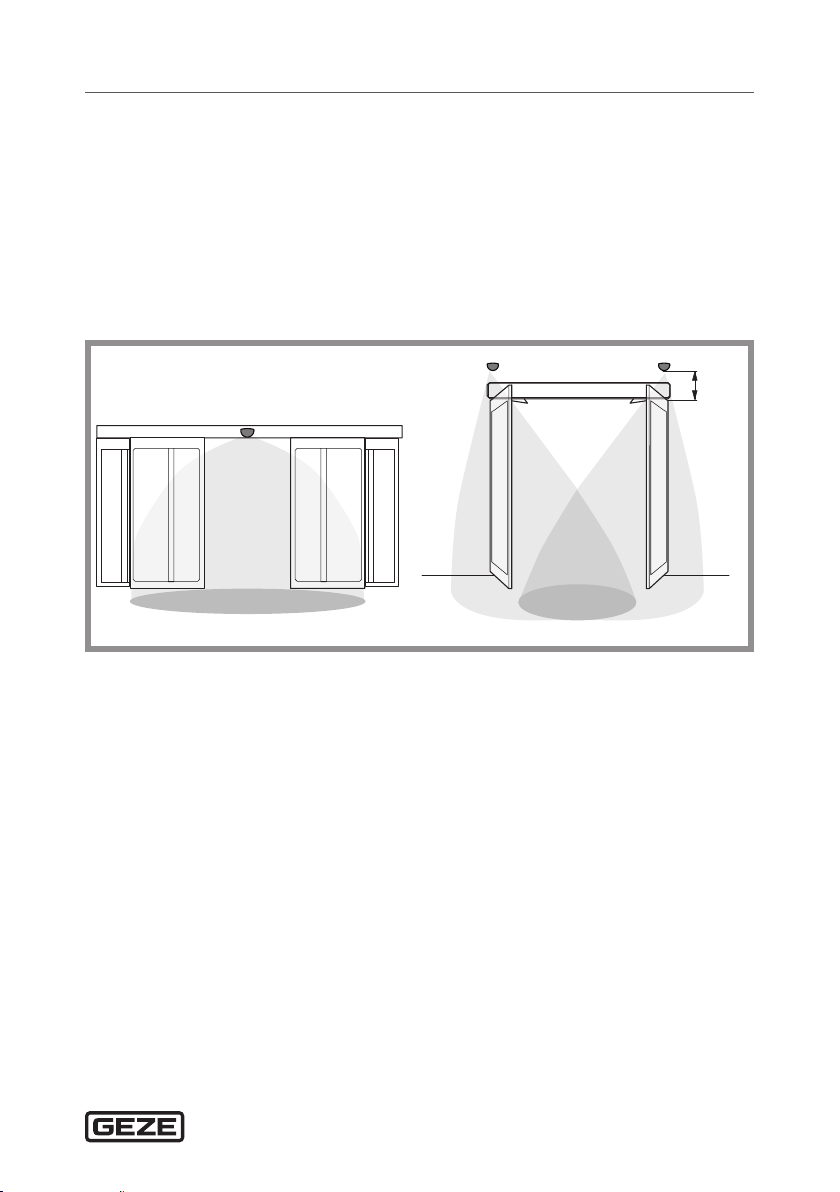

3.2 Positioning the sensor
The GC 304 is used as an activation sensor for automatic doors.
àThe sensor must be mounted above the door in the case of sliding,
curved sliding, folding and revolving doors. Ideally, the ow of people
will walk directly towards the sensor. If the scanning area does not cover
the entire opening width or if the ow of people from dierent direc-
tions is to be expected, several GC 304 R sensors can be used.
àIn the case of swing doors the sensor must be mounted on the hinge
side above the swivelling axis.
Installation GC 304 R
8
4 Installation
XAvoid extreme vibrations.
XDo not cover the sensor.
XKeep away from uorescent lamps.
XKeep away from moving objects.
4.1 Installation without accessories
XRemove the rear panel.
1
2
3
XGlue the sensor drilling template in place, drill holes for cables and
screws.
Installation GC 304 R
10
4.2 Installation with ceiling installation set
Ø 128 mm
Ø 190 mm
62 mm
DOOR
SENSOR ANTENNA
1
1
3
2
2
45
5
3
