GFA 10003424 10012 Manuale utente

Installation Instructions

ELEKTROMAT

SE 5.24 WS-25,40

Model: 10003424 10012

-en-

Status: 30.05.2018

GfA ELEKTROMATEN GmbH & Co. KG

Wiesenstraße 81

D-40549 Düsseldorf

www.gfa-elektromaten.de

[email protected]

Table of contents

1General safety information .............................................................................................. 4

2Technical Data ................................................................................................................ 5

3Mechanical installation .................................................................................................... 6

4Electrical installation ..................................................................................................... 10

5Limit switch adjustment ................................................................................................. 11

6Motor connection .......................................................................................................... 12

7Limit switch connection ................................................................................................. 12

8Emergency manual operation (rapid hand chain operator) ............................................ 13

9Completing commissioning / inspection ......................................................................... 15

10Declaration of incorporation / conformance ................................................................... 16



Symbols

Warning - Potential injury or danger to life!

Warning - Danger to life from electric current!

Note - Important information!

▶ Requirement - Required action!

Schematic representations are based on product examples. Deviations from delivered

products are possible.

1 General safety information

Specified normal use

The drive unit is intended for sectional doors with full counter-balancing.

The safe operation is only guaranteed with normal specified use. The drive unit is to be

protected from rain, moisture and aggressive ambient conditions. No liability for damage

caused by other applications or non-observance of the information in the manual.

Modifications are only permitted with the agreement of the manufacturer. Otherwise the

Manufacturer’s Declaration shall be rendered null and void.

Safety information

Installation and initial operation tasks are to be performed by trained, skilled fitters only.

Only trained electrical craftsmen are permitted to work on electrical equipment. They must

assess the tasks assigned to them, recognise potential danger zones and be able to take

appropriate safety measures.

The installation is only to be carried out with the supply off.

Observe the applicable regulations and standards.

Coverings and safety devices

Do not operate unless corresponding coverings and safety devices are fitted/installed.

Ensure that gaskets are correctly positioned and cable glands are correctly tightened.

Spare parts

Use only original spare parts.

2 Technical Data

Type KG 50

Output torque 50 Nm

Output speed 24 rpm

Output shaft / hollow shaft 25,40 mm

Maximum holding torque 200 Nm

Maximum door weight 2500 N

Supply voltage 1N~ 230 V

Operating current 3,50 A

Operating frequency 50 Hz

Power factor cos φ 0,99

Maximum movement per hour 12 h-1

Class of protection IP 65

Limit switch range

(maximum revolutions of output shaft / hollow shaft) 20

Temperature range -10 / +40 (+60) °C

1) When using a temperature range of +40°...+60°C use half of maximum movements per hour.

3 Mechanical installation

Prerequisites

The permissible loads on walls, fastenings, mountings and transmission elements must not

be exceeded, even for maximum holding torques or locking torques (▶ refer to technical

data).

Connection elements:

▶ Self-locking connection

elements with a minimum

strength of 800 N/mm2

(8.8) must be used.

▶ Utilize the hole diameter

to the full.

▶ Use adequately

dimensioned washers for

elongated holes.

BAGAB00002_Z002 BAGAB00003_Z002

3 : 1

Permissible mounting positions

BAGAC0 11 0 1 _Z0 0 2

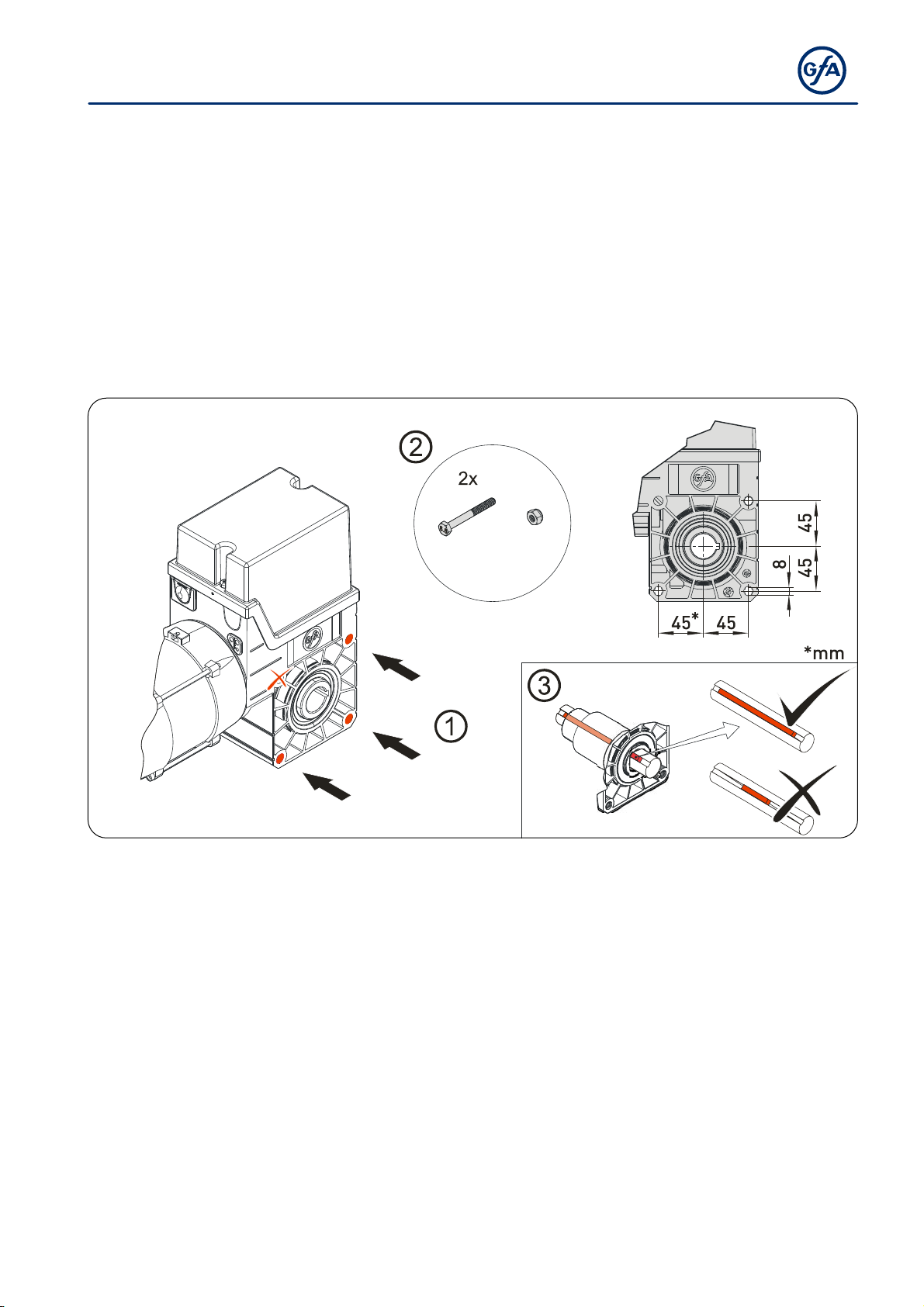

Mounting

Three holes are provided for mounting.

▶ Use at least 2 of these (①).

▶ Use the connection elements supplied (②).

Keys are used to connect to the door shaft.

▶ Use a key that is at least as long as the hollow shaft (③).

BAGAD01101_Z001

M8x120 M8

Installation

The descriptions below apply to general door specifications. The specifications of the door

manufacturer must also be observed during installation.

Warning - Potential injury or danger to life!

 During installation, be sure to use a lifting device that has a sufficient load-carrying

capacity.

▶ Thoroughly grease the door shaft. BAGAE01001_Z003

▶ Mount the keys. Observe possible variants

Ⓐ or Ⓑ.

BAGAE01002_Z003

▶ Attach the drive unit.

BAGAE01103_Z002

▶ Tighten all connection elements on the

drive (M8) to 25 Nm. Install all other

connection elements according to the

specifications of the door manufacturer.

▶ Secure the keys (version Ⓑ only). BAGAE01107_Z001

4 Electrical installation

Warning - Danger to life from electric current!

 Switch the mains OFF and check that the cables are de-energised

 Observe the applicable regulations and standards

 Make a proper electrical connection

 Use suitable tools

Performing electrical installation

Remove the cover. Insert the motor plug. Insert the limit switch plug.

BAHAC13_Z001

Completing the electrical installation

Mount the cable entries and/or cable glands.
