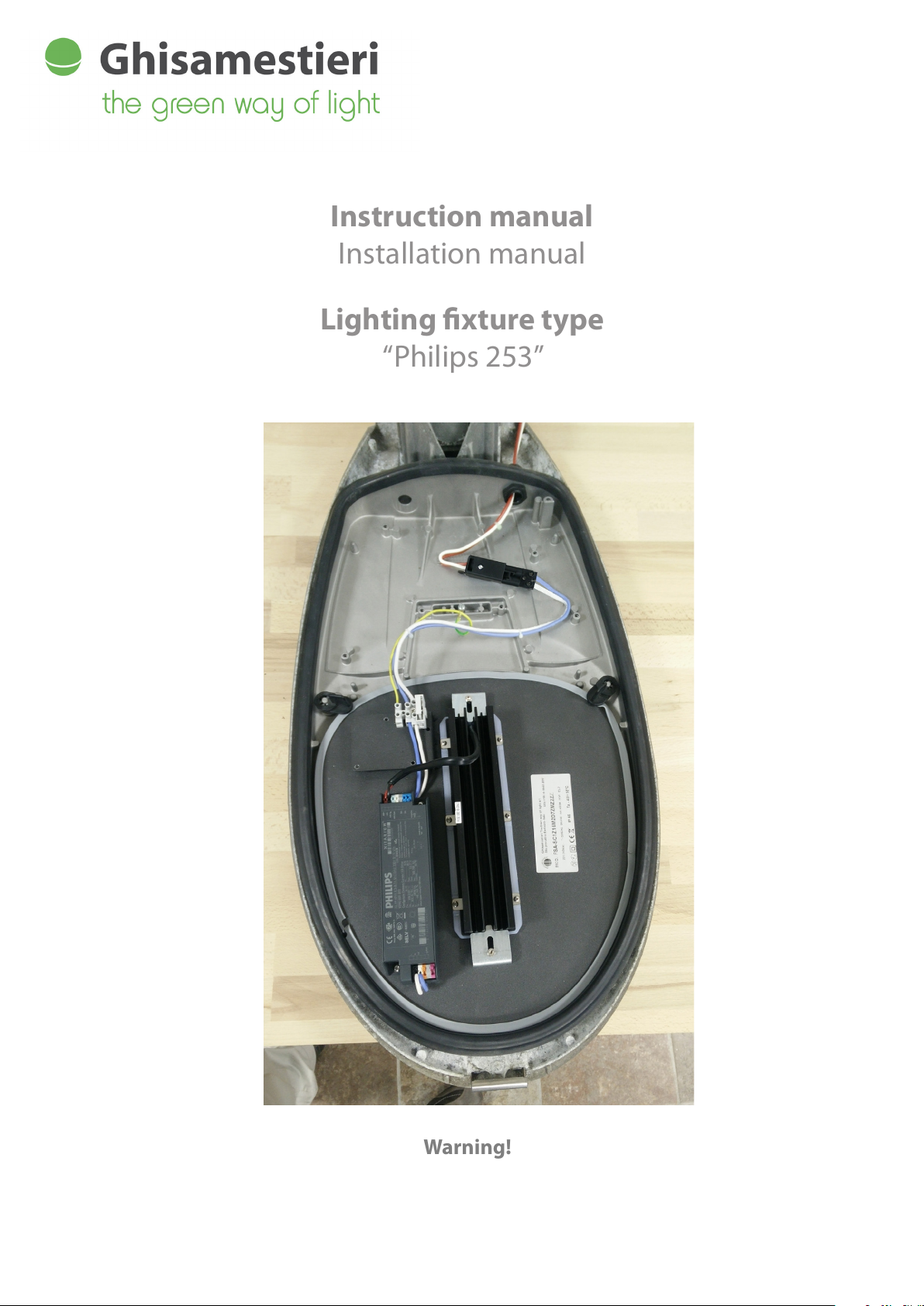

Instruction manual
Installation manual
Lighting xture type
“Philips 253”
Warning!
Read this manual carefully and
store it in a safe place for further use
Ghisamestieri s.r.l. • Quality system certicate ISO 9001:2008 • phone +39 0543 462611 • fax. +39 0543 449111 • info@ghisamestieri.it • www.ghisamestieri.it
e pictures used are purely for information. Ghisamestieri the green way of light may make improvements or changes at any time without prior notice.
Producer
Warning
Ghisamestieri s.r.l
Via Grande n°226 • 47032 Bertinoro (FC) • ITALIA
T +39 0543 462611
F +39 0543 449111
www.ghisamestieri.it
Before proceeding with the installation make sure you have switched the system’s power o.
Electricity
rev. 2015•06•17
Installation manual
Ghisamestieri s.r.l. • Quality system certicate ISO 9001:2008 • phone +39 0543 462611 • fax. +39 0543 449111 • info@ghisamestieri.it • www.ghisamestieri.it
e pictures used are purely for information. Ghisamestieri the green way of light may make improvements or changes at any time without prior notice.

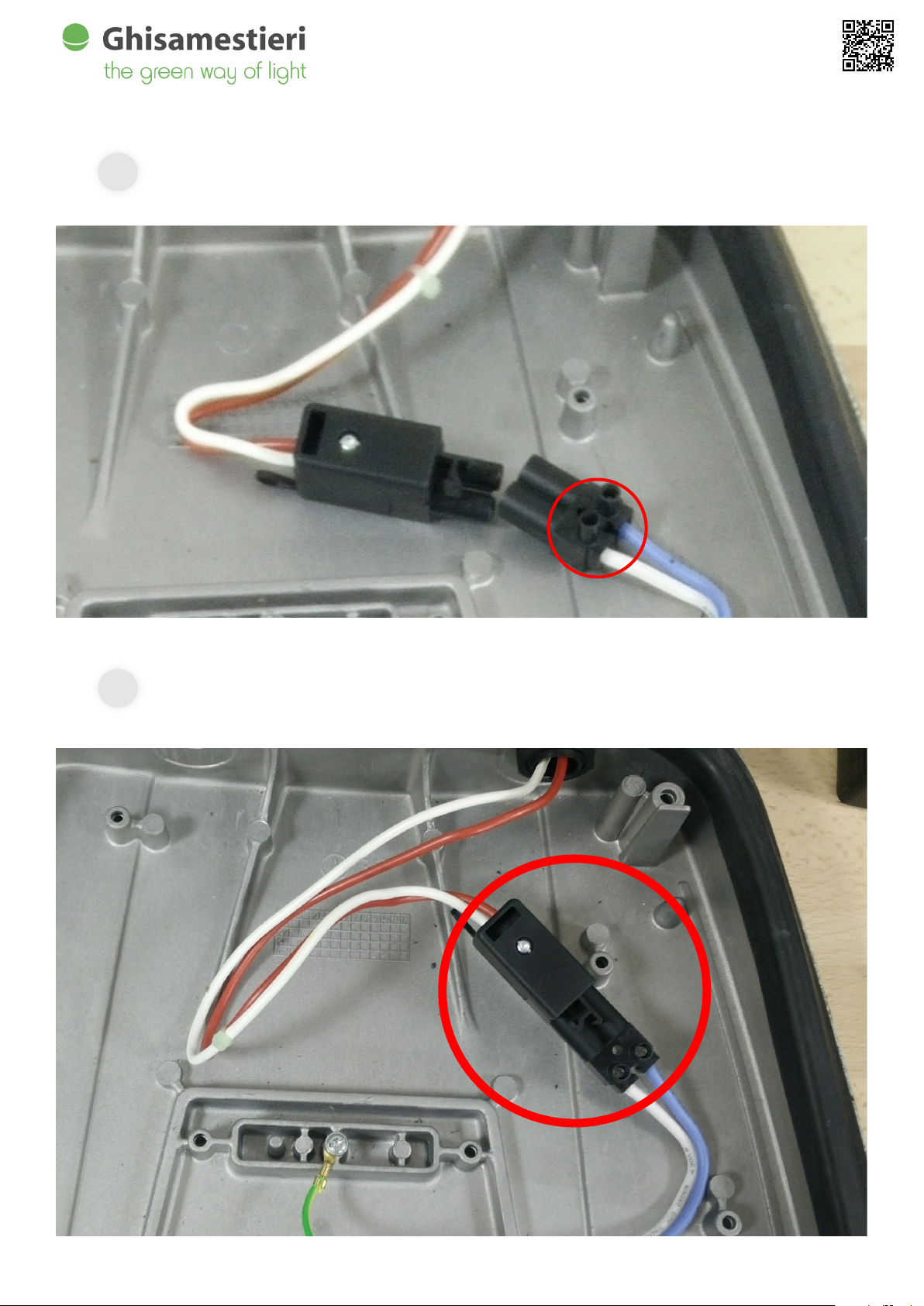

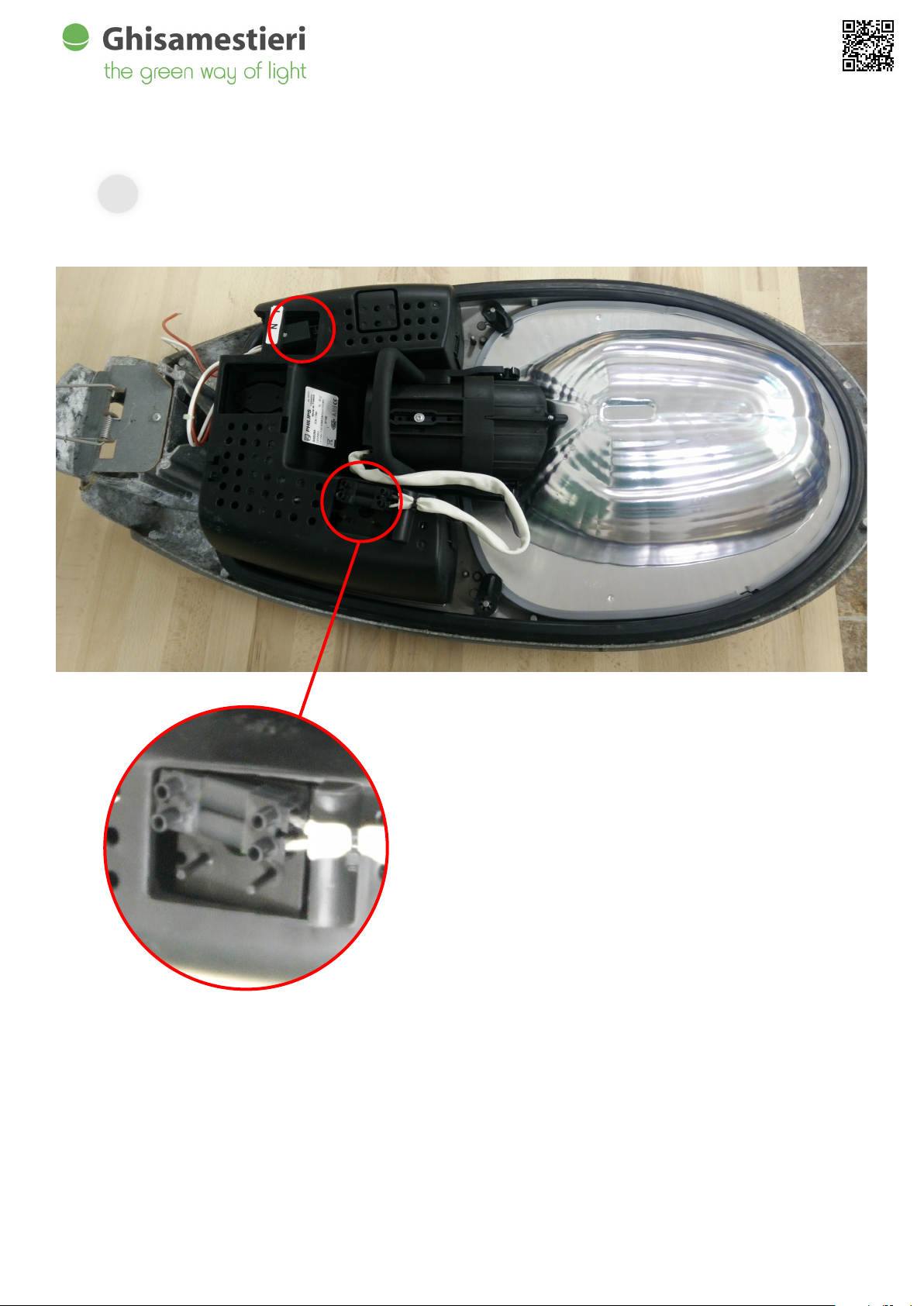

a. Disconnect the connectors highlighted in red.
rev. 2015•06•17
Installation manual

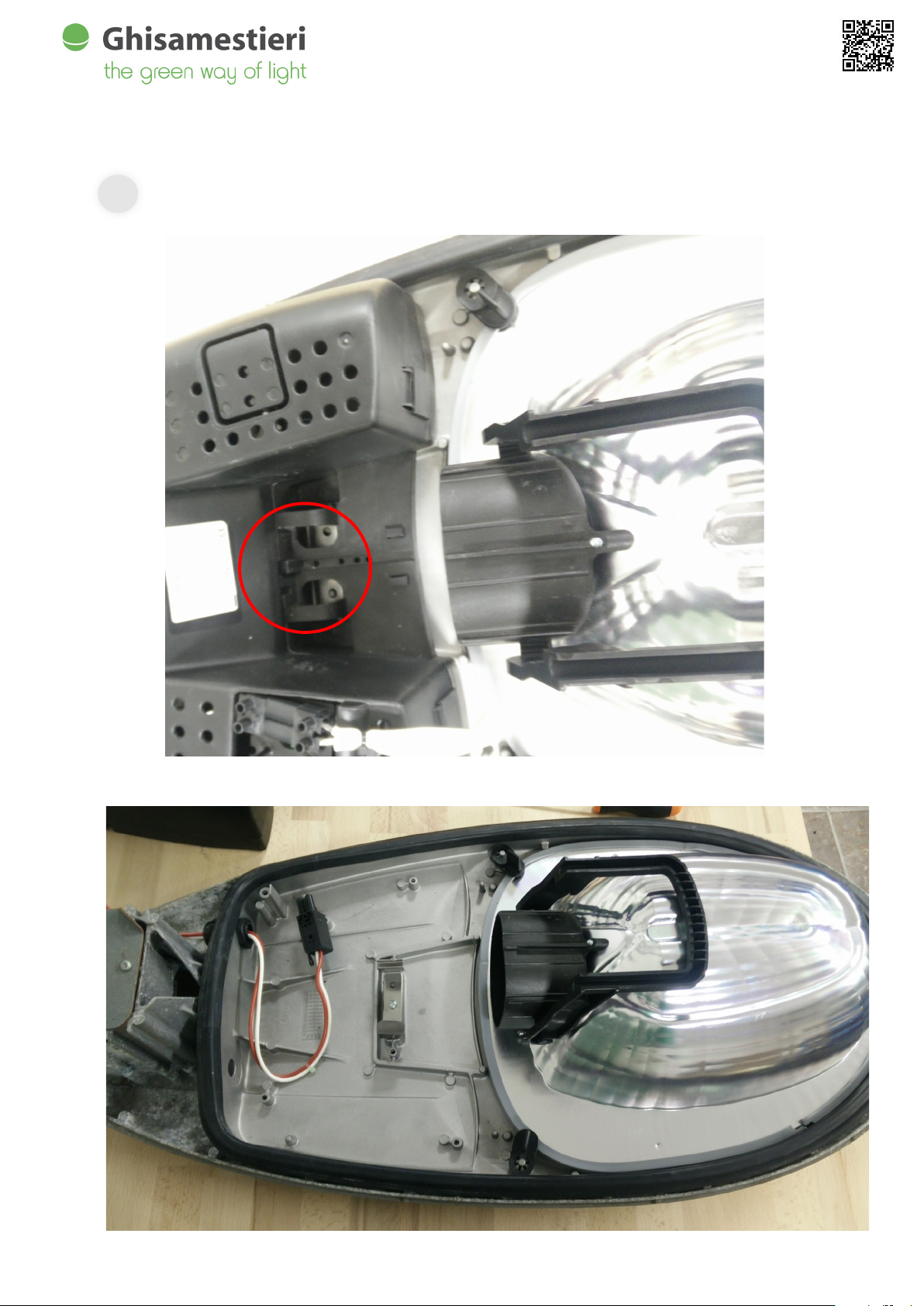

b. Remove the lamp holder highlighted in red.
Ghisamestieri s.r.l. • Quality system certicate ISO 9001:2008 • phone +39 0543 462611 • fax. +39 0543 449111 • info@ghisamestieri.it • www.ghisamestieri.it
e pictures used are purely for information. Ghisamestieri s.r.l. may make improvements or changes at any time without prior notice.
rev. 2015•06•17
Installation manual

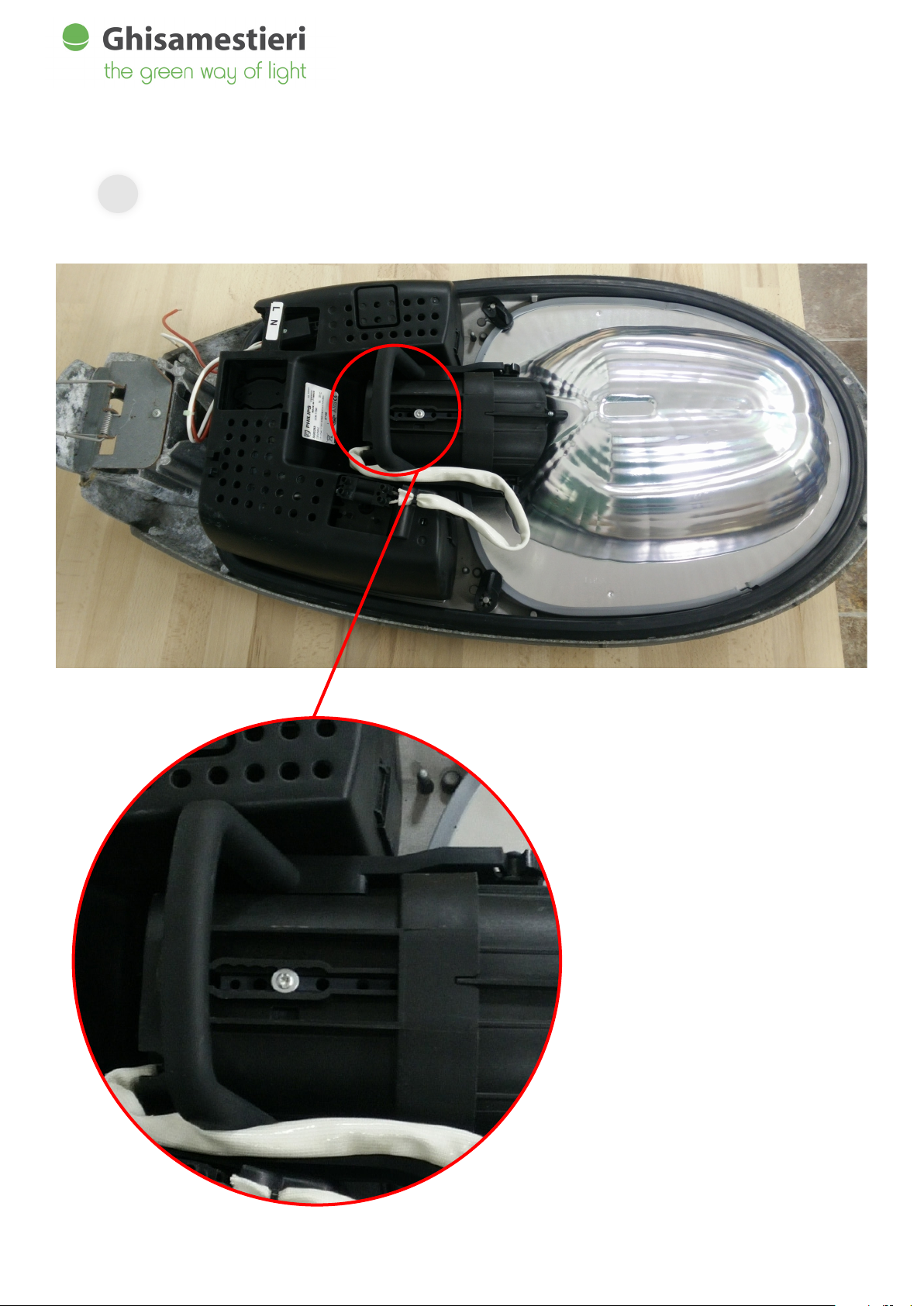

c. Press the two tabs to remove the wiring.
Ghisamestieri s.r.l. • Quality system certicate ISO 9001:2008 • phone +39 0543 462611 • fax. +39 0543 449111 • info@ghisamestieri.it • www.ghisamestieri.it
e pictures used are purely for information. Ghisamestieri s.r.l. may make improvements or changes at any time without prior notice.
rev. 2015•06•17
Installation manual

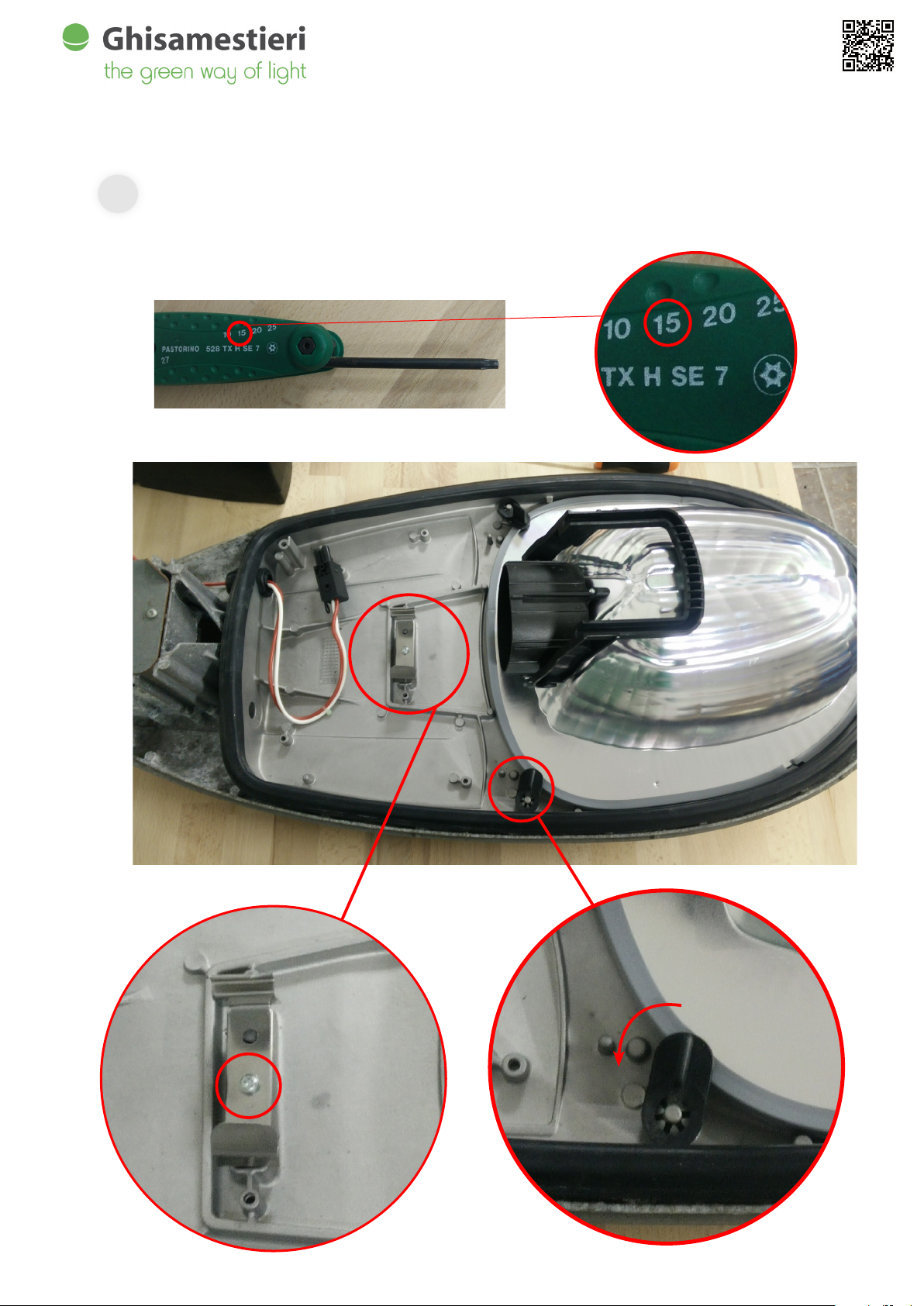

d. 1. Unscrew the screw highlited in red by the cyrcle special key 15 Torx tool.
2. Rotate the fasteners that lock the optic system.
1
2
Ghisamestieri s.r.l. • Quality system certicate ISO 9001:2008 • phone +39 0543 462611 • fax. +39 0543 449111 • info@ghisamestieri.it • www.ghisamestieri.it
e pictures used are purely for information. Ghisamestieri s.r.l. may make improvements or changes at any time without prior notice.
rev. 2015•06•17
Installation manual

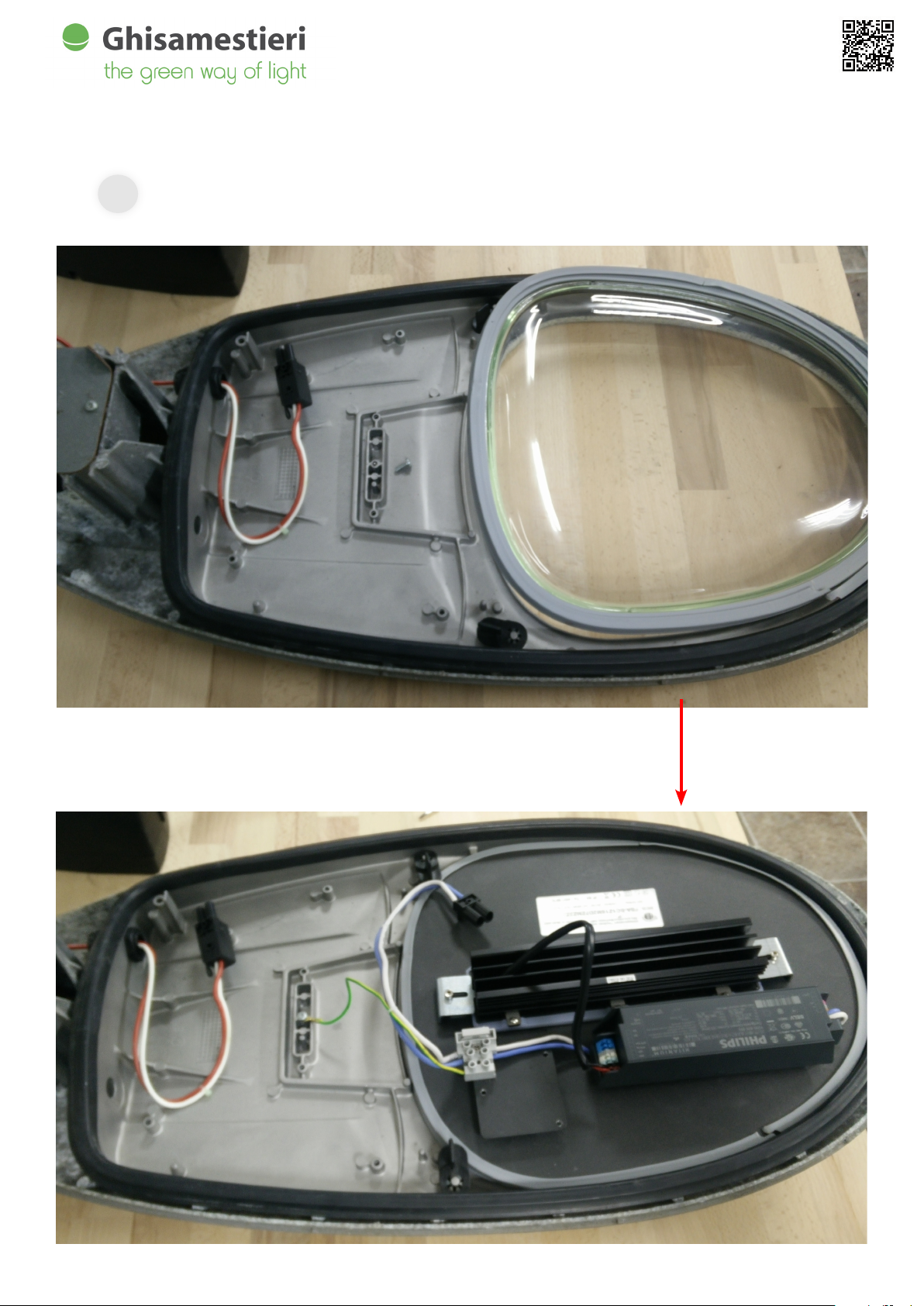

e. Insert the retting kit into the apposite space instead of the optic system
Ghisamestieri s.r.l. • Quality system certicate ISO 9001:2008 • phone +39 0543 462611 • fax. +39 0543 449111 • info@ghisamestieri.it • www.ghisamestieri.it
e pictures used are purely for information. Ghisamestieri s.r.l. may make improvements or changes at any time without prior notice.
rev. 2015•06•17
Installation manual

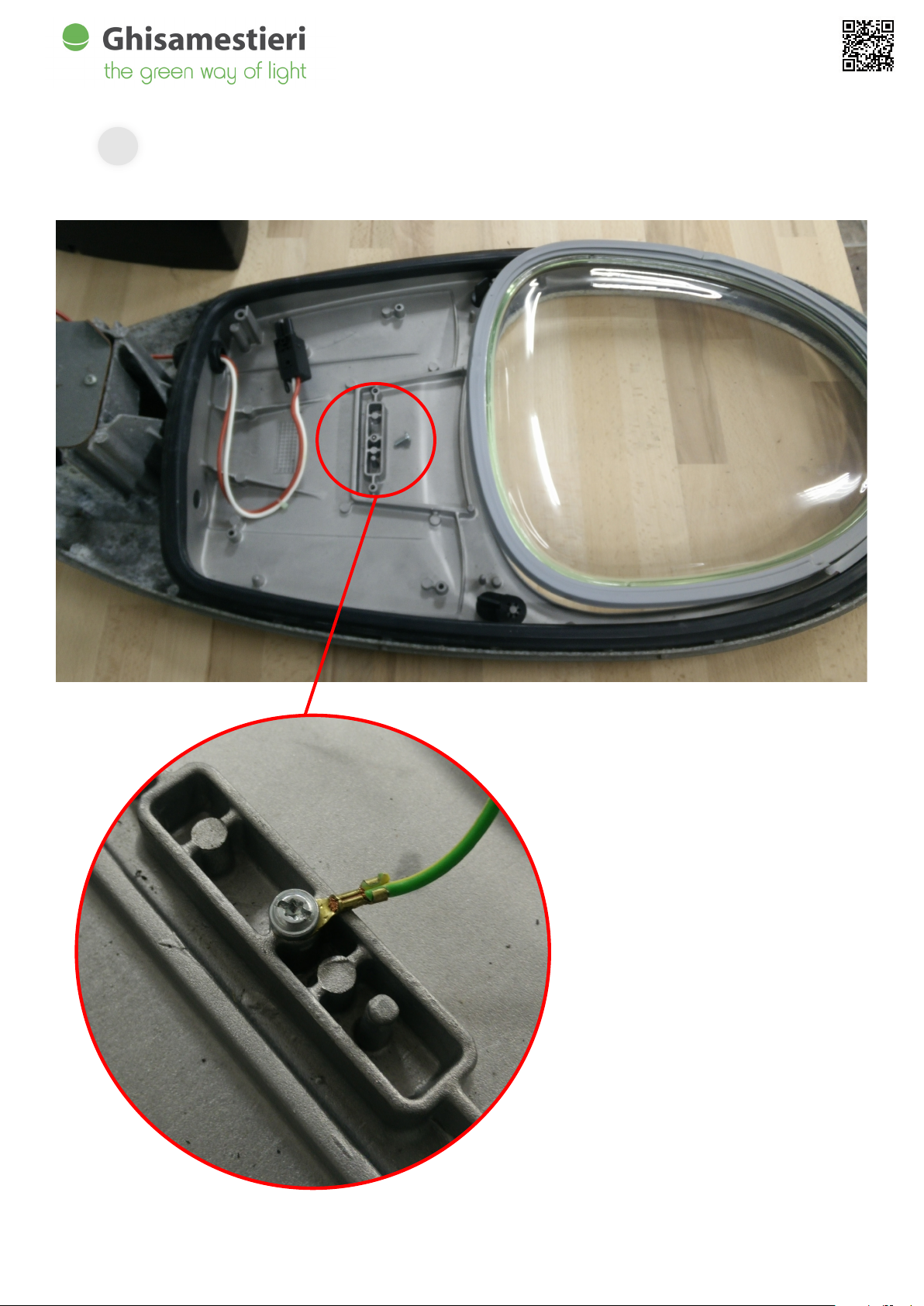

f. Connect the earth cable and screw by the special Torx with key 15.
Ghisamestieri s.r.l. • Quality system certicate ISO 9001:2008 • phone +39 0543 462611 • fax. +39 0543 449111 • info@ghisamestieri.it • www.ghisamestieri.it
e pictures used are purely for information. Ghisamestieri s.r.l. may make improvements or changes at any time without prior notice.
rev. 2015•06•17
Installation manual

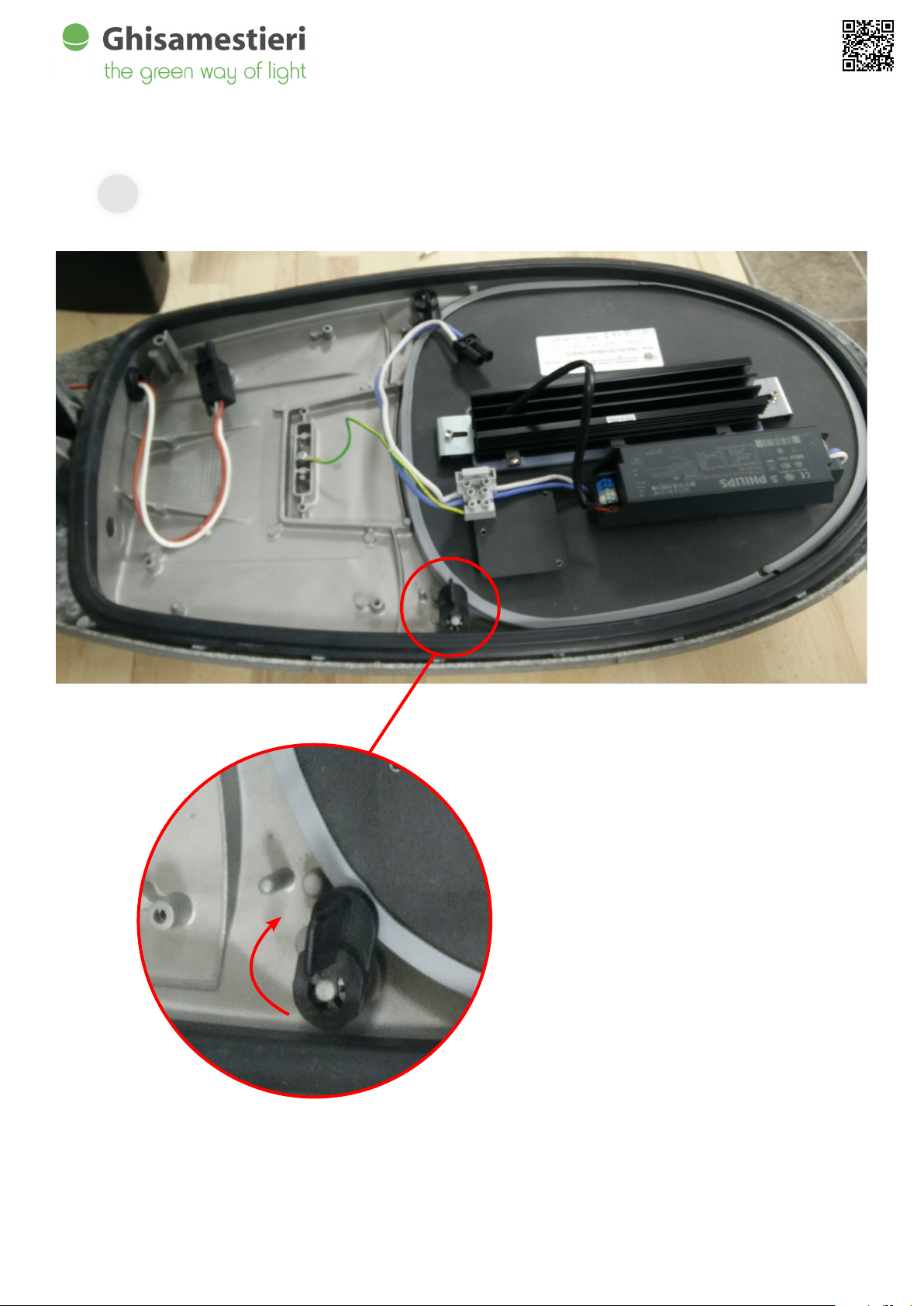

g. Fix the retting kit with the fasteners.
Ghisamestieri s.r.l. • Quality system certicate ISO 9001:2008 • phone +39 0543 462611 • fax. +39 0543 449111 • info@ghisamestieri.it • www.ghisamestieri.it
e pictures used are purely for information. Ghisamestieri s.r.l. may make improvements or changes at any time without prior notice.
h. Connect the wires to the terminals with the screws.
i. Connect the two quick-connect terminals together.
rev. 2015•06•17
Installation manual
