GhostEye 600TC Guida del prodotto
600TC WIRELESS HDMI/SDI
VIDEO TRANSMISSION SYSTEM
MANUAL BOOK
© 2017 Cine Gears INC. All Rights Reserved.
GHOST EYE
Cautions
© 2017 Cine Gears INC. All Rights Reserved. 2
Please read this user introduction manual to become familiar with the features of the Ghost-Eye series
products before operation. Failure to operate the product correctly can result in damage to the product,
or interference with other devices. This is a sophisticated product which must be operated with caution and
common sense. Failure to operate this product properly might result in disturbing other film equipment on set.
This product is not intended for use bychildren without direct adult supervision. Do not use with incompatible
components, or alter this product in any way outside of the documents provided by Ghost-Eye. These safety
guidelines contain instructions for installation, operation, and maintenance. It is essential to read and follow
all of the instruction in the manual, and all the notices and warnings regarding Ghost-Eye series products
prior to assembly, setup, or use to prevent any damage or interference.
1. Do not use this product in extreme heat, cold, dusty, or humid environments.
2. Prevent friction against hard objects.
3. Prevent jarring, such as from falling from high places, or from improper packaging during transportation.
4. These products are not waterproof; prevent moisture from getting in, on, or around the unit(s).
5. Do not dismantle, assemble, or otherwise alter the product(s) arbitrarily.
1. When this device is sharing a power supply or battery with other equipment, please make sure all signal
and power cables are well connected before turning on the Ghost-Eye unit power.
2. When this device is sharing a power supply or battery with other equipment, please make cables from the
Ghost-Eye unit.
3. When this device is sharing a power supply or battery with other equipment, please check the polarity of
the power connectors of all equipment to ensure the inside conductor is positive. If the polarity of the power
connector is unknown, please check the user manual to make sure the outer conductor of the SDI or HDMI
connector is connected to the negative of the power supply. Otherwise, the equipment will not be able to
share the same power supply withthe Ghost-Eye unit.
Warning
Electrical Considerations
Ghost Eye Wireless Video Transmission Systems
© 2017 Cine Gears INC. All Rights Reserved. 3
Here at Cine Gears Inc., we supply some of the best wireless HD video transmitters and receivers available.
During the development of Ghost-Eye units, we subjected our prototypes to rigorous testing on set with
professional film crews, and took customer feedback and suggestions into serious consideration. After careful
consideration, Ghost-Eye products have integrated all the in-demand wireless video transmission features
recommended by you, the user. The fruit of our efforts are catalogued below in the form of our unique
Ghost-Eye Wireless Video Transmission kits, across the affordable price range spectrum.
Ghost Eye wireless video transmission kits each fit a different set of wireless HD video transmission needs.
The most powerful video transmitters and receivers will satisfy even the most high end profesional film crew,
and our lightweight models fit a more versatile brand of film set. Ghost-Eye transmission kits transmit and
receive 10 bit, 4:4:4 video, support both HD and SD, and can broadcast with less than 1ms/1 frame latency.
The transmitter’s output power can be adjusted between 10dBm to 21dBm to suit your shooting environment.
At 100% power, the transmission range is at it’s maximum of 600 meters (1968 feet). At 50%
power, the transmission range is up to 200-300 meters (656-984 feet). The 2.4G tally and talk-back range
reaches up to 600 meters (1968 feet).
Product Features
© 2017 Cine Gears INC. All Rights Reserved. 4
Transmits 10-bit color, YCbCr, 4:2:2 color depth, proprietary color matching algorithm on OFDM
chips.
Optimized uncompressed 10-bit 4:2:2 2GBps video stream, or 12-bit 4:4:4 3GBPs wireless video
transmission on other models.
Optimized video processor for on-screen movement.
Fully supports all audio formats.
Static channel selection. The channel number and frequency can be modified by software to avoid
interference from other devices. Supports multiple receivers and AES 128 bit video encryption.
FPGA technology adopting American IRTA programmable logic matrix chips.
Follows the international film association time code protocols. Accurate time code extraction,
transmission, and encryption using embedded time code transmission method. Hardware
encrypted time code to IRTA chips.
Software allows user to adjust transmission output power to avoid interference.
Uses a separate channel to transmit tally information. Fully supports different intercom interfaces.
Integrated wireless intercom feature supports up to 300 meters for microphone and speakers.
Supports external bluetooth audio devices. Wireless microphones can be adapted.
Certified software and technical support provided. For organizations, customized frequency, power
and products available for organizations.
Specifications
© 2017 Cine Gears INC. All Rights Reserved. 5
ITEM SPECIFICATION
Frequency range
5.1-5.9(GHz)*Subject to different RF
regulations in different regions.
2.4-2.483GHz with ISM band
Occupied Bandwidth
Up: 40MHz
Down: 1MHz
Video Formats
Supported
Audio Formats
Supported
Time Code SMPTE-12M
Transmission Range
19
68ft(Line of sight)
Transmitter
Antenna
External Antenna 5G × 2pcs
External Antenna 2.4G x1pcs
Transmission Power
23 dB m
Functional Interface
SDI Input/Output(BNC Female); HDMI Input
(Type A Female); 4xSMA Antenna Port; 1xA
type USB3.0 port; DC input (4-pin Lemo
Female)
Mounting Structure 1/4” Hot-shoe connection
Power Source 7-36V for DC input
Power Consumption
HDMI: 525i, 625i, 720p 50/59.94/60, 1080i
50/59.94/60, 1080p 23.98/24/25/29.9/
30/50/59.94/60; HDMI Type A
SDI: 3G, HD, SD-SDI (auto-selected), SMPTE
259/274/292/296/372/424/425; BNC x2
PCM, DTS-HD, Dolby TrueHD; SDI embedded
2 channels 24bits/48KHzl input/output
<8W
Specifications
© 2017 Cine Gears INC. All Rights Reserved. 6
Net Weight(with
antenna)
418g
Dimensions 163mm(L)×105mm(W)x22mm(H)
Temperature -10-50º (Operating); -40-80º (Storage)
Receiver
Antenna External Antenna 5G × 5pcs
External Antenna 2G x1pcs
Receiving Sensitivity -75dBm
Functional Interface
Locating Structure
1/4” Hot-shoe connection
Power Source 7-36V for DC input
Power Consumption <10W
Net Weight(with
antenna) 484g
Dimensions 163mm(L)x125mm(W)x22mm(H)
Temperature
-10-50º (Operating); -40-80º (Storage)
*Since the product’s improving process, all the performance, design and specifications
of our products are subject to minor change without prior notice.
SDI Output (BNC Female); HDMI Output
(Type A Female); 6x Antenna Port; 3x3.5mm
Headset Port; 1xA Type USB3.0 Port; 1xRJ45
Port; DC Input (4-Pin Lemo Female)

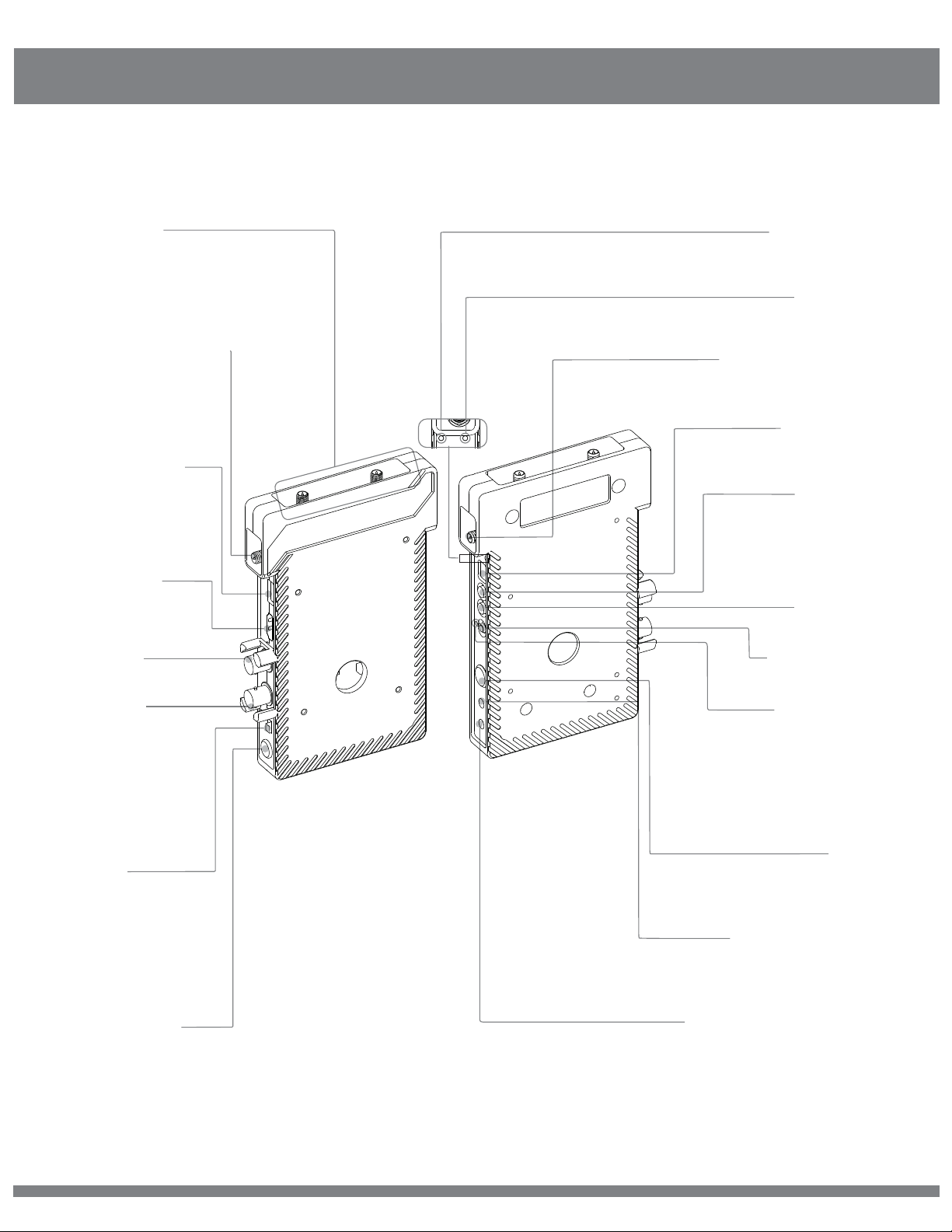

Transmitter
© 2017 Cine Gears INC. All Rights Reserved. 7
5G Antenna Link Indicator Light
Video Indicator Light
2.4G Antenna
Menu Screen
Channel
OK
Volume/Call
Mute/Call Indicator Light
XLR Input
3.5mm Tally Output Jack
3.5mm Stereo In Jack
2.4G Antenna
USB Output
HDMI Output
SDI Loop Out
SDI Input
ON/OFF Switch
7-36V DC IN
Receiver
© 2017 Cine Gears INC. All Rights Reserved. 8
5G Antenna Link Indicator Light
Video Indicator Light
2.4G Antenna
5G Antenna
USB Output
HDMI Output
SDI Output
ON/OFF Switch
7-36V DC IN
Menu Screen
Signal Indicator Light
Channel
OK
Volume/Call
Mute/Call Indicator Light
XLR Input
3.5mm Tally Jack
Intercom/Tally Input
User Manual
© 2017 Cine Gears INC. All Rights Reserved. 9
1.
Fix the four antennas to the transmitter and arrange them to be a right angle as below figure
to get better performance.
2.
On transmitter side, when both SDI and HDMI source are inputted, the transmitter will
automatically select the SDI source for transmission
3. Fix the six antennas to receiver and arrange them to a right angle as figure to get better
performance.
4. Setting the receiver higher will enhance the transmission distance.
