Giant HALFWAY Guida alla configurazione

NEW HALFWAY/SUBWAY

OWNER’S MANUAL

SUPPLEMENT

2 1

Your bike

Contents

p1. Why you should read this manual

p1. Your bike

p2. Before you ride your bike -1st time setup

p2. Saddle height adjustment-seat post memory

system setup

p3. H/bar stem height & angle adjustment procedure

p4. Folding procedure.

p5. Unfolding procedure.

WHYYOU

SHOULDREAD

THISMANUAL.

Thank you for buying Giant bicycles.

With latest technology and brand-new

design we are pleased to present you

the New Halfway/Subway.

The new Halfway/Subway is design for

lighter and faster, more suitable for your

daily or recreational use. Before you ride

(use) the Halfway/Subway, please read

the manual, you will nd more features

and friendly design on this bike, it will

help you to setup the bike with best

performance. Hope you enjoy your ride.

This isa supplemental owner’smanualfor

theHalfway/SubwayBicyclewhich covers

the unique features of the Halfway/

Subway.You should read and understand

the complete Bicycle Owner’s Manual

that came with your bicycle to get the

most enjoyment and satisfaction from

yourGiantbicycle.

CAUTION!

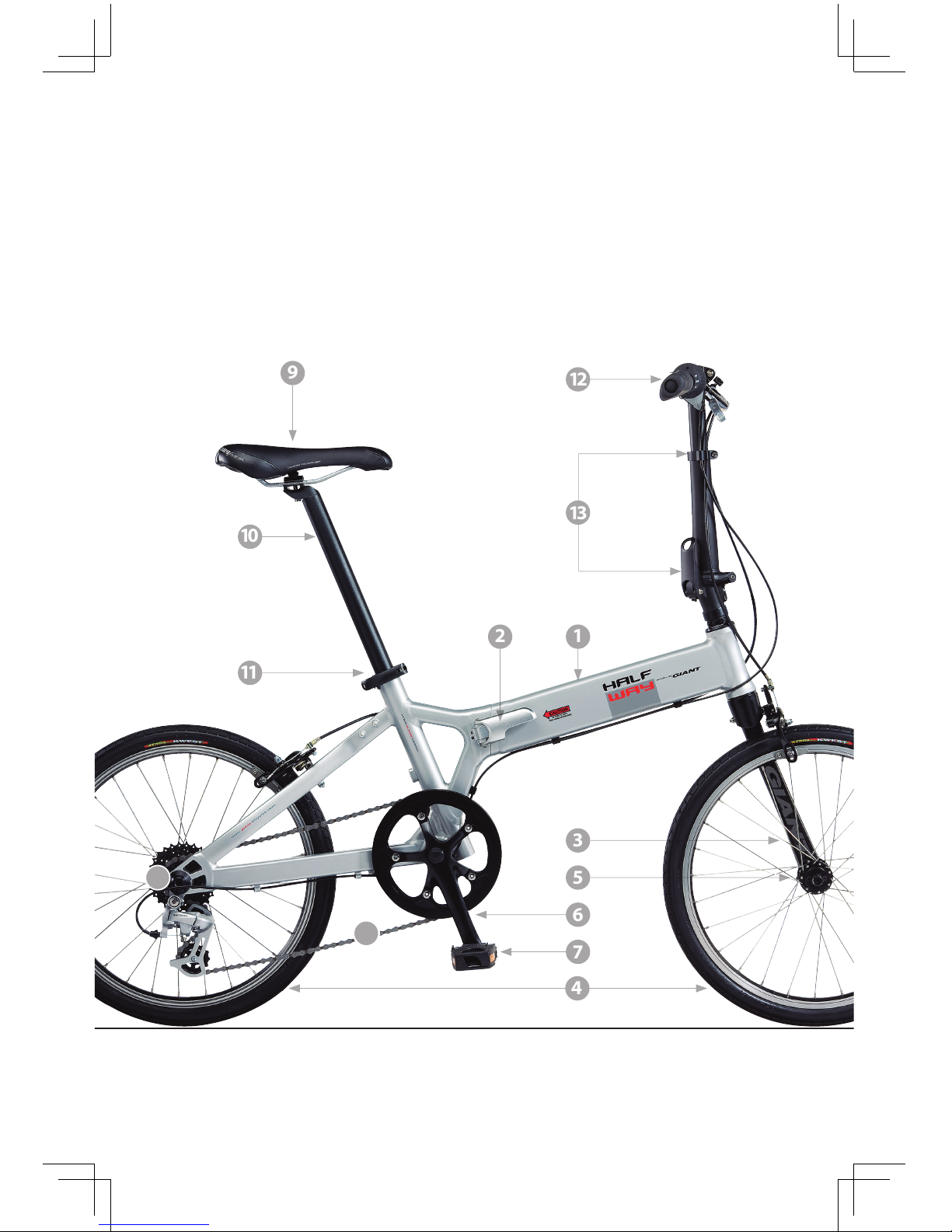

Your bike

1. Frame

2. Frame quick release

3. Fork

4. Wheel

5. Hub

6. Crank

7. Pedal

8. Chain

9. Saddle

10. Seat Post

11. Seat post quick release

12. Handlebar

13. Handlebar stem w / quick release

Seatpostmemorysystem /

heightadjustment procedure

The seat post is designed with memory

system. Before your rst ride, please set your

proper height following below procedure


1. Pull the seat post out to the maximum

extended position (Until stopper touches

seatclamp)

2. Loosenthe stopper with 2mmAllenkey.(Turn

counterclockwise)

3. Adjust saddle height to the desired position

andtightenthe stopper.

4. Tightenseatpost quickrelease.

Caution:

Don’t remove the Allen key; otherwise the

stoppermightfall out.

Before you ride

your bike-1st

time setup

Be sure to tighten the saddle clamp and

quick release properly before riding. The

saddle and seat post cannot be twisted

when the fixing screw is in place. Check

with yourdealerifyouhave any doubt.

WARNINGS!

H/barstemheight &

angleadjustment

procedure

Put it in correct position

before you ride

Loosestemclampbolt with 6mm Allen key,

pullthequillto yourdesired height,and

then tighten the clampbolt.

Maximumtightenforce: 10 N-m.

Caution:

TheMinimumInsertionmarkofstem and

seatpostshould NOTbevisible.

It is essential to thoroughly check that

your bars and stem are tight and cannot

be moved after you have made any

adjustments.

Please make sure all the quick release and

bolt are probably tighten beforeyourride.

WARNINGS!

Openhandlebar quickrelease, rotate

handlebartoyourdesiredposition and

tightenthequickrelease securely.

Folding

Procedure

Each Halfway/Subway bicycle comes with a travel bag,

so you can carry your folded bike

in a convenient way.

Step 1.

Align crank with the seat tube and

fold open the pedal by pushing/

pulling the faces outward.

Step 3.

Slide safety button forward,

then open the frame quick

release.

Step 4.

Fold the frame.

Fold the bike and keep the handle

bar facing forward.

Secure it in folded position with

clip on front and rear hub.

Safetybutton

Step 2.

Loosen the seat post quick release

and push the saddle to the lowest

position. Then tighten the quick

release again.

Step 5.

Slide safety button up, then open the

handlebar stem quick release. Fold

handlebar stem and secure it in the stem

holder.

Warning:

Take care that the cables are not hooked

behind other parts or bent and kinked

while folding the stem.

UNFOLDING PROCEDURE

TounfoldthenewHalfway/Subway

for riding, reverse theprocedure.

Make sure all quick releases

for frame, seat post, handlebar

and handlebar stem are xed.

Do not ride the bicycle before

the pedals have been closed

completely.

Make sure the handlebar

stem has been xed properly

before cycling.

Maximum tightening torque:

10 N-m

IMPORTANT NOTES.

The quick release mechanism for

frame and handlebar stem have an

adjustment screw/nut that controls

the clamping force and the force

that is needed to open/close the

quick release.

MAKE SURE THAT THE

FUNCTION OF THE

QUICK RELEASE AND

ADJUSTMENT SCREW/NUT

IS DEMONSTRATED BY THE

BICYCLE DEALER BEFORE

USING THE BIKE.

Make certain the “Frame Release

Mechanism” is secured firmly in correct

closed position prior to each ride.

Mechanism may loosen over time and

slight adjustments may be needed. If you

are unable to secure release mechanism,

please see your Giant Authorized Dealer

for correct operating procedure for this

ReleaseMechanism prior toridingbike.

WARNINGS!

Safetybutton

Printed in Taiwan.

www.giant-bicycles.com

For complete detail of warranty, service and maintenance, please refer to the

completeBicycleOwner’s Manual thatcamewith your bicycle.

It is very important that your dealer carries out any repair or maintenance,

which is not described in this manual. Consult your dealer for help in

determiningyour maintenance needs.

CAUTION!

ride life. ride giant.
