Gigabyte DVD+R/RW Writer Manuale utente
DVD ± R/RW Writer
User’s Manual
DANGER INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM
VORSICHT INSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT
DEM STRAHL AUSSETSEN
ATTENTION RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D’OUVERTURE.
EVITER TOUTE EXPOSITION AUX RAYONS.
Copyright Statement
It is a criminal offence, under applicable copyright laws, to make unauthorised
copies of copyright-protected material, including computer programs, films,
broadcasts and sound recordings. This equipment should not be used for such
purposes.
CLASS 1 LASER PRODUCT
APPAREIL A LASER DE CLASSE 1
LASER KLASSE 1
LUOKAN 1 LASERLAITE
PRODUIT LASER
CATEGORIE 1
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that
may cause undesired operation.
FCC Warning Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can emit radio frequency energy
and, if not installed or used in accordance with the instructions, may cause
interference to radio communications. However, television reception interference
can be determined by turning the equipment off and on. The user is encouraged to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet different from that to which the receiver
is connected
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FOR EUROPE
“The drive is in conformity with the EMC directive and low-voltage
directive.”
Table of Contents
INTRODUCTION 1
SYSTEM REQUIREMENTS 2
PACKAGE CONTENTS 2
INSTALLATION 3
HOST INTERFACE CONNECTIONS 3
HARDWARE INSTALLATION 4
DRIVER INSTALLATION 5
Windows Environment 5
SOFTWARE PACKAGE 6
Installation Under Windows Environment 6
CONNECTION & OPERATION 7
FRONT PANEL 7
REAR VIEW 8
DVD REGION CODING 10
REGION PLAYBACK CONTROL MANAGEMENT 10
REGION CODES 10
About This Drive 11
TECHNICAL DATA 12
APPENDIX 14
DVD ± R/RW Writer
1
INTRODUCTION
Welcome to a multimedia world of ReWritable technology with DVD
burning capabilities. This multiformat recordable drive presents you more
backup choices other than acting as a CD-R/RW drive and as a DVD-ROM
reader. The drive supports DVD Forum’s DVD-R/-RW standard as well as
the one of DVD+RW Alliance’s DVD+R/+RW enabling excellent
compatibility, simple, quick recording of both CD/DVD formats, huge
capacity storage, and theater-quality playback.
The bundled package of mastering software offers the creation fun of video,
photos, and music editing in addition to basic data backup. You can record
up to 4.7 GB, 3 hours of TV shows or movies with high-quality MPEG2
video/AC-3 sound effect, and even more appealing, author your own DVD
movies – from capture to editing and burning.
Handy, easy to use with rich function, this DVD±R/RW Writer is an ideal
model to enjoy the fascinating digital entertainment on your desktop and
here are some more important features:
♦ 4X DVD+/-R, 2X DVD+/-RW Write/Rewrite speed, 12X DVD-ROM
Read speed
♦ 40X CD-R, 24X CD-RW Write/Rewrite speed, 40X CD-ROM Read
speed
♦ Adopts “MTKSuperLink” to prevent Buffer Underrun errors for CD &
DVD writing
♦ Supports writing modes of TAO, DAO, SAO and packet writing for
CD-R/RW, Random Access Write, Sequential Write for DVD+/-R,
DVD+/-RW
♦ Compatible with most existing DVD-ROM drives and DVD video
players
♦ Bundled with an extensive software package
DVD ± R/RW Writer
2
System Requirements
For IBM compatible PCs, the system requirements recommended are as
follows:
♦ Pentium III, 600MHz or above with at least 128MB of memory
♦ Fast and sufficient hard disk space (minimum 650MB for
installation)
♦ IDE host interface supporting ATAPI MMC command
♦ Operating system: Microsoft Windows 98SE/ME/2000/XP
Package Contents
♦ DVD±R/RW Writer (this drive)
♦ Audio cable
♦ Application software disc
♦ 4pcs of screws/bag
DVD ± R/RW Writer
3
INSTALLATION
Host Interface Connections
Most current mainboards have two IDE ports (primary and secondary),
which can connect two IDE cables. Two IDE cables allow you to connect
up to four devices, but it is recommended that you separate IDE ports for
your hard drive and this writer. This will ensure that your hard drive’s
performance and speed won’t be affected by having the writer on the same
cable.
If you connect only one device on the cable, you can set the jumper as
“MASTER” or “SLAVE”.
If you connect two devices (e.g. CD-ROM & CD-RW) on the same cable,
set different jumpers for each device (CD-ROM as “MASTER”, CD-RW as
“SLAVE”, and vice versa.) The same rule applies to the connection of
having your hard disk and another device on the same cable.

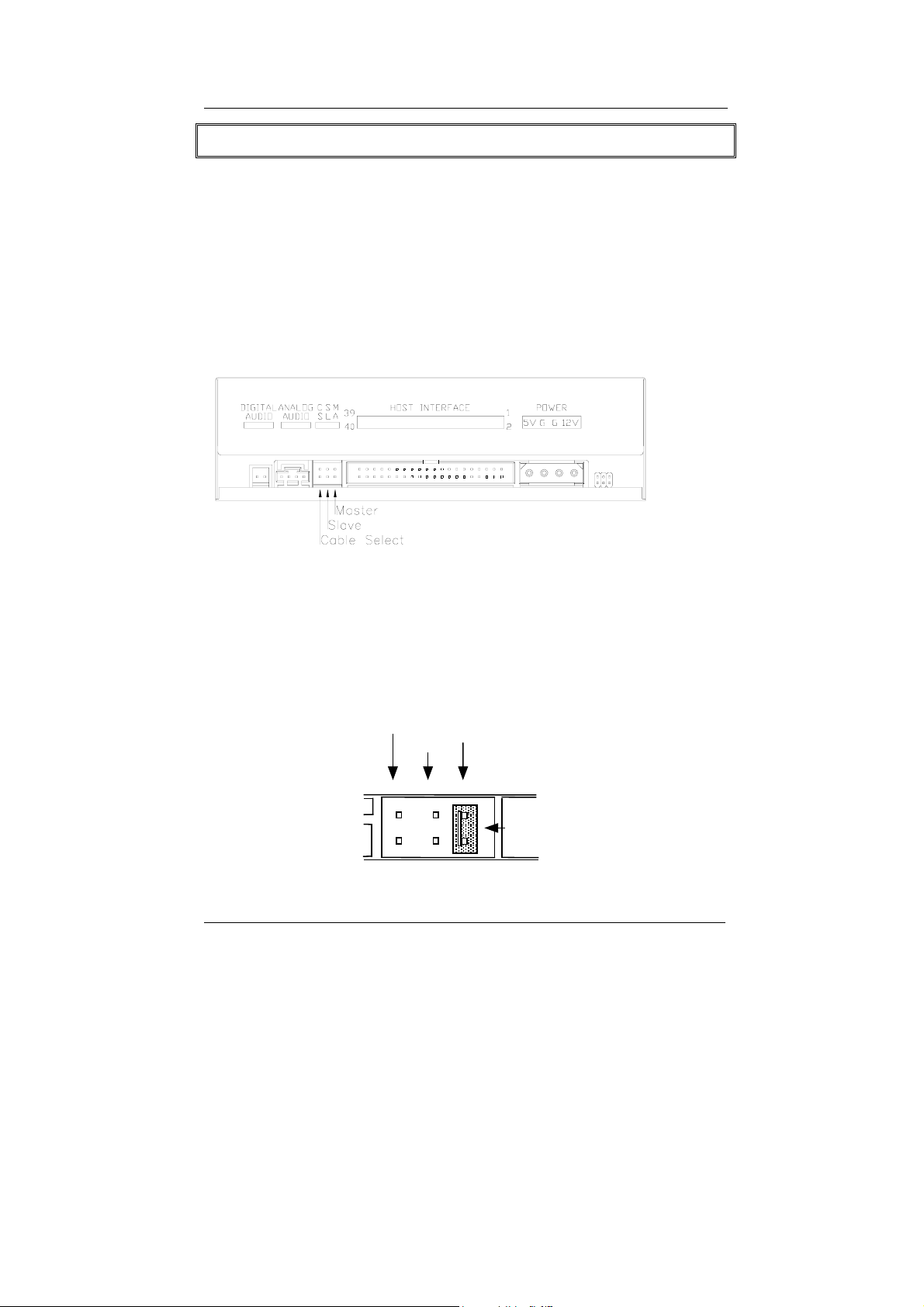

Master
Cable Select
Slave
Jumper
DVD ± R/RW Writer
4
Hardware Installation
1. Turn off the power to the computer system.
2. Disconnect all cables from the back of your computer, and then
remove the cover from the computer.
3. Insert the writer into one of the vacant 5.25" drive bays and secure
it with screws to your PC.
In order to prevent interference between the writer and the computer,
please mount the writer using all four mounting screws.

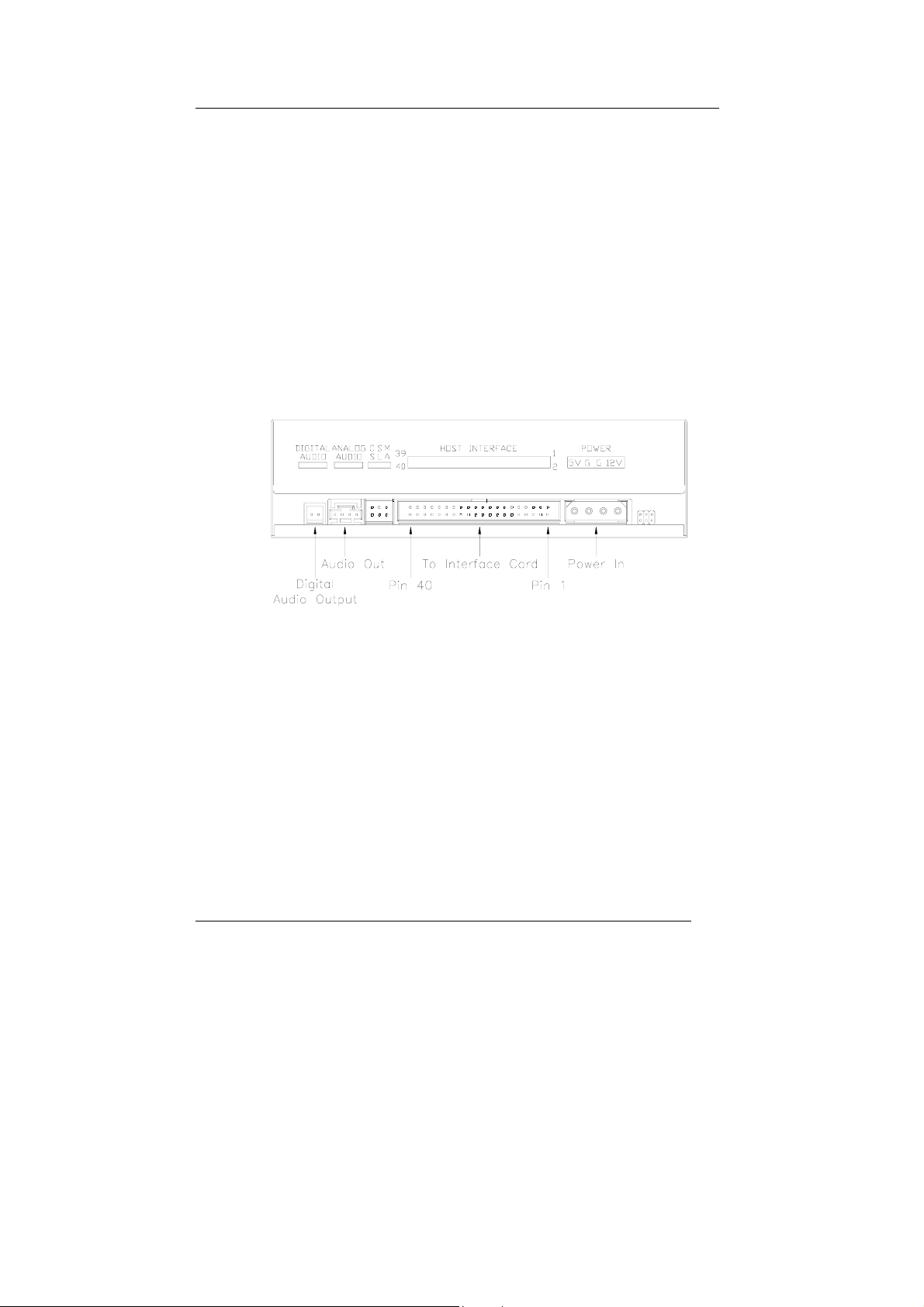

4. Connect the 40-pin IDE cable from one of the IDE ports on the
mainboard to the 40-pin connector of your writer. Also, connect the
power supply cable to the back of the writer.
Make sure to align and connect the red-edge of the IDE Cable to Pin
1 on the drive.

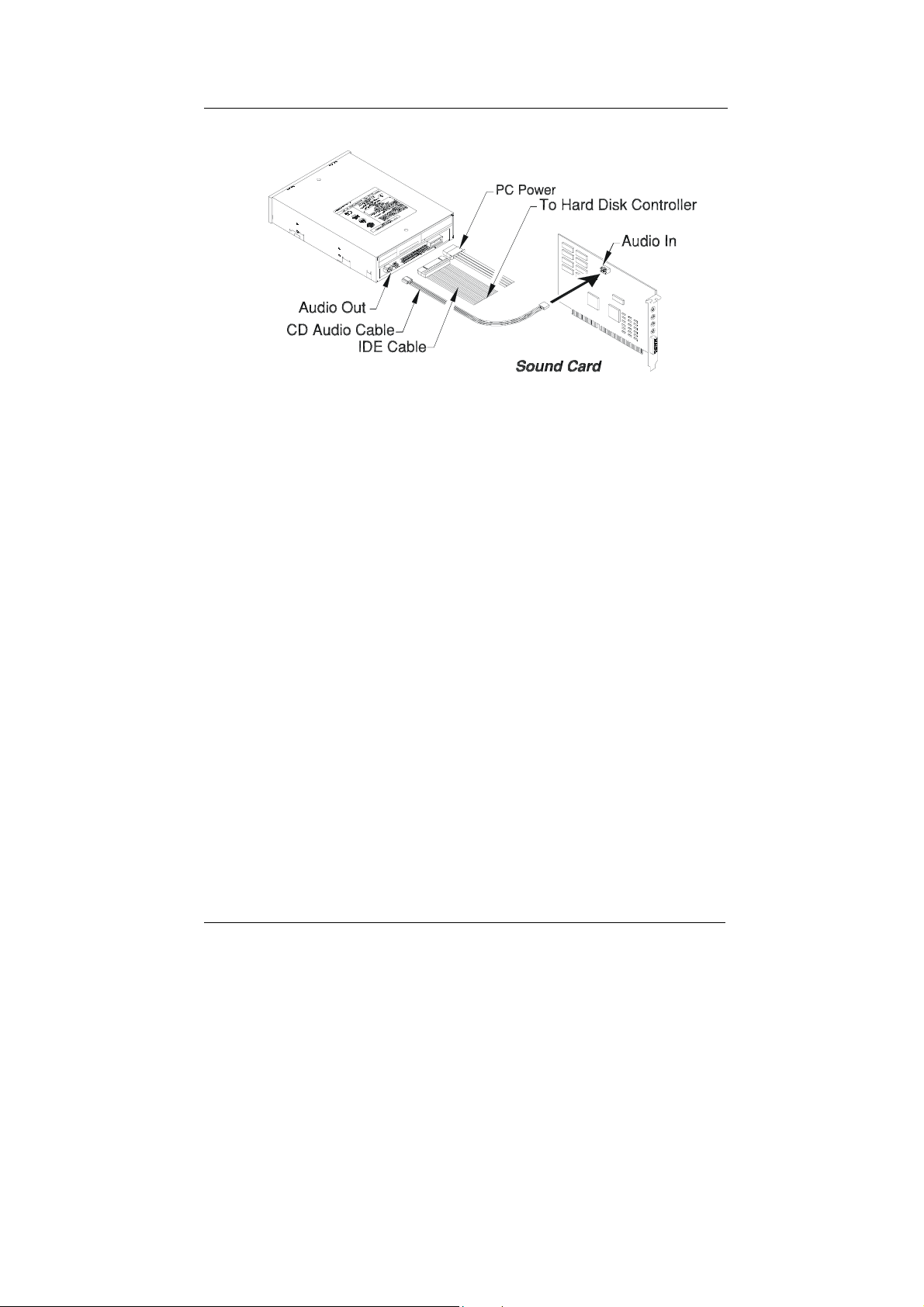

5. If you have a sound card that can be connected to this writer, you
can connect the drive (as Audio-out) and the sound card (as Audio-in)
with a 4-pin audio cable.
DVD ± R/RW Writer
5
If your mainboad is integrated with built-in sound system, plug the
4-pin audio cable into the CD-IN connector on the mainboard as
Audio-in.
6. Re-attach the cover of your computer, and reconnect the power
cord.
Driver Installation
Windows Environment
This DVD±R/RW Writer is a Plug & Play device and there is no need to
install driver. Windows 98SE/ME/2000/XP can automatically detect the
drive and load the appropriate driver.
DVD ± R/RW Writer
6
Software Package
The bundled package combines software for 1) DVD/CD recording 2)
DVDs/VCDs authoring 3) Packet Writing 4) DVD playback, which gives you
the complete solution for making audio/data CDs/DVDs of different formats,
editing video and authoring DVD movies. The user-friendly interface
simplifies the recording process and guides you through the creation in an
easy and innovative way. No matter you are a novice or an experienced
user; this is your best recording tools with the writer.
Installation Under Windows Environment
1. Insert the application CD and the installation program will run
automatically. Then follow the on-screen procedures.
Or
2. Run:\setup.exe on the application CD.
