Gigabyte GS202 Manuale utente

GS202

Quick Guide

GS202│

Your Phone

This section introduces you to the hardware of the device.

No.

Items Functions

Earphone Jack

Use a headset for hands-free conversation

or listening to music.

Power

• Press and hold for several seconds to turn

the phone on or off.

• To set your phone to the sleep mode,

press the power button briefly. Press again

to turn the display back on.

Micro-USB Port

• Connect USB cable and the AC adapter to

charge the battery mildly.

• USB tethering: Share your phone’s mobile

data connection via USB cable.

Front Camera

Use this front Camera to take pictures or

record video.

Receiver The source of voice.

P Sensor/

Light Sensor

• P Sensor: The screen will turn off

automatically when the device is close to

the face during a phone call.

• Light Sensor: Adjust the brightness of the

screen according to the environment.

GS202│

No.

Items Functions

Volume

Press upward or downward to turn louder or

down volume. Press down key fully to enter

vibration mode.

5.0MP

Camera

The camera on the back of the device supports

5.0MP photo and high-quality video.

Flash LED

Help photo shooting.

Back Cover

You need to open the cover to install or

uninstall the battery, SIM card and microSD

card.

Speaker The source of music and voice.

No.

Items Functions

Touch Screen

Display screen.

Return Return to the previous page.

Home • Go back to Home Screen.

• Press and hold to bring up recent activities.

Menu Press to view the options of the menu.

MIC Sound Receiver.

GS202│

Installing or uninstalling SIM Card, Battery, and

Memory Card

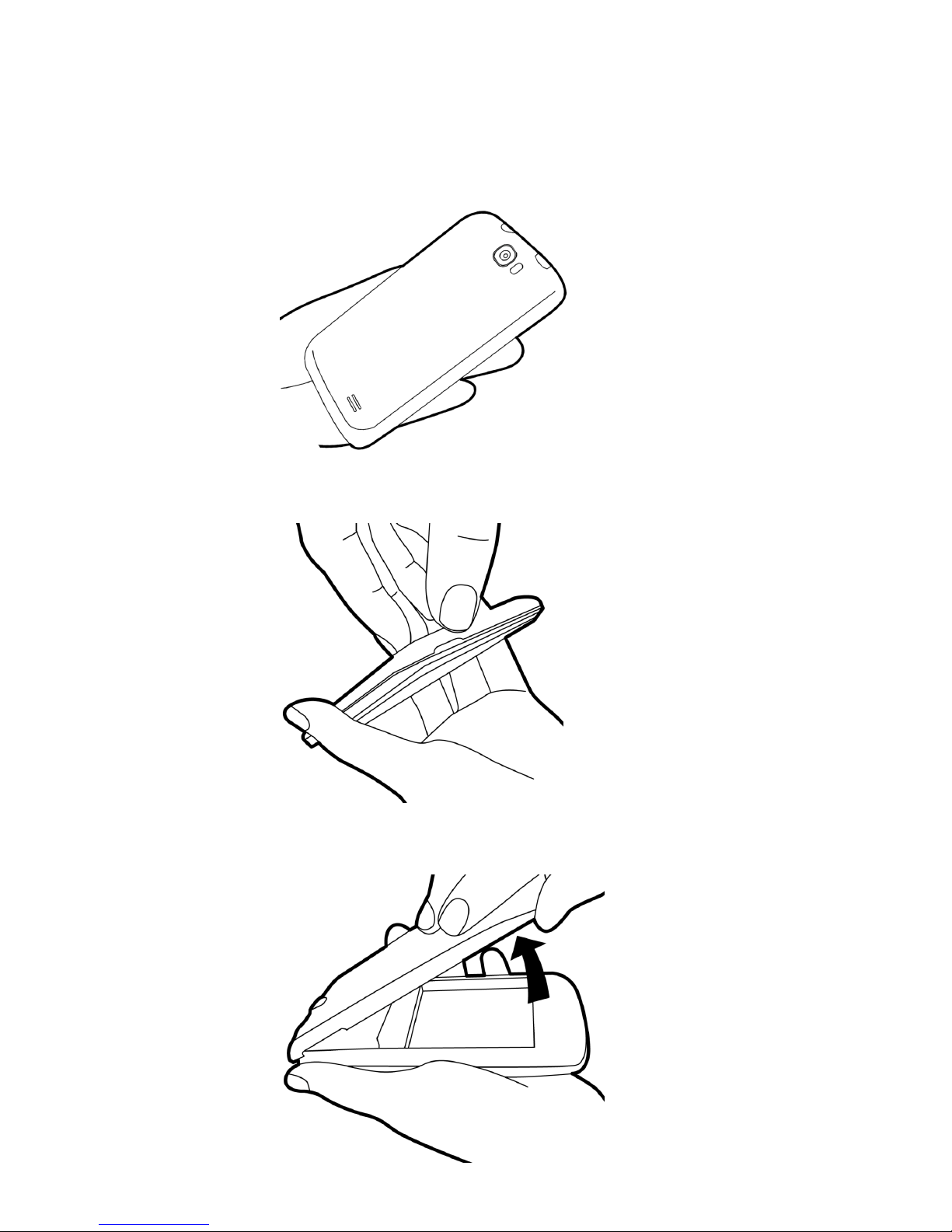

To remove the back cover

1. Please turn over your phone with the back cover facing up.

2. Please move your fingertip into the slot.

3. Pull the back cover with your fingertip and remove it.

GS202│

SIM card

The SIM card contains your phone number, memory storage, and

details of network service.

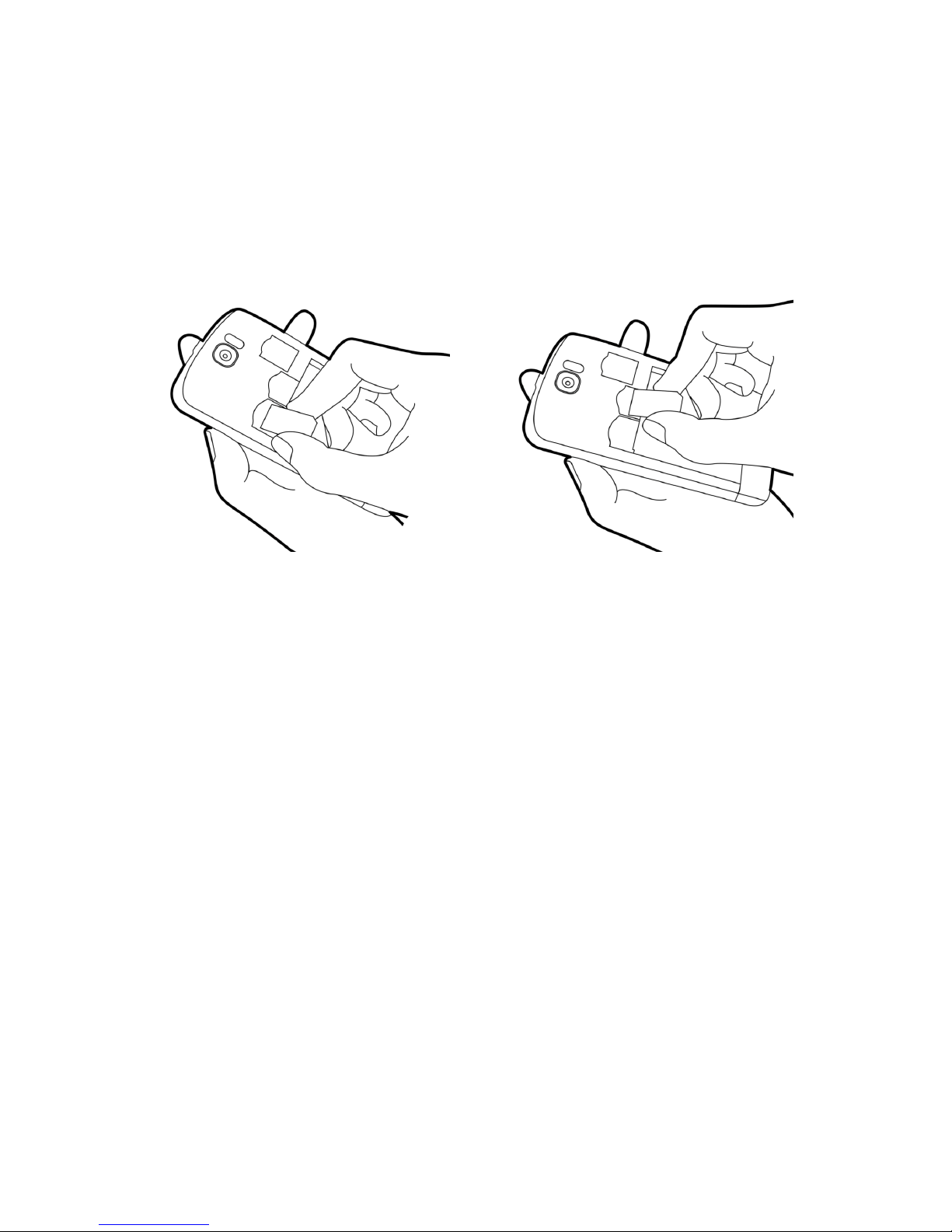

To install the SIM card

There are two slots for SIM cards. Left slot is for SIM1; right slot is for

SIM2, the gold contacts are facing down. And the cut-off corner is

facing toward the outside.

To install the SIM1 card To install the SIM2 card

(G+W) (GSM)

To remove the SIM card

1. First, remove battery.

2. Use your finger to slide the SIM card out of card slot.

Battery

Your phone comes with a rechargeable battery. Battery life varies

depending on the network, used applications, and the type of

connections attached to your phone.

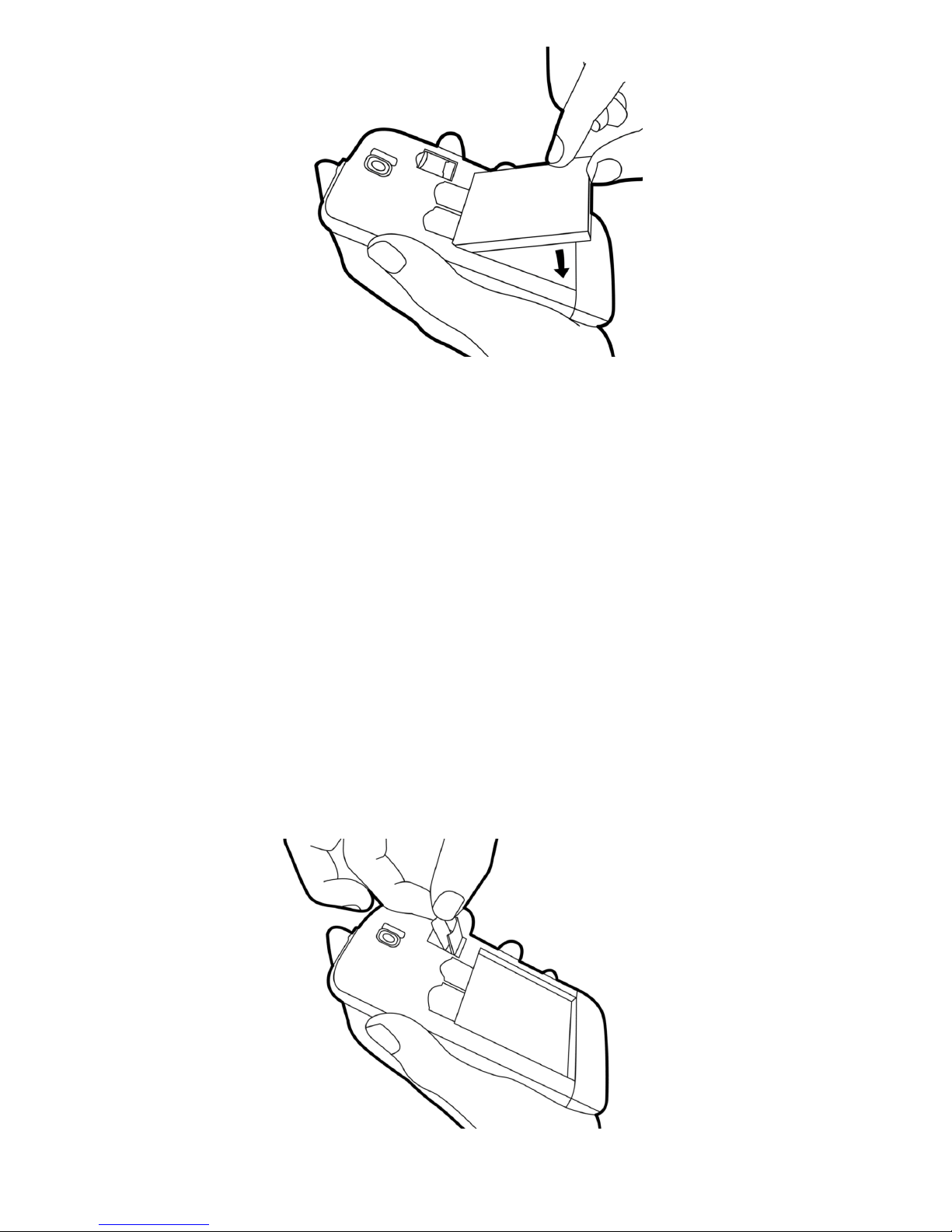

To install the battery

Make sure the gold contact of the battery is close to connectors in the

battery slot.

GS202│

To remove the battery

Use your fingertip to lift the battery then remove it.

NOTE:

To ensure battery performance and avoid risk from fire

• Use only the original battery designated for the phone.

• Do not store the battery in temperature lower than -10ºC or

higher than 45ºC

Memory card

You may need a microSD card to store photos, music, videos and

other data.

To install the memory card

1. Slide the memory card socket cover toward bottom of the phone

and lift it .

2. Put the memory card with the gold contact facing down.

3. Slide the memory card socket cover toward top of the phone.

GS202│

To remove the memory card

1. For safe removal, tap Application Drawer > Settings > Storage >

Unmount SD card.

2. Slide the memory card socket cover toward bottom of the phone

and lift it.

3. Take out the memory card.

4. Slide the memory card socket cover toward top of the phone.

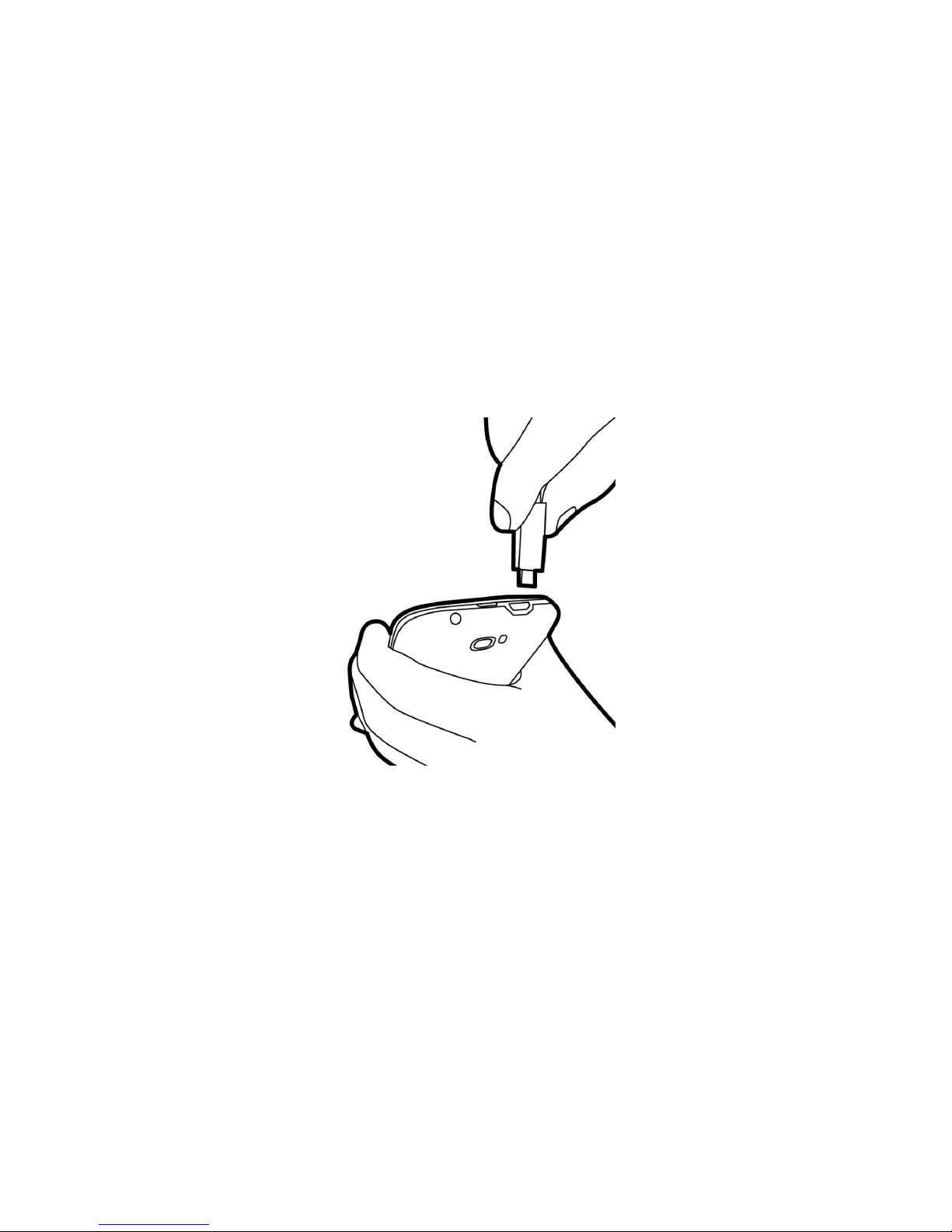

Charging the Battery

When you take your phone out of box for the first time, the battery

isn’t at full of power. Please charge the battery fully before using.

1. Connect the USB cable to the AC adapter, and then, connect to the

device via the USB cable.

2. Plug the AC adapter to a socket to start the charge.

NOTE:

To ensure safety, do not remove the battery from the phone

while the AC adapter is connected or while it is being charged.

Turning the Phone On or Off

After installing the SIM card and charging the battery, you are now

ready to turn your phone on.

To turn on your phone

Press and hold the power key until the phone shortly vibrates.

To turn off your phone

1. Press and hold the power key for several seconds.

2. A pop-up window appears, and then tap “Power off”.

3. Select “OK” to confirm.

GS202│

To set your phone to the sleep mode

To set your phone to sleep mode, press the power key briefly. It will

turn the display off. To turn the display on, press the power key briefly

again.

The Home Screen

On Home screen, you can quickly access common features and view

notifications of missed calls, received messages, battery, and the

status of the connection.

Status bar icons

The icons of the status bar indicate different types of information. Tap

the status bar and scroll down to view notifications or view system

information.

Types Icons Descriptions

Phone call

Call is in progress.

Your call is on hold.

Mute the call.

Speaker is on.

Volume

Vibration is on.

Wired headset connected.

Wired microphone headset

connected.

Battery

Battery is full.

Battery is low.

Battery is very low.

Battery is charging.

GS202│

Network

and

Connection

Maximum signal strength. Fewer

bars indicate lower signal strength.

Left icon is SIM1 signal

(WCDMA+GSM). Right icon is SIM2

signal (GSM).

GPRS\ EDGE\ 3G\ HSDPA is in

progress.SIM1 supports GPRS\

EDGE\ 3G\ HSDPA networks.SIM2

supports GPRS\ EDGE networks.

Wi-Fi is connected.

Wi-Fi is in progress.

Wi-Fi Network is activated.

Airplane mode.

Portable Wi-Fi hotspot is activated.

Both USB tethering and Portable

Wi-Fi hotspot are activated.

GPS is on.

Bluetooth is on.

The device is connected to PC via

the USB cable.

Notification

New text message.

New e-mail.

New Gmail.

Alarm.

Event notification.

Missed call.

USB debugging is connected.

GS202│

General notification.

FM radio is on.

Playing a song.

Downloading an application.

Note:

Mobile data interruption, unexpected error in CPU and high

power consumption could be caused by in-app AD in Android

phone. We suggest you try to remove those apps with AD which

had been installed in your device for preventing any abnormal

situation happens and saving more power as well.

If this document is modified, please download the latest version on

GSmart’s official website. You can download the user manual on

GSmart’s official website also.

GIGA-BYTE COMMUNICATIONS INC.

B2, No.207, Sec.3, Pai-Hsin Road,

Hsin-Tien Dist., New Taipei City 231, Taiwan

+886-2-89132220

www.gigabytecm.com
