Gigabyte GSmart G1305 Manuale utente

G1305│

Your Phone

This section introduces you to the hardware of the

device.

No. Items Functions

1 Earphone jack

Use a headset for

hands-free conversation or

listening to music.

2 Power

• Press and hold for

several seconds to turn

the phone on or off.

• To save battery, quick

press to temporarily turn

the screen on or off.

3 Earpiece

The source of music and

voice.

4 Touch screen Display screen.

5 Home

• Go back to Home Screen.

• Press and hold to bring

up recent activities

6 Menu

• Press to unlock the

phone.

• Press to view menu

options.

7 Talk Key

• Activate the Dialer.

• Make or answer a call.

8 MIC Sound Receiver.

9 Browser Connect to the website.

10 Return Return to the previous

page.

11 End Ke

End or reject a call.

12 Trackball Move to select an option.

No. Items Functions

13 Micro USB port • Connect USB cable to

PC as a modem / USB

G1305│

mass storage.

• Connect USB cable

and the AC adapter to

charge the battery.

14 Strap hole

It is for hanging cell

phone strap.

15 Volume

Press upwards or

downwards to increase

or decrease the

volume. Slide down the

key fully to enter vibrate

mode.

16 Shutter

• Press and hold the

shutter to activate

camera.

• In Camera mode,

press to take a photo

or video.

No. Items Functions

17 5 Megapixels

Camera

The camera on the

back of the device

supports 5-mega-pixel

photo and high-quality

video.

18 Flash LED Help photo shooting.

19 Back cover

You need to open the

cover to install or

uninstall the battery,

SIM card, and SD card.

20 Speaker The source of music

and voice.

NOTE: The battery can also be charged while

connecting to a computer.

Installing or uninstalling the SIM

Card, Battery, and Memory Card

To remove the back cover

1. Please turn over your phone with the back

cover facing up.

G1305│

2. Please move your middle fingertip into the slot

located at the bottom of the back cover.

3. Stay your palm close to the back cover.

4. Then pull the back cover with your middle

fingertip to remove it.

SIM card

The SIM card contains your phone number,

memory storage, and network service details.

To install the SIM card

Insert the SIM card. Make sure the gold contacts

are facing down and the cut-off corner is facing

towards the battery slot.

G1305│

To remove the SIM card

1. Remove battery.

2. Use your finger to slide the SIM card from the

card slot.

Battery

Your phone comes with a rechargeable Li-Ion

battery. Battery life varies depending on the

network, used applications, and the type of

connections attached to your phone.

To install the battery

Insert the battery. Make sure the contacts of the

battery are aligned with the connectors on the

battery slot.

To remove the battery

Use your fingertip to lift the battery, and then,

remove it.

To replace the back cover

Secure the hooks on the back cover with

designated holes on the phone and close the

back cover.

NOTE: To ensure battery performance and

avoid the risk of fire:

• Use only original batteries designated for the

phone.

• Do not store the battery in temperatures

below -10ºC or higher than 45ºC.

Memory card

You will need a microSD® card to store photos,

music, videos, and other data.

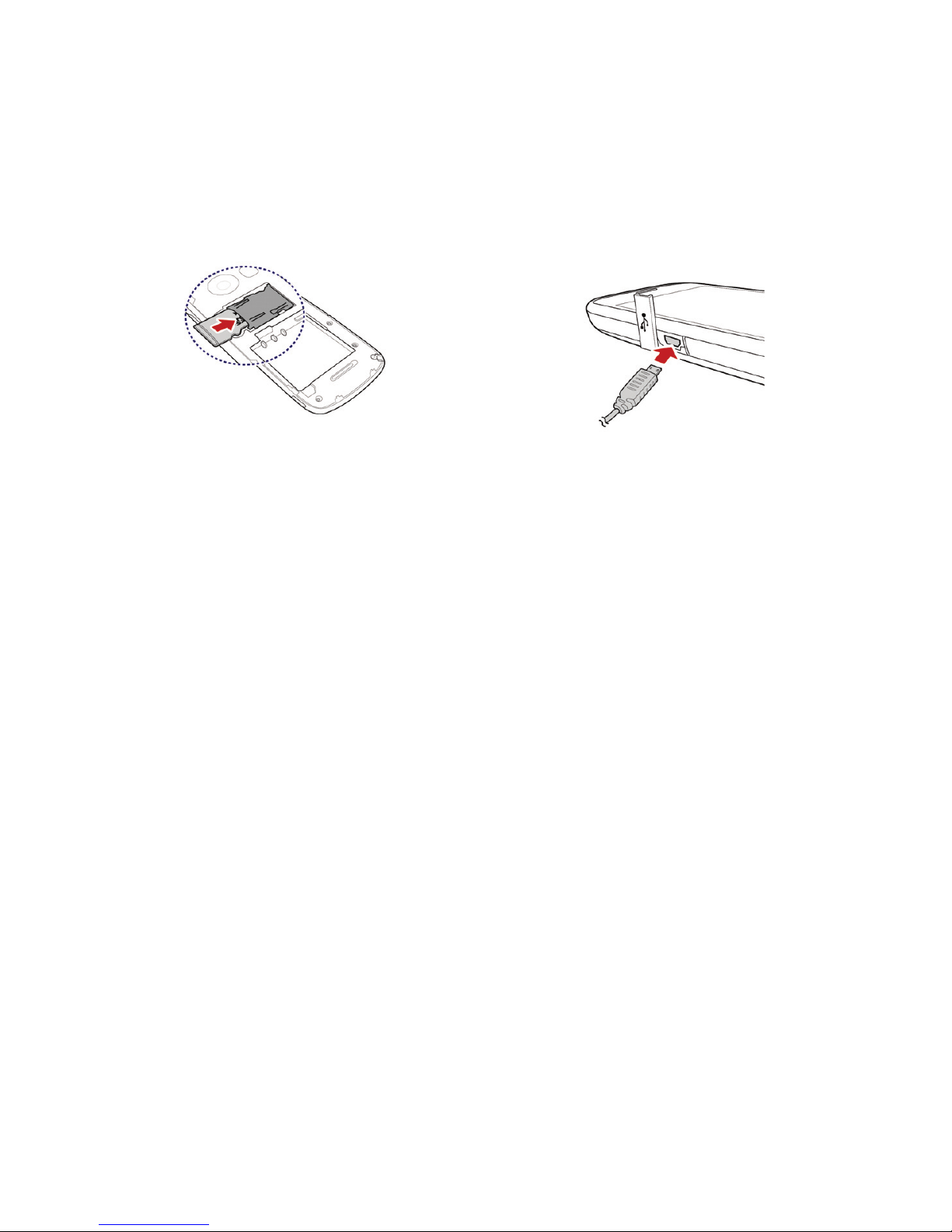

To install the memory card

1. Insert the memory card with the gold contacts

facing down.

2. Push the memory card until it clicks into place.

G1305│

To remove the memory card

1. For safety removal, tap Application Drawer, and

then, go to Settings > SD card, phone storage >

Unmount SD card.

2. Push the memory card down to eject it from the

slot.

Charging the Battery

The battery out of the box is only partially charged.

To fully charge the battery, charge it for 2 hours.

1. Open the Micro USB port cover.

2. Plug the battery charger.

3. Plug the AC adapter to an outlet to start

charging.

NOTE:

• The battery can also be charged when you

connect your phone to the computer.

• To ensure safety, do not remove the battery

from the phone while the AC adapter is

connected or while it is being charged.

Turning the Phone On or Off

After installing the SIM card and charging the

battery, you are now ready to turn on your phone.

To turn on your phone

Press and hold the power button until the phone

vibrates.

To turn off your phone

1. Press and hold the power button for several

seconds.

2. A pop-up window appears, and then, tap Power

off.

3. Select OK to confirm.

NOTE: If your phone is locked, please tap

Menu to un-luck it. Then you can turn off your

phone.

To set your phone to Sleep mode

To set your phone to sleep mode, press the power

button briefly. It will turn the display off. To turn the

display on, press the power button briefly again.

The Home Screen

On Home screen, you can quickly access

common features and view notifications of missed

calls, received messages, battery and connection

G1305│

status.

Status Bar Icons

The Status bar icons indicate different types of

information. Tap the status bar and scroll down to

view notifications or view system information.

Types Icons Descriptions

Volume

Volume is muted.

Vibrate mode is

activated.

Speakerphone is

on.

Battery

Battery is full.

Battery is low.

Battery is charging.

Phone

Network

No network signal.

Maximum signal

strength. Fewer

bars indicate lower

signal strength.

GPRS network is

in use.

HSDPA network is

in use.

Call is in progress.

Call is in hold.

No SIM card

inserted.

Connection

Wi-Fi is connected.

Bluetooth

connection is

active.

GPRS data

connection is

active.

HSDPA data

connection is

active.

Phone is

connected to PC

via USB connector.

Notification

New text message

notification

New e-mail

notification

Alarm

Task notification

Missed call

notification

Specifications

System Information

Platform Android 1.6

Processor Qualcomm MSM7227

600 MHz

Memory ROM 512 MB

RAM 256 MB

Size

Dimensions

(L x W x T) 116 x 56.8 x 12.4 mm

Weight 118 grams with battery

Powe

G1305│

Battery

Rechargeable Li-Ion 1230mAh

Power Adapter AC

input

100-240V, 50 / 60Hz,

0.2A max.

DC output 5V、1A

Standby time

Up to 600 hours

(It may vary depending

on the availability of

local networks and

individual usage.)

Talk time

Up to 6.5 hours

(It may vary depending

on the availability of

local networks and

individual usage.)

Radio Band & Standard

GSM/GPRS/EDGE 850 / 900 / 1800 /1900

MHz

WCDMA 900 / 1900 / 2100 MHz

Connectivity

GPS GPS / AGPS

Wi-Fi IEEE 802.11 b/g

Bluetooth Bluetooth 2.0 with

A2DP

USB USB 2.0

Audio Jack 3.5 mm stereo audio

jack

Digital Camera

5.0 Megapixel Color

Camera with Flash

LED, Video Recording

External Memor

Memory Card Slot Micro SD card

Temperature

Operating -15°C to 55°C

Non-operating /

Storage -20°C to 70°C

Charging 0°C to 40°C

Humidity

Operating 0% to 90%

non-condensing

Non-operating /

Storage

5% to 95%

non-condensing

Note: Specifications are subject to change

without prior notice. They may vary in some

regions also.

If this document is modified, please download the

latest version on GSmart’s official website.

GIGA-BYTE COMMUNICATIONS INC.

B2, No. 207, Sec. 3, Beixin Road,

Xindian, Taipei, 231, Taiwan

+886-2-89132220

www.gigabytecm.com
