Gigabyte GSmart M3447 Manuale utente

Your Phone

No. Items Functions

1 Earphone jack

Use a headset for

hands-free conversation

or listening to music.

2 Strap hole It is for hanging cell phone

strap.

3 LED / Speaker

LED Signals:

Red: Charging is

activated.

Blue: Bluetooth is

activated.

Flashing green light: Got

missed calls or unread

messages.

Speaker: The source of

music and voice.

4Front Camera

Lens

Use when making video

calls.

5 Left Key Tap to execute.

6TalkKey

• Activate the call history,

if you dial before.

• Make or answer a call.

This section introduces you to the hardware of the device.

M3447│1

7 Message Key Tap to launch Message.

8 Screen Display screen.

9 Dedicated Key

Tap to select an option

(Up, down, right, or left).

You can press the central

button to execute.

10 Right Key Tap to execute.

11 End Key

•End or reject a call.

•Press and hold to turn on

or turn off the phone.

12 Phonebook Key

Tap to activate

Phonebook.

13 Keyboard

Use the keyboard to input

messages.

14 MIC Sound Receiver.

15 Micro USB port

• Connect USB cable to

PC as a modem / USB

mass storage.

• Connect USB cable and

the AC adapter to charge

the battery.

No. Items Functions

16 Volume Key

Press upwards or

downwards to increase

or decrease the volume.

17 Camera Key Tap to activate the

M3447│2

camera.

18 Micro SD slot Insert your Micro SD

card into the slot.

No. Items Functions

19 2 Megapixels

Camera

The camera on the back

of the device supports

2-mega-pixel photo and

high-quality video.

20 Back cover

You need to open the

cover to install or

uninstall the battery and

SIM card.

21 Speaker The source of music

and voice.

M3447│3

Installing or Uninstalling the SIM Card

and Battery

2. Please move your fingertip into the slot

located at the top of the back cover.

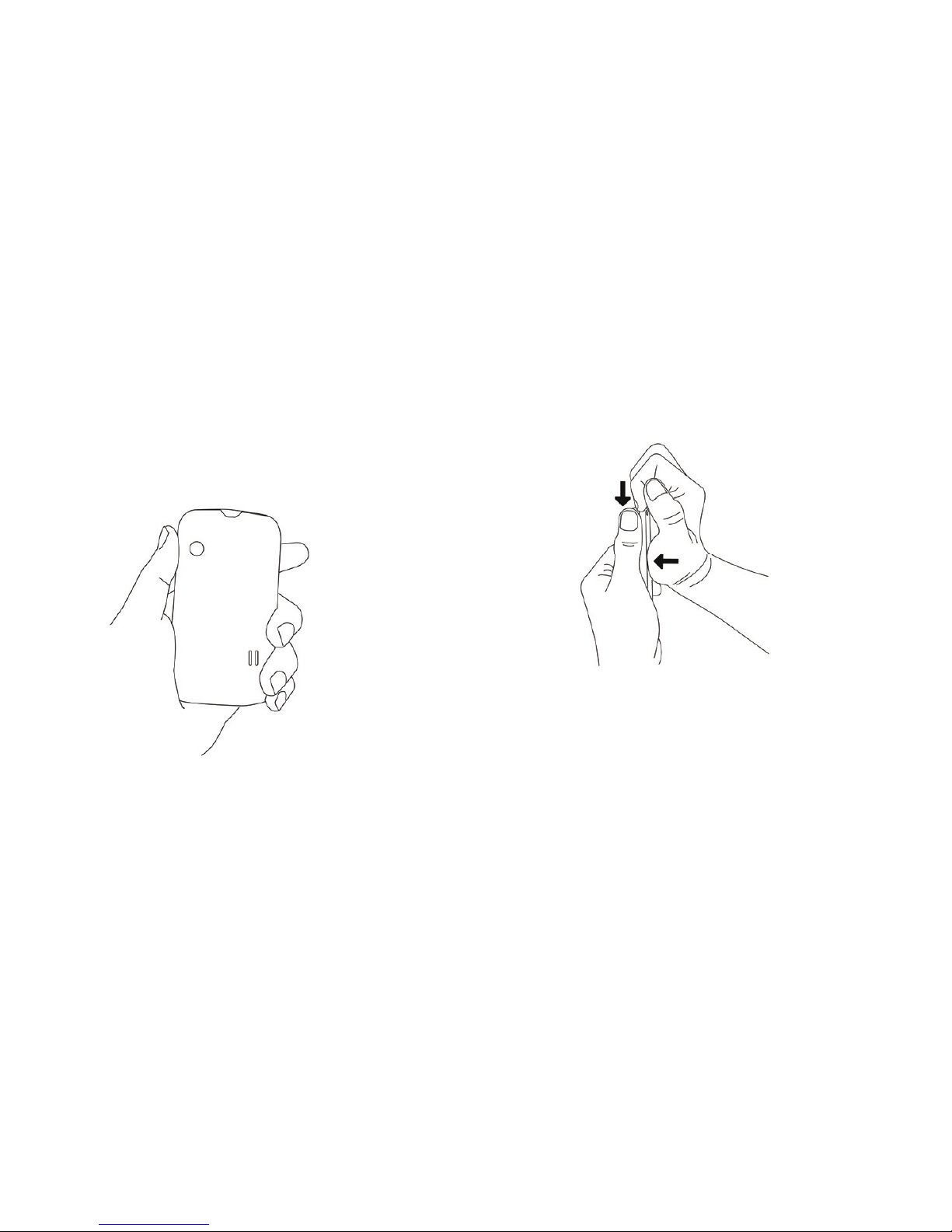

To remove the back cover

1. Please turn over your phone with the back

cover facing up.

M3447│4

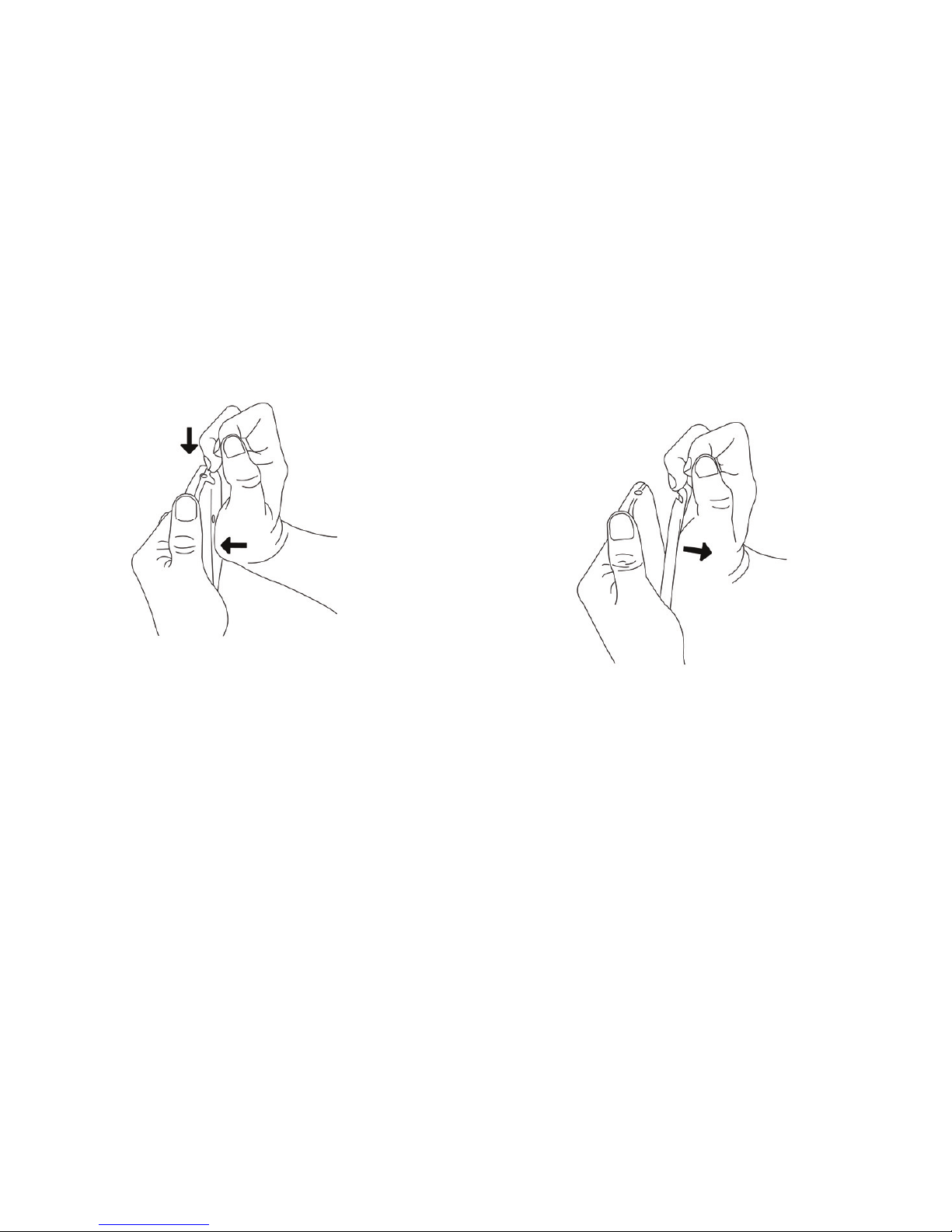

3. Stay your palm close to the back cover. 4. Then pull the back cover with your fingertip to

remove it.

SIM card

The SIM card contains your phone number, memory

storage, and network service details. Your phone

supports two SIM cards.

To install the SIM card

M3447│5

Insert the SIM card. Make sure the gold contacts are

facing down and the cut-off corner is facing towards the

battery slot.

• Do not store the battery in temperatures below -10ºC

or higher than 45ºC.To remove the SIM card

1. Remove battery.

Charging the Battery

2. Use your finger to slide the SIM card from the

card slot. To fully charge the battery, charge it for 2 hours.

1. Plug the battery charger to the Micro USB port

Battery of your device.

Your phone comes with a rechargeable battery. Battery

life varies depending on the network, used applications,

and the type of connections attached to your phone.

2. Plug the AC adapter to an outlet to start

charging.

NOTE:

• The battery can also be charged when you

To install the battery connect your phone to the computer.

Insert the battery. Make sure the contacts of the • To ensure safety, do not remove the battery

battery are aligned with the connectors on the from the phone while the AC adapter is

battery slot. connected or while it is being charged.

To remove the battery Lock/Unlock

Use your fingertip to lift the battery, and then, remove it. 1. Lock the device:

Tap on the keypad. Then tap Yes on screen to lock

the device. When you do that, the keypad and the

screen are locked.

To replace the back cover

Secure the hooks on the back cover with designated holes

on the phone and close the

back cover.

NOTE: To ensure battery performance and avoid the

risk of fire:

2. Unlock the device:

Press Talk Key, and then, click the green ball on screen,

or press * to unlock the device.

• Use only original batteries designated for the phone.

M3447│6

• Weather Home Screen: Tap to adjust the

Turning the Phone On or Off settings of the weather. Tap Zone Setting to

After installing the SIM card and charging the battery, you

are now ready to turn on your phone. select the country / area and the city. Tap

Options to select the type of display and the type

of updating the time. Tap GPRS > SIM1 or SIM2

To turn on your phone (If have) > Accounts to select your Internet

Press and hold End Key until the phone is turned on. Service Provider (ISP) or your Telecom

Operator.

To turn off your phone

Press and hold End Key until the phone is turned off. Before you update the information of the weather, make

sure the time and date of your phone are correct. Then tap

to update the information of the weather.

NOTE: If your phone is locked, please un-lock it first.

Then you can turn off your phone.

The Home Screen NOTE: When you update the information of the

weather, you may be charged.

On the home screen, you can quickly access common

features and view notifications of missed calls, received

messages, battery, and connection status.

Other Icons of the Home Screen

M3447│7

Icon Description

Tap Widget to select the

widgets you want. You can

move the widget you select

from the widget bar to the home

screen.

NOTE: The widget bar will be

Settings of the Home Screens

You can slide the home screen from the left side to the

right side or from the right side to the left side to switch it.

• Clock Home Screen: Tap Clock to adjust the

display, the date, and the time.

• Calendar Home Screen: Tap Calendar to view

and add events.

Status Bar Icons

hidden automatically, if you

do not use your phone for

several seconds.

Tap Application Drawer to

review all programs.

Tap Shortcut to review all

shortcuts. When you tap it, you

can move the shortcuts you

want from the list of shortcut to

the bar located at the bottom of

the screen.

You can also move the

shortcuts you do not want from

the bar back to the list of

shortcut.

The Status bar icons indicate different types of

information.

Types Icons Descriptions

Ring only.

Vibrate only.

Ring and vibrate.

Volume

Ring after vibrate

Battery

Battery is full.

M3447│8

Battery is low.

No network signal.

Maximum signal

strength. Fewer

bars indicate lower

signal strength.

2G network is in

use.

3G network is in

use.

Phone

Network

Roaming.

No SIM card

inserted.

Bluetooth

connection is

active.

Connection

The headset is

plugged in.

New message

notification

Alarm is activated.

Notification

Missed call

notification

M3447│9

The device is

locked.

Lock/Unlock

The device is

unlocked.

Specifications

System Information

Processor MT6268 at 246MHz

Memory ROM 128 MB

RAM 64 MB

Display

Size 2.4"

Resolution 320 x 240 QVGA

Size

Dimensions

(L x W x T) 110 x 59 x 13 mm

Weight 95 grams with battery

Power

Rechargeable

Battery Li-Ion 900mAh

Standby time Up to 450 hours for GSM

Up to 200 hours for 3G

(It may vary depending on

the availability of local

networks and individual

usage.)

Talk time

Up to 4.5 hours for GSM

(No backlight)

Up to 4 hours for 3G

(No backlight)

Up to 2.5 hours for 3G

Video Call

(It may vary depending on

the availability of local

networks and individual

usage.)

Radio Band & Standard

GSM/GPRS/EDGE 850 / 900 / 1800 /1900

MHz

WCDMA 2100 MHz

Connectivity

Bluetooth Bluetooth 2.1 + EDR

USB USB 2.0

Audio Jack 3.5 mm stereo audio jack

Digital Camera

Rear Camera 2.0 Megapixel Color

M3447│10
