Gigabyte G-MAX FB Manuale utente

G-MAXTM Micro ATX Series User’s Manual

P. E 1

and software described in it, may be reproduced, transmitted, transcribed, stored in a

retrieval system, or translated into any language, in any form or by any means without the

express written permission of Gigabyte Technology.

Trademarks

Products and corporate names appearing in this manual may be registered trademarks or

copyrights of their respective companies and are used only for identification or explanation

purposes without intent to infringe.

Other product names used in this manual may be trademarks or registered trademarks of

their respective owners.

The author assumes no responsibility for any errors or omissions that may appear in this

document nor does the author make a commitment to update the information contained

herein. Third-party brands and names are the property of their respective owners.

Disclaimer

The information contained in this documentation is subject to change without notice.

Gigabyte Technology makes no representations or warranties of any kind, either express

or implied, with respect to the contents hereof, including but not limited to implied

warranties of merchantability or fitness for a particular purpose. In no event shall

Gigabyte Technology. Be liable for any loss of profits, loss of business, loss of data,

interruption of business, or indirect, special, incidental, or consequential damages of any

kind arising from the use of this product or documentation. Gigabyte Technology reserves

the right to revise or change this product or documentation at any time without obligation

of Gigabyte Technology. To notify any person of such revision or changes.

May/2002

G-MAXTM Micro ATX Series User’s Manual

P. E 2

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type

recommended by the manufacture.

Dispose of used batteries according

to the manufacturer’s instructions.

 Preface

This system unit is designed to be stable, safe, and easy to use. The system can be

upgraded and expanded in function easily if correct procedure is followed.

For your own safety and to avoid accidental damage to your system, please ensure you

follow the following precautions:

 Follow all the warnings and instructions marked on the products.

 To remove or clean the product, remember to unplug the power cord.

 Place your system unit in a cool, clean space, to be far away from water, heat and

dust.

 Before connecting any peripheral equipment, please unplug the power cord from the

system unit to prevent unexpected damage.

 The AC input supplies power to the system unit. Check your dealer if you can not

recognize the type of the power supply.

 Introduction

G-MAXTM series product, to adopt main board of design & development by GIGABYTE that

is Micro ATX mechanical design in advance, let you work smoothly in Windows

environment.

Micro ATX adopt dexterous mechanical design, so it is ease by assembly & safeguard.

Specification Overview

Micro ATX chassis

Micro ATX main board of GIGABYTE

Power supply

DVD-ROM / CD-ROM

1.44 “FDD

Multi I/O Card (Option)

Keyboard (Option)

Assembly Box Content

Main board user’s manual

User’s manual

Main board Driver CD

IDE cable

Cable Tie

Screw bag

Mouse (Option)

SPDIF cable (Option)

G-MAXTM Micro ATX Series User’s Manual

P. E 3

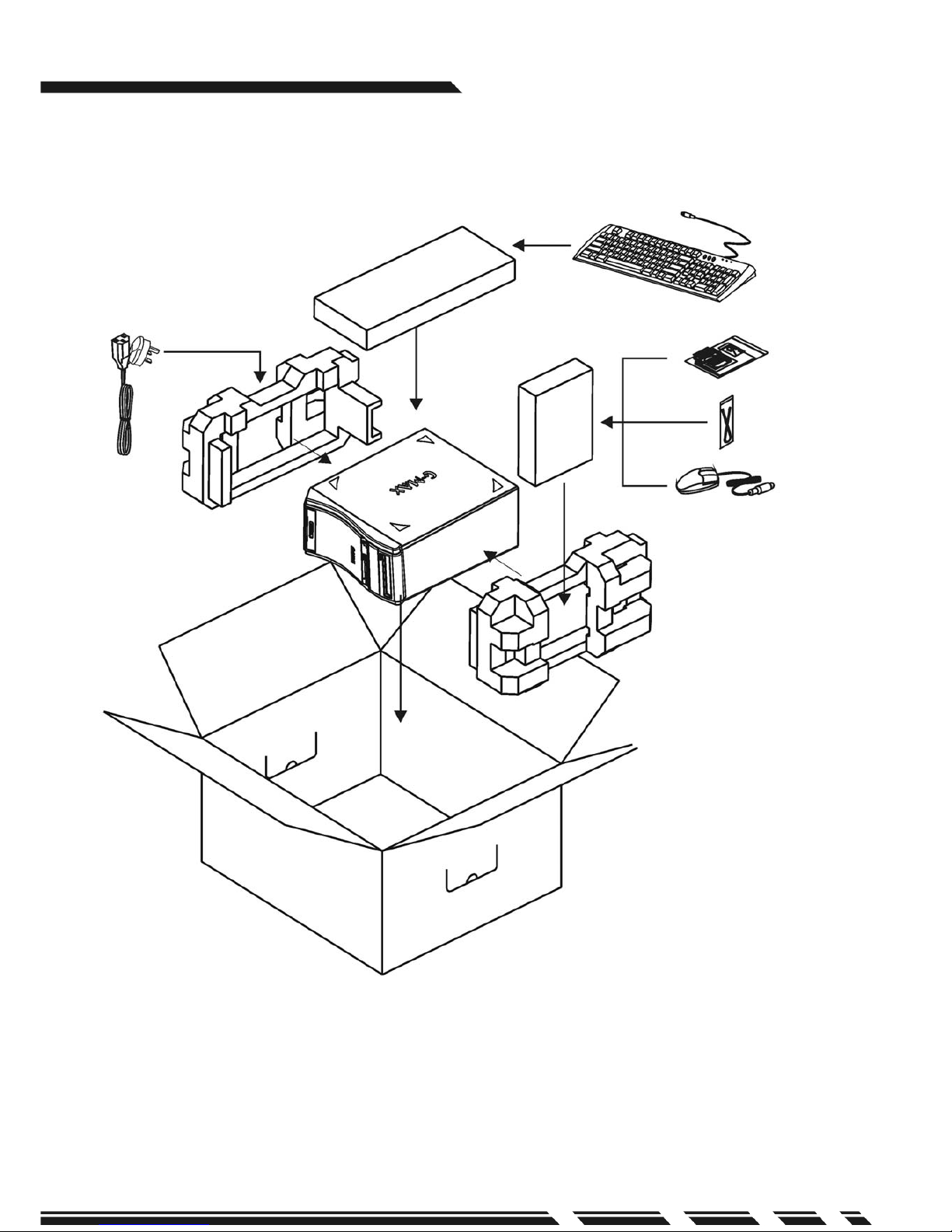

Software and

Manuals

Power Cord

Mouse

(

tion

)

Keyboard

(Option)

Cables

 Items included in the package

G-MAXTM Micro ATX Series User’s Manual

P. E 4

I. Chassis

ŜDimension 405(D)mm x 180(W)mm x 352(H)mm

This chassis is made with material complied with UL specification and designed for

space saving and easy open with thumbscrew. There are two 5.25” and three 3.5”

drive bays. This chassis complies with corresponding EMC and safety regulations.

II. Motherboard

See Motherboard Manual for details.

III. Power Supply

The ATX switching power supply included with this product supports soft off function.

Hence, the system can be shut down automatically. Default input voltage setting is

230V.

Note: Please check the voltage requirements in the country you reside before

turning on the PC.

IV. System Component Installation

ŜRemove the screws of the side cover of the chassis, push backward to dismount the

cover.

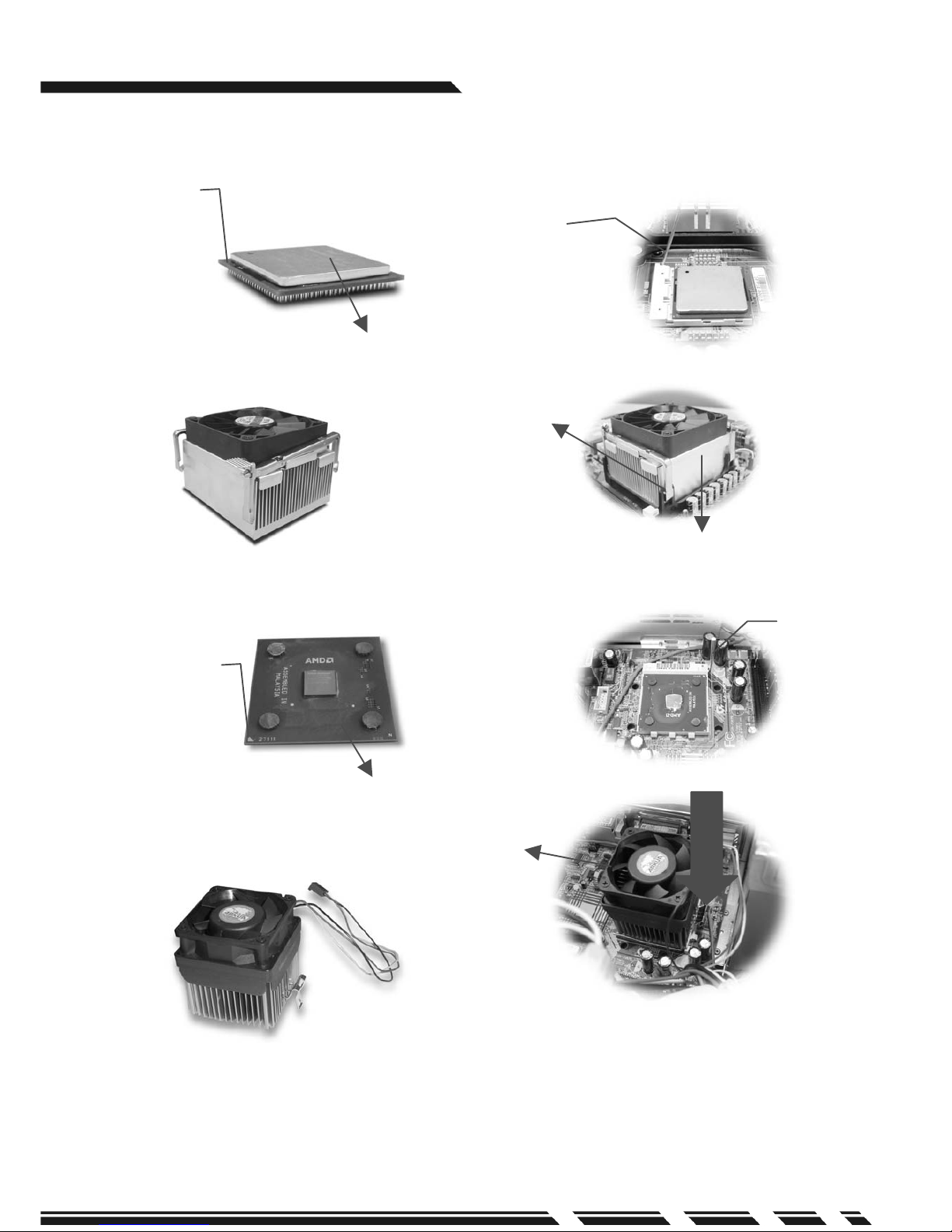

ŜCPU

1. Insert the CPU on the CPU socket. Before installation, lift up the lever and align the

cut of the CPU with the marking on the socket.

2. Pull down the lever to lock the CPU on the socket after installation. When you are

installing the heat sink, please make sure to keep the heat sink tight against the

CPU to obtain the best cooling result.

3. Apply the thermal compound to one side of the template, and ensure the compound

is spread evenly across the template and repeat if necessary.

Remove front panel

G-MAXTM Micro ATX Series User’s Manual

P. E 5

Install fan on to

of CPU

Click the heat sink

locker to the

motherboard

retention module.

4. Connect fan power connector to the CPU FAN connector on the motherboard.

A. For Intel

Pentium



4 processors

B. For AMD AlthlonTM and AMD DuronTM processors

Set CPU clock frequency from BIOS Setup, see Motherboard Manual for details.

Leve

CPU Pin

Apply thermal grease to the top

of the CPU properly.

Lever

CPU Pin

Apply thermal grease to the top

of the CPU properly.

Install fan on top o

CPU

Click the heat sink locker to the

motherboard retention module.

G-MAXTM Micro ATX Series User’s Manual

P. E 6

Locks: make sure they hook up the notches at sides of module

ŜMemory

In this section we will guide you to install memory module. First, make sure the

position notches at the bottom of the module should align to the pins on the module

sockets on the motherboard, then push the module downward until the locks hook

up notches at sides.

Position notches. Make sure that the notches should align the pin on memory

slot on the motherboard

Notches at sides

of module

DDR

Notches at sides

of module

Position notches. Make sure that the notches should align the pin on memory

slot on the motherboard

SDRAM

G-MAXTM Micro ATX Series User’s Manual

P. E 7

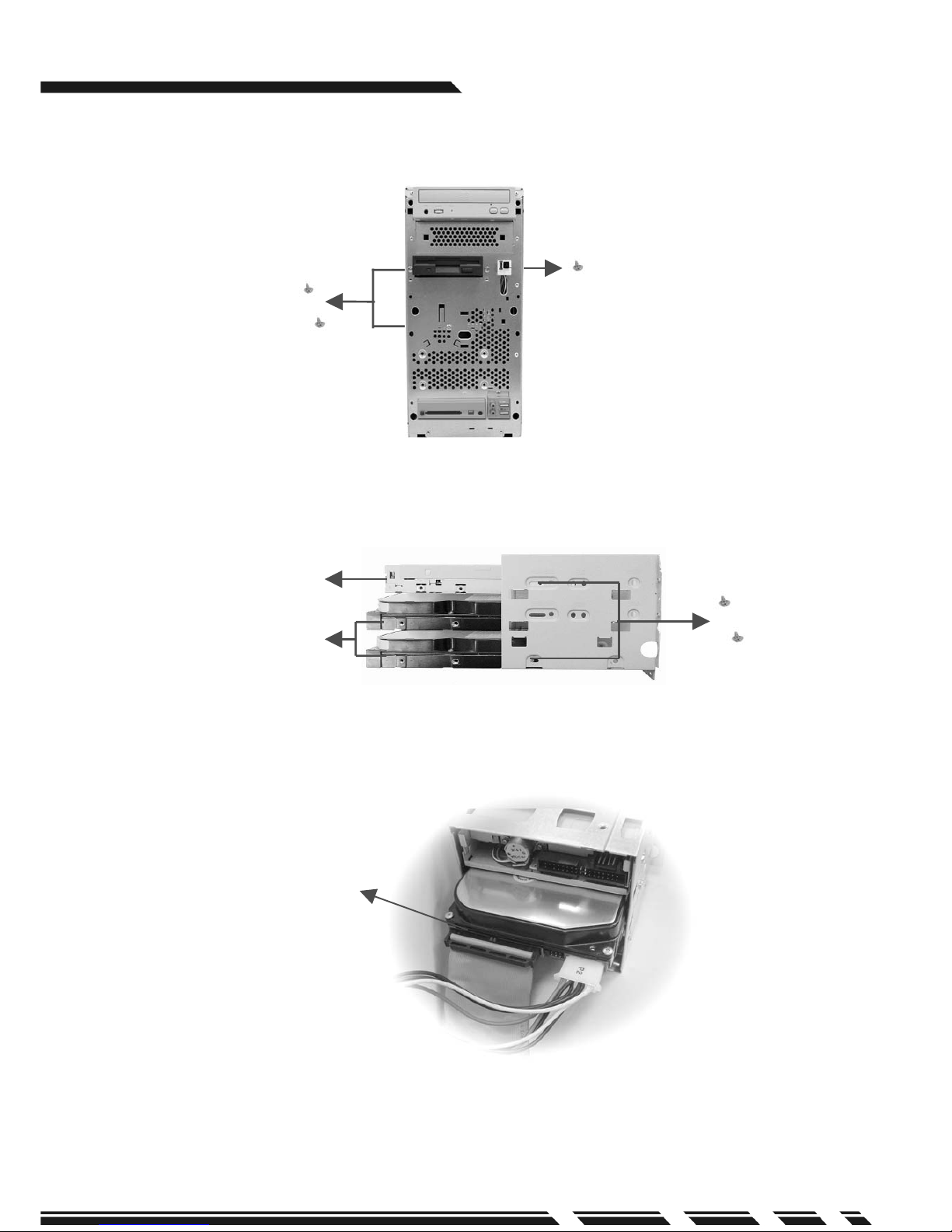

ŜHard Drive Installation

1.Remove 3 screws in front of the hard drive chassis and dismount chassis.

2.The chassis accommodates up to three 3.5” storage devices. Select a place and fix

the hard drive with screws.

3.Connect the IDE cable included in the accessory box to the connector on the hard

drive. Make sure that the RED wire on the ribbon connects to PIN 1 of the hard drive.

Connect to hard drive

3.5”Floppy

Drive

Hard drives

G-MAXTM Micro ATX Series User’s Manual

P. E 8

4.Connect power connector to the hard drive.

5.Install chassis back to position after completing hard drive installation.

6.Connect the other end of the IDE connector to the IDE-1 bus on the motherboard.

HDD frame

G-MAXTM Micro ATX Series User’s Manual

P. E 9

7.Check all connections again.

Put back front panel

Put back side panel

G-MAXTM Micro ATX Series User’s Manual

P. E 1 0

V.System Installation and User’s Guide

ŜFront Panel

Floppy

Power Button

Power LED

HDD LED

CD-ROM Eject Button

CD-ROM Slot

Floppy Drive

Eject Button

Floppy LED

*LINE OUT

*MIC IN *USB Hub

*1394 Port

*PCMCIA Port

*PCMCIA Button *SPDIF

Notice!!

A. For those models with front audio module:

B. If you use microphone for recording, please insert it in

the Front Audio Port.

G-MAX

Micro ATX Front Audio Port

*LINE OUT

*MIC IN

*USB Hub
