Gigabyte Aorus FI32U Istruzioni per l'installazione

Product Identification

Marketing Name/Model Description

Gigabyte AORUS FI32U LCM 32"

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions for

the disassembly of FI32U products to remove components and materials requiring selective treatment.

Tools Required

Tools Description Toole size(if applicable)

Screwdriver PH2

Disassembly tool N/A

List the type and size of the tools that would typically be used to disassemble the FI32U to a point where components and

materials requiring selective treatment can be removed.

Product Disassembly Process

List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

Depending upon the complexity of the disassembly process, a graphic depicting the locations of items contained within

the product which require selective treatment (with descriptions and arrows identifying locations) can be inserted below:

Disassembly steps 1 - Disassemble the front and rear covers

Step 1-1. Step 1-2.

Unscrew the screw of the rear cover. Separation the rear cover on back side and pull around out

hook by disassembly tool.

start

Step 2.

Disassembly steps 2 - Separate the front and rear covers

You need to unplug the cables plugged into the main board connector before you can separate the front and rear covers.

1.Rear cover (page8~13) 2.Front cover (page14~23)

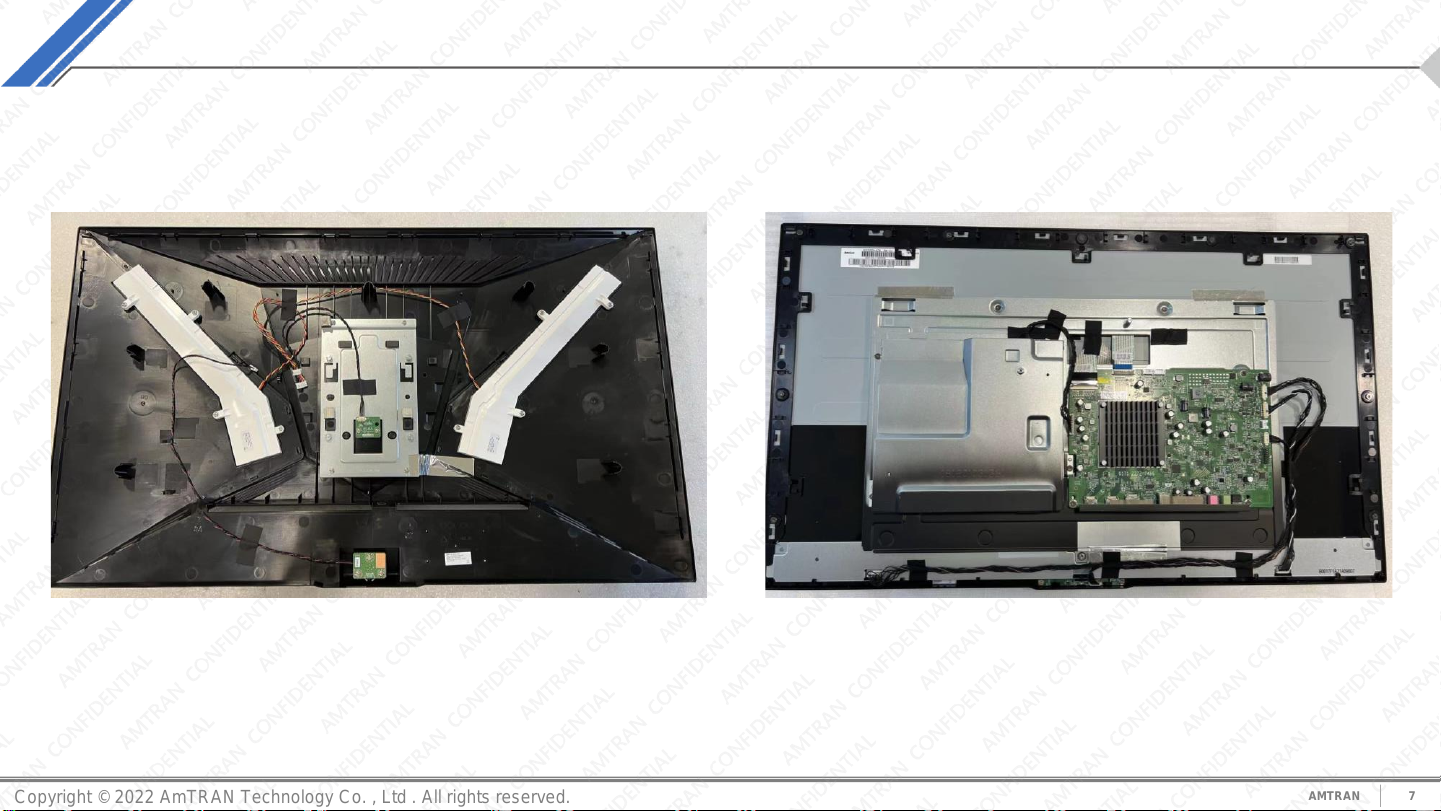

Disassembled into two parts

▼The following disassembly steps are divided into two parts (rear cover first) ▼

Step 3-1.

Step 3-2.

Rear cover disassembly steps 3 - Separate the PCBA in the rear cover

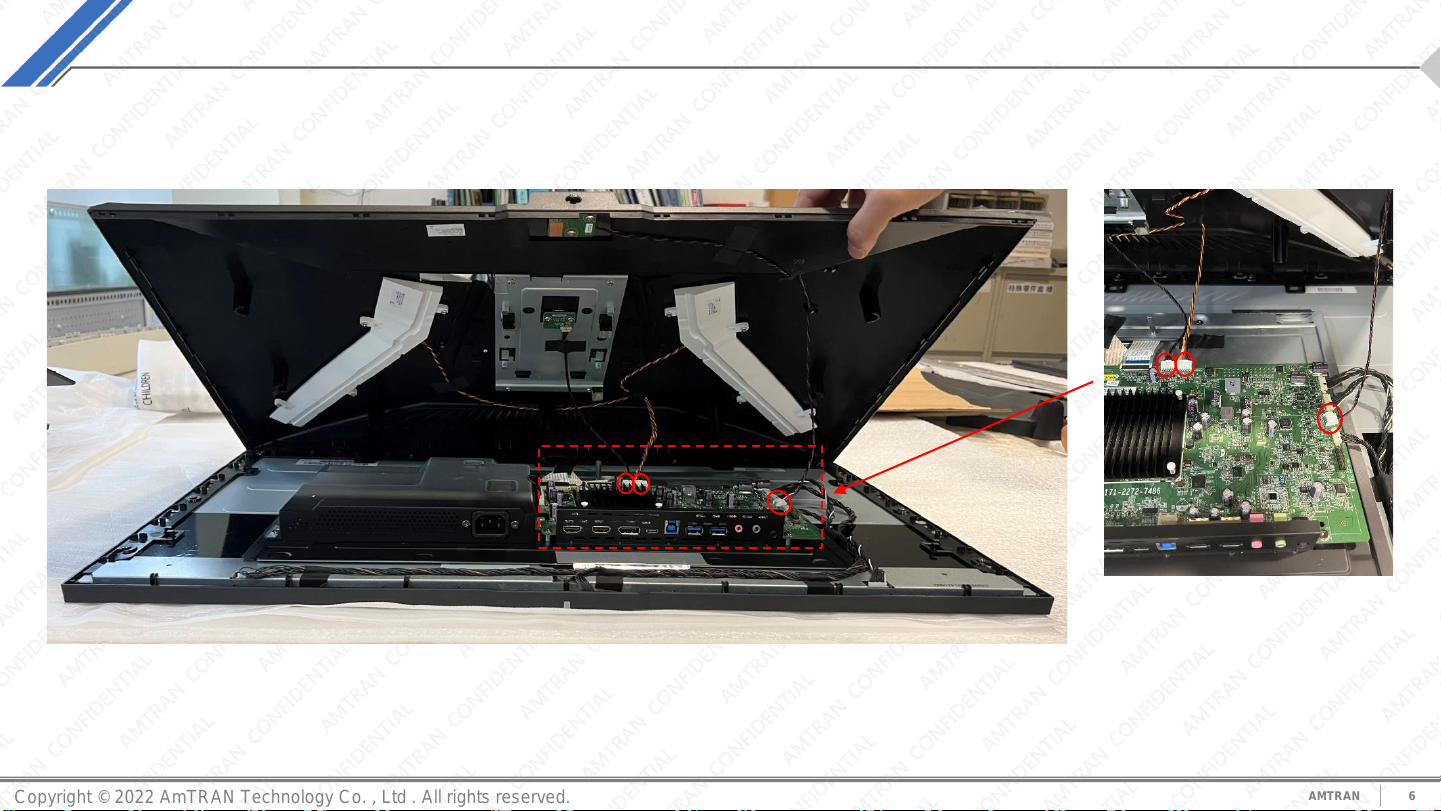

Remove the 3 black tapes.

Unscrew the 5 screws of the 2 PCBA.

Step 3-3.

Rear cover disassembly steps 3 - Separate the button cap on the button PCBA

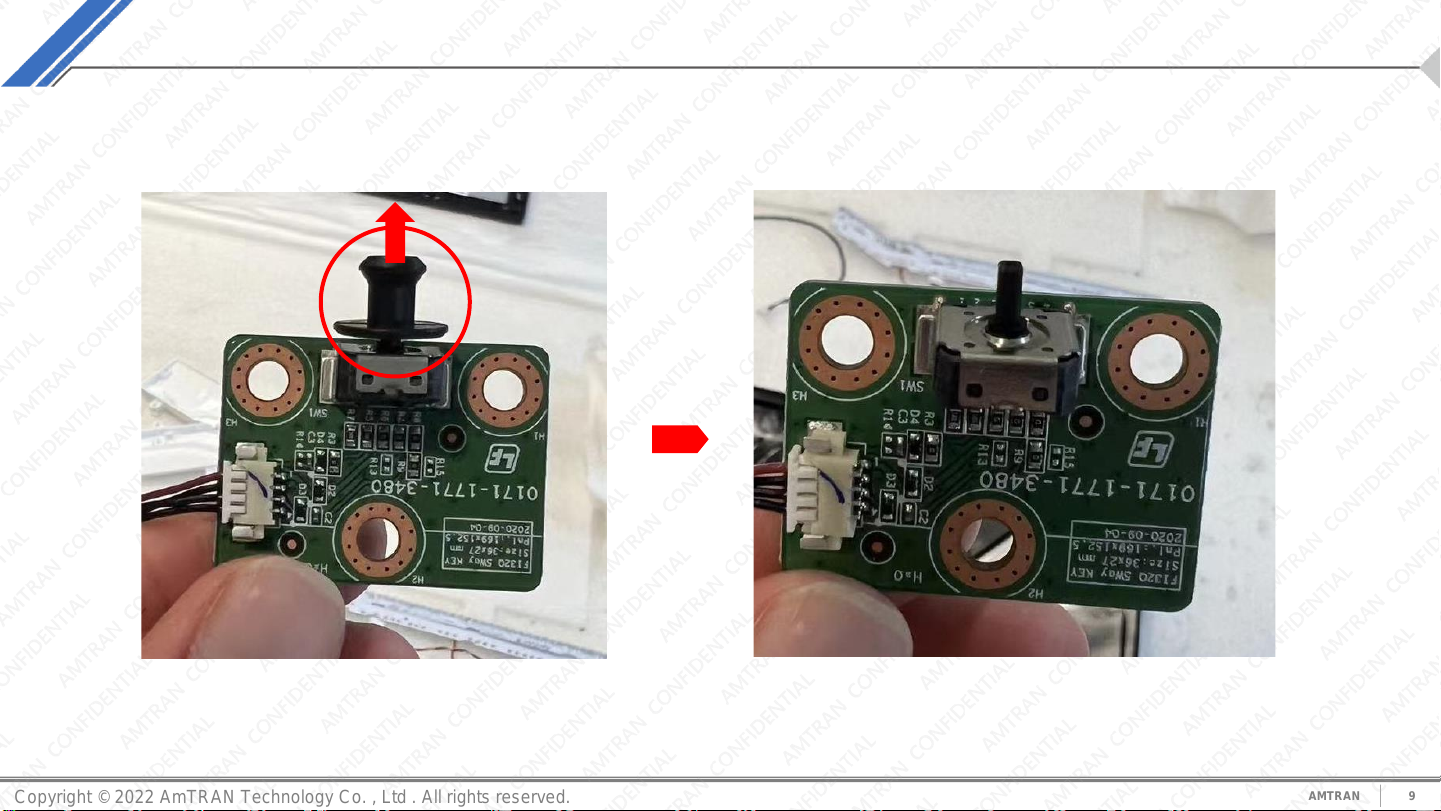

Remove button cap on the button PCBA .

Rear cover disassembly steps 4 - Separate the LED covers in the rear cover

Step 4-1. Remove the 2 black tapes.

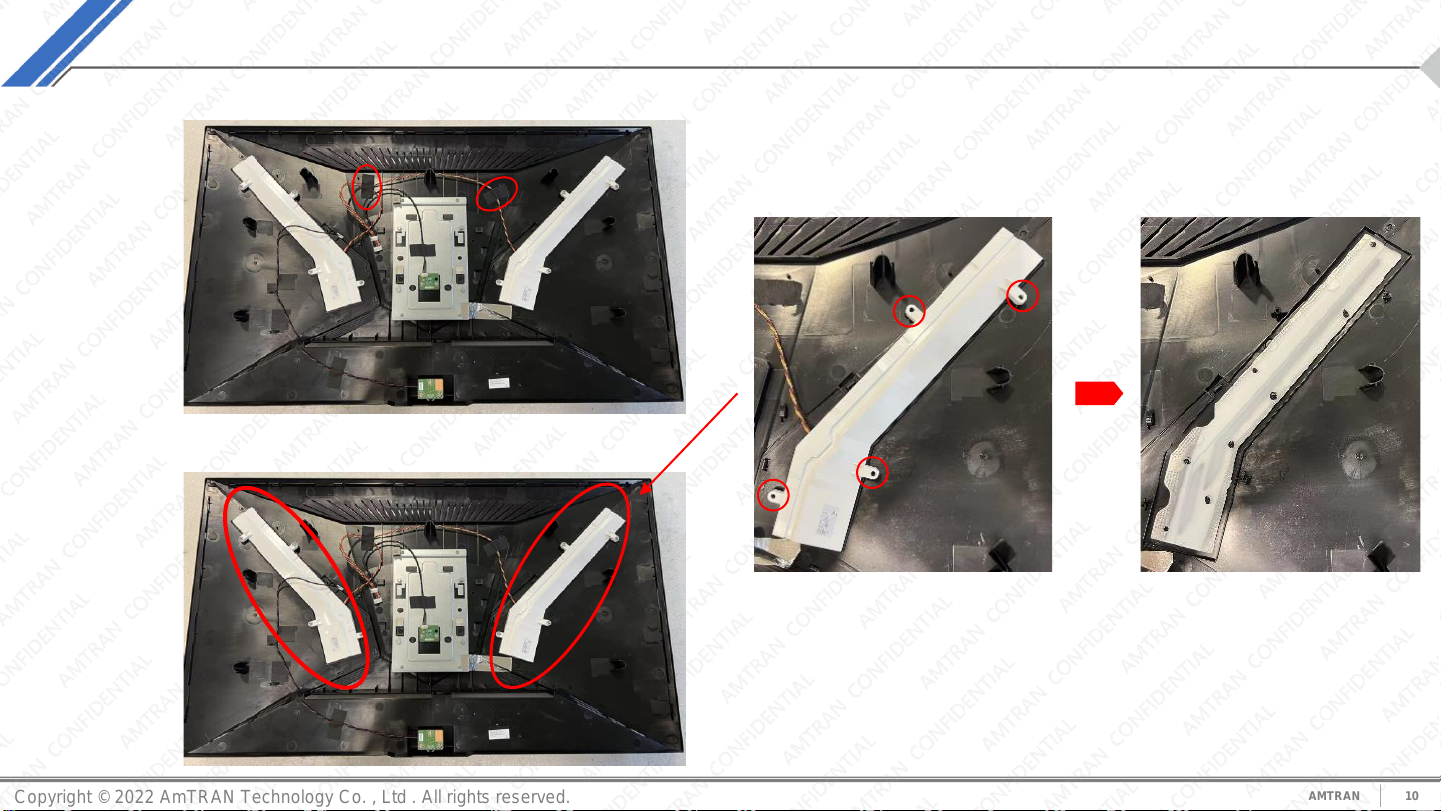

Step 4-2. Unscrew the 8 screws of the 2 LED covers.

Rear cover disassembly steps 4 - Separate the LED PCBA in the LED cover

Step 4-3. Remove the LED PCBA in the LED cover and unplug the 2 cables in the connector.
