Gigabyte GV-R13128D Manuale utente
Apr. 13, 2006
VGA Card
GV-R13128D
VGA Card
Apr. 13, 2006
GV-R13128D

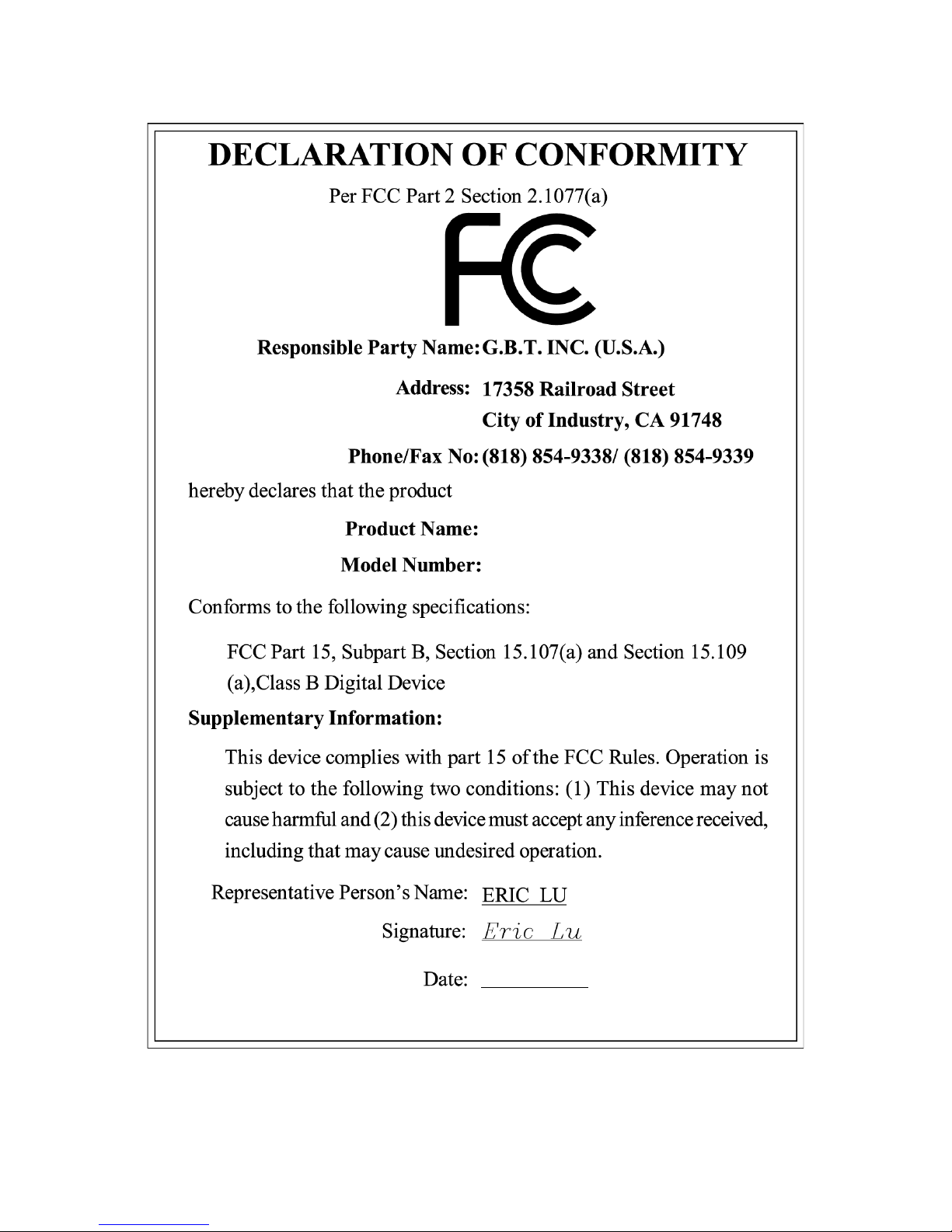

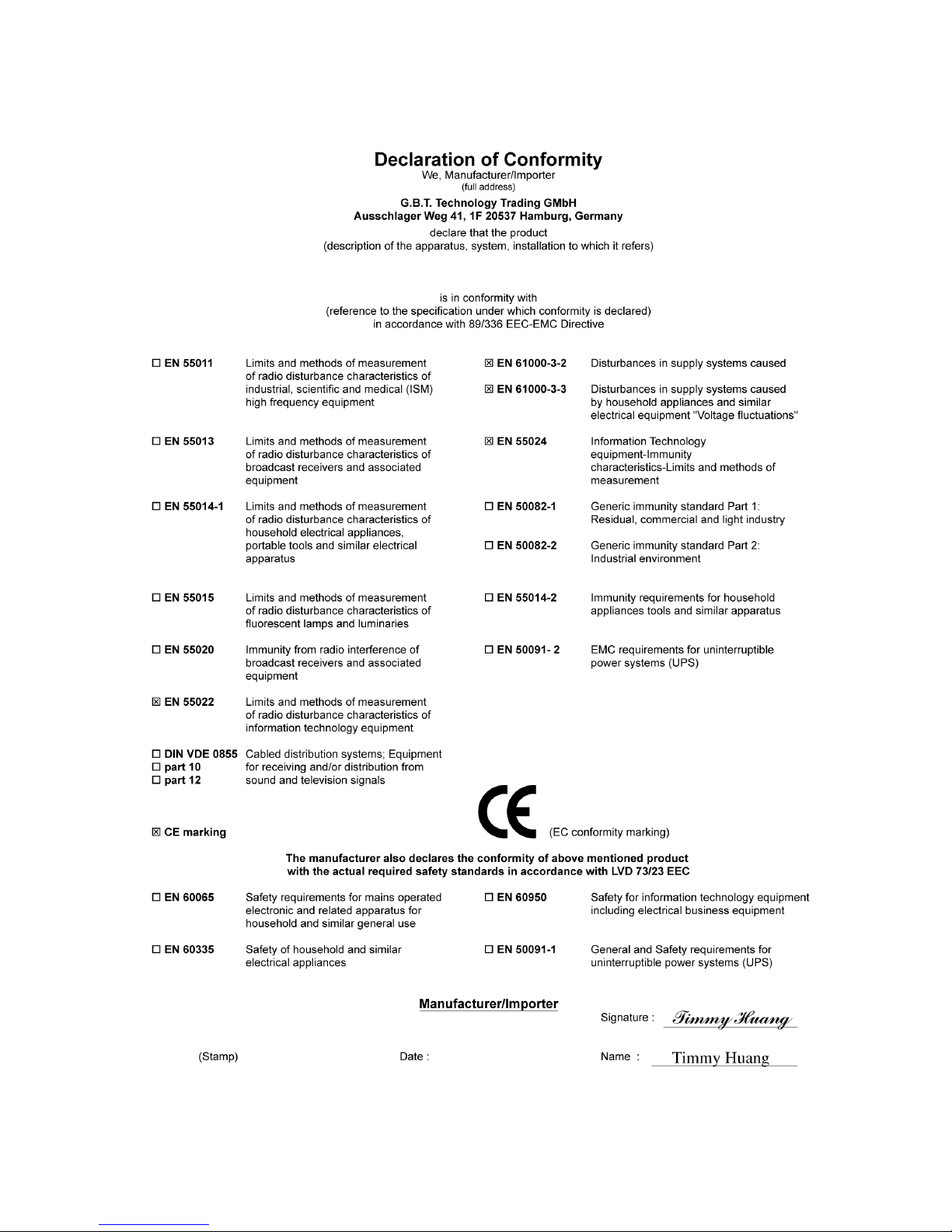

Copyright
© 2006 GIGABYTE TECHNOLOGY CO., LTD
Copyright by GIGA-BYTE TECHNOLOGY CO., LTD.("GBT"). No part of this manual may be reproduced or transmitted in any from
without the expressed, written permission of GBT.
Trademarks
Third-party brands and names are the property of their respective owners.
Notice
Please do not remove any labels on VGA card, this may void the warranty of this VGA card
Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.
The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a
commitment to update the information contained herein.
GV-R13128D
Radeon X1300 Graphics Accelerator
User's Manual
Rev. 101
12MD-R13128D-101R
* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste
and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!
* The WEEE marking applies only in European Union's member states.
- 2 -
English
GV-R13128D Graphics Accelerator
Table of Contents
1. Introduction ......................................................................................... 3
1.1. Features ..................................................................................................... 3
1.2. Minimum System Requirement ..................................................................... 3
2. Hardware Installation ........................................................................... 4
2.1. Board Layout .............................................................................................. 4
2.2. Hardware Installation ................................................................................... 6
3. Software Installation ............................................................................ 9
3.1. Windows®XP Driver and Utilities Installation ................................................. 9
3.1.1. Operating System Requirement ................................................................................... 9
3.1.2. DirectX Installation ........................................................................................................ 10
3.1.3. Driver Installation ........................................................................................................... 11
3.1.4. Utilities on Driver CD ................................................................................................... 13
3.1.5. Taskbar Icon ................................................................................................................. 16
3.1.6. Display Properties pages ............................................................................................ 19
3.2. Windows®2000 Driver Installation ............................................................. 34
4. Troubleshooting Tips ........................................................................ 35
5. Appendix .......................................................................................... 36
5.1. How to Reflash the BIOS ........................................................................... 36
5.1.1. Reflash BIOS in MS-DOS mode ................................................................................. 36
5.1.2. Reflash BIOS in Windows mode ................................................................................ 36
5.2. Resolutions and Color Depth Table (In Windows®XP) ............................... 37
Introduction- 3 -
English
1. Introduction
1.1. Features
•Powered by ATI Radeon X1300 Visual Processing Unit (VPU)
•Supports the new AGP 8X standard
•Integrated with 128MB GDDR2 memory
•Supports DirectX 9.0C
•Supports AV / S-Video and HDTV output
•Supports TV-Out connector
•Supports DVI-I connector
1.2. Minimum System Requirement
•IBM®or 100% PC compatible with Pentium®III 650MHz or AMD Athlon 650MHz
class processor or higher
•One availableAGP 3.0 compliant slot or better
•Operating Systems Windows®2000 / Windows®XP
•64MB system memory
•50MB of available disk space for full installation
•CD-ROM or DVD-ROM drive
- 4 -
English
GV-R13128D Graphics Accelerator
2. Hardware Installation

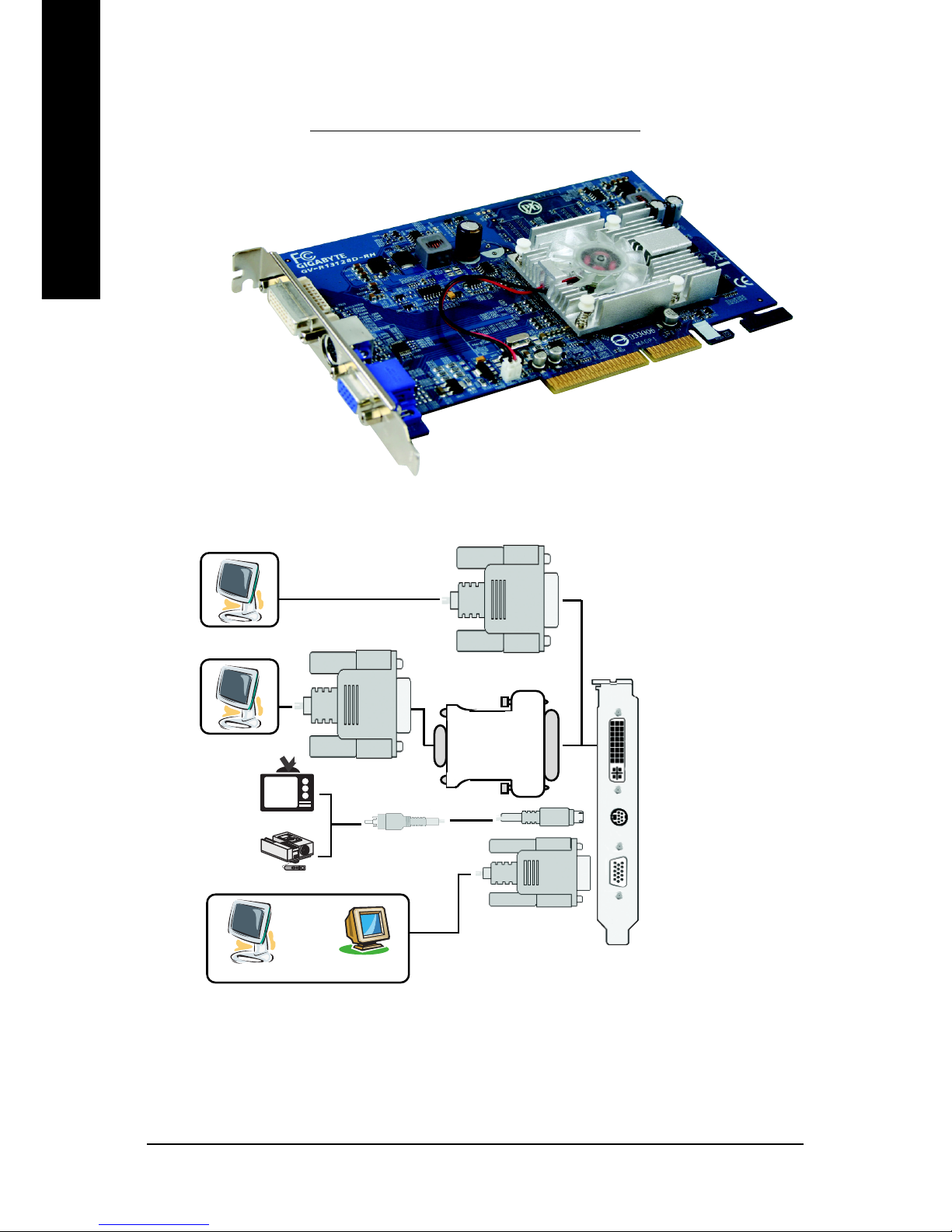

2.1. Board Layout
DVI-I Connector
TV-Out
VGA Monitor Connector
(15-pin)
Analog LCD Monitor
Analog LCD Monitor
Digital LCD Monitor
TV-Out (S-Video)
VGA Monitor Connector
(15-pin)
DVI-I Connector
NTSC / PAL TV
Projector
Analog Monitor
OR VGA Output
AV Output
DVI Output
DVI-I to D-Sub
adapter
VGA Output
Hardware Installation
- 5 -
English
Expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow some
precautions whenever you work on your computer.
1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not have
one, touch both of your hands to a safely grounded object or to a metal object, such as
the power supply case.
3. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
The card contains sensitive electric components, which can be easily damaged by static
electricity, so the card should be left in its original packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The operator
should be wearing an anti-static wristband, grounded at the same point as the anti-static
mat.
Inspect the card carton for obvious damage. Shipping and handling may cause damage
to your card. Be sure there are no shipping and handling damages on the card before
proceeding.
DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON
THE CARD.
In order to ensure your graphics card working correctly, please use official
Gigabyte BIOS only. Use none official Gigabyte BIOS might cause problem
on the graphics card.
- 6 -
English
GV-R13128D Graphics Accelerator

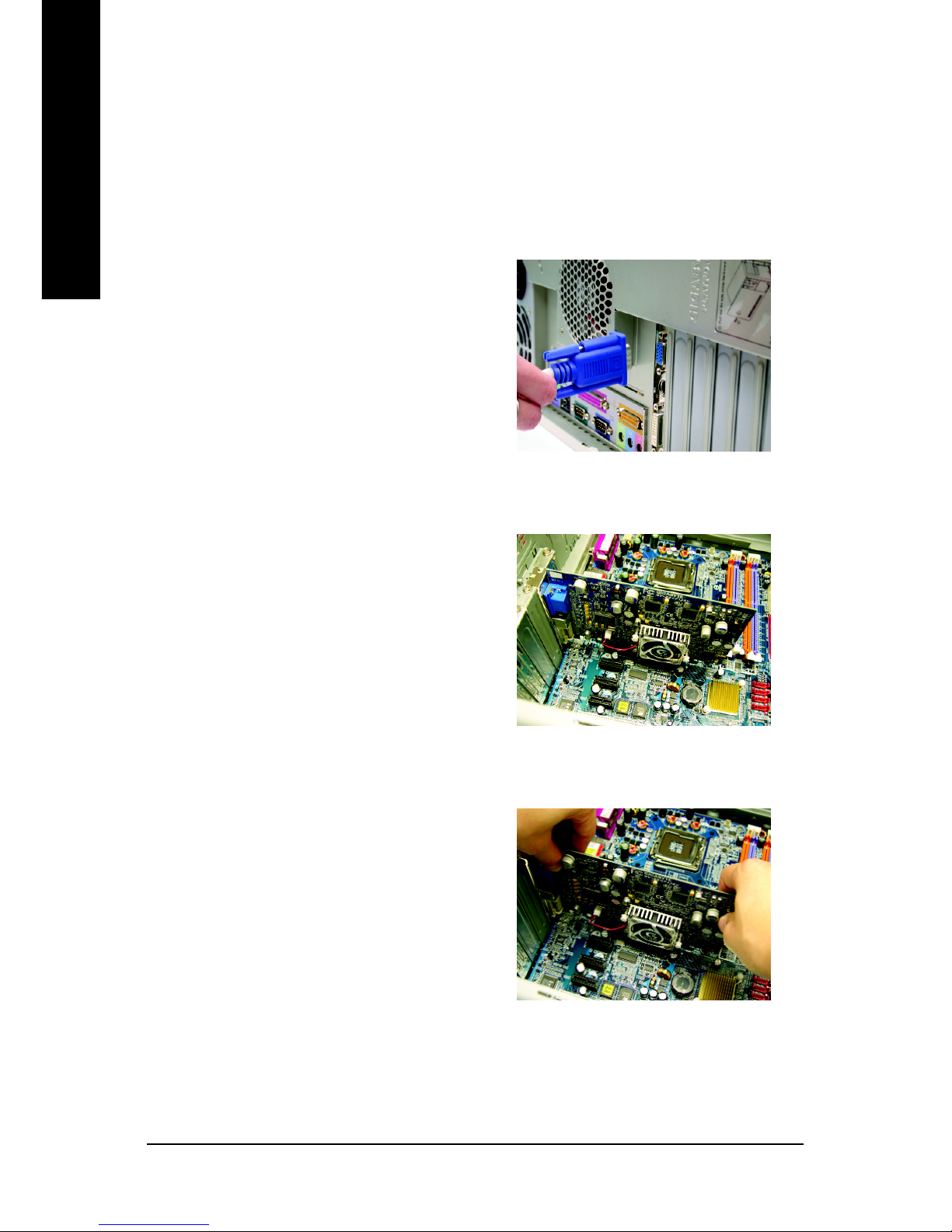

2.2. Hardware installation
Installing Your graphics card.
Now that you have prepared your computer, you are ready to install your graphics accelerator
card.
To remove the existing graphics card:
1. Power off the computer and monitor, then
disconnect the display cable from the back
of your computer.
2. Remove the computer cover. If necessary,
consult your computer's manual for help in
removing the cover.
3. Remove any existing graphics card from
your computer.
Or, if your computer has any on-board
graphics capability, you may need to disable
it on the motherboard. For more information,
please see you computer documentation.
Hardware Installation
- 7 -
English

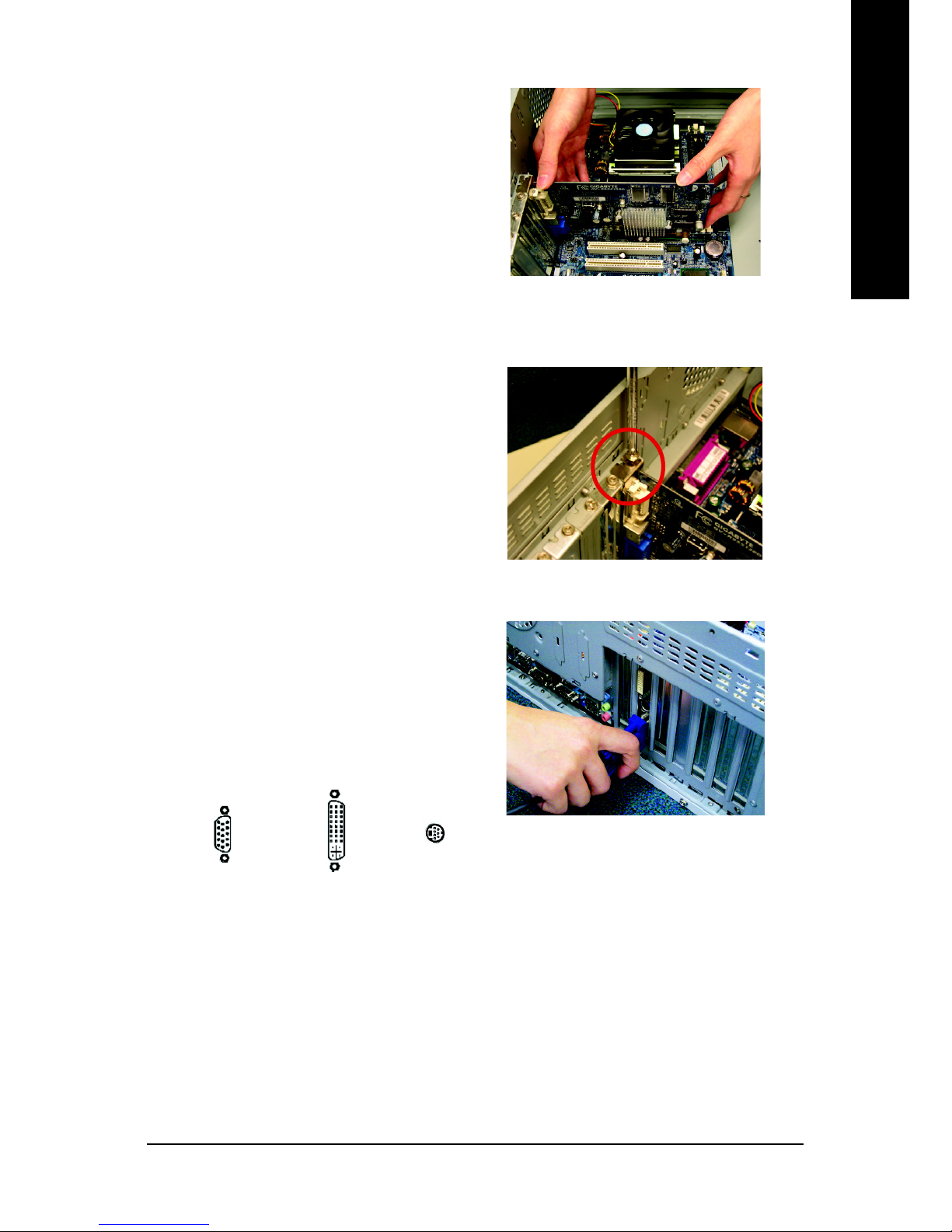

2. Replace the screws to fasten the card in
place, and replace the computer cover.
You are now ready to proceed with the installation of the graphics card driver. Please
refer to next chapter for detailed instructions.
To TV/VCR
To VGA Monitor To Flat Panel Display
To install your new graphics card:
1. Locate the AGP slot. If necessary, remove
the metal cover from this slot; then align your
graphics card with theAGP slot, and press it
in firmly until it is fully seated.
* Please make sure that the gold edge connectors of the graphics card is securely inserted.
3. Plug the display cable into your card;
then turn on the computer and monitor.
- 8 -
English
GV-R13128D Graphics Accelerator

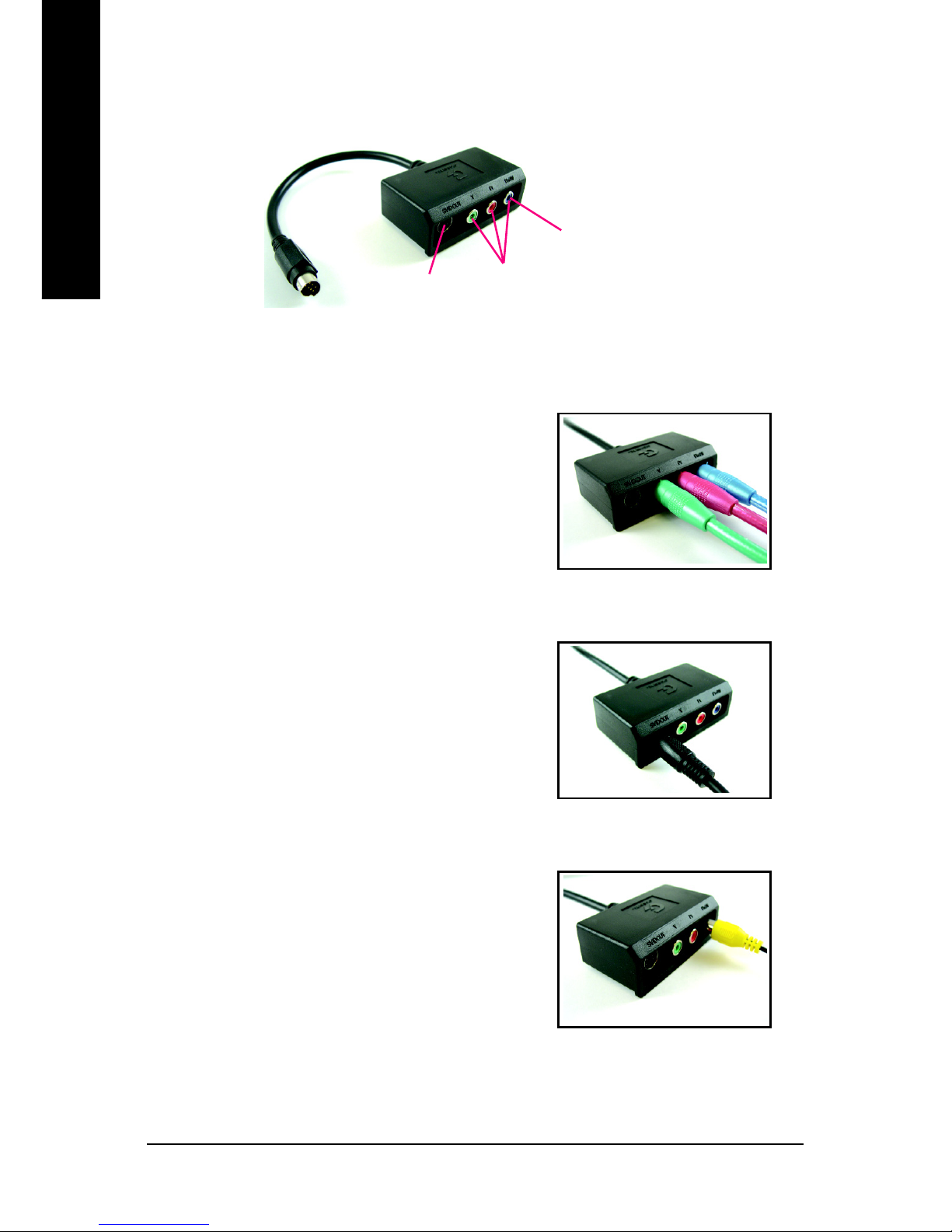

GIGABYTE Component Video Adapter for ATI Graphics Cards
(1) Connecting HDTV
Connect your HDTV cables to the component video
adapter according to the corresponding color. (Y= Green,
Pr= Red, Pb= Blue)
(2) Connecting S-Video
If your TV has a S-Video connection, connect the S-
Video cable from your TV to the S-Video Out port on the
adapter.
(3) Connecting AV Output
If your TV has Composite video connection, you can
connect the RCA cable from your TV to the AV Out port
on the adapter.
Connect to the TV-
Out port on the
graphics card.
S-Video Out HDTV Component
(Y+Pr+Pb)
AV Out
