Gigaset Maxwell 10 – Installation

3

Template A4, Version 1, 03.04.2012

Gigaset Maxwell 10 – Installation

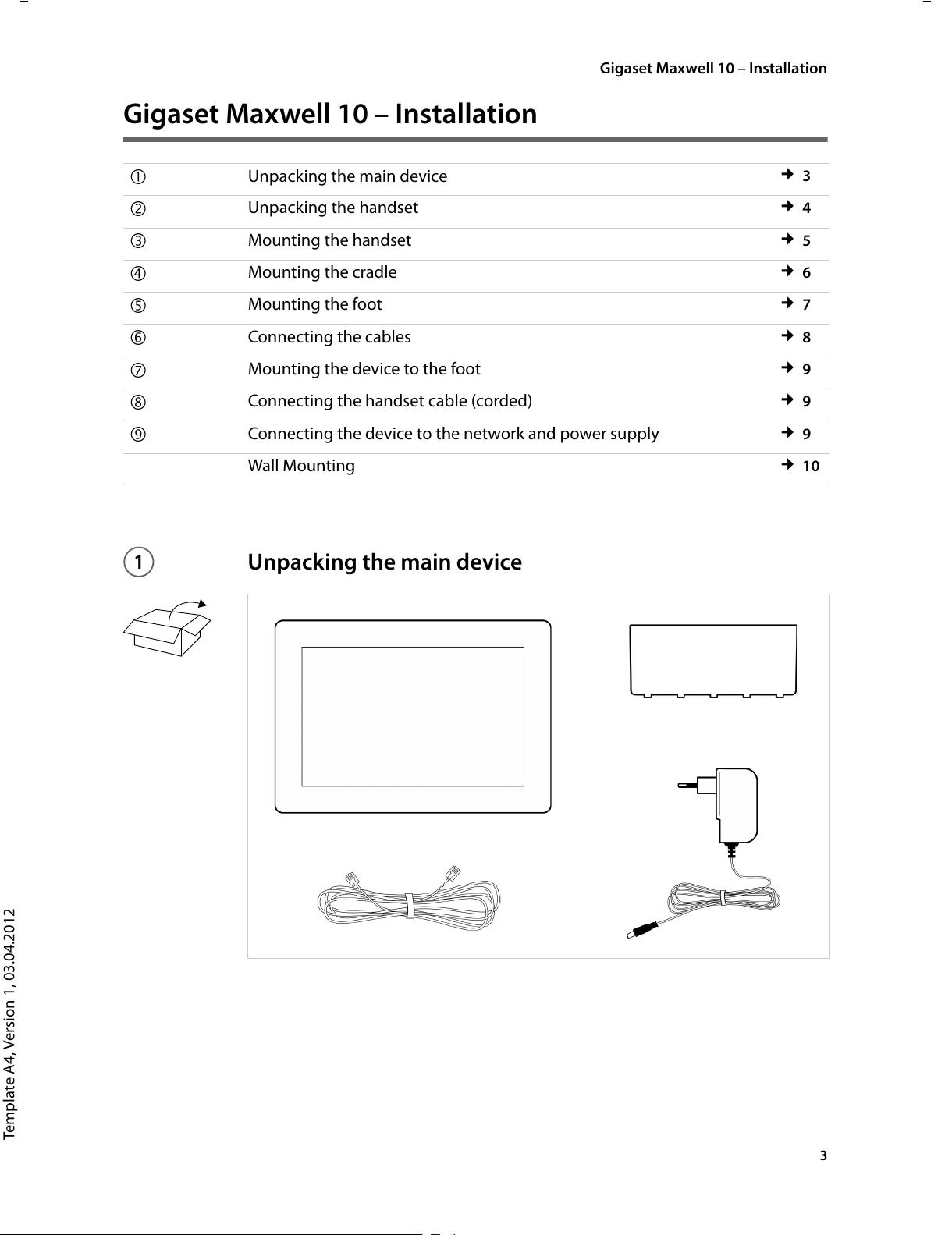

Unpacking the main device

1Unpacking the main device

£

3

2Unpacking the handset

£

4

3Mounting the handset

£

5

4Mounting the cradle

£

6

5Mounting the foot

£

7

6Connecting the cables

£

8

7Mounting the device to the foot

£

9

8Connecting the handset cable (corded)

£

9

9Connecting the device to the network and power supply

£

9

Wall Mounting

£

10

1

All manuals and user guides at all-guides.com

4

Gigaset Maxwell 10 – Installation

Maxwell / en / A31008-N4001-R100-1-X119 / installation.fm / 18.12.2013

Template A4, Version 1, 03.04.2012

Unpacking the handset

Corded

DECT

2

All manuals and user guides at all-guides.com

Maxwell / en / A31008-N4001-R100-1-X119 / installation.fm / 18.12.2013

Gigaset Maxwell 10 – Installation

5

Template A4, Version 1, 03.04.2012

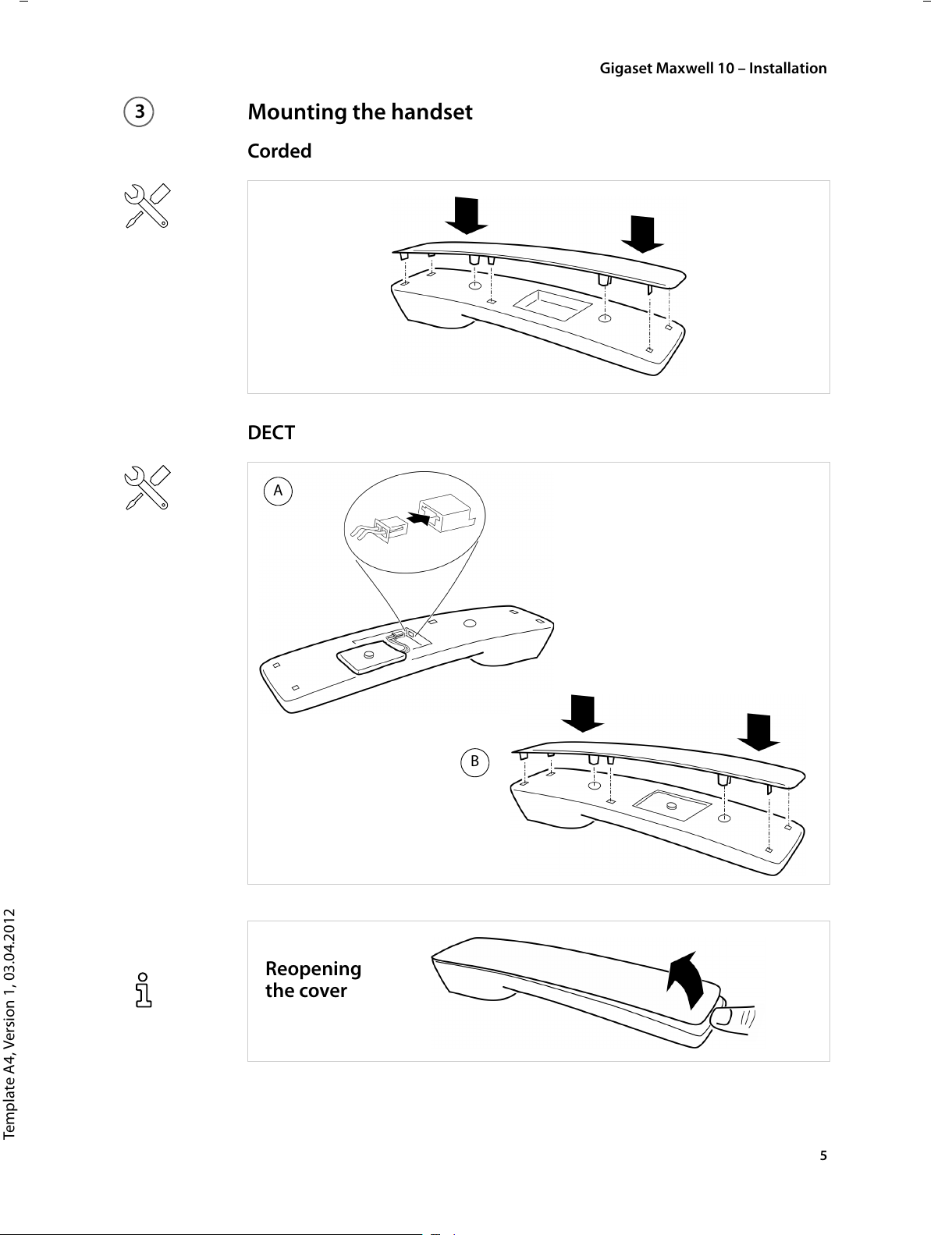

Mounting the handset

Corded

DECT

3

A

B

Reopening

the cover

All manuals and user guides at all-guides.com

6

Gigaset Maxwell 10 – Installation

Maxwell / en / A31008-N4001-R100-1-X119 / installation.fm / 18.12.2013

Template A4, Version 1, 03.04.2012

Mounting the cradle

4

A

or

2,5 mm

B

D

C

All manuals and user guides at all-guides.com

all-guides.com

Maxwell / en / A31008-N4001-R100-1-X119 / installation.fm / 18.12.2013

Gigaset Maxwell 10 – Installation

7

Template A4, Version 1, 03.04.2012

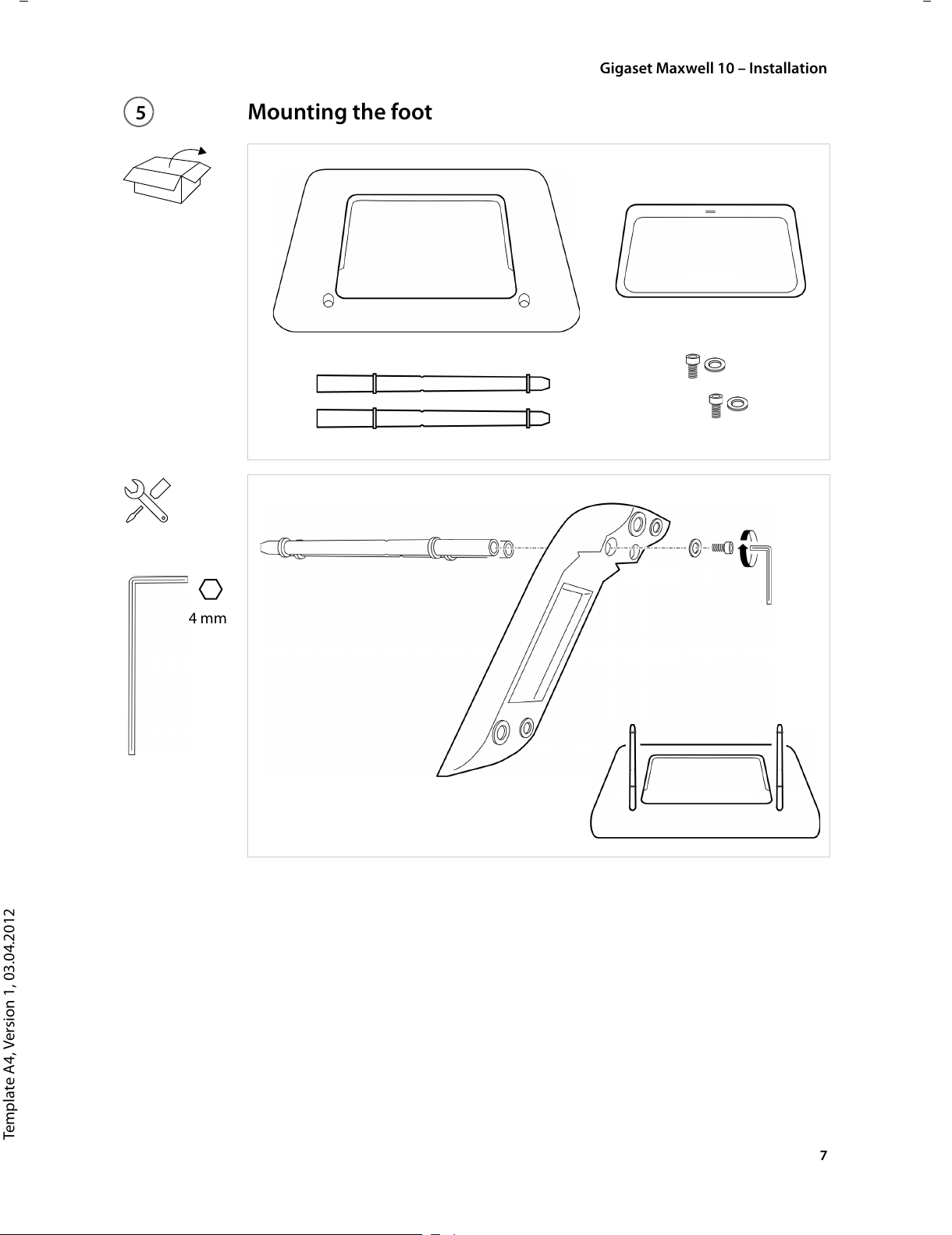

Mounting the foot

5

4 mm

All manuals and user guides at all-guides.com

8

Gigaset Maxwell 10 – Installation

Maxwell / en / A31008-N4001-R100-1-X119 / installation.fm / 18.12.2013

Template A4, Version 1, 03.04.2012

Connecting the cables

6

A

B

All manuals and user guides at all-guides.com

Maxwell / en / A31008-N4001-R100-1-X119 / installation.fm / 18.12.2013

Gigaset Maxwell 10 – Installation

9

Template A4, Version 1, 03.04.2012

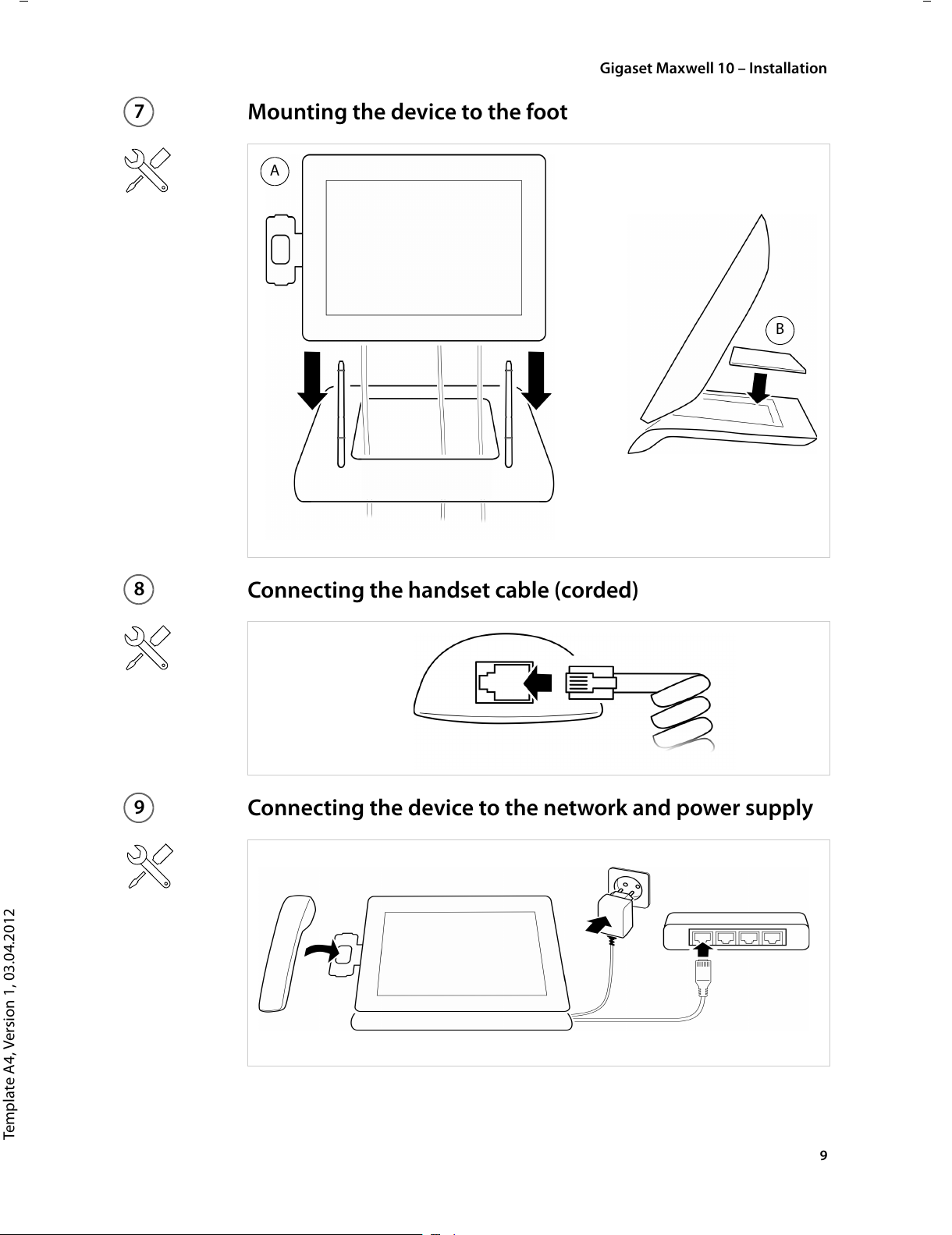

Mounting the device to the foot

Connecting the handset cable (corded)

Connecting the device to the network and power supply

7

A

B

8

9

All manuals and user guides at all-guides.com

10

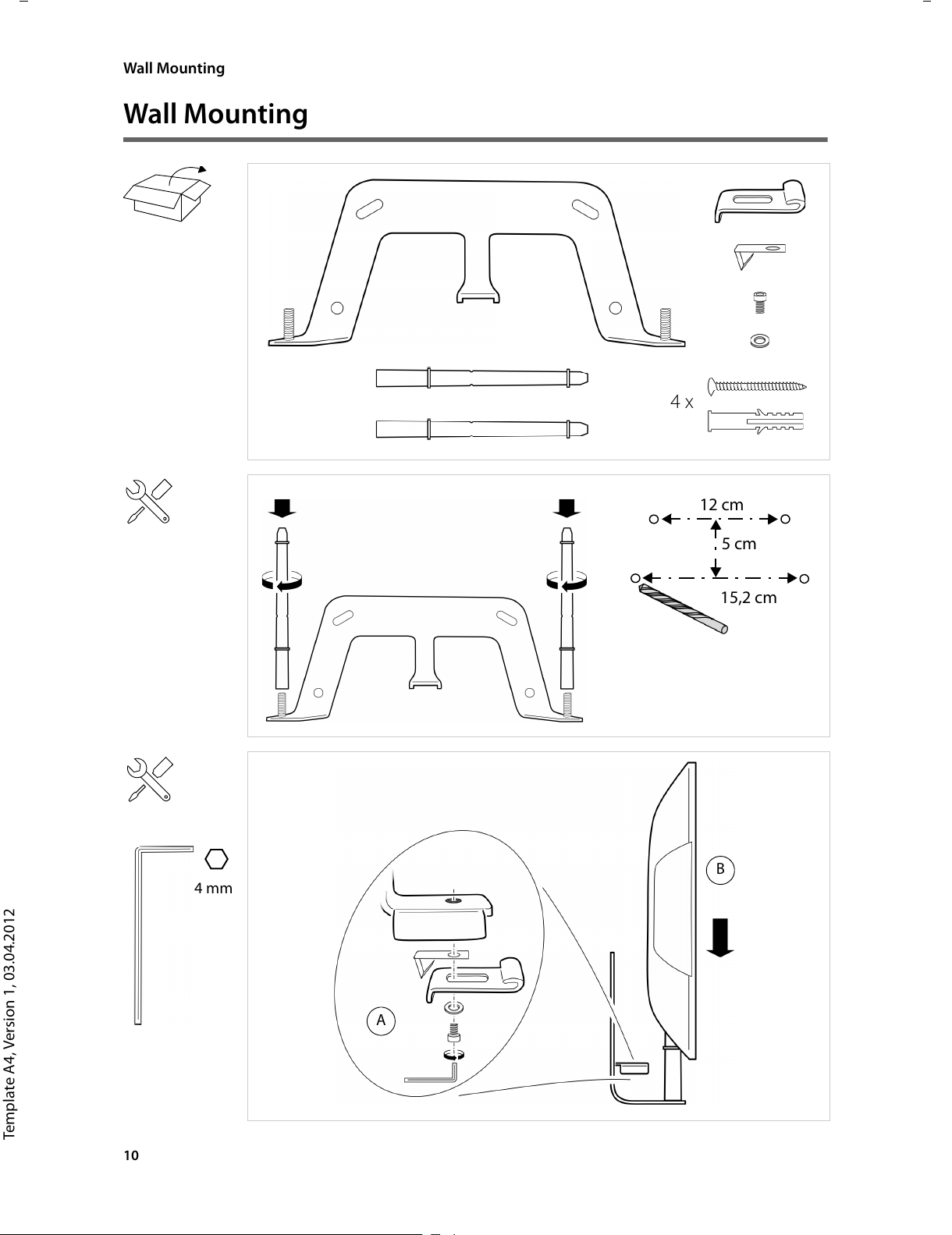

Wall Mounting

Maxwell / en / A31008-N4001-R100-1-X119 / installation.fm / 18.12.2013

Template A4, Version 1, 03.04.2012

Wall Mounting

4 x

12 cm

5 cm

15,2 cm

4 mm

A

B

All manuals and user guides at all-guides.com
