GigaTera SUFA-H Manuale utente

SUFA-H

User Guide

LED Sports Flood Lighting

Document Revision – V2.2_E



Safety precautions

1. Electrical work must be performed by a qualified licensed electrician.

2. Disconnect or turn off power before installation or servicing.

3. Do not take apart or modify the product.

4. Do not drop the product or apply a strong impact to it.

5. The manufacturer or the seller do not bear liability for damage caused by inappropriate use or application.

6. Contact the manufacturer or the seller for inquiry when there is a problem with the product.

7. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.

8. The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.



If the external flexible cable or cord of this luminaire is damaged,

it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

User Guide

SUFA-H

LED Sports Flood Lighting

GigaTera Inc.

3, Dongtansandan 6-gil, Dongtan-myeon, Hwaseong-si, Gyeonggi-do, South Korea

Tel : +82-31-370-8800 / E-Mail : ledsales@gigateraled.com / Homepage : www.gigateraled.com

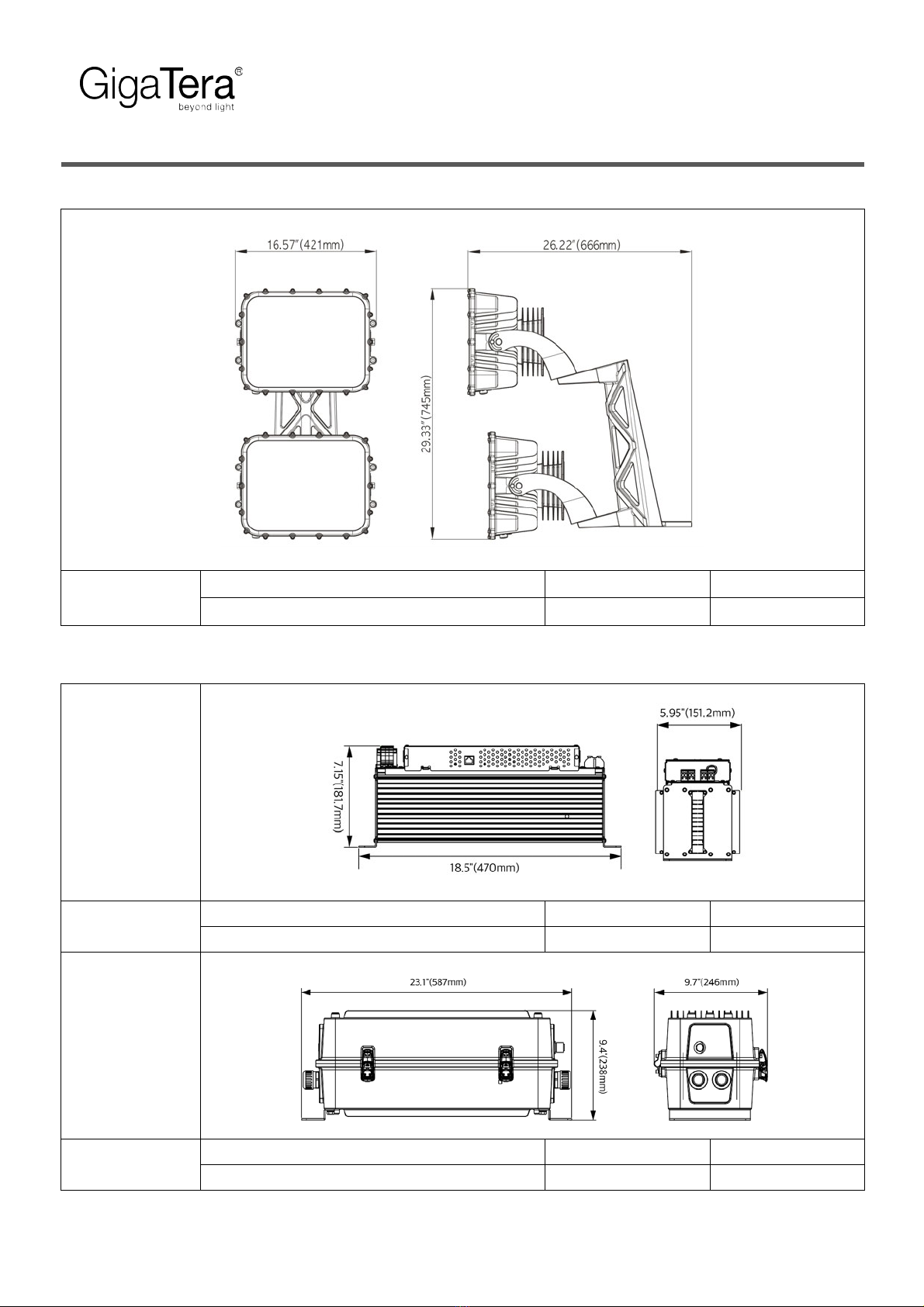

LED Module Dimension

inch (mm)

Size

16.6 x 29.3 x 26.2 (Inch)

Weight

57.3 lb / 26.0 Kg

421 x 745 x 666 (mm)

IP Rating

IP66

Driver Dimension

RED1K2



Size

18.5 x 6.0 x 7.2 (Inch)

Weight

25.3 lb / 13 Kg

470 x 151.2 x 181.7 (mm)

IP Rating

IP20

REDIPbox



Size

23.1 x 9.7 x 9.4 (Inch)

Weight (Exclude SMPS)

14.3 lb / 6.5 Kg

587 x 246 x 238 (mm)

IP Rating

IP66

User Guide

SUFA-H

LED Sports Flood Lighting

GigaTera Inc.

3, Dongtansandan 6-gil, Dongtan-myeon, Hwaseong-si, Gyeonggi-do, South Korea

Tel : +82-31-370-8800 / E-Mail : ledsales@gigateraled.com / Homepage : www.gigateraled.com

Installation Instruction



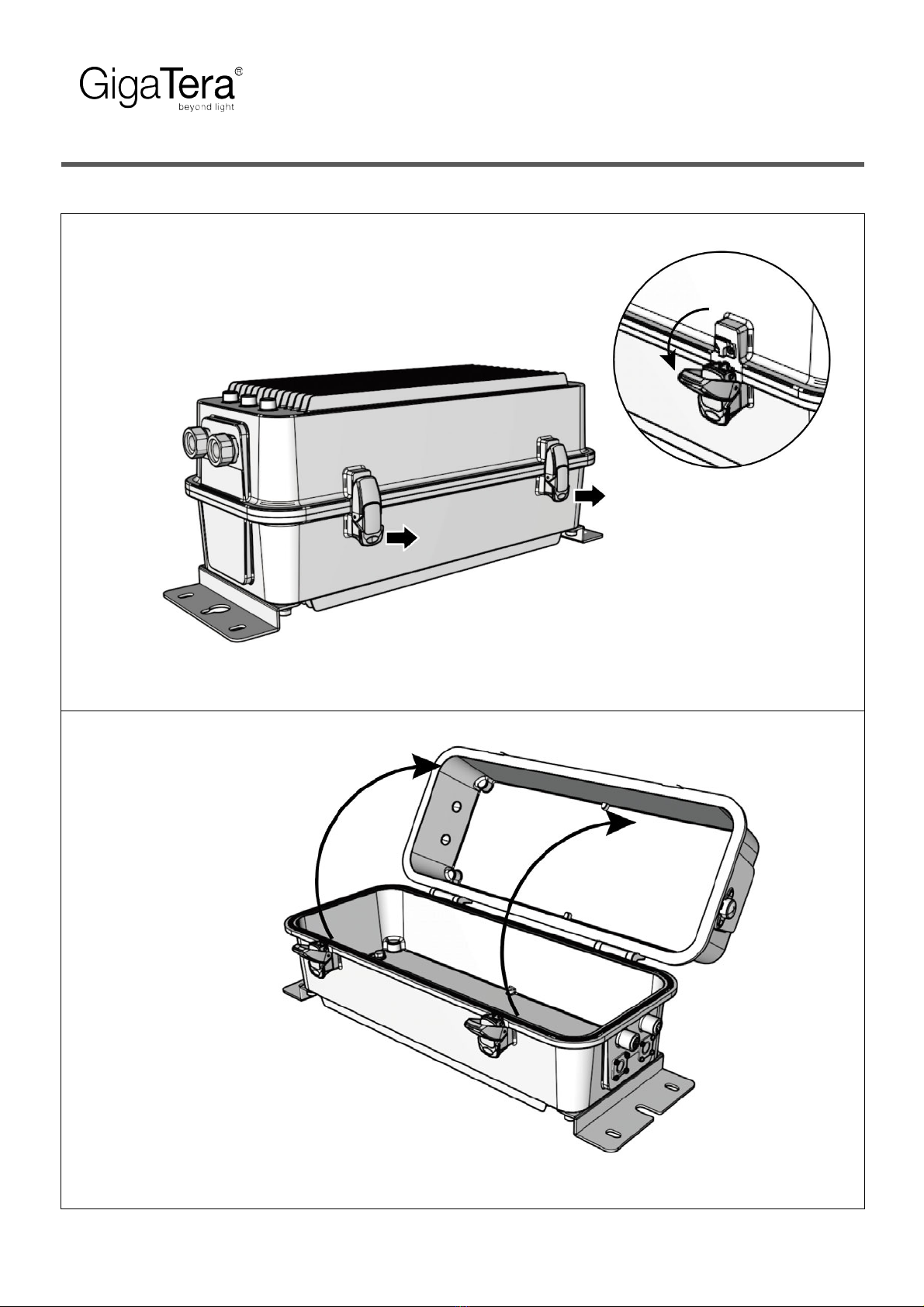

Unlock the latch of the IP Box



Open the case cover of the IP Box.

User Guide

SUFA-H

LED Sports Flood Lighting

GigaTera Inc.

3, Dongtansandan 6-gil, Dongtan-myeon, Hwaseong-si, Gyeonggi-do, South Korea

Tel : +82-31-370-8800 / E-Mail : ledsales@gigateraled.com / Homepage : www.gigateraled.com

Installation Instruction



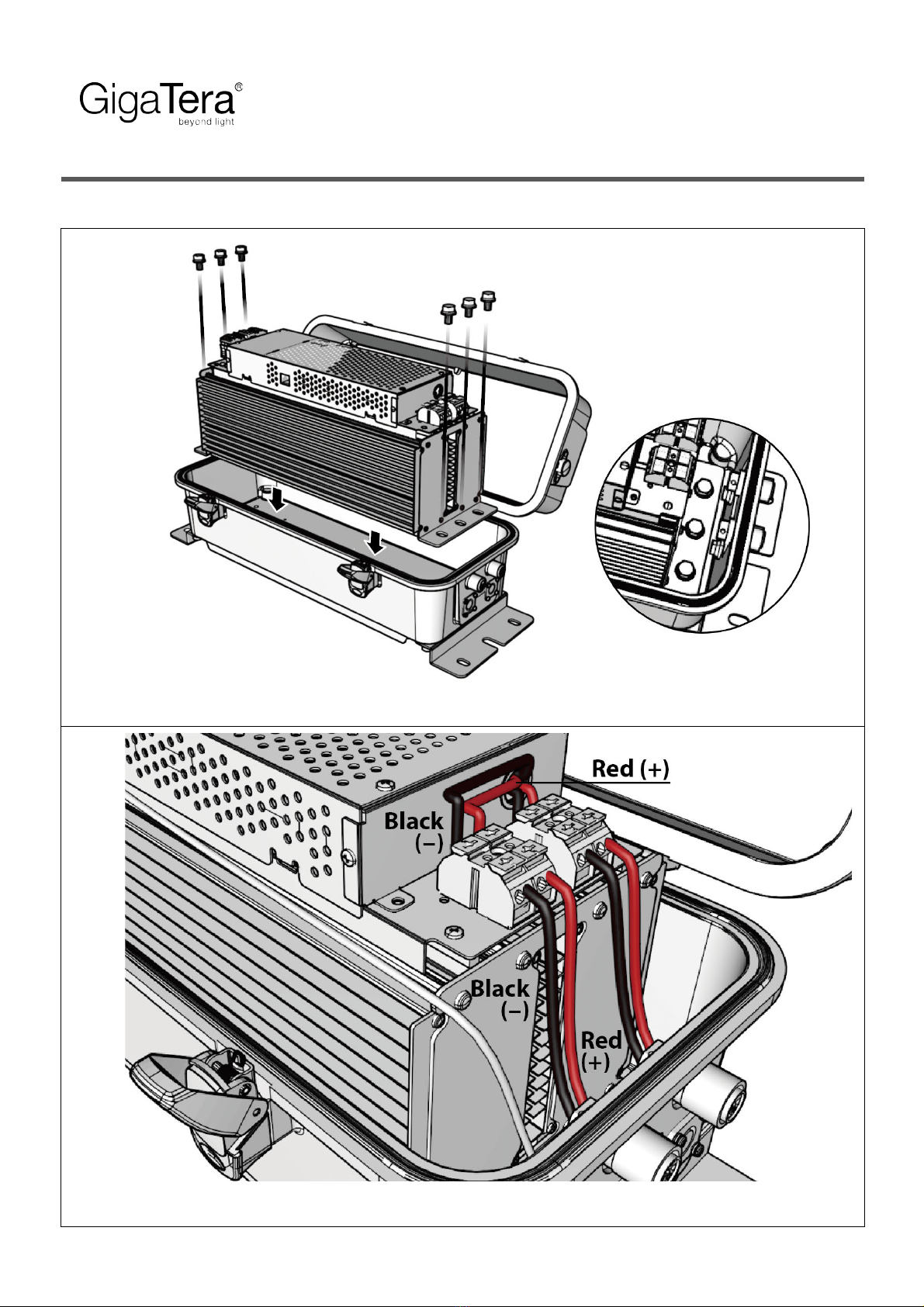

Secure the Remote Driver inside the IP Box with the bolts.



Assemble the DC cables on the Remote Driver. Each cable color must match. (Red + / Black -)

* The DC cable maximum length is 70 meters between the fixture to driver.

User Guide

SUFA-H

LED Sports Flood Lighting

GigaTera Inc.

3, Dongtansandan 6-gil, Dongtan-myeon, Hwaseong-si, Gyeonggi-do, South Korea

Tel : +82-31-370-8800 / E-Mail : ledsales@gigateraled.com / Homepage : www.gigateraled.com

Installation Instruction



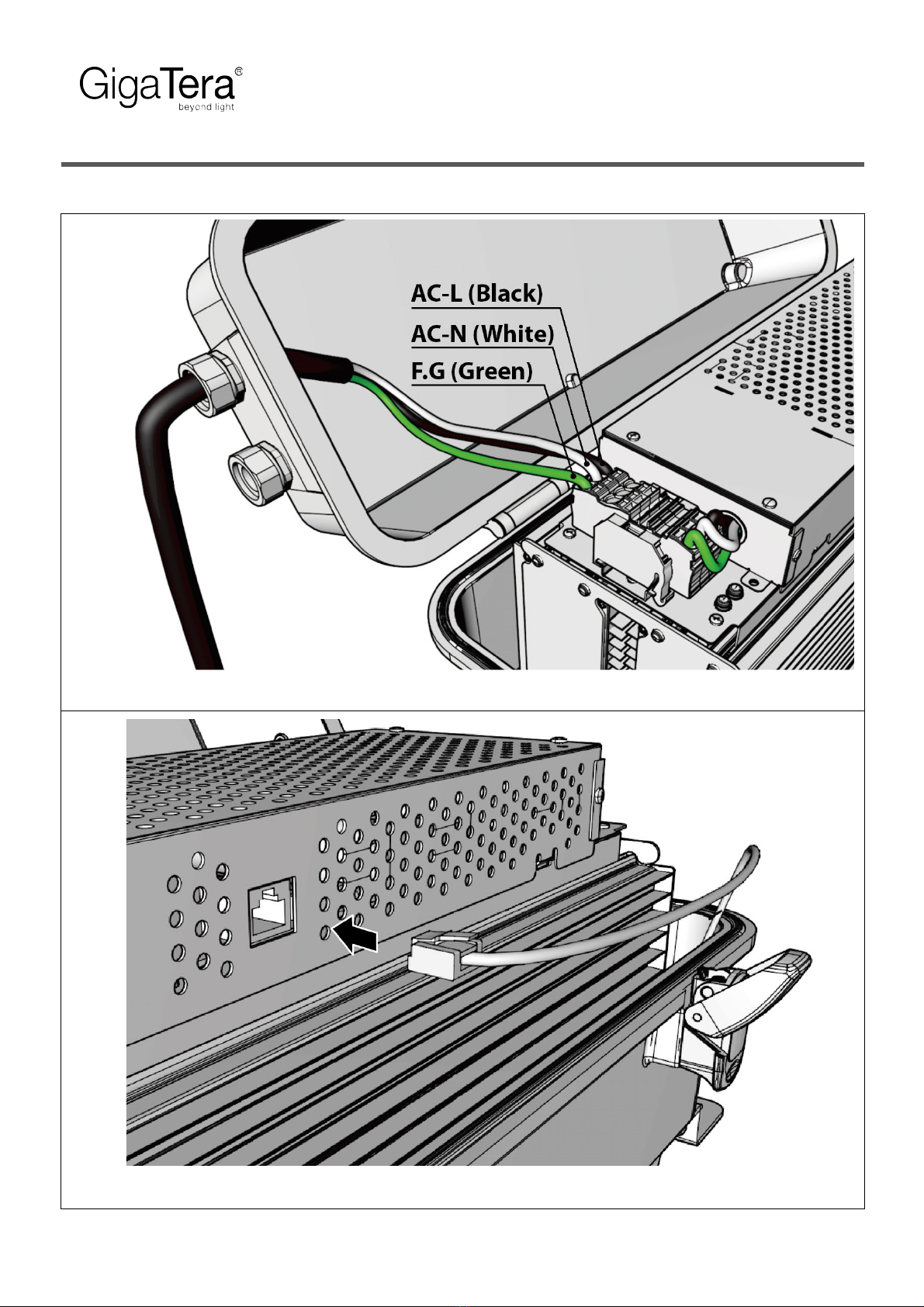

Assemble the AC Cable on the Remote Driver. Please match the cable colors as shown.



Assemble the LAN cable to the Remote Driver. This LAN Cable is used for wired control option.

User Guide

SUFA-H

LED Sports Flood Lighting

GigaTera Inc.

3, Dongtansandan 6-gil, Dongtan-myeon, Hwaseong-si, Gyeonggi-do, South Korea

Tel : +82-31-370-8800 / E-Mail : ledsales@gigateraled.com / Homepage : www.gigateraled.com

Installation Instruction



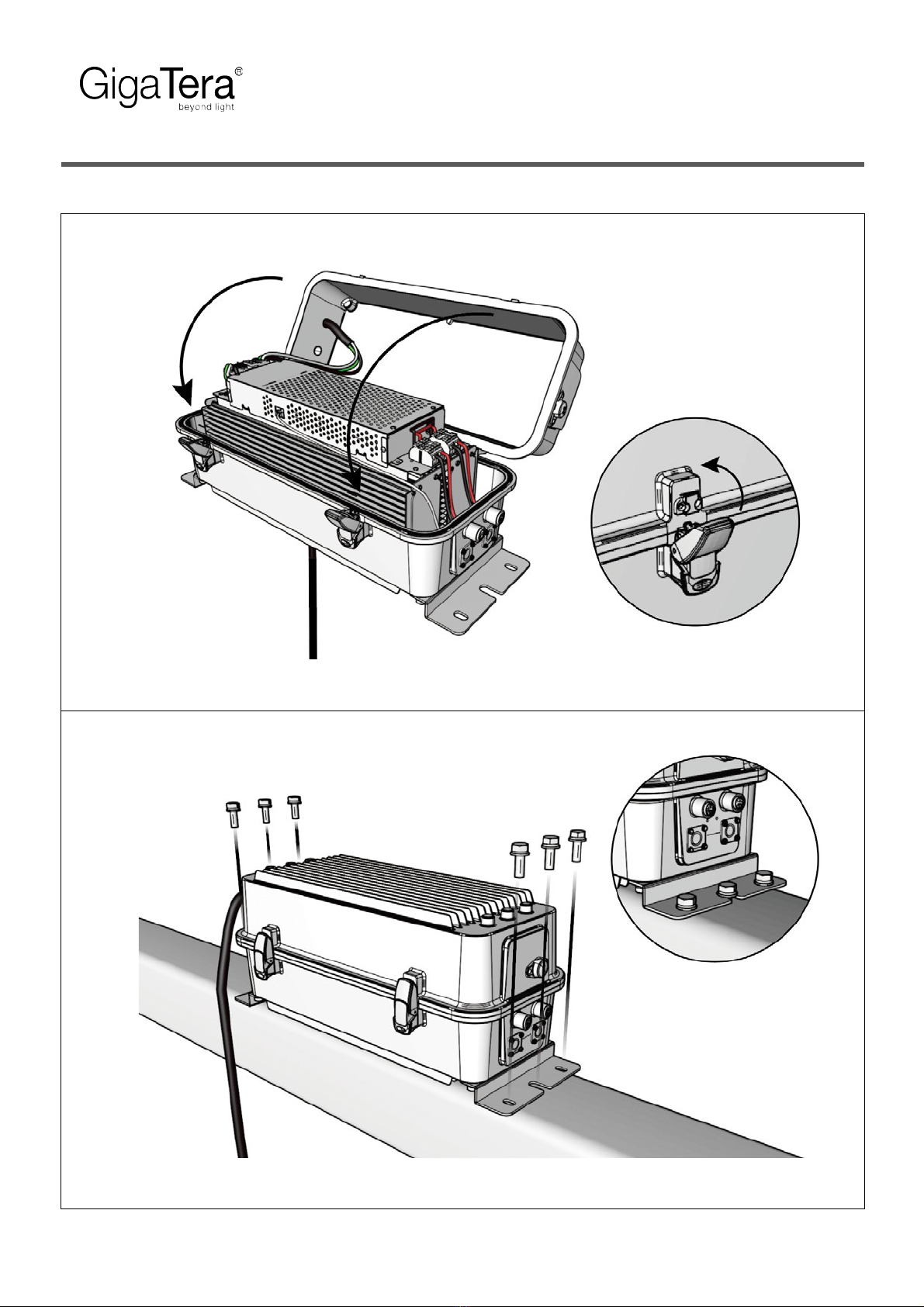

Close the case cover of the IP Box and lock the latch.



Secure the IP Box on to the pole with the bolts.

User Guide

SUFA-H

LED Sports Flood Lighting

GigaTera Inc.

3, Dongtansandan 6-gil, Dongtan-myeon, Hwaseong-si, Gyeonggi-do, South Korea

Tel : +82-31-370-8800 / E-Mail : ledsales@gigateraled.com / Homepage : www.gigateraled.com

Installation Instruction



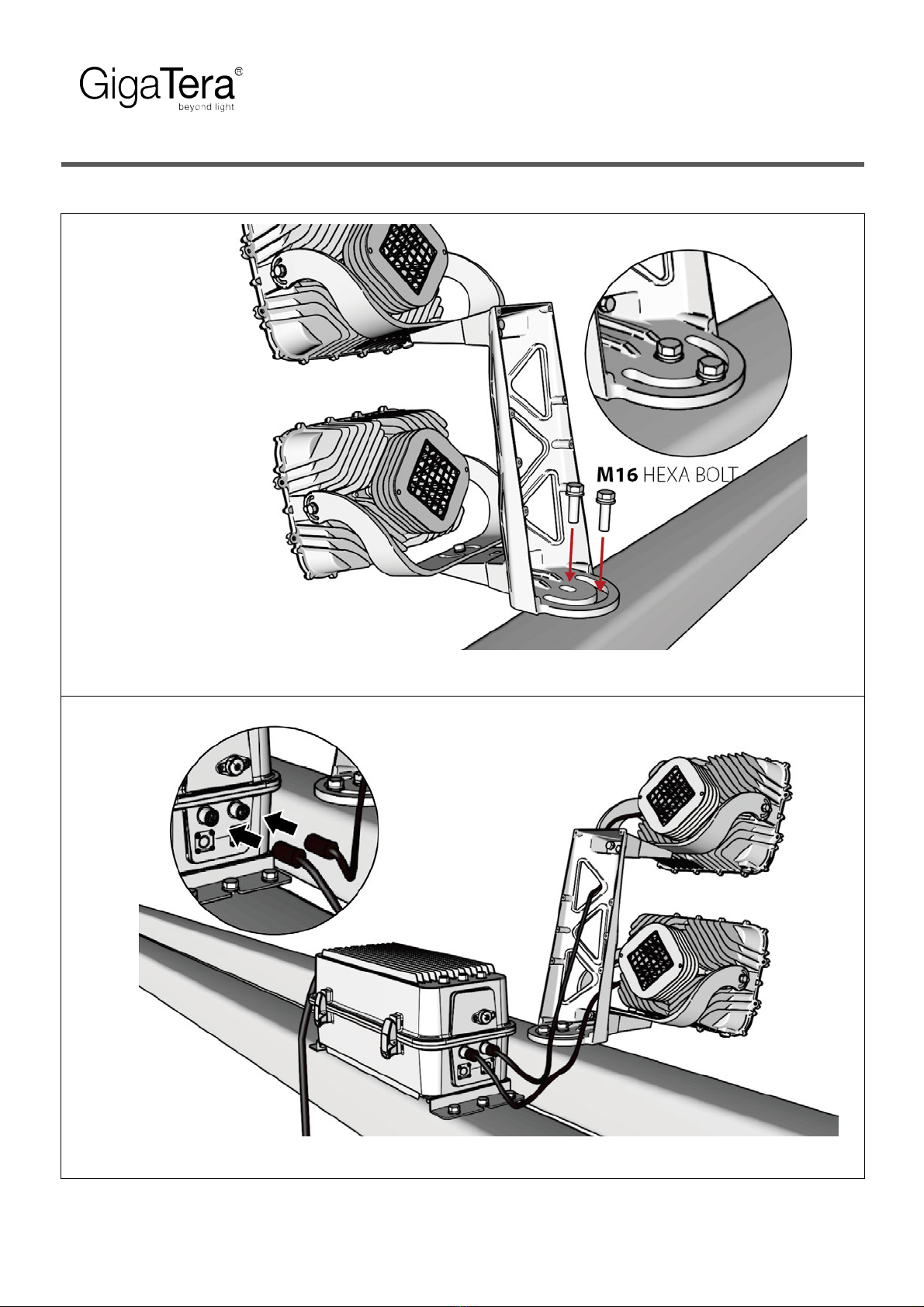

Secure the fixture on to the pole with the bolts. (M16 Hexa Bolt x 2ea)



Assemble the DC cable connector to the Remote Driver.

User Guide

SUFA-H

LED Sports Flood Lighting

GigaTera Inc.

3, Dongtansandan 6-gil, Dongtan-myeon, Hwaseong-si, Gyeonggi-do, South Korea

Tel : +82-31-370-8800 / E-Mail : ledsales@gigateraled.com / Homepage : www.gigateraled.com

Installation Instruction



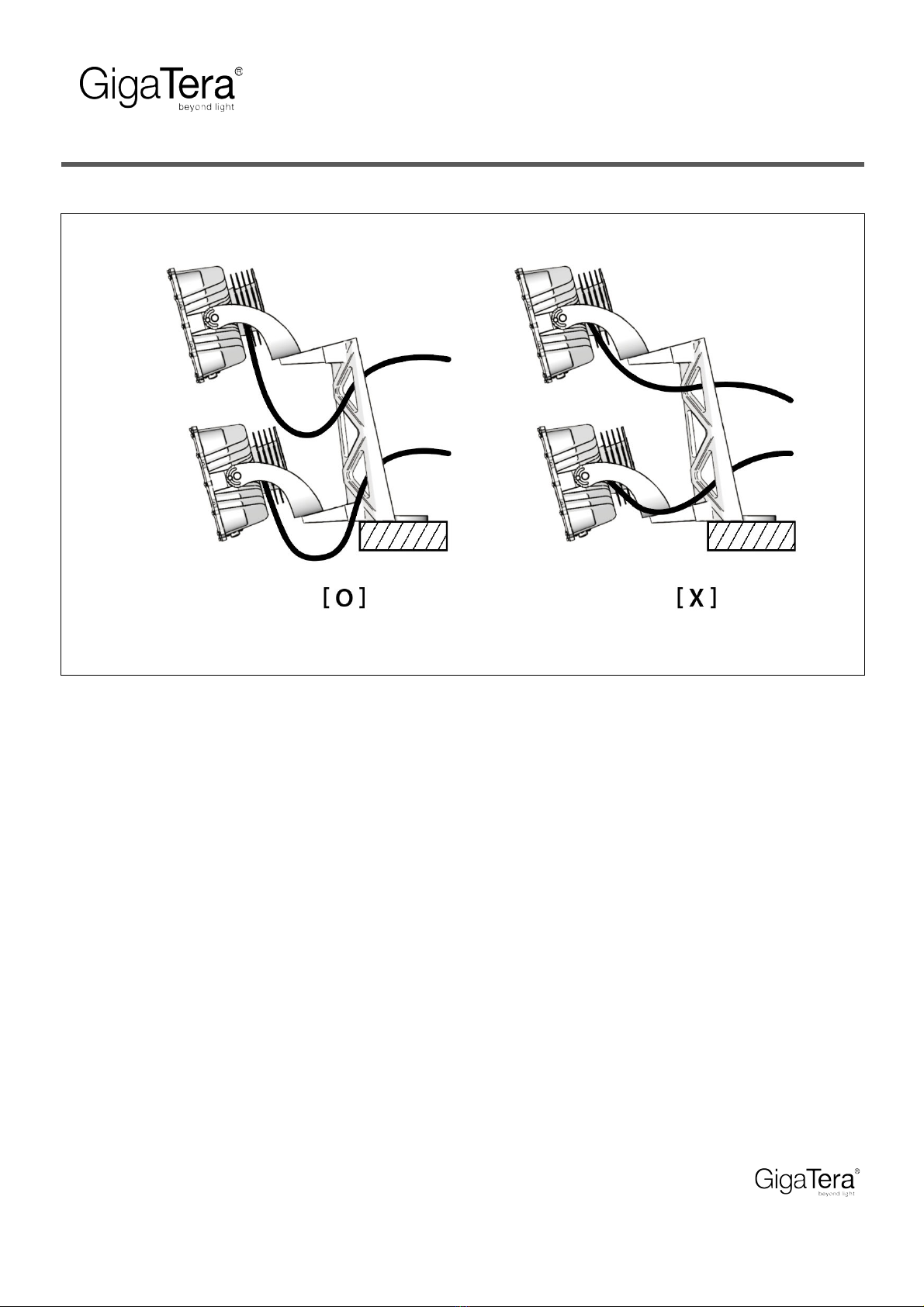

Secure proper length of DC cable considering movement of Fixture.

The information in this document is subject to change without notice. / Document Revision V2.2 / 2018.06.11!
