Gilera Runner 125 Manuale utente
GILERA WOULD LIKE TO THANK YOU
for choosing one of its products. We have prepared this manual to help you to get the very best from your vehicle. Please read it carefully before riding
the vehicle for the first time. It contains information, tips and precautions for using your vehicle. It also describes features, details and devices to assure
you that you have made the right choice. We believe that if you follow our suggestions, you will soon get to know your new scooter and it will serve you
well for a long time to come. This booklet forms an integral part of the vehicle; should the vehicle be sold, it must be transferred to the new owner.
Runner 125
Ed. 01_03/2012
The instructions given in this manual are intended to provide a clear, simple guide to using your vehicle; this booklet also details routine maintenance
procedures and regular checks that should be carried out on the vehicle at an authorised Dealer or Service Centre. The booklet also contains
instructions for simple repairs. Any operations not specifically described in this booklet require the use of special tools and/or particular technical
knowledge: to carry out these operations, refer to any authorised Dealer or Service Centres.
2
Personal safety
Failure to completely observe these instructions will result in serious risk of personal
injury.
Safeguarding the environment
Sections marked with this symbol indicate the correct use of the vehicle to prevent dam-
aging the environment.
Vehicle intactness
The incomplete or non-observance of these regulations leads to the risk of serious
damage to the vehicle and sometimes even the invalidity of the guarantee.
The signs that you see on this page are very important. They are used to highlight parts
of the booklet that should be read with particular care. The different symbols are used
to make each topic in the manual simple and quick to locate.
3
4
INDEX
VEHICLE...................................................................................... 7
Dashboard................................................................................ 8
Instruments............................................................................... 9
Digital lcd display...................................................................... 11
Setting the total and trip odometers...................................... 12
Setting the hour/minutes function.......................................... 13
Key switch................................................................................. 14
Locking the steering wheel.................................................... 14
Releasing the steering wheel................................................ 14
Switch direction indicators........................................................ 15
Horn button............................................................................... 15
Light switch............................................................................... 16
Start-up button.......................................................................... 16
The immobilizer system............................................................ 16
Keys...................................................................................... 17
Immobilizer device enabled indicator led.............................. 18
Operation............................................................................... 18
Programming the immobilizer system................................... 19
Fuel tank................................................................................... 20
Opening the saddle............................................................... 21
Identification.............................................................................. 21
USE.............................................................................................. 23
Checks...................................................................................... 24
Refuelling.................................................................................. 24
Tyre pressure............................................................................ 26
Running in................................................................................. 27
Starting up the engine............................................................... 27
Difficult start up......................................................................... 28
Stopping the engine.................................................................. 30
Catalytic silencer....................................................................... 30
Automatic transmission............................................................. 31
Safe driving............................................................................... 32
Air conveyors............................................................................ 33
MAINTENANCE........................................................................... 35
Engine oil level.......................................................................... 36
Engine oil level check............................................................ 36
Warning light (insufficient oil pressure)................................. 37
Engine oil change.................................................................. 37
Hub oil level.............................................................................. 39
Tyres......................................................................................... 40
Spark plug dismantlement........................................................ 41
Removing the air filter............................................................... 42
Secondary air system............................................................... 43
Cooling fluid level...................................................................... 44
Checking the brake oil level...................................................... 46
Battery....................................................................................... 47
Use of a new battery............................................................. 48
Long periods of inactivity.......................................................... 49
Fuses........................................................................................ 50
Front light group........................................................................ 53
Headlight adjustment............................................................. 54
Front direction indicators........................................................... 55
Rear optical unit........................................................................ 56
Rear turn indicators................................................................... 57
Rear-view mirrors...................................................................... 58
Idle adjustment.......................................................................... 58
Front and rear disc brake.......................................................... 59
Puncture.................................................................................... 61
Periods of inactivity................................................................... 61
Cleaning the vehicle.................................................................. 62
Troubleshooting........................................................................ 63
TECHNICAL DATA...................................................................... 67
Toolkit....................................................................................... 72
SPARE PARTS AND ACCESSORIES........................................ 73
Warnings................................................................................... 74
SCHEDULED MAINTENANCE.................................................... 75
5
Runner 125
Chap. 01
Vehicle
7
Dashboard (01_01)
01_01
8
1 Vehicle
A= Rear brake control;
B= Turn indicator switch;
C= Horn button;
D= Lights switch;
E= Instrument panel;
F= Ignition switch;
G= Starter button;
H= Accelerator command;
I= Front brake command;
Instruments (01_02)
9
1 Vehicle
01_02

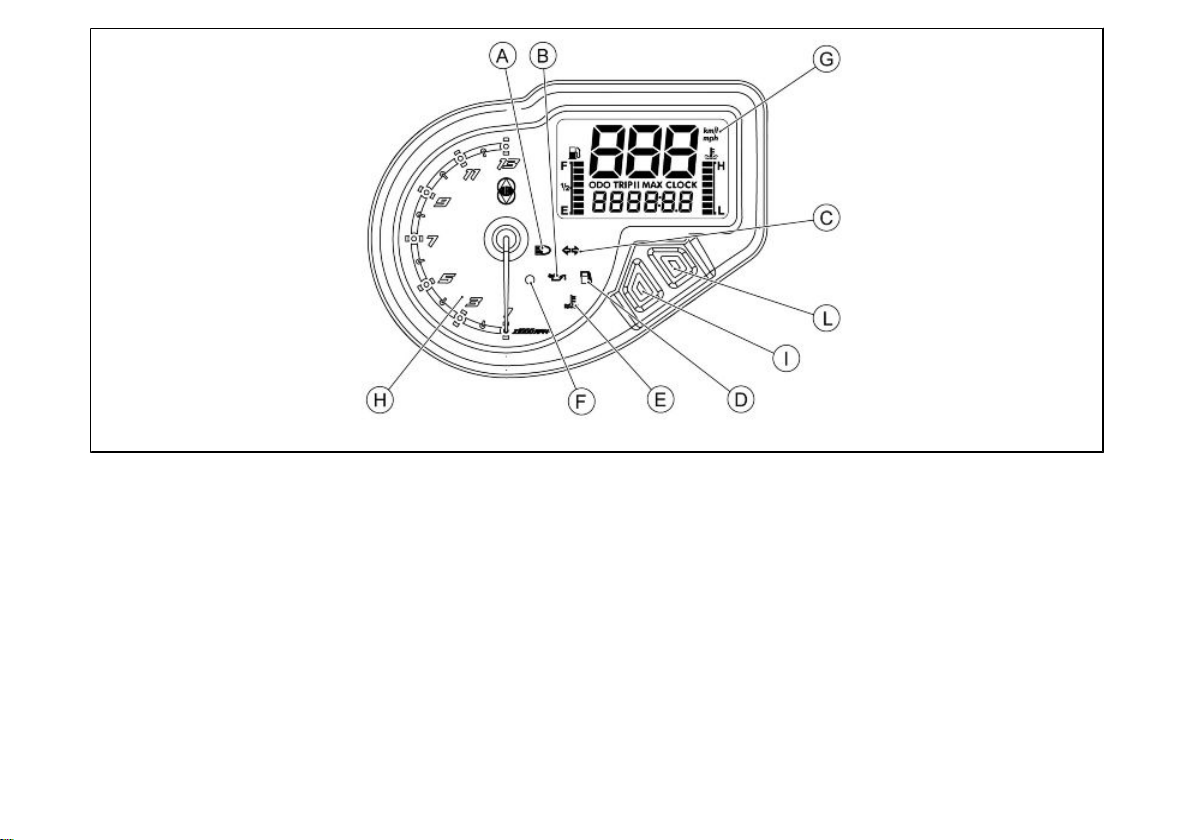

A= High beam warning light;
B= Engine oil pressure warning light;
C= Turn indicator warning light;
D= Low fuel warning light;
E= Coolant temperature too hot warning light;
F= Immobiliser warning light;
G= Digital display;
H= Rpm indicator;
10
1 Vehicle
